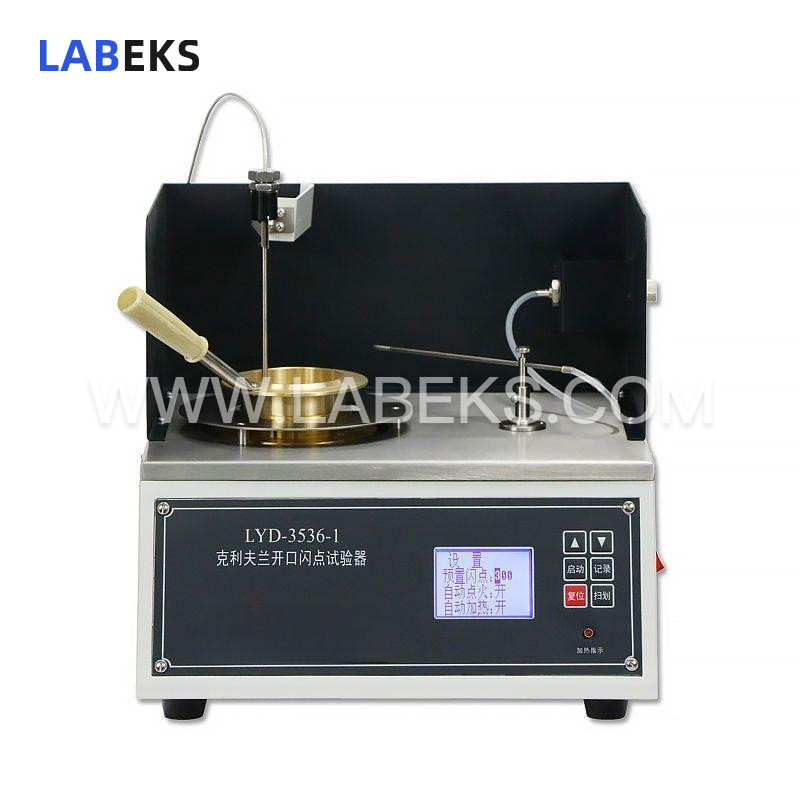

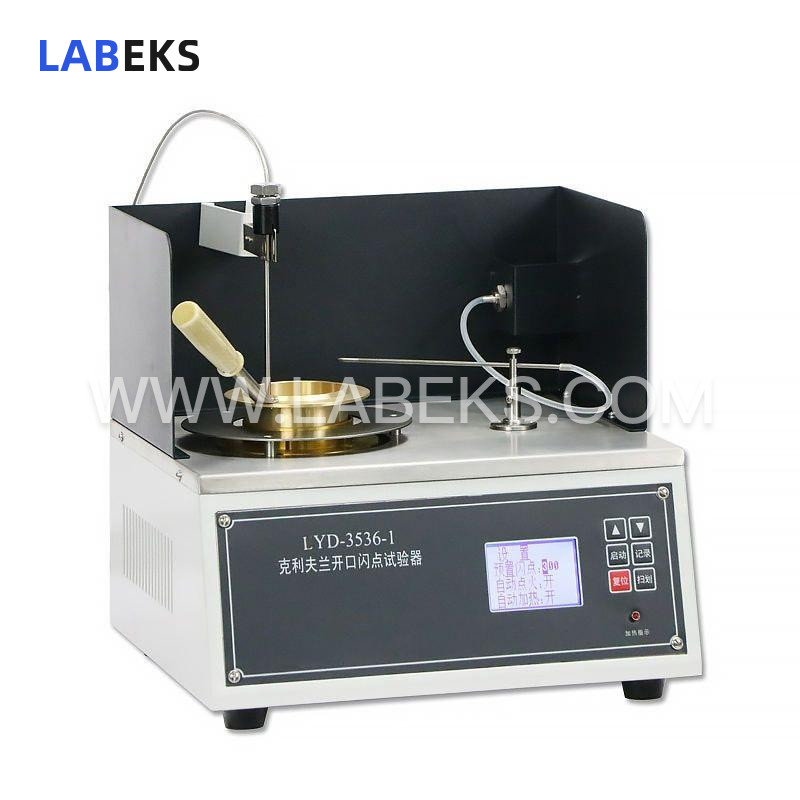

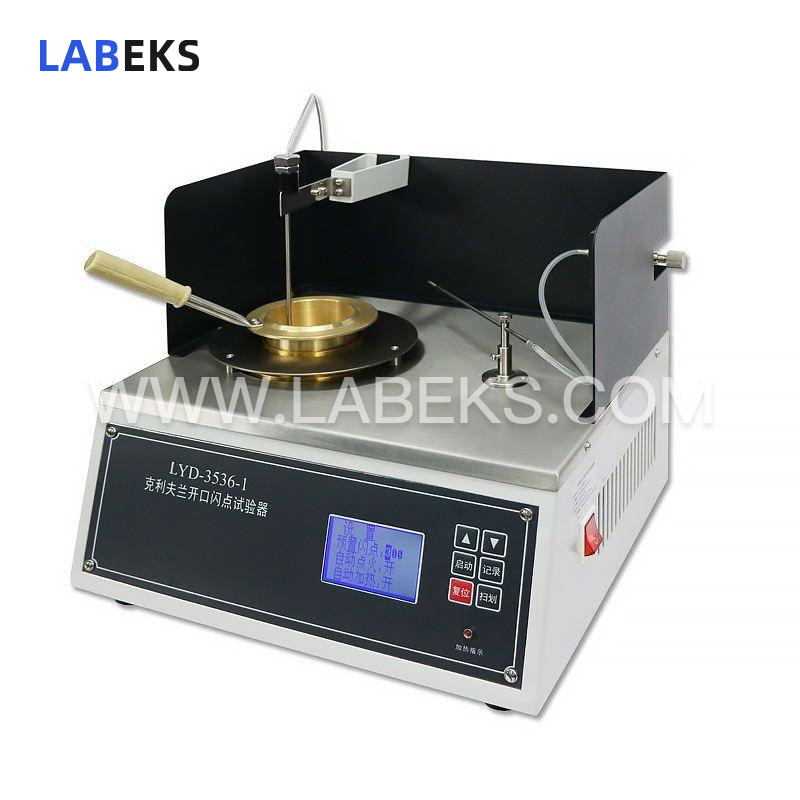

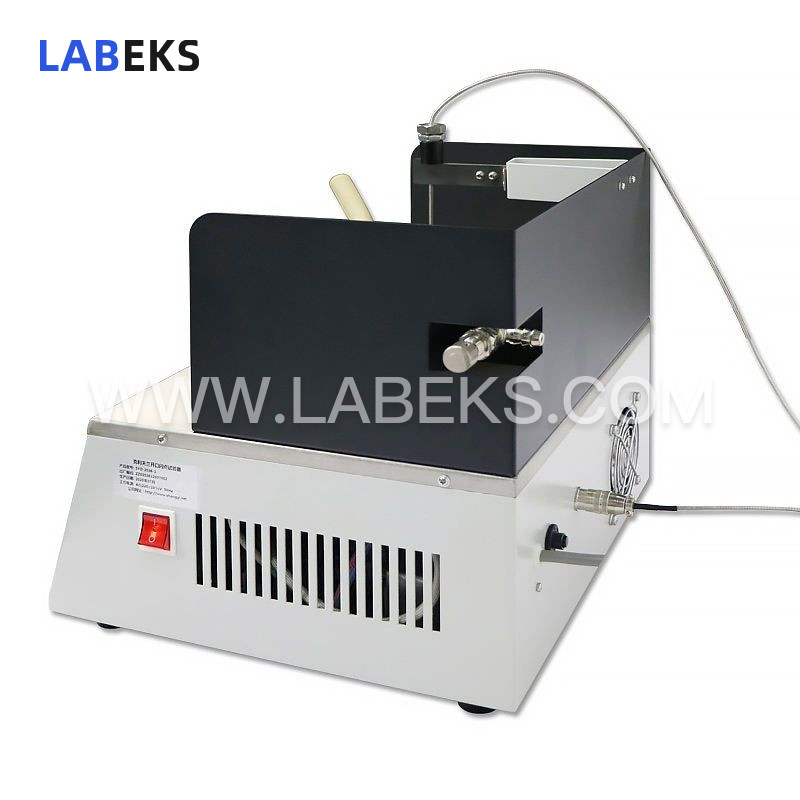

LCD Cleveland Petroleum Open-Cup Flash Point Tester with Automated Testing for Petroleum Product Analysis
Engineered to measure flash and fire points via the Cleveland Open-Cup method, this Cleveland Petroleum Open-Cup Flash Point Tester includes a precision-aligned pivotable flame applicator, brass test cup, and critical components for consistent testing at specified temperature intervals.
- modelLYD-3536-1
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Manufactured in strict compliance with GB/T3536-2008 Petroleum Products – Determination of Flash and Fire Points – Cleveland Open Cup Method and ASTM D 92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester, this instrument is suitable for all petroleum products with flash points above 79℃ and below 400℃, excluding fuel oils.
features
1. Boasts precise heating rate control and supports automated test execution for streamlined, consistent operations.
2. Its LCD screen features a guided menu interface with prompt-type input, displaying preset parameters and real-time sample temperature data; pressing the record button when the flash point is detected triggers on-screen display and automatic saving of the measured value.
3. Incorporates single-chip microcomputer technology and an English human-machine interface; the electric heating system offers continuous adjustability, enabling straightforward parameter configuration.
4. Features a compact, newly designed structure with a stainless steel work surface for a sleek, durable build; it operates with coal gas or other civil gas supplies, ensuring ease of use and accurate test outcomes.
5. Is fitted with a wind shield and flame extinguishing hood that fully comply with official test protocol requirements.
6. Note: Operators are only required to monitor for flash point occurrence, making this a highly cost-effective testing solution.
specifications
Model | LYD-3536-1 | |
|---|---|---|
Power supply | AC( 220±10% )V, 50Hz | |
Maximum power consumption | 650W | |
Heating device | Electric furnace heating, no naked fire, explosionprevented. The power is adjustable from 0W to 600W. The max heating temperaturecan reach 400℃. | |
Temperature control | Single chip microcomputer. The heating rate can meetrequirements of standards GB/T 3536-2008 and ASTM D92. | |
Temperature | display | LCD shows temperature parameters |
range | 0℃～400℃ | |
accuracy | 0.1℃ | |
Flash point detecting device | It applies the test flame automatically | |
Igniting device | Ignition source | coal gas (or civil gas) |
Flame diameter | 3.2mm～4.8mm | |
Temperature sensor | RTD, PT100 | |
Suitable environment | Ambient temperature | （-10～50）℃ |
Relative humidity | ≤85% | |
Dimension | 340mm×320mm×450mm (Temperature sensor is included) | |
