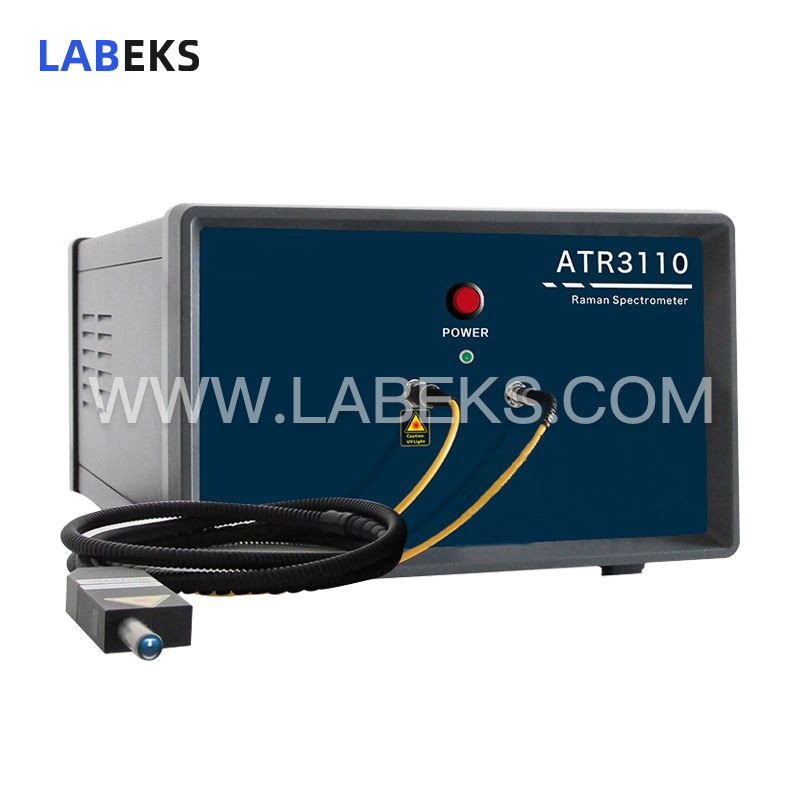

LATR3110 Series Portable Raman Spectrometer with 266-1064nm Wavelengths for Scientific Analysis
Equipped with selectable 266nm to 1064nm excitation wavelengths and a 2048-pixel cooled CMOS detector (down to -5℃), the Portable Raman Spectrometer delivers optimized SNR and extended dynamic range, making it a trusted tool for scientific research applications globally.
- modelLATR3110 Series
- brandLABEKS
- min. order1 pcs

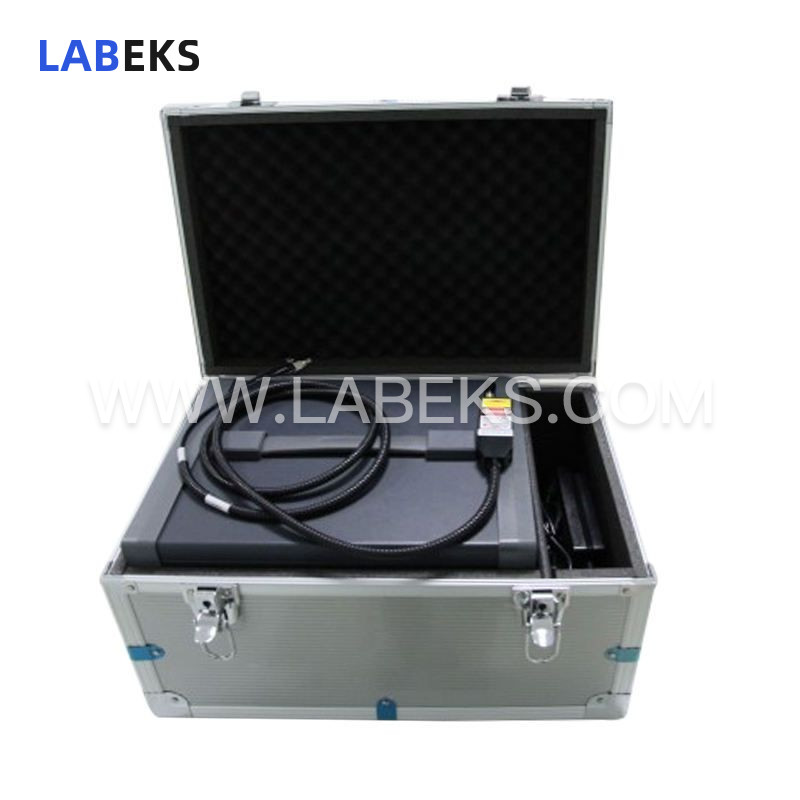

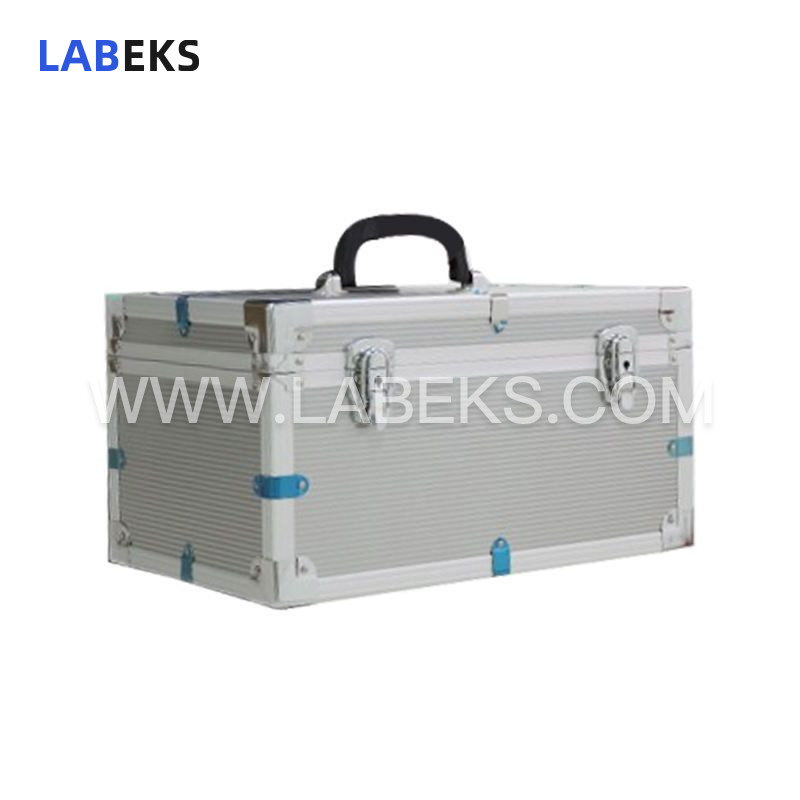

- packageplywood case package
description
The LATR3110 Series boasts a compact, lightweight design with low power consumption, enabling laboratory-grade Raman detection to be conducted anywhere. Ideal for laboratory-based scientific research, it provides accurate, reliable detection results. Its exceptional ultra-low stray light performance supports use across diverse sectors, including biochemical analysis, food safety, and pharmaceutical engineering. Integrated multifunctional software streamlines spectral analysis workflows for all relevant applications.
The LATR3110-1064nm model minimizes fluorescence interference, making it perfect for testing highly fluorescent samples such as dyes, inks, petroleum products, and biological specimens.
Applications:
1. Biological Sciences
2. Materials Science
3. Pharmaceutical Engineering
4. Forensic Science
5. Agricultural & Food Safety
6. Gemstone Authentication
7. Environmental Sciences
8. Graphene Analysis
9. Nanomaterials Research
Item | Excitation Wavelength（nm） | Maximum laser power（mW） | Spectral Range (cm⁻¹) | Resolution (nm) | Key Benefits |
|---|---|---|---|---|---|
LATR3110-27 | 785 | 550 | 250-2700 | 6 | Suitable for most standard applications |
LATR3110-35 | 200-3500 | 8 | |||
LATR3110-43 | 200-4300 | 10 | |||
LATR3110-266 | 266 | 50 | 200-3000 | 25 | |
LATR3110-532 | 532 | 100 | 200-3200 | 10 | |
LATR3110-633 | 633 | 80 | 200-3200 | 10 | |
LATR3110-830 | 830 | 550 | 200-3300 | 7 | Enhanced skin penetration for biological samples; enables non-invasive blood glucose monitoring and early cancer diagnosis |
LATR3110-1064 | 1064 | 500 | 200-2600 | 13 | Fluorescence-free, non-destructive, high-sensitivity, high-SNR performance. Compatible with dark-colored, fluorescent, biological, bacterial, plastic, fuel, petroleum, vegetable oil, and explosive samples |
features
1. 2048 CMOS detector cooled down to -5℃;
2. High-sensitivity 2048-pixel cooled CMOS detector;
3. Ultra-low noise circuit design;
4. Robust embedded analytical software;
5. Intuitive user-friendly human-machine interface;
6. Integrated peak finding and real-time display capabilities;
7. Windows 10 operating system compatibility;
8. USB 2.0 high-speed data transfer interface;
specifications
Model | LATR3110 |
|---|---|
Interface | USB 2.0 |
Integrationtime | 1ms – 60s |
OperatingTemperature | -10~40℃ |
Operatinghumidity | <95% |
Dimension(L*W*H) | 329.4x256x164.5mm |
Weight | 5 Kg |
PowerVoltage | DC5V(+/-5%) |
MaximumPower Output | ≥500 mW |
RamanSpectrometer Reliability | |
Spectralstability | σ/μ<0.5% (COT 8 hours) |
Temperaturestability | Spectralshift≤1 cm-1(10-40℃) |
Variationof intensity(in 5 ~ 40℃) | <±5% |
RamanSpectrometer Optical Parameters | |
Spectralrange (cm-1) | 200-2700cm-1200-3500cm-1200-4300cm-1 |
resolution(cm-1) | 200-2700cm-16nm 200-3500cm-18nm 200-4300cm-110nm |
SNR | >3000:1 |
Entranceslit | F/4Crossed C/T |
Focusing | 112mmfor incidence and output |
Sensitivity | 1800:1 |
RamanSpectrometer Detector | |
Item | Ultra-highsensitivity, quick cooling CCD |
Detectorcooled down to | -5℃ |
Detectingrange | 200-1100nm |
Effectivepixels | 2048*64pixels |
Dynamicrange | ＞10000:1 |
Pixelsize | 14×200μm |
RamanSpectrometer Laser Parameters | |
Centralwavelength | 785nm |
Laser Linewidth | ≤0.1nm |
Poweroutput | ≥600 mW |
Powerstability | σ/μ<±0.5% |
RamanSpectrometer Probe | |
Operatingdistance | 6 mm |
Rayleighscattering resistance | OD>8 |
NumericalAperture | 0.3 |
Aperture | 7mm |
