Laboratory Syringe Pump: High-Precision Fluid Transfer for Scientific Research
An intelligent injection solution, a syringe pump delivers fluids accurately, uniformly, and continuously, making it ideal for pharmaceutical administration and high-precision scientific research applications.
- modelLYD Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description

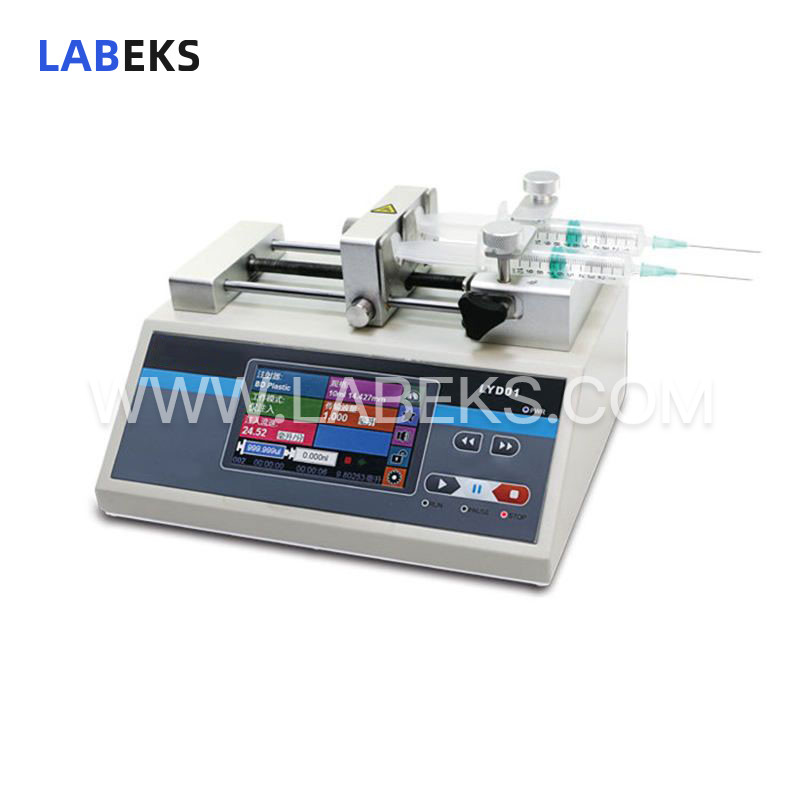

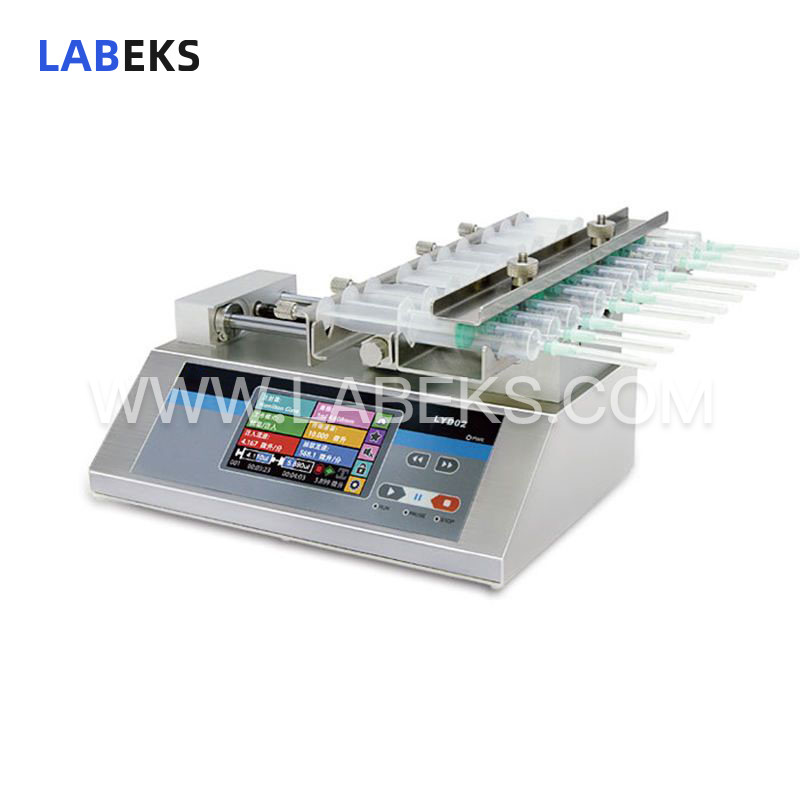

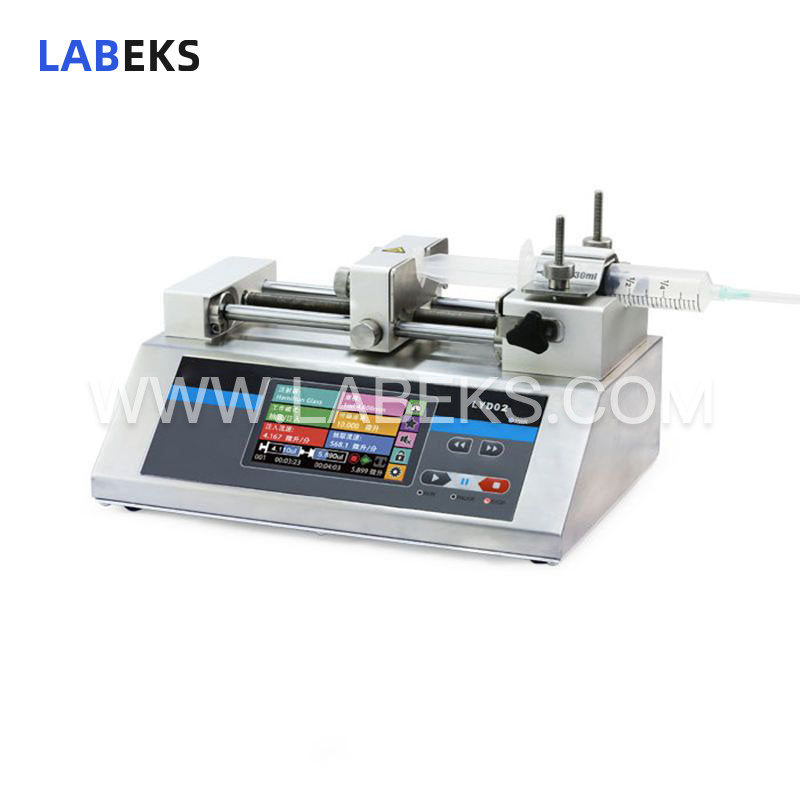

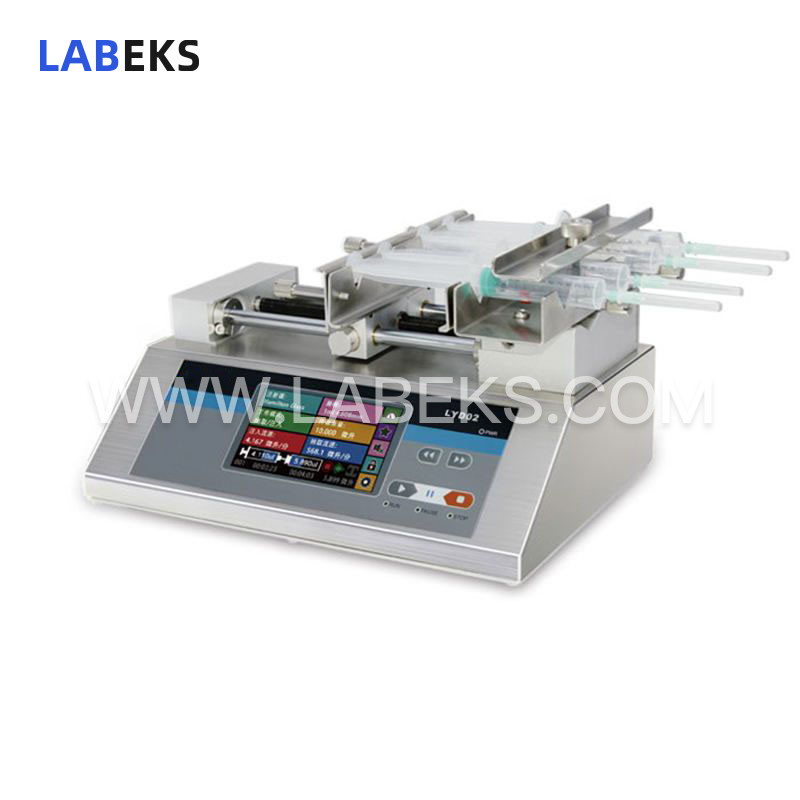

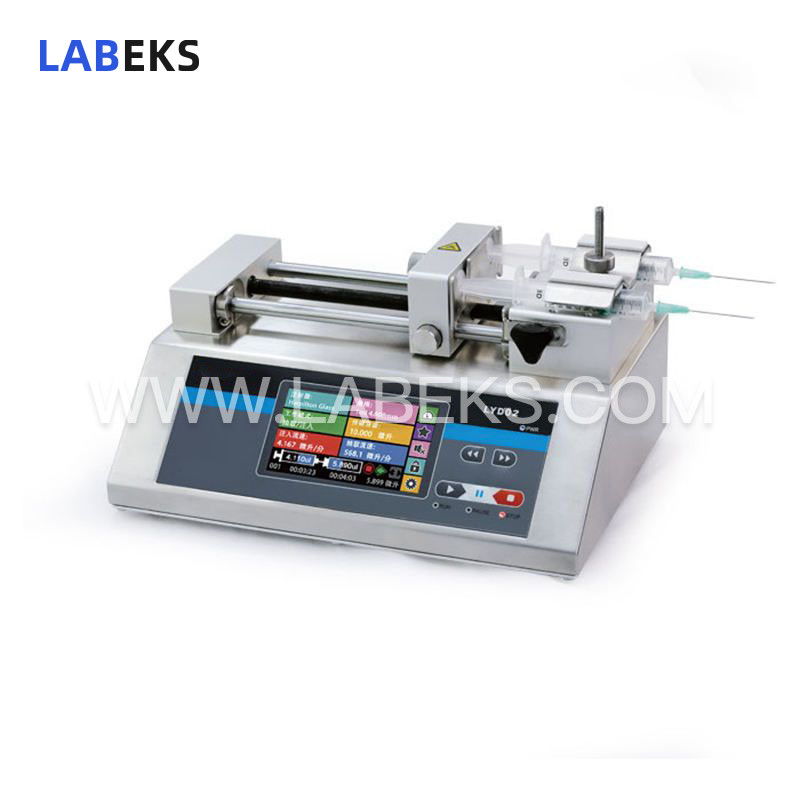

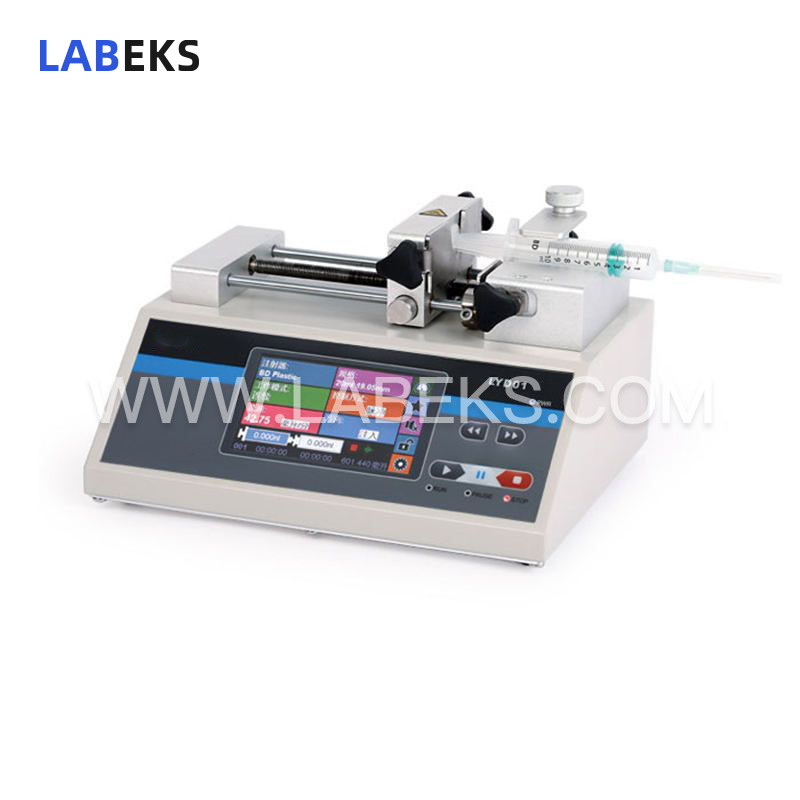

● The LYD Series Syringe Pump features an integrated benchtop design, paired with a 4.3-inch high-definition LCD touchscreen for intuitive display and operation. It accommodates 1～10 plastic or gas-tight syringes, with syringe sizes ranging from 10μl～140ml and a flow rate span of 0.184nl/min～173.718ml/min.
● Equipped with a high-performance control system and precision mechanical structure, the pump achieves linear travel accuracy <±0.35%. With multiple selectable working modes and robust functionality, it is perfectly suited for high-precision micro-transmission of various fluids in scientific research and experimental settings.
● The drive screw is secured via high-strength aviation-grade bearings. Compared to traditional copper sleeve bearings, this design significantly extends screw service life while maintaining higher operational accuracy.
● Boasting robust anti-EMI performance, the pump operates continuously and stably even in high-voltage electrostatic fields.
● With RS485 communication and MODBUS protocol compatibility, the pump can be integrated into automated control systems with multiple hosts including computers, PLCs, and single-chip microcomputers.
features
• High-accuracy control with linear travel error <±0.35%
• Supports multiple configurable working modes for versatile operations
• Accommodates 1 to 10 plastic syringes or gas-tight syringes
• Compatible with a wide range of standard syringes; custom syringe configurations are supported
• Intuitive color LCD touchscreen for convenient, user-friendly operation
• Illuminated control buttons for clear visibility of working status
• Supports screen lock and key mute operation to prevent unintended interference
• Integrated syringe protection mechanism and blockage alarm system
• RS485 communication interface with MODBUS protocol support
• External signal control for start-stop and transfer direction adjustments
• Wide-range AC power input for global operational compatibility
• Full-metal enclosure with anti-static, anti-corrosion spray coating for durability
specifications
Model | LYD01-01 | LYD01-02 | LYD02-01 | LYD02-02 | LYD03-01 | LYD02-04 | LYD02-10 | LYD02-06 | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Work mode | infuse,withdraw,infuse/withdraw,withdraw/infuse,continuous mode | |||||||||||
Number ofchannel | 1 | 2 | 1 | 2 | 1 | 4 | 10 | 6 | ||||
Stroke ofpump | 110mm | 140mm | 110mm | 140mm | ||||||||
Advance permicrostep | 0.156μm/μstep | 0.156μm/μstep | 0.03125μm/μstep | 0.156μm/μstep | ||||||||
Linear speed | 1μm/min～150mm/min | 1μm/min～150mm/min | 0.2μm/min～30mm/min | 1μm/min～150mm/min | ||||||||
Linearresolution | 1μm/min | 1μm/min | 0.2μm/min | 1μm/min | ||||||||
Accuracy | error<±0.35%（>30% of pump stroke） | |||||||||||
Max ratedlinear force | >16kgf | >20kgf | >16kgf | >20kgf | ||||||||
Thrustregulation | 1～100% arbitrary adjustable | |||||||||||
Syringe size | 10μl～60ml | 10μl～140ml | 10μl～60ml | 10μl～10ml | 10μl～60ml | |||||||
Syringeselection | built-inmain manufacturers, the main model syringe to choose. Can use custom syringe,direct input syringe size and diameter | |||||||||||
Flow rate | 0.184nl/min～83.318ml/min | 0.184nl/min～173.718ml/min | 0.037nl/min～16.663ml/min | 0.184nl/min～24.520ml/min | 0.184nl/min～83.318ml/min | |||||||
Flowcalibration | through thecalibration procedure to obtain more accurate fluid volume | |||||||||||
Display | 4.3” colorLCD screen display and transfusion volume, residual fluid volume, flow,operation direction ,syringe specification, etc. Animation display operation | |||||||||||
Operationmode | touch screen+ button | |||||||||||
Power-offmemory | storing therunning parameters automatically | |||||||||||
Function | pause andstop, the sound tip, the lock parameters, fast forward and retreat quickly,display brightness adjustment | |||||||||||
State signaloutput | 1 roadstart-stop status ,1 road direction status | |||||||||||
Controlsignal input | 1 roadstartup status ,1 road directional signal | |||||||||||
Communicationinterface | RS485，MODBUS Protocol | |||||||||||
Dimension mm | 245×195×140 | 290×205×180 | 245×195×140 | 290×228×180 | 290×283×180 | 290×263×190 | ||||||
Weight | 3.2kg | 4.4kg | 3.2kg | 4.8kg | 5.2kg | 5.0kg | ||||||
Power supply | AC100～240V，50/60Hz | |||||||||||
Temperature | 5～40℃ | |||||||||||
Relativehumidity | <80% | |||||||||||
