Laboratory Low TOC Ultrapure Water System with 18.2MΩ.cm Resistivity for Analytical Experiments

Engineered to produce consistent low-TOC ultra-pure water, this MT Series ultrapure water system supports critical laboratory workflows including physicochemical testing, biochemical analysis, blood assays, microanalysis, specialized cleaning, and HPLC, IC, GC experiments.

  • model
    MT Series
  • brandLABEKS
  • min. order1 pcs
  • packageplywood case package

description

The MT Series laboratory low TOC ultrapure water system is purpose-built to satisfy the stringent water quality demands of various laboratory applications, including physicochemical detection, biochemical analysis, blood testing, microanalysis, specialized cleaning, and HPLC, IC, GC analytical experiments.

features

1. Features NSF-certified quick-connect pipeline joints, dual-wavelength UV lamps for efficient sterilization and TOC reduction, as well as an imported 5000D ultrafiltration module that effectively eliminates endotoxins.

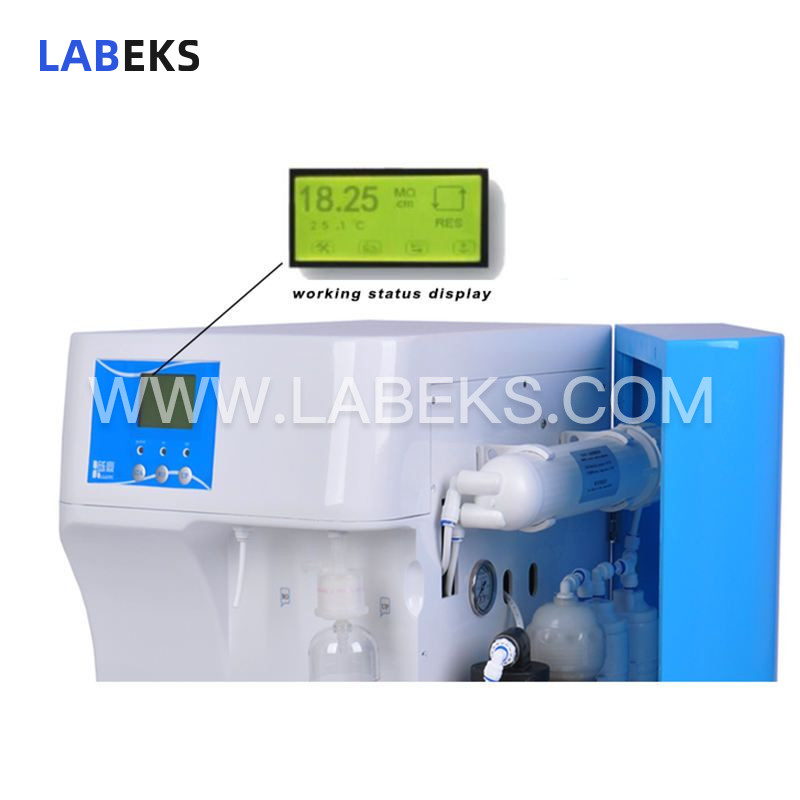

2. Boasts a backlit LCD screen with dual-waterway online monitoring, capable of simultaneously displaying RO conductivity, UP resistivity values, and real-time equipment operation status.

3. Offers menu-based operation for modifying and setting multiple measurement parameters, with various status indicators and alarms to promptly signal equipment conditions, including high-pressure shutdown, low-pressure alerts, and full-tank auto-shutdown.

4. Provides quality alarm prompts for RO and ultra-pure water, supports filter element replacement reminders, allows customizable water withdrawal timing, and features one-touch water dispensing with automatic RO/UP water status indicators.

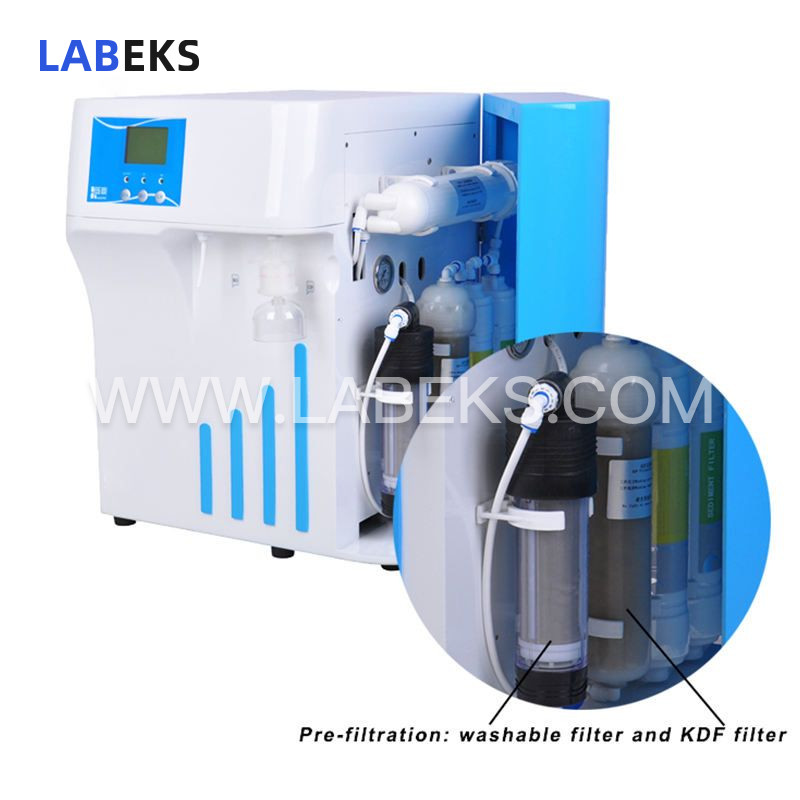

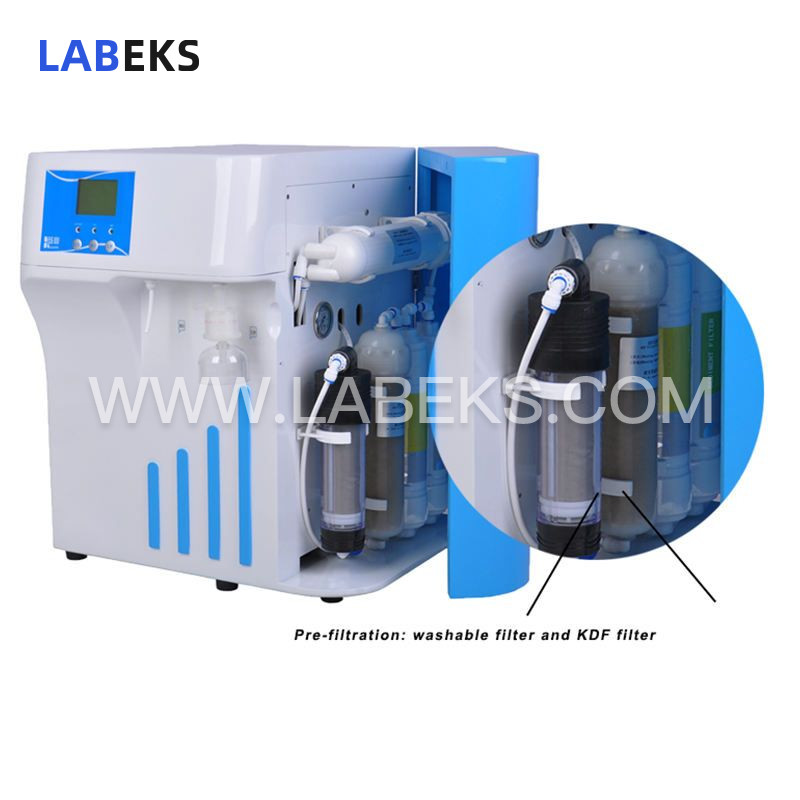

5. Incorporates a long-lasting KDF unit with US-sourced filter media that removes residual chlorine and heavy metals while inhibiting fungal growth at the pre-purification stage, extending the service life of downstream purification components and the ultra-purification column.

6. Integrates a 10 micron 316L stainless steel precision mesh filter (replacing PP cotton filters) for fine impurity removal, featuring a manual drain valve with a soft-scraping design for thorough drainage, automatic on-demand cleaning, a transparent housing for visual filter effect checks, and cost-free filter element replacement.

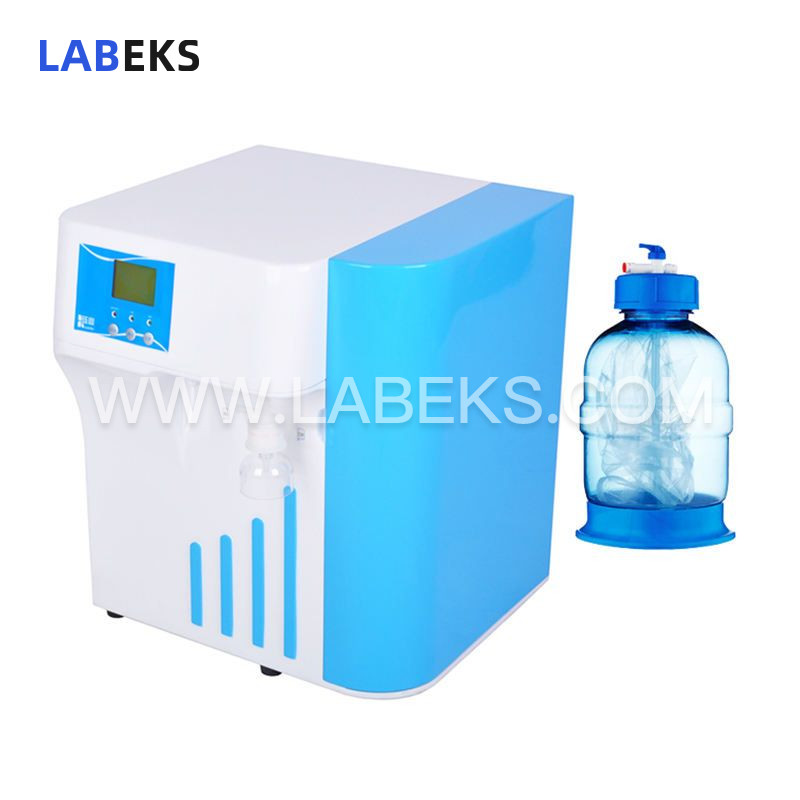

7. Includes an innovative transparent pressure tank with a replaceable inner storage bag made of nano-antibacterial, UV-resistant material that reduces microbial odors, nitrites, and other organic compounds, effectively preventing secondary water contamination within the tank.

8. Features a powder-coated cabinet with a side-opening door design, and an 11-inch U-shaped Korean quick-connect filter column system for simplified replacement and maintenance, with support for water quality and output capacity upgrades.

9. Comes with a portable test pen for on-demand measurement of TDS levels, conductivity, and water temperature.

specifications

Model

Standard;Eliminating endotoxin; Low TOC; Synthesizing

MT-10

MT-F10

MT-V10

MT-VF10

MT-20

MT-F20

MT-V20

MT-VF20

MT-30

MT-F30

MT-V30

MT-VF30

Process

PRE+KDF+PP+AC+RO+UP+TF

PRE+KDF+PP+AC+RO+UP+UF+TF

PRE+KDF+PP+AC+RO+UP+UV+TF

PRE+KDF+PP+AC+RO+UP+UV+UF+TF

Output(25℃)

10L/H, 20L/H,30L/H

Flow rate

Up to 2liters/minute(with pressure tank)

Pure wateroutlet

2: reverseosmosls water, ultra-pure water

Ultra pure waterquality

Resistivity(25℃)

18.2MΩ.cm

TOC

<10ppb

<10ppb

<3ppb

<3ppb

Bacteria

<0.1cfu/ml

Particle(>0.22μm)

<1/ml

Endotoxin

N/A

<0.001Eu/ml

N/A

<0.001Eu/ml

RO water quality

Ion rejectionrate

95%-99%(new ROmembrane)

Particles and bacteriarejection rate

>99%

Feed waterrequirements

Tap water,temperature: 5-45℃, pressure:0.15-0.4Mpa

Dimension andweight

L*W*H:47*45*55cm/Weight: about 30KG

Electricalrequirements

AC110-240V,50/60Hz

Power

48-240W

Standard configuration

Machine(including1 set of purification column)+terminal filter+ accessories package
