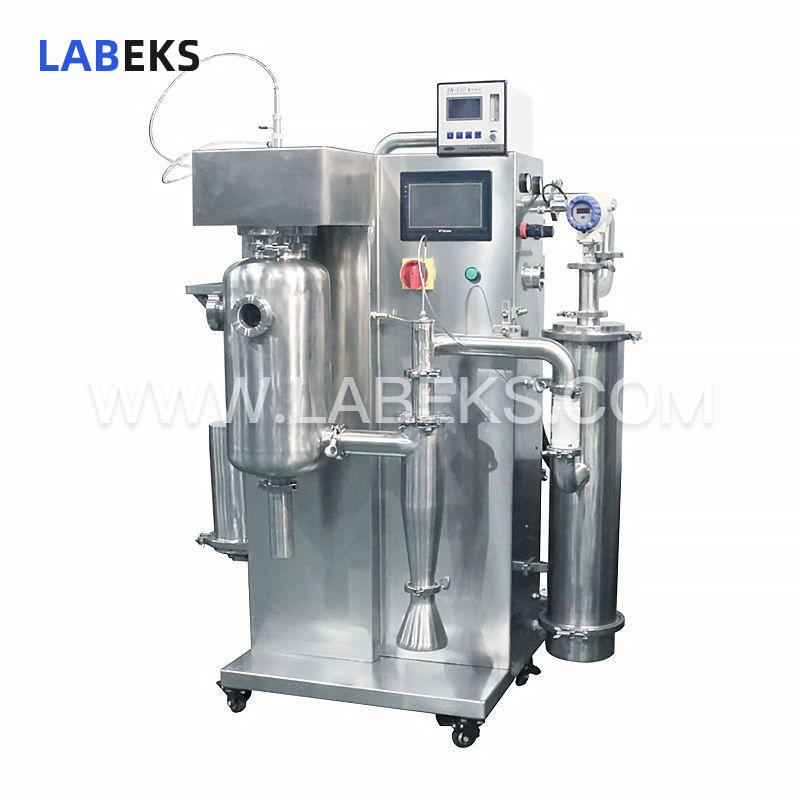

Laboratory Closed Spray Dryer with Solvent Recovery & Ultrafine Powder Capability
Designed for low-flash-point, slightly toxic, flammable and explosive organic solvents, this closed spray dryer uses a circulating nitrogen inert medium instead of standard air for spray drying, enabling simultaneous recovery of target products and organic solvents.
- modelLBL-D1
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Engineered specifically for organic solvent processing, this closed-loop spray drying system employs a circulating nitrogen inert gas medium in place of conventional air. It enables the recovery of both processed products and organic solvents, and is purpose-built for handling organic solvents with low flash points, mild toxicity, or flammable/explosive properties.
features
Equipped with an innovative atomization system featuring a gasket-free, hard-contact mechanical structure that eliminates leakage. Unlike standard electric centrifugal nozzles, this system avoids wire corrosion, plastic sheath degradation, and subsequent short circuits caused by prolonged exposure of nozzle wires to superheated corrosive steam under positive pressure. It produces ultrafine powders ranging from 1-8 microns, ideal for battery material preparation.
Enables recovery of solvents contained in the feed liquid
Supports low-temperature drying operations at temperatures below 100°C
Capable of drying high heat-sensitive feed liquids
Facilitates drying, cooling, and granulation of combustible feed liquids
Prevents oxidation, mitigates operational hazards, and enhances final product quality
Delivers low to zero pollution emissions
Enables easy implementation of aseptic and dust-free operations
Eliminates the need for a separate deodorization unit
Enhances the retention of aromatic components in processed materials
specifications
Model | LBL-D1 |
|---|---|
Ethanol evaporation | 0.8Kg/h |
Minimum feed amount | 50ml |
atomization structure | Atomization system(NZY1VER2018-1A) |
Electronic control system | Special for closed loopatomization system (BLD-ES-VER2018-1A) |
Inlet air temperature(Celsius) | 140 |
Drying chamber diameter (mm) | ￠300 |
Drying tower height (mm) | ￠600 |
Explosion-proof disk diameter(mm) | 65 |
heater capacity | 2Kw |
Induced fan [power (kw), airvolume (m³/h)] | [1.5, 250] |
Compressor [power (kw), airvolume (L / min)] | [0.58, 108] |
Chiller | 50-60Hz (built-in cryogeniccooling circulation pump) |
Electronic control mainaccessories standard (including PLC, analog module, touch screen) (optional) | Wecon control module(standard) |
Selection criteria forelectric control auxiliary accessories (including contactors, etc.)(optional) | Chint (Standard) |
Parts in contact with thematerial (optional) | SUS304 (standard) |
Exhaust gas reuse, savingenergy by more than 30% (optional) | Not assembled (standard) |
Atomizing nozzle (optional,diamond coating or not) | SUS304 (standard) |
Equipment Warranty | 1 year (standard, a certainmaintenance fee will be charged for the above) |
Electricity (installedcapacity) | 4Kw |
Pulse bag filter | PTFE coating material,2pcs |
Dimensions (mm) (L×W×H)Reference | 1400×1000×1600 |
Installation weight(reference) | 200Kg |
Power supply | 380V/-3￠(Related voltages can be customizedaccording to different national standards) |
Notes | 1. Ethanolevaporation is based on the inlet air temperature of 140°C; 2. If you needequipment with larger evaporation capacity, please inquire online or call ourcompany |
