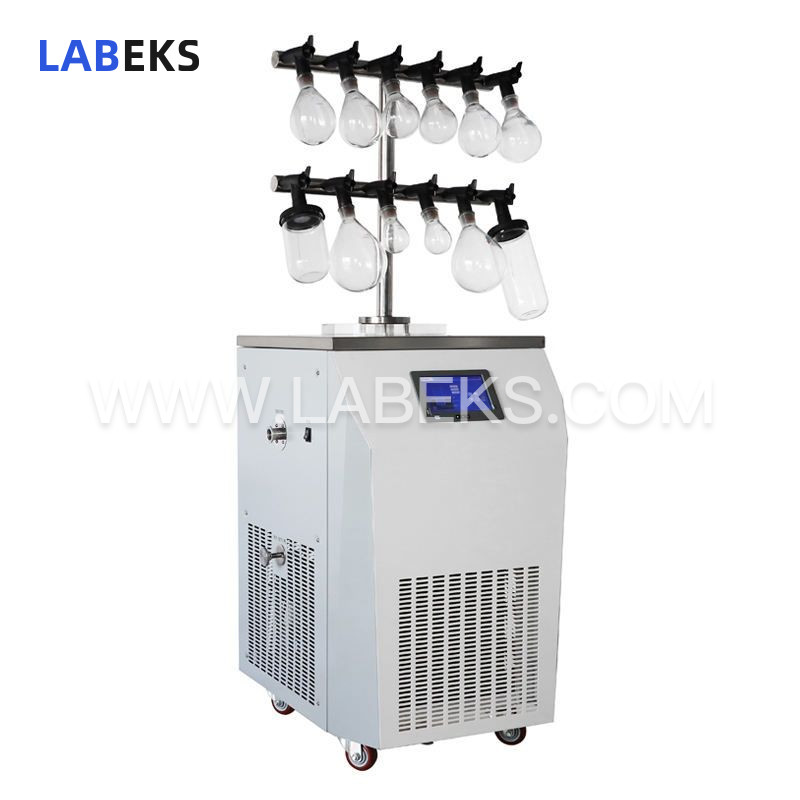

Lab T-Type Freeze Dryer with 24 Ampule Positions for Microbial Strain Preservation
Ideal for preserving bacterial, fungal, and other microbial strains in ampoules, this freeze dryer supports lab-standard ampule sealing post-lyophilization, delivering long shelf life, minimal sample variation, simplified large-scale storage, and versatile applications.
- modelLFD-18T
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description

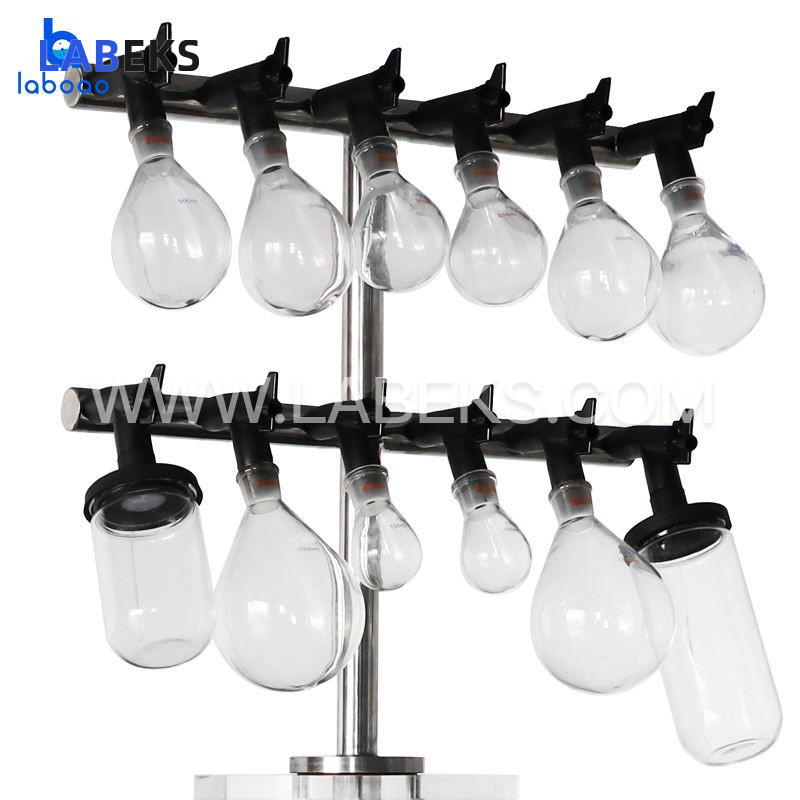

The LFD-18T lyophilizer is configured with 24 standard rubber sealing valves, capable of holding 24 ampules, with customization options available for special requirements. It is dedicated to preserving bacterial, fungal, and other microbial strains in ampoule tubes, adopting the widely used lab ampule sealing method where samples are hermetically sealed in small ampules after freeze drying. Its key benefits include an extended preservation period, minimal sample variation, convenient large-scale storage, and broad applicability.
features
1. All product-contacting components are made of inert materials, complying with GLP requirements.
2. Patented gas diversion technology enables exceptional ice retention capacity.
3. World-renowned brand compressor for high efficiency, extended service life, and low noise operation.
4. Top-tier brand vacuum pump with high pumping speed to achieve ultra-high ultimate vacuum levels.
5. Integrated sample pre-freezing function, paired with a large-opening cold trap without internal coils, eliminating the need for a low-temperature refrigerator.

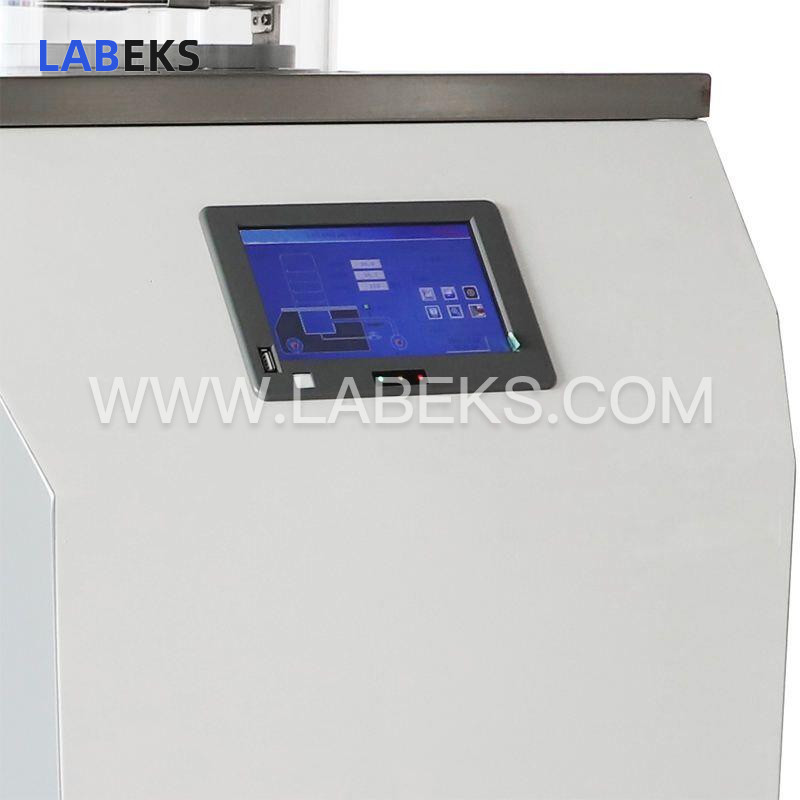

6. Professionally engineered FD-LAB freeze dryer control system combined with the SH-HPSC-I modular controller ensures superior reliability and stability.
7. Intelligent data recording system captures and displays real-time curves for cold trap temperature, sample temperature, and vacuum level.
8. Stainless steel cold trap and control console for corrosion resistance and effortless cleaning.

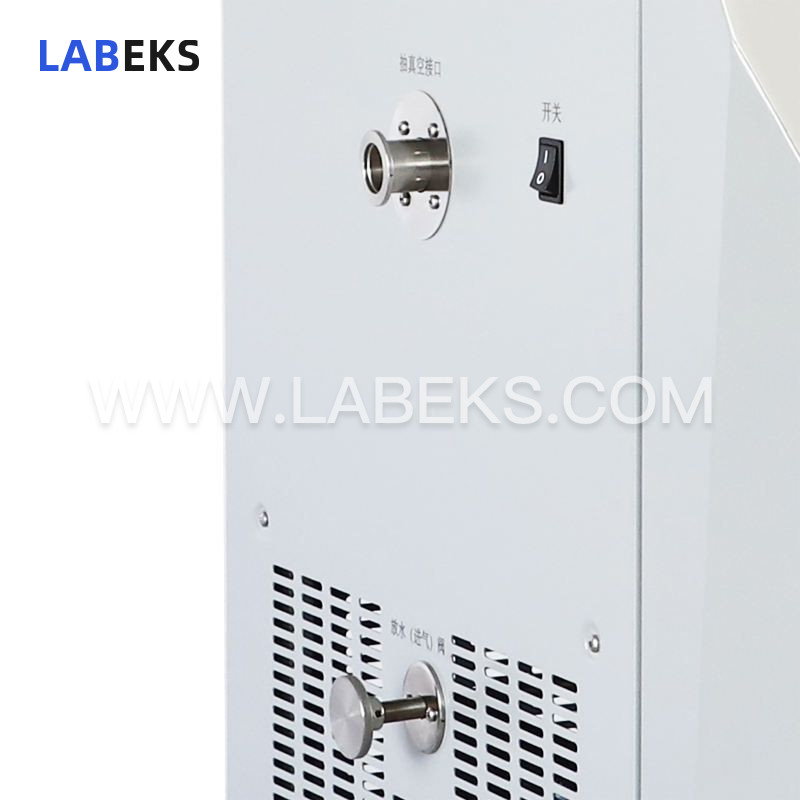

9. Self-developed stainless steel inflation/drain valve featuring safety, corrosion resistance, and leak-free performance.
10. All-in-one compact design with no external flanges for easy operation and zero leakage.
11. Vacuum pump protection function allows setting cold trap temperatures to extend the pump’s service life.
specifications
Model | LFD-18T |
|---|---|
ampulenumbers | 24pcs |
coldtrap temp. | ≤-60℃，optional≤-80℃ |
coldtrap depth | 400mm |
coldtrap dia. | Ф270mm |
icecollectiong capacity | 6kg/24h |
pumpingspeed | 4L/S |
ultimatespeed | ≤5pa |
power | 1400w |
mainunit weight | 105kg |
mainunit dimension | 630×580×970mm |
-80℃main unit dimensions | 810×580×950mm |
Tfram sizes | 430×480mm（H *L） |
flaskframe sizes | 610×600mm（H *L） |
coolingmode | windcooled |
defrostingmode | byair |
