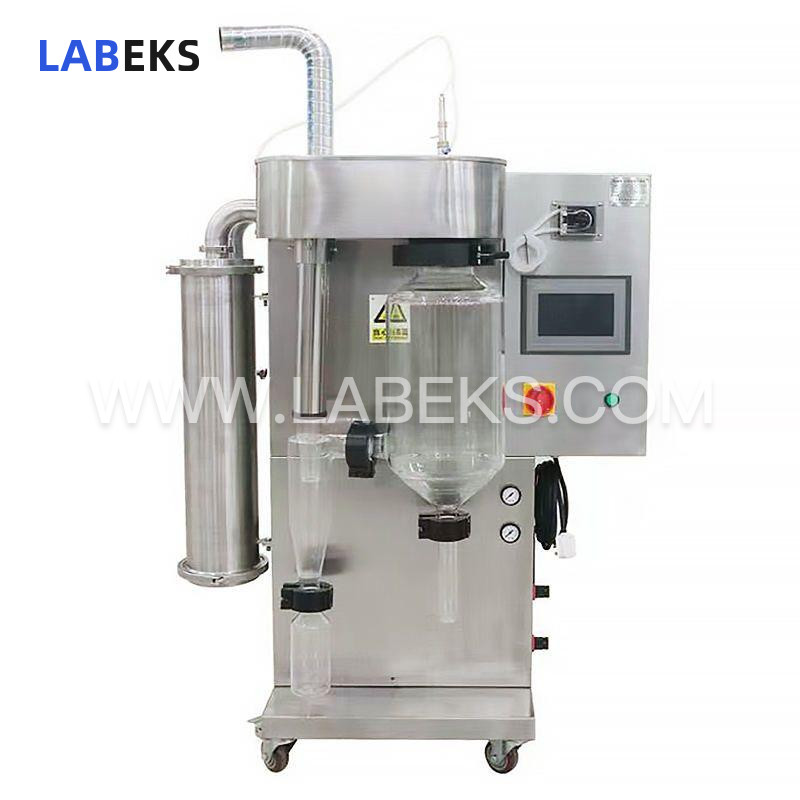

Lab Small Spray Dryer with Filter: Precise PID Temp Control & Visible Drying Process

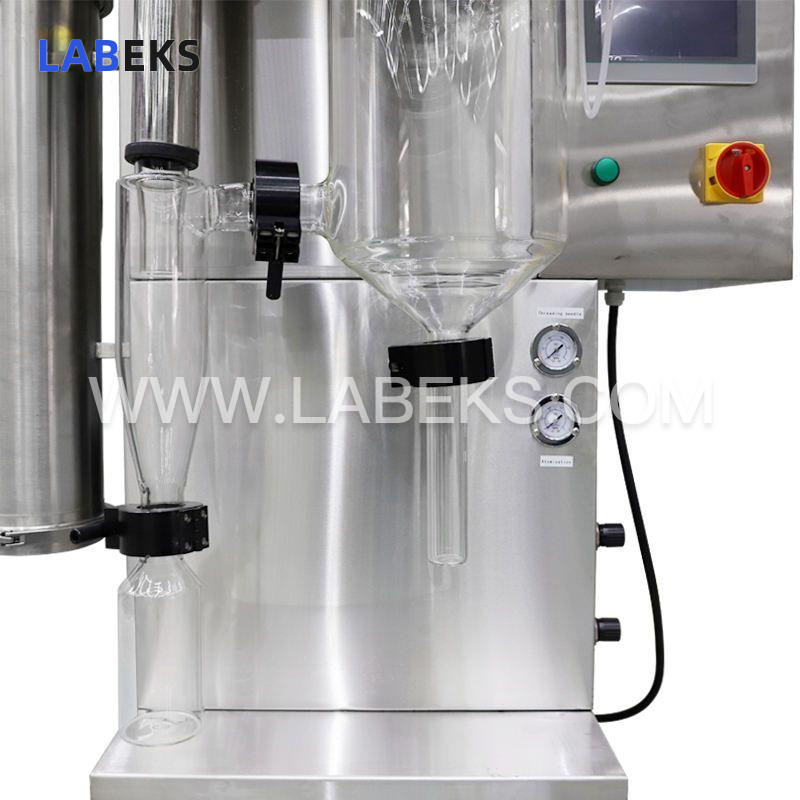

4. Spray, drying, and collection assemblies are constructed from transparent, high-quality heat-resistant borosilicate glass. This allows full visibility of the entire spray drying process, facilitating experimental monitoring, prompt issue detection, and timely adjustments

2. PID constant temperature control technology enables real-time regulation, with heating temperature accuracy maintained at ±1°C

1. Large color touchscreen interface for intuitive operation, with key parameters displayed on an LCD screen

5. The two-fluid spray atomization structure is fabricated from high-precision stainless steel. The resulting powder particles exhibit a normal size distribution and excellent fluidity

7. Feed rate is adjustable via a peristaltic pump, supporting a minimum experimental sample volume of 50ml

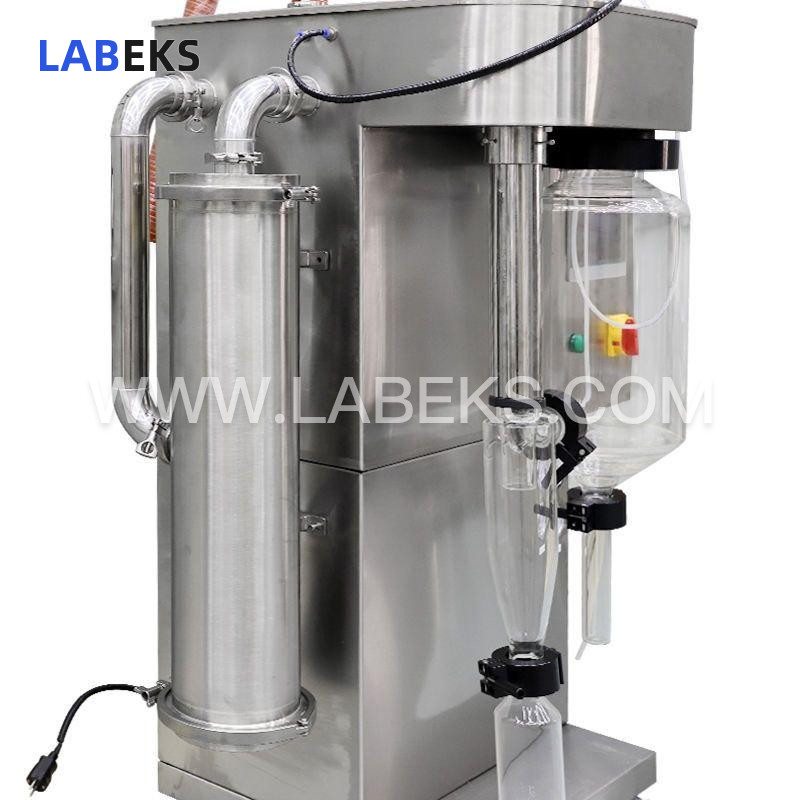

3. Integrated filter systems minimize air contamination and particulate emissions

6. Automatic nozzle unclogging via a needle mechanism, with adjustable frequency. In case of nozzle blockage, the system automatically clears the obstruction to ensure uninterrupted experimental runs

8. Shutdown protection function: When shutting down, the fan cannot be turned off if the heater temperature exceeds 60°C

9. Built-in imported oil-free air compressor operates at a noise level of less than 60dB
