Lab Freeze Dryer (0.18㎡): GLP-Compliant for Lab Trials & Small-Batch Production
Engineered for freeze-drying bulk conventional materials—liquids, pastes, and solids alike—this LFD-18A lab freeze dryer enables convenient long-term preservation, with samples retaining full chemical and biological properties upon rehydration.
- modelLFD-18A
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Widely utilized in medicine, pharmaceuticals, biological research, chemical engineering, and food production, freeze dryers simplify long-term sample preservation following the drying process. Rehydrated samples can be restored to their original state while maintaining all critical chemical and biological characteristics. The LFD-18A model is optimized for laboratory experiments and small-volume manufacturing applications.
features
1. All product-contact components are fabricated from inert materials to meet GLP requirements.
2. Professionally designed FD-LAB freeze-drying control system paired with the SH-HPSC-I modular controller delivers exceptional reliability and operational stability.

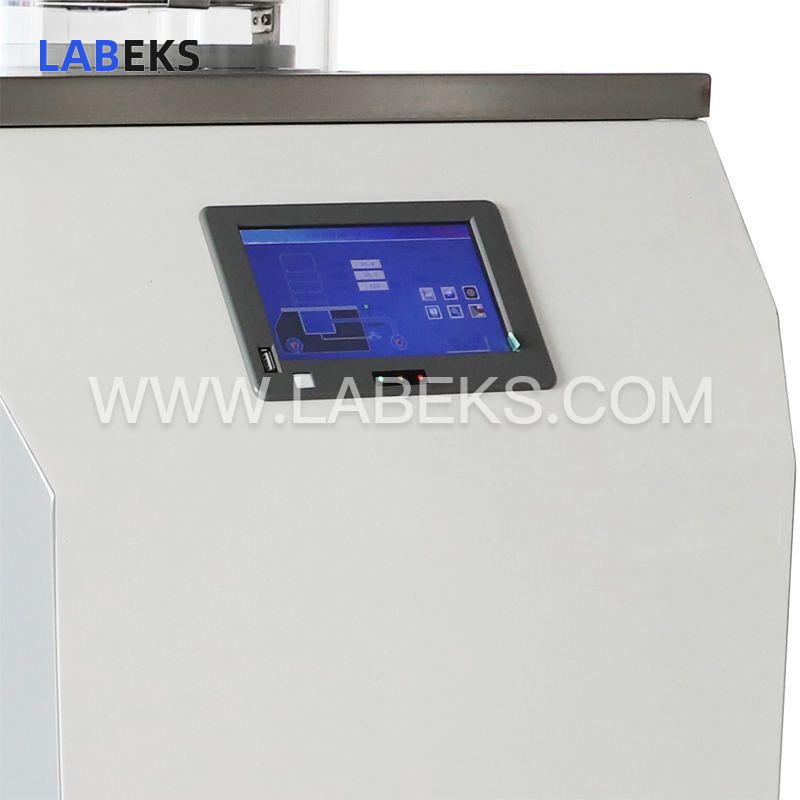

3. Intelligent data recording system captures and displays real-time curves for cold trap temperature, sample temperature, and vacuum levels.
4. Equipped with world-renowned brand compressors for high efficiency, extended service life, and low noise output.
5. Incorporates a well-known brand vacuum pump with high pumping speed to achieve an ultra-high ultimate vacuum.
6. Vacuum pump protection function allows setting cold trap temperatures to extend the pump’s service life.
7. Patented gas diversion technology enhances ice holding capacity significantly.
8. Integrated sample pre-freezing function, large cold trap opening, and no internal coils eliminate the need for an external low-temperature refrigerator.
9. The cold trap and control console are constructed from stainless steel, offering excellent corrosion resistance and easy cleaning.
10. Custom-designed all-stainless steel inflation/drain valve ensures safety, corrosion resistance, and leak-free performance.
11. All-in-one compact structure, small footprint, and no external flanges enable straightforward operation with zero leakage.
specifications
Model | LFD-18A |
|---|---|
freezedrying area | 0.18㎡/0.27㎡ |
traysize | Ф240mm |
No.of tray | 4pcs/6pcs |
trayspacing | 70mm |
coldtrap temperature | ≤-56C，optional≤-80℃ |
coldtrap dept | 400mm |
coldtrap dia. | Ф270mm |
icecollecting capacity | 6kg/24h |
pumpingspeed | 4L/S |
ultimatevacuum | ≤5pa |
power | 1400w |
weight | 105kg |
mainunit dimensions | 630×580×970mm |
-80℃main unit dimensions | 810×580×950mm |
dryingchamber size | Ф300×445mm |
coolingmode | windcooled |
defrostingmode | aircooled |
capacity | 1.8L/2.7L（thickness 10mm） |
