L202-DB Series Electric Heating Constant Temperature Drying Oven with 250℃ Max Temp and Natural Convection
Ideal for evaporation, sterilization, temperature testing, and incubating temperature-sensitive experiments in lab and industrial settings, this constant temperature drying oven delivers precise temperature control, uniform heating, and fast drying capabilities.
- modelL202-DB Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
The L202-DB Series features a compact horizontal box structure, facilitating easy handling and mobility. It is engineered for drying, baking, melting, disinfection and sterilization of non-flammable, non-explosive and non-volatile materials across industrial and mining operations, universities, biopharmaceutical facilities, food processing plants, research institutes, medical institutions and various laboratories. Key applications include glassware drying, heat denaturation, heat hardening, heat softening, moisture removal from experimental samples, food and chemical substances, dry heat sterilization of bioengineering utensils, as well as drying and aging of electronic components.
features
1. Classic natural convection drying method;
2. Dedicated function keys for temperature setting;
3. Auxiliary menu enabling over-temperature alarm, deviation correction, and menu lock;
4. Intuitive operation with fixed-temperature mode, timing function, and automatic shutoff;

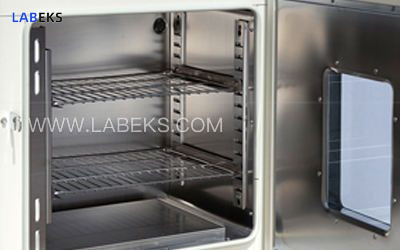

5. Tray-style partition design for quick, easy sample loading and retrieval;
6. Anti-pinch door handle for safe, flexible door access;
7. Embossed stainless steel door bottom strip for effortless cleaning;
specifications
Model | L202-0DB | L202-1DB | L202-2DB | L202-3DB | |
|---|---|---|---|---|---|
Cycle Mode | Naturalconvection | ||||
Function | Temp. Range | RT+10-250℃ | |||
Temp. ResolutionRatio | 0.1℃ | ||||
Temp. Motion | ±1℃ | ||||
Temp. Uniformity | ±3.0% | ||||
Structure | Inner Chamber | DB model: Highquality stainlesssteel; | |||
Outer Shell | Cold rollingsteel electrostaticspraying exterior | ||||
Thermalinsulation material | Aluminumsilicatefiber | ||||
Heater | Nickel-chromiumalloy heatingwire OCr27A17Mo2 | ||||
Power rating | 1.2kW | 1.6kW | 2.0kW | 4.0kW | |

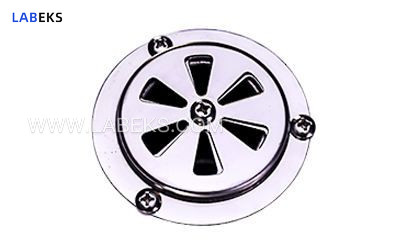

Exhaust hole | φ28mm*2;Overheadtest hole | ||||

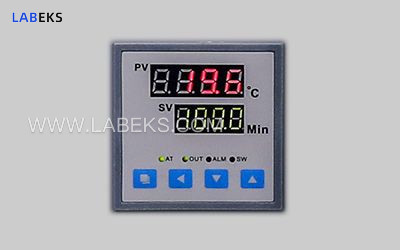

Controller | Temp. controlmode | Two temperaturesection PIDintelligent | |||
Temp. settingmode | Touch buttonsetting | ||||
Temp. displaymode | Two lines 4digits LED Digitaldisplay: | ||||
measuring temp.on the top andsetting temp. on the bottom | |||||
Timer | 0-9999min(withtiming waitfunction) | ||||
Operationfunction | Fixedtemperatureoperation,timing function, auto stop. | ||||
Program mode | Optional | ||||
Additionalfunction | Deviationcorrection, menu buttonlock, power failure compensation, power-offparametermemory | ||||
Sensor | Pt100 | ||||
Safety device | Over temperaturesound-lightalarm | ||||
Specification | Inner Chambersize(W*L*H)(mm) | 350*350*350 | 450*350*450 | 550*450*550 | 600*500*750 |
Exterior size(W*L*H)(mm) | 652*528*580 | 752*520*676 | 852*572*776 | 861*669*995 | |
Packing size(W*L*H)(mm) | 775*595*709 | 875*595*812 | 975*695*910 | 1020*804*1102 | |
Volume | 43L | 71L | 136L | 225L | |
Shelf number | 9 | 13 | 17 | 21 | |
Load per rack | 15kg | ||||
Shelf space | 25mm | ||||
(50/60HZ)Currentrating | AC220V/5.5A | AC220V/7.3A | AC220V/9.1A | AC220V/18.2A | |
NW/GW (kg） | 33/43 | 40/50 | 53/68 | 77/95 | |
Accessory | Shelf | 2 | |||
Shelf frame | 4 | ||||
optionalaccessories | Shelf, RS485interface, printer,recorder, external communication, remotecontrol, programtemperaturecontroller, wireless SMS alarm, Udisk data storage | ||||
