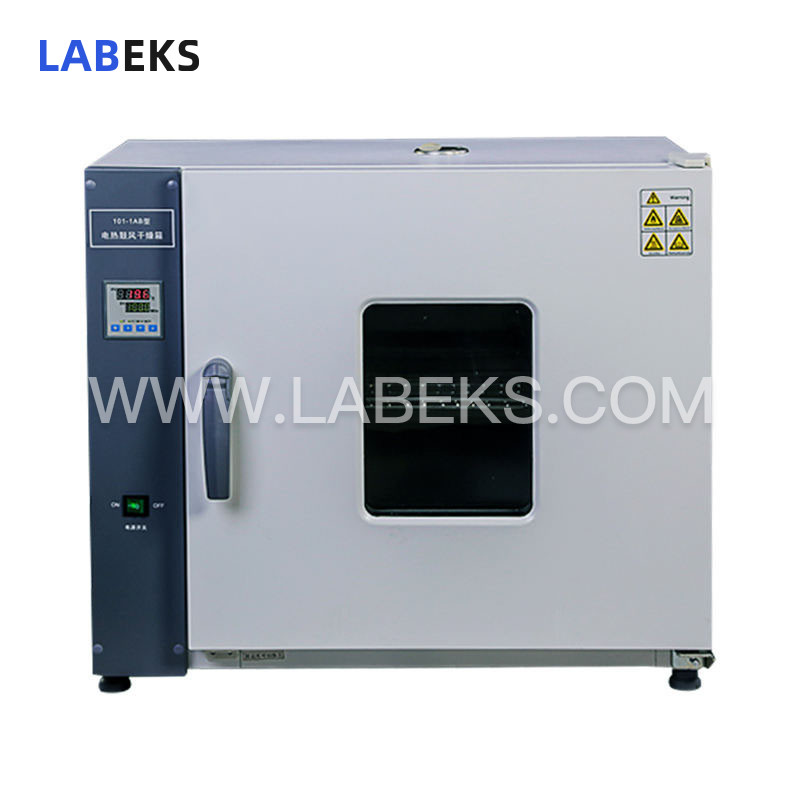

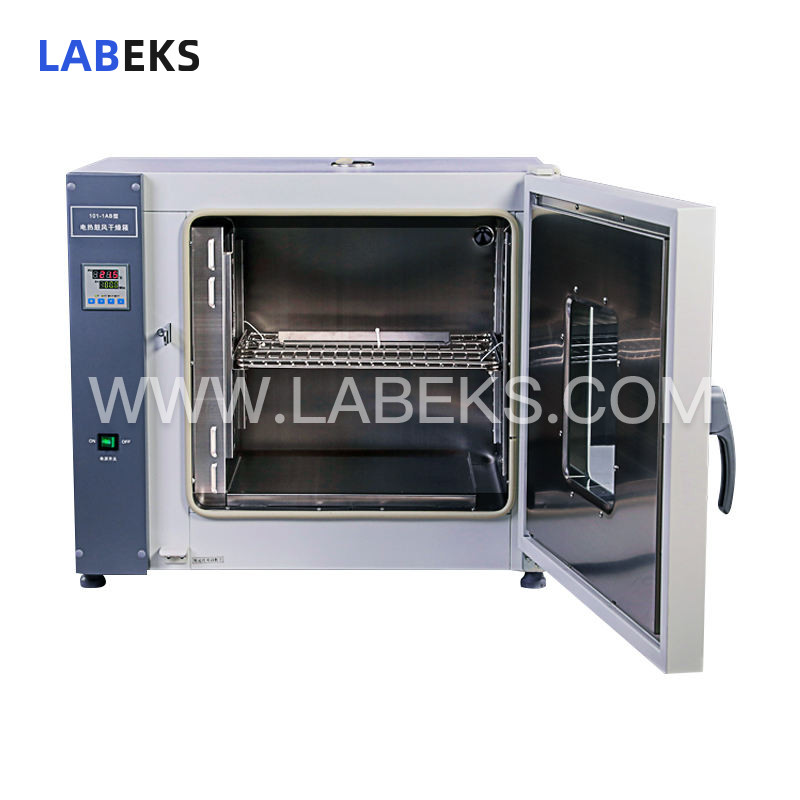

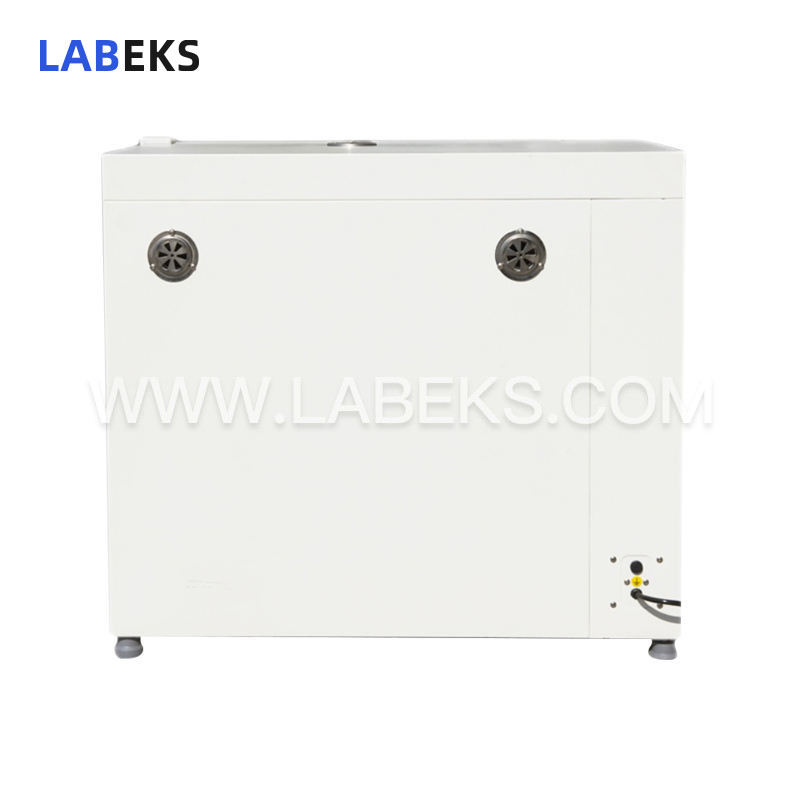

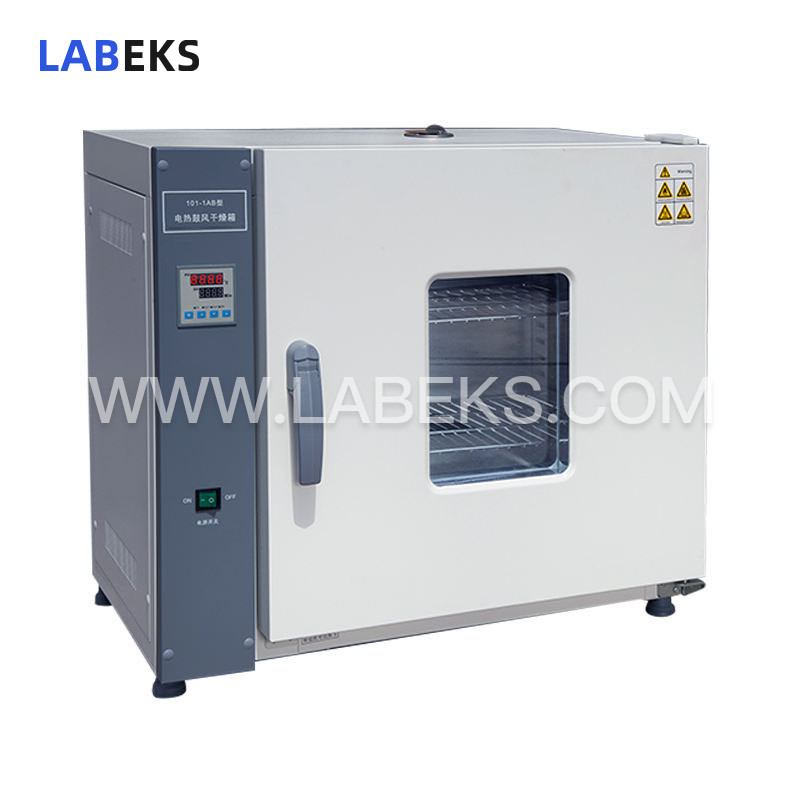

L101 Series Electric Forced Air Drying Oven: RT+10-250℃ for Pharma & Chemical Sectors
Featuring forced hot air circulation for uniform internal temperatures, the Electric Forced Air Drying Oven uses electric heating to conduct drying tests, support sample drying, or deliver required experimental thermal environments across chemical, pharmaceutical, foundry, automotive, food and machinery industries.
- modelL101 Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Boasting a horizontal box structure, the L101 Series is compact and easy to maneuver for testing operations. It is engineered for drying, baking, wax melting, sterilization and disinfection of non-flammable, non-explosive, non-volatile materials in industrial and mining enterprises, universities, biopharmaceutical facilities, food processing plants, research institutions, medical units and various laboratories. Equipped with a hot air circulation system consisting of a high-temperature continuous-operation fan and specialized air ducts, this bench-top forced air drying oven ensures uniform temperatures within the working chamber. It is widely applied to drying glassware, heat denaturation, heat hardening, heat softening and moisture removal of experimental samples, food and chemical substances, dry heat sterilization of bioengineering utensils, as well as drying and aging of electronic components.
features
1. User-friendly operation with fixed-temperature operation, timing function, and automatic shut-off capability;
2. Auxiliary menu enabling over-temperature alarm, temperature deviation correction, and menu lock functions;
3. Horizontal air circulation structure facilitating air mixing, maximizing space utilization, and accelerating drying rates;
4. Dedicated function keys for precise temperature setting;
5. Forced fan cooling intake structure keeps the fan’s maximum operating temperature below 50℃, supporting long-term continuous operation with extended service life.
specifications
Model | L101-0AB | L101-1AB | L101-2AB | L101-3AB | |||
|---|---|---|---|---|---|---|---|
Cycle Mode | Forced convection | ||||||
Function | Temp. Range | RT+10-250℃ | |||||
Temp. ResolutionRatio | 0.1℃ | ||||||
Temp. Motion | ±1℃ | ||||||
Temp. Uniformity | ±2.5% | ||||||
Structure | Inner Chamber | Highquality stainless steel | |||||
Outer Shell | Cold rollingsteel electrostatic spraying exterior | ||||||
Thermalinsulation material | Aluminum silicatefiber | ||||||
Heater | Stainless steelheating tube; | Nickel-chromiumalloy heating wire | |||||
Power rating | 1.2kW | 1.6kW | 2.0kW | 4.0kW | |||
Exhaust hole | φ28mm*2 at theback; Overhead test hole | ||||||
Controller | Temp. controlmode | Two temperaturesection PID intelligent | |||||
Temp. settingmode | Touch buttonsetting | ||||||
Temp. displaymode | Two lines 4digits LED Digital display: measuring temp.on the top and setting temp. on the bottom | ||||||
Timer | 0-9999min(withtiming wait function) | ||||||
Operationfunction | Fixed temperatureoperation, timing function, auto stop. | ||||||
Program mode | Optional | ||||||
Additionalfunction | Deviationcorrection, menu button lock, power failure compensation, power-off parametermemory | ||||||
Sensor | Pt100 | ||||||
Safety device | Over temperaturesound-light alarm | ||||||
Specification | Inner Chambersize(W*L*H)(mm) | 350*350*350 | 450*350*450 | 550*450*550 | 600*500*750 | ||
Exterior size(W*L*H)(mm) | 652*528*580 | 752*520*676 | 852*572*776 | 861*669*995 | |||
Packing size(W*L*H)(mm) | 775*595*709 | 875*595*812 | 975*695*910 | 1020*804*1102 | |||
Volume | 43L | 71L | 136L | 225L | |||
Shelf number | 9 | 13 | 17 | 21 | |||
Load per rack | 15kg | ||||||
Shelf space | 25mm | ||||||
(50/60HZ)Currentrating | AC220V/5.5A | AC220V/7.3A | AC220V/9.1A | AC220V/18.2A | |||
NW/GW (kg） | 33/43 | 40/50 | 53/68 | 77/95 | |||
Accessory | Shelf | 2 | |||||
Shelf frame | 4 | ||||||
optionalaccessories | Shelf, RS485interface, printer, recorder, external communication, remote control, programtemperature controller, wireless SMS alarm, U disk data storage | ||||||
