L101-DB Series Electric Forced Air Drying Oven: RT+10-250℃ for Multi-Industrial Applications
Engineered for consistent sample drying and controlled thermal treatments, the Electric Forced Air Drying Oven maintains uniform cabinet temperatures via circulating hot air, serving chemical, pharmaceutical, foundry, automotive, food, and machinery sectors.
- modelL101-DB Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description

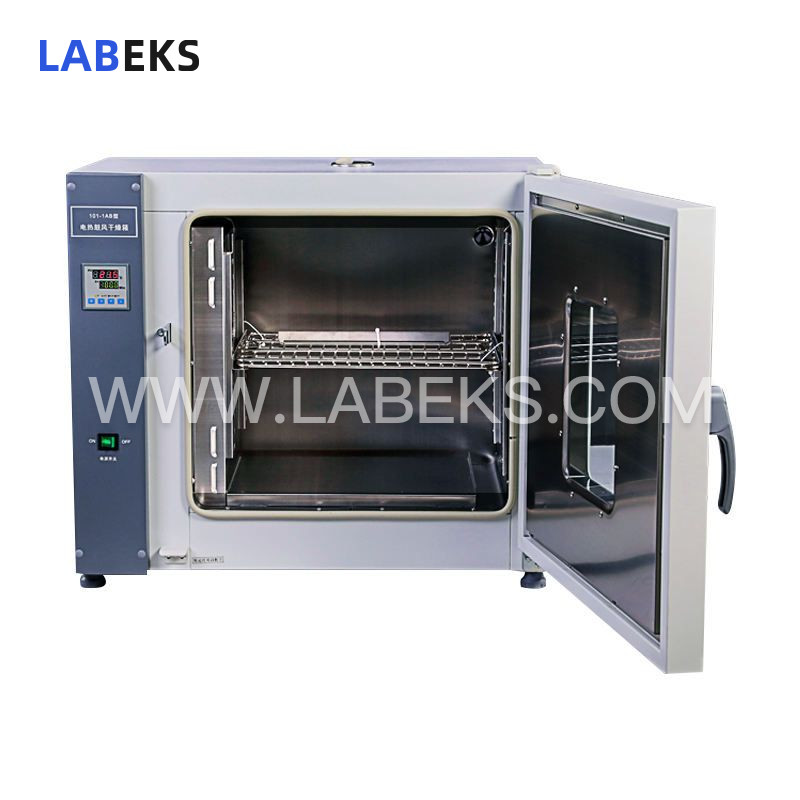

Boasting a horizontal box structure, the L101-DB Series units are compact, enabling easy testing and mobility. They are designated for drying, baking, melting, disinfection, and sterilization of non-flammable, non-explosive, and non-volatile materials across industrial and mining enterprises, universities, biopharmaceutical facilities, food processing plants, research institutions, medical units, and various laboratories. Equipped with a high-temperature continuous-operation fan and specialized air duct system, this forced air drying oven ensures exceptional temperature uniformity within the working chamber. It is widely utilized for glassware drying, thermal denaturation, heat hardening, heat softening, moisture removal from experimental samples and food/chemical substances, dry heat sterilization of bioengineering utensils, as well as drying and aging of electronic components.
features
1. The integrated auxiliary menu provides over-temperature alarm, temperature deviation correction, and menu locking capabilities to enhance operational safety and accuracy.
2. Horizontal air circulation structure optimizes air mixing, boosts space utilization efficiency, and enables rapid sample drying.
3. Forced fan cooling intake system keeps the fan’s maximum operating temperature below 50℃, supporting long-term continuous operation and extending service lifespan.
4. Intuitive operation includes fixed-temperature operation, programmable timing, and automatic shutdown functions for hassle-free use.
5. Dedicated function keys simplify precise temperature setting adjustments.
6. Tray-type partition design allows for quick and easy sample loading and retrieval.
7. Anti-pinch door handle ensures safe, flexible door opening and closing.
8. Embossed stainless steel door bottom strip enables effortless cleaning and upkeep.
specifications
Model | L101-0DB | L101-1DB | L101-2DB | L101-3DB | |
|---|---|---|---|---|---|
Cycle Mode | Forcedconvection | ||||
Function | Temp. Range | RT+10-250℃ | |||
Temp. ResolutionRatio | 0.1℃ | ||||
Temp. Motion | ±1℃ | ||||
Temp. Uniformity | ±2.5% | ||||
Structure | Inner Chamber | DB model: Highquality stainless steel; | |||
Outer Shell | Cold rollingsteel electrostatic spraying exterior | ||||
Thermalinsulationmaterial | Aluminumsilicatefiber | ||||
Heater | Stainless steelheating tube | ||||
Power rating | 1.2kW | 1.6kW | 2.0kW | 3.0kW | |
Exhaust hole | φ28mm*1;Overheadtest hole | ||||
Controller | Temp. controlmode | Two temperaturesection PID intelligent | |||
Temp. settingmode | Touch buttonsetting | ||||
Temp. displaymode | Two lines 4digits LED Digital display:measuring temp.on the top and setting temp. on the bottom | ||||
Timer | 0-9999min(withtiming wait function) | ||||
Operationfunction | Fixedtemperatureoperation, timing function, auto stop. | ||||
Program mode | Optional | ||||
Additionalfunction | Deviationcorrection, menu button lock, power failure compensation, power-off parametermemory | ||||
Sensor | Pt100 | ||||
Safety device | Over temperaturesound-light alarm | ||||
Specification | Inner Chambersize(W*L*H)(mm) | 350*350*350 | 450*350*450 | 550*450*550 | 600*500*750 |
Exterior size(W*L*H)(mm) | 652*528*580 | 752*520*676 | 852*572*776 | 861*669*995 | |
Packing size(W*L*H)(mm) | 775*595*709 | 875*595*812 | 975*695*910 | 1020*804*1102 | |
Volume | 43L | 71L | 136L | 225L | |
Shelf number | 9 | 13 | 17 | 21 | |
Load per rack | 15kg | ||||
Shelf space | 25mm | ||||
(50/60HZ)Currentrating | AC220V/5.5A | AC220V/7.3A | AC220V/9.1A | AC220V/18.2A | |
NW/GW (kg） | 33/37 | 40/50 | 62/68 | 77/96 | |
Accessory | Shelf | 2 | |||
Shelf frame | 4 | ||||
optionalaccessories | Shelf, RS485interface, printer, recorder, external communication, remote control,programtemperature controller, wireless SMS alarm, U disk datastorage | ||||
