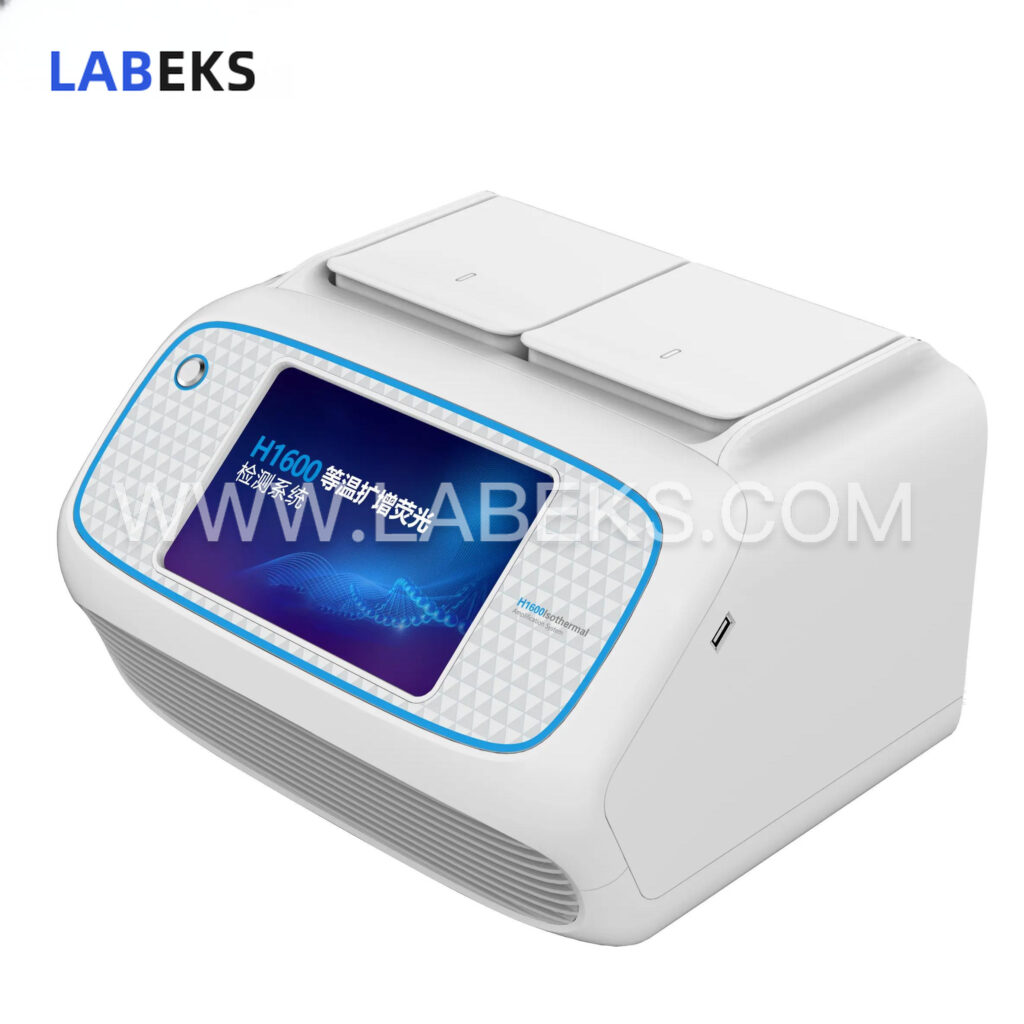

Isothermal Amplification Fluorescence Detection System: Portable Dual-Module for Independent On-Site Assays
Integrated with Windows 10-based analysis software and a 7-inch touchscreen, the isothermal amplification fluorescence detection system enables quantitative analysis and report printing without external computers, supporting dual-slot portable assays for on-site use in pastures, farms, and disaster response scenarios.
- modelLPCR-H16
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Featuring a dual-channel, dual 8-well module configuration, this system delivers multi-functionality in a single device, paired with an embedded 7-inch high-definition TFT color touchscreen. Running on the Windows 10 operating system and equipped with built-in analysis software, it enables quantitative analysis and report generation without requiring an external computer. Utilizing a custom American MARLOW Peltier module, high-sensitivity photodetector, and side-scanning technology, it ensures exceptional performance and consistent, reliable detection outcomes.
Key Applications: Real-time detection at livestock farms, forestry plantations, aquaculture facilities, and water bodies; rapid diagnostic support for disaster response, infection control, and epidemic prevention; food safety inspection and quarantine; and scientific research in life science laboratories.
features
1. Side-scanning technology minimizes detection distance, ensuring stable and consistent fluorescence signal collection.
2. Uniform optical collection path across all wells enhances assay repeatability and result consistency.
3. High-brightness LED excitation source offers energy efficiency, an extended service life, and requires no routine maintenance.
4. Constant current control circuit delivers stable power output, extending Peltier module lifespan and improving temperature control precision.
5. Dual-channel, dual-module configuration allows flexible experimental setup and independent operation of two distinct protocols.
6. Integrated software analysis capabilities support both qualitative and quantitative analytical assays.
7. 7-inch capacitive touchscreen paired with the Windows 10 operating system ensures intuitive, user-friendly operation.
8. Optional USB thermal printer enables direct on-site printing of experimental results without external computer connectivity.
9. USB 2.0 interface supports data storage via USB drive, as well as external control using a USB mouse.
10. Front-panel soft shutdown button prevents accidental file or data loss associated with abrupt power cuts.
11. Built-in 20GB Flash storage can store up to 40,000 sets of experimental data for future retrieval.
12. Exclusive pull-in electromagnetic lock for the thermal cover prevents accidental opening that could compromise experimental integrity.
13. Comprehensive protection features include over-current, over-temperature, and power-failure data auto-recovery to safeguard experimental operations.
14. Compact dimensions and lightweight construction enable easy portability for on-site use.
15. Lithium battery-compatible power supply option makes it ideal for rapid on-site testing and field inspection scenarios.
16. Black-box reaction chamber design eliminates background interference for more accurate detection outcomes.
17. Front-to-back air duct design allows side-by-side placement of multiple units, optimizing laboratory space utilization.
specifications
Model | LPCR-H1601 | LPCR-H1602 |
|---|---|---|
Capacity | 16×0.2ml (2×8 wells, double module) | |
Applicable consumables | 0.2ml thin-walled transparent singletube, 0.2ml thin-walled transparent eight tubes | |
Reaction system | 15-100μl | |
Temperature Range | 0~100℃ (resolution: 0.1°C) | |
Maximum heating and cooling rate | 6℃/s | |
Temperature control technology | American MARLOW semiconductorrefrigerator, more than 1,000,000 cycles | |
Uniformity | ±0.25℃ | |
Accuracy | ±0.1℃ | |
Temperature Control | Block\Tube | |
Hot Lid Temperature | 30~115℃ (adjustable, default 105℃) | |
Fluorescence excitation wavelength | 460nm-550nm | |
Fluorescence detection wavelength | F1:520-540nm | F1:520-540nm F2:540-580nm |
Applicable fluorescent dyes | F1: FAM/SYBR Green I | F1: FAM/SYBR Green I F2: HEX/VIC/JOE/TET |
Excitation light source | High brightness LED, long service life,no maintenance | |
Detector | High sensitivity photoelectric sensor | |
Dynamic range | 1-1010Copies | |
Detection sensitivity | Can detect single copy genes | |
Software analysis function | Quantitative/qualitative | |
Data export format | excel, csv, txt | |
USB thermal printer optional | ||
Control Method | 7-inch color touch screen control, canalso be connected to computer control | |
Interface | WIFI/USB2.0 | |
Dimension | 300x267x198mm (L × W × H) | |
Weight | 8KG | |
Operating Voltage | 220VAC, 50Hz | |
Power | DC15V 255W | |
