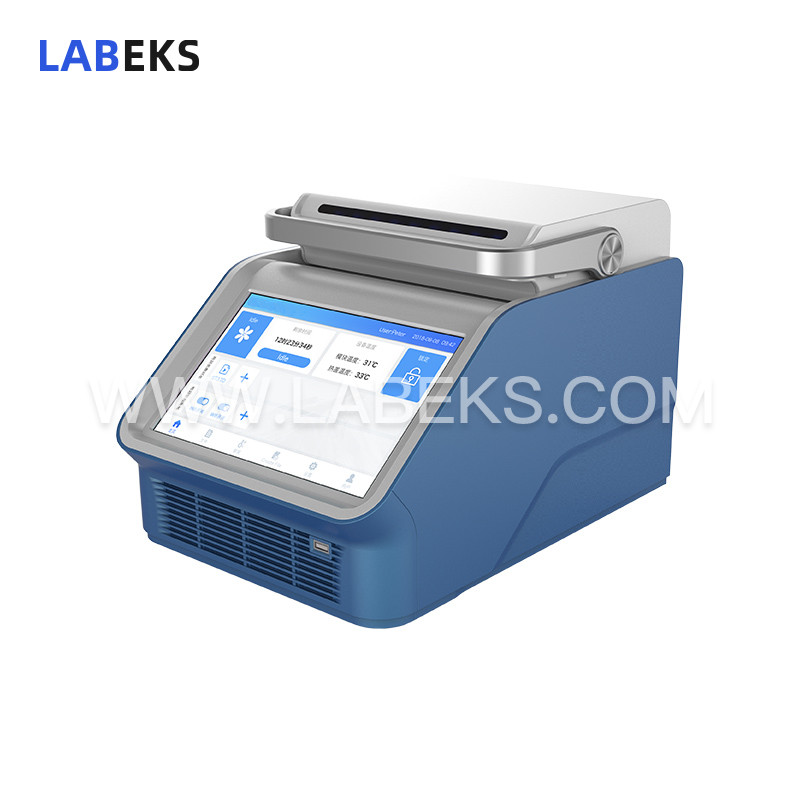

Intelligent Two Dimensional Gradient Thermal Cycler with 7℃/s Temperature Rate and WIFI Multi-Device Control

Featuring a purpose-built long-life Peltier module for temperature circulation with a maximum 7℃/s temperature change rate, this intelligent two dimensional gradient thermal cycler includes a built-in WIFI module that enables users to control multiple units via mobile app, streamlining PCR and related laboratory experiments.

  • model
    LPCR-RPA/LPCR-RPB/LPCR-RPC
  • brandLABEKS
  • min. order1 pcs
  • packageplywood case package

description

This product series operates on an Android operating system and is paired with a 10.1-inch capacitive touch screen for intuitive, fluid operation. Front and rear air ducts allow multiple units to be placed side by side without ventilation interference. An adaptive pressure rod-type hot lid enables one-step closing and sealing, accommodating test tubes of varying heights. A purpose-built, long-life Peltier module is integrated for temperature circulation, delivering a maximum temperature change rate of 7 degrees per second. Additionally, a built-in WIFI module supports centralized control of multiple machines via a mobile application.

features

1. Boasts rapid heating and cooling rates, with a maximum 7℃/s ramping speed to reduce valuable experiment time;

2. Integrates a purpose-built, long-life Peltier module for precise temperature circulation;

3. Operates on an Android system paired with a 10.1-inch capacitive touch screen, featuring an intuitive graphical menu navigation interface for effortless operation;

4. Comes with 11 preloaded standard program templates for rapid editing of experimental protocols;

5. Supports customization of 9 shortcut buttons on the home screen to suit individual experimental workflows;

6. Equipped with an adaptive pressure rod-type hot lid, enabling one-step closing and sealing to accommodate test tubes of varying heights;

7. Features front and rear air ducts, allowing multiple units to be placed side by side without interfering with ventilation;

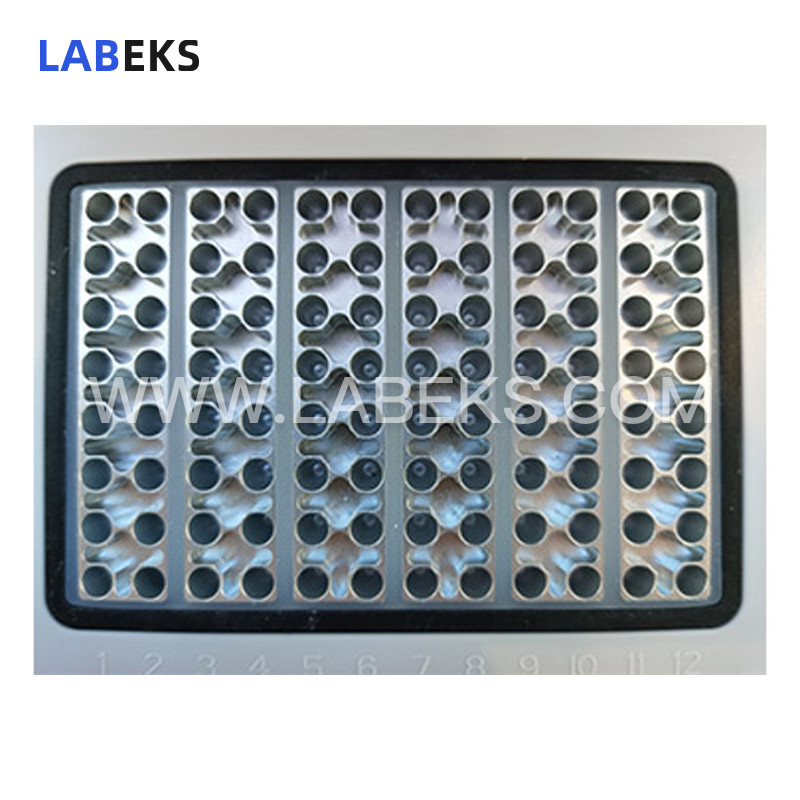

8. Incorporates an anodized, engineering-grade reinforced aluminum block that maintains excellent thermal conductivity while delivering superior corrosion resistance;

9. Provides real-time display of program progress and remaining time, with support for mid-experiment programming adjustments;

10. Offers one-button rapid incubation to support denaturation, enzyme digestion/ligation, ELISA and related experimental applications;

11. Allows customization of hot lid temperature and operating mode to accommodate diverse experimental needs;

12. Includes automatic power failure protection: upon power restoration, the system resumes uncompleted cycles to ensure uninterrupted amplification processes;

13. Equipped with a USB interface for storing/exporting PCR data, and supports control via a USB mouse for enhanced usability;

14. Enables software updates via USB flash drive or local area network (LAN) for seamless system maintenance;

15. Integrates a built-in WIFI module, enabling simultaneous control of multiple PCR units from a single computer or mobile device via network connection;

16. Provides email reminder functionality to notify users upon completion of experimental programs;

specifications

Model

LPCR-RPA

LPCR-RPB

LPCR-RPC

Capacity

96×0.2ml

6×16×0.2ml

96×0.2ml

In vitro

0.2ml single tube, 8 tubes, 96-well plate

Temperature Range

4~105℃

Max rate of temperature change

5℃/s

6℃/s

8℃/s

Uniformity

≤±0.2℃

Accuracy

≤±0.1℃

Display Resolution

0.1℃

Temperature Control

Block\Tube

Ramping Rate Adjustable

0.1~5℃

0.1~6℃

0.1~8℃

Gradient temperature range

30~105℃

The gradient type

Nonlinear gradient

The gradient type

Nonlinear gradient

Gradient setting range

1~42℃

Gradient setting range

1~42℃

Hot Lid Temperature

30~115℃

Number of Programs

20000 +(USB FLASH)

Max. No. of Step

30

Max. No. of Cycle

100

Time Increment/Decrement

1 Second~600Second

Temp. Increment/Decrement

0.1~10.0℃

Pause function

Yes

Auto Data Protection

Yes

Hold at 4℃

Forever

Landing experiment

Yes

PCR experiment

Yes

Language

Chinese/English

ComputerSoftware

Yes

Mobile phone APP

Yes

LCD

10.1inch,1024×600 pels

Communication

USB2.0 ,WIFI

Dimensions

385mm×270mm×255mm (L×W×H)

Weight

10kg

10kg

10kg

Power Supply

100-240VAC ,50/60Hz ,600 W

100-240VAC ,50/60Hz ,600 W

100-240VAC ,50/60Hz ,600 W
