Industrial Explosion Proof Jacketed Stainless Steel Reactor: -120~260℃ for Chemical & Pharma Production
Fabricated from SUS304 or SUS316L stainless steel, this jacketed stainless steel reactor offers outstanding resistance to corrosion, high temperatures and pressures, with robust durability, easy cleaning and low maintenance. It is engineered for industrial chemical production, pharmaceuticals, food processing, petrochemicals and high-temperature, high-pressure reactions.
- modelLEXSR-100L/LEXSR-150L/LEXSR-200L/LEXSR-300L
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description

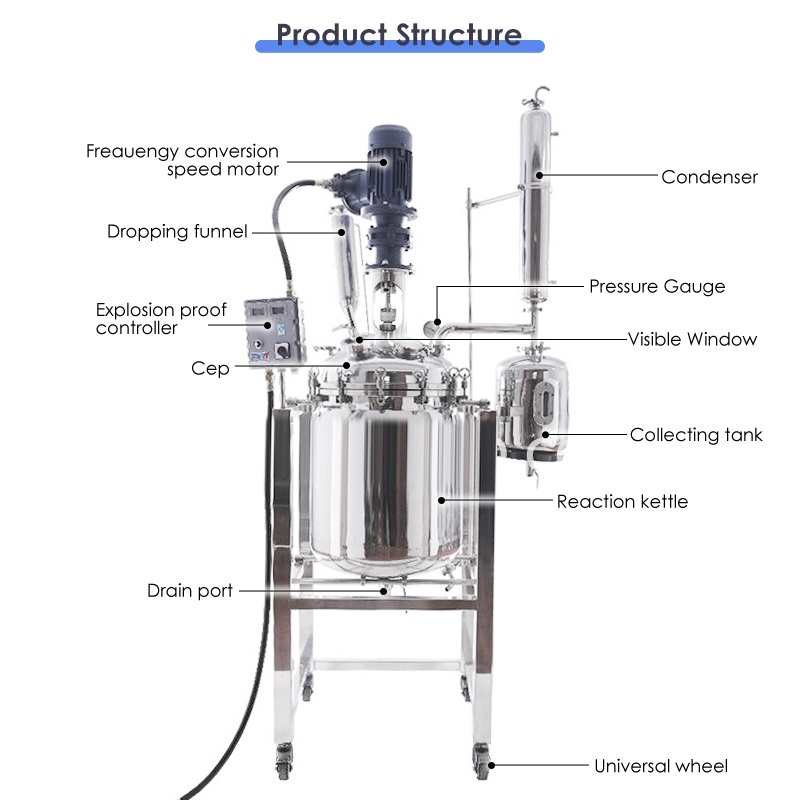

Featuring a double-layer stainless steel construction, this reactor houses reaction solvents in its inner chamber for stirred reactions, while the interlayer can be connected to diverse cold and heat sources (refrigeration liquid, hot water or thermal oil) for cyclic heating or cooling processes. Under set constant temperature conditions, stirred reactions can be carried out under normal or negative pressure within the sealed stainless steel vessel, with support for reflux and distillation of reaction solutions. It serves as an optimal pilot and production apparatus for modern fine chemical plants, biopharmaceutical facilities and new material synthesis projects.
features
1. The entire set of instrumentation and vessel is constructed from SUS316L/SUS304 stainless steel, delivering excellent chemical and physical stability.
2. The interlayer interface can be connected to thermal oil for cyclic heating reactions, or to refrigeration liquid for low-temperature reaction operations.
3. Equipped with variable frequency speed regulation and an AC induction motor, it maintains constant rotation, operates brushless and spark-free, ensuring safe, stable continuous performance.
4. Boasts an eight-port reactor lid with an extra-large opening for simplified cleaning; standard port sockets enable optional assembly of reflux and distillation synthesis systems.
5. The bottom discharge port adopts a stainless steel ball valve, with no dead space inside the vessel and detachable design to facilitate smooth discharge of solid materials.
6. It supports ambient temperature reactions, with reaction heat rapidly removed via circulating tap water.
specifications
Model | LEXSR-100L | LEXSR-150L | LEXSR-200L | LEXSR-300L |
|---|---|---|---|---|
Kettlevolume | 100L | 150L | 200L | 300L |
Mezzaninevolume | 20L | 40L | 45L | 50L |
Voltage/frequency | 220V/50Hz | |||
Reactiontemperature | -120~260℃ | |||
Vacuumdegree | -0.098Mpa | |||
Stirringspeed | 0-460rpm | |||
Power | 370W | 750W | ||
Sealedform | SUS304ceramic combination mechanical seal | |||
Numberof cauldron lid openings | Eightports (optional) | |||
Material | SUS316L/SUS304 | |||
Sightglass | Φ89 | Φ159 | Φ200 | |
Feedingport | Φ59 | Φ159 | Φ200 | |
Temperaturemeasuring hole | 50.5chuck/Φ12 temperaturemeasuring tube | 50.5 quickopening | ||
Drophole | 50.5chuck/2000ml funnel | 50.5 quickopening | ||
Distillationhole | 50.5 chuck/Φ38 return port | |||
Pressuregauge | 50.5 chuck/± integrated pressure gauge | |||
Impeller | SUS316Lpropeller mixing paddle | |||
Condenser | Verticalhigh-efficiency double reflux condenser tube | |||
Exhaust | 2-pointexhaust valve | |||
Bottomvalve | Φ35/50.5chuck | Φ51/64chuck | ||
Overalldimensions | 1050*690*2350mm | 730*730*2400mm | 800*800*2630mm | 1000*1000*1950mm |
Optional(Additionalfee) | Explosion-proofwhole machine/electric heating/Total 316L/collection tank/mobile frame/spraying PTFE | |||
