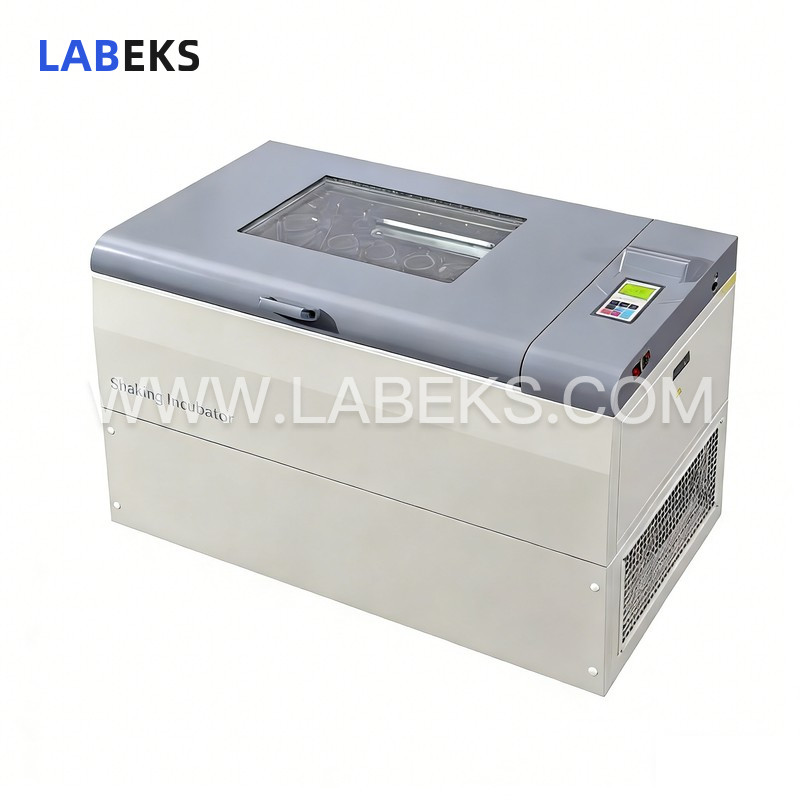

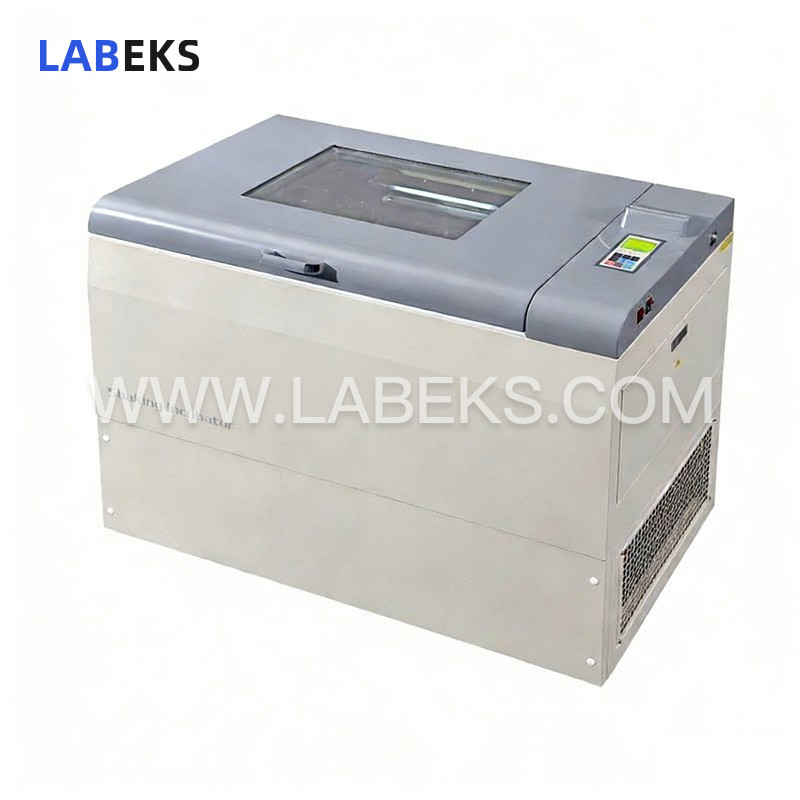

Horizontal Refrigerated Shaking Incubator with 50-300 rpm Range & Low-Noise Patented Drive
Engineered for chemistry and biology labs, the refrigerated shaking incubator features an oscillating platform to securely hold flasks, beakers, and test tubes for precise sample mixing, blending, and agitation.
- modelLH-211B/211C/211D/211F
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
As a specialized laboratory instrument, this refrigerated shaking incubator delivers controlled shaking to mix, blend, or agitate substances within tubes or flasks. It is primarily utilized in chemistry and biology research applications.
features
1. Patented single-axis drive swing balance mechanism (Patent No.: ZL 2015 2 0624431.5) ensures minimal energy consumption and operational noise.
2. Maintenance-free AC induction motor with extended service life offers wide speed regulation, constant torque, stable speed, and no carbon brushes.
3. Oscillation frequency covers a wide range of 50-300 rpm.
4. Intelligent microprocessor controller with environment scanning functionality and audible-visual alarm system.
5. Large backlit LCD screen displays both set parameters and real-time measured parameters simultaneously.
6. Fluorine-free safety refrigeration system on models 211/B/C/D/F complies with international environmental standards.
7. Audible-visual over-temperature alarm; automatic power cut-off for motor overheating, temperature out-of-control, and abnormal over-temperature conditions.
8. Power failure recovery function: resumes operation automatically per pre-set programs after external power is restored.
9. Linear acceleration control ensures slow start-up and smooth acceleration to safeguard experimental samples.
10. Parameter memory function eliminates repetitive, cumbersome operations.
11. Elastic cylinder support enables smooth opening and closing of the incubator lid.
12. Operates across both ambient and low-temperature ranges.
13. Floor-standing design offers large capacity and full functionality, accommodating 5L culture bottles to meet diverse experimental needs.
14. Model LH-111B/211B (standard type) can hold up to 2000mL flasks.
15. Model LH-111C/211C (heightened type) can hold up to 5000mL flasks.
16. Streamlined, aesthetically refined cabinet with electrostatic spray coating and a large tempered glass viewing window.
17. Updated streamlined luxury cabinet design with colored electrostatic spray coating.
18. Transparent viewing window with built-in lighting allows convenient, real-time sample observation.
19. Simultaneous monitoring of temperature, oscillation speed, and operating time is available.
20. Equipped with casters for easy relocation and placement.
21. A variety of optional accessories including UV germicidal lamps, humidity detection/control, air intake pipes, and lighting systems optimize your cultivation protocols.
Application Range
Cell cultivation
Solubility assessment
Extraction studies
Diagnostic assays
Sample mixing
Bacterial suspension preparation
Dyeing and bleaching processes
Elution procedures
Hybridization experiments
specifications
Model | LH-211B | LH-211C | LH-211D | LH-211F | |
|---|---|---|---|---|---|
Controlmethod | P.I.D(Microcomputerenvironment scanning micro processing chip) | ||||
Displaymethod | LCD (Largescreen LCD dual display) | ||||
Cyclic mode | Forcedconvection | ||||
Oscillationmode | Rotaryoscillation | Reciprocating | |||
Drive mode | Single-axisbalancing device (Chinese patent) | ||||
Environmentalrequirements | Temperature5-25 ° C, humidity 20% -90% | ||||
Temperaturecontrol range | 4-60℃ | ||||
Temperatureaccuracy | ±0.1℃ | ||||
Temperatureuniformity | ±1℃ | ||||
Performance | FrequencyRange | 30-300rpm | |||
Rotationaccuracy | ±1rpm | ||||
Pendulum amplitude | Φ25mm | Φ25mm | Φ50mm | Φ25mm | |
Standardconfiguration | 28*500ml | 8*2000ml | 28*500ml | 28*500ml | |
Securityfunction | Upper andlower temperature deviation alarm; upper- and lower-line speed deviationalarm, independent over-temperature protector; open door stop protection;leakage protection, chiller overload protection. | ||||
Accessoryfunction | Speedstorage, call recovery, parameter memory, temperature speed correction, clockdisplay, room temperature / measured temperature double display. | ||||
Programmingfunction | Repeat,step, eight-segment curve programming settings. | ||||
Therefrigerant | CFC-Free(134A) fluorine-free safety refrigeration system | ||||
Cooler | 200W | ||||
Heater | 800W | ||||
Timingrange | 0-999.59h/Sustainable | ||||
Standardsizes | Rocker size | 920*500(mm) | |||
Number ofrocking plates | one | ||||
Grossweight | 185kg | 185kg | 180kg | 175kg | |
Innercavity size | 970*550*350(mm) | ||||
Dimensions | 1250*740*840(mm) | ||||
Packagedimensions | 1340*860*1070(mm) | ||||
Power | 1120W | ||||
Powersupply | AC 200-240V50-60HZ | ||||
Material | Motor | 120Winverter motor | |||
Innercavity material | Highquality imported stainless steel mirror panel | ||||
Box Material | Highquality and high strength castings, channel steel, angle steel, cold rolledsteel plate | ||||
