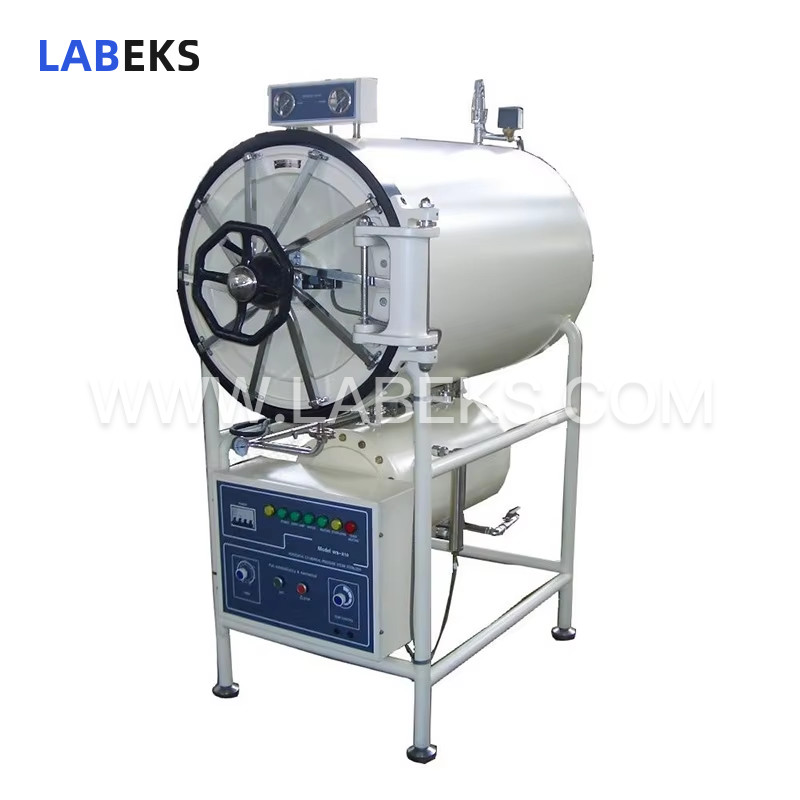

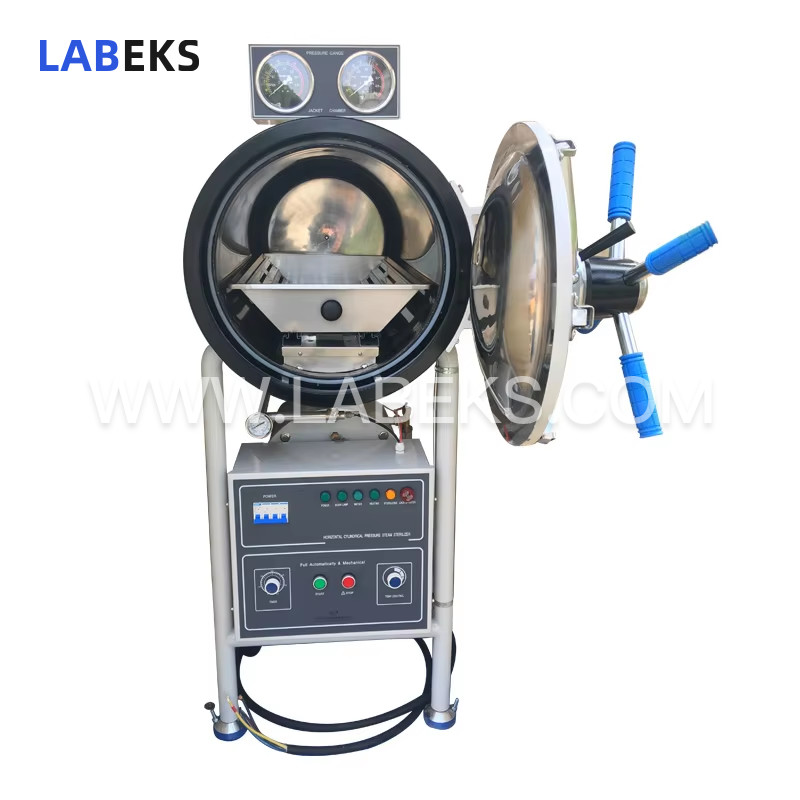

Horizontal Pressure Steam Sterilizer with Auto Sterilization Control for Hospitals & Laboratories
Delivering consistent, contamination-free sterilization via high-pressure steam, the pressure steam sterilizer is a critical device in hospital supply rooms, pharmaceutical plants, and research laboratories.
- modelL-150A/L-200A/L-280A/L-400A/L-500A
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Employing the gravity displacement method to expel cold air from its inner chamber, this horizontal pressure sterilizer minimizes cold air content in the internal steam for more reliable sterilization outcomes. Throughout the sterilization cycle, its control system automatically adjusts steam supply based on real-time inner chamber temperature. It is widely utilized in hospital supply rooms, operating theaters, pharmaceutical manufacturing facilities, and research institute laboratories for the sterilization of medical and laboratory textiles, surgical instruments, and utensils.
features
1. Equipped with over-temperature and over-pressure automatic protection to ensure safe, stable operation.
2. Integrates a safety interlocking system: steam cannot enter the inner chamber when the door is not properly closed, and it includes overcurrent protection that triggers automatic power cutoff during current overloads.
3. Boasts an alarm and door interlock function: when the sterilization chamber pressure exceeds 0.027 MPa, the door is locked to prevent opening, with an alarm to alert operators.
4. Provides multi-layer pressure and water level protection: a safety valve automatically relieves pressure when exceeding the working pressure, while a low water level protection device prohibits operation at high water levels and triggers automatic power failure protection if water is insufficient.
5. Features fully automatic sterilization process control, eliminating the need for manual supervision and ensuring intuitive, easy operation.
6. Includes a dedicated drying function to achieve effective drying of sterilized items post-sterilization.
7. Incorporates independent overcurrent protection, which automatically cuts off power in the event of current overload to safeguard the unit.
8. The sterilization chamber is fabricated from high quality stainless steel for exceptional durability and corrosion resistance.
specifications
Model | L-150A | L-200A | L-280A | L-400A | L-500A |
|---|---|---|---|---|---|
Sterilizing chamber volume | 150L | 200L | 280L | 400L | 500L |
φ440×1000 | φ515×1000 | φ600×1000 | φ700×1100 | φ700×1300mm | |
Maximum working pressure | 0.22Mpa | ||||
Maximum working temperature | 134℃ | ||||
Adjustment of temperature | 40℃-134℃ | ||||
Sterilizing time | 0-60min | ||||
Drying time | 0-60min | ||||
Heat average | ≤±2℃ | ||||
Power | 9kw/380V 50Hz | 9kw/380V 50Hz | 12kw/380V 50Hz | 18kw/380V 50Hz | 18kw/380V 50Hz |
Size(mm) | 1400×600×1300 | 1400×670×1650 | 1400×770×1780 | 1430×880×1830 | 1800×900×1820 |
Packing size（mm） | 1550×750×1850 | 1560×820×1850 | 1680×920×2100 | 1600×1050×2100 | 1850×1050×2100 |
Gross/ Net weight | 320/240kg | 350/260kg | 465/365Kg | 530/420Kg | 580/470Kg |
