Horizontal Constant Temperature Water Bath Shaker: 0.1℃ Uniformity for Cell & Bacteria Culture
Integrating temperature-controlled water bath and oscillation functions, the water bath shaker delivers precise, consistent conditions for oscillatory culture of biology, biochemistry, cells, bacteria and other liquid/solid samples, ideal for universities, medical facilities, petrochemical labs, health & epidemic prevention agencies and environmental monitoring centers.
- modelLH-110*48
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
As a specialized biochemical instrument combining a temperature-regulated constant temperature water bath and an oscillator, this horizontal unit is engineered to support oscillatory cultivation of a diverse range of liquid and solid samples including biological specimens, biochemical substances, cells, and bacteria. It serves as an essential tool for scientific research across universities, medical institutions, petrochemical sectors, health and epidemic prevention bodies, and environmental monitoring organizations.
features
1. Delivers exceptional temperature control linearity with minimal fluctuations, achieving a temperature uniformity of 0.1 °C.

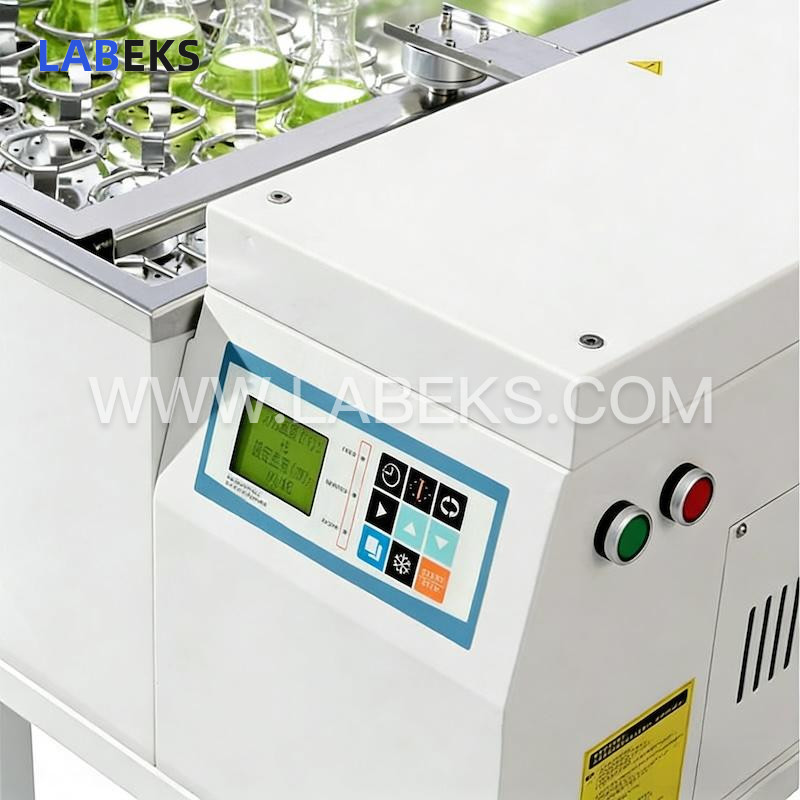

2. Features an LCD screen that simultaneously displays all set parameters and measured parameters.
3. Incorporates a parameter memory function for running settings, eliminating repetitive, cumbersome operations.
4. Equipped with a power-off recovery function: after a sudden external power outage and subsequent resumption, the device automatically resumes operation per its original programmed settings.
5. Supports 500-hour timing settings; the LCD screen displays remaining time, and the device automatically stops with an audible and visual alarm once the timer elapses.
6. Adopts the latest anti-shake floating buffer design, characterized by low-noise operation and zero overall machine vibration.
7. Constructed with a 316L stainless steel liner, along with electropolished stainless steel rocking plates, springs, and flask clamps.
8. Comes with a stainless-steel cover to prevent heat loss and moisture evaporation.
9. A drain valve located on the left side of the shaker enables easy drainage, cleaning, and disinfection of the interior.
10. Controlled by an intelligent environment-scanning microprocessor with audible and visual alarm capabilities.
11. When the measured temperature deviates from the set temperature by 3 °C, the host automatically stops heating and triggers an audible alarm.
12. Boasts a dual over-temperature protection design: the host automatically cuts off heating power if the heater component experiences low water levels or the test sample exceeds the set temperature.
13. Includes anti-dry heating protection.
Security
1. Leakage current and overcurrent protection systems ensure operator safety.
2. Over-temperature and over-speed audible and visual alarm emergency control systems safeguard sample integrity.
specifications
Model | LH-110*48 |
|---|---|
Control method | P.I.D microcomputer environment scanningmicro-processing chip control |
Display method | LCD liquid crystal display |
Oscillation mode | Reciprocating oscillation |
Drive mode | Track balanced drive |
Security function | Upper and lower limit over-temperature soundand light alarm; upper and lower limit overspeed alarm; independentover-temperature protector; open door stop protection; leakage orover-current protection device; |
Accessory function | Speed storage, call recovery, parametermemory, temperature speed correction, clock display |
Programming function | Repeat, pacing, eight-segment curveprogramming |
Reciprocating frequency | 20-200rpm |
Frequency accuracy | ±1rpm |
Stroke range | φ25mm |
Maximum capacity | 48*250ml/500ml*30/1000ml*20 |
Rocker size | 780*586(mm) |
Spring rocker size | 780*586*80(mm) |
Timing range | 0-999.59hours |
Temperature control range | Ambient temperature-100℃ |
Temperature control accuracy | ±0.1(Constant temperature state) |
Temperature uniformity | ±0.2℃ |
Number of rocking plates | One |
Inner cavity size | 940*660*275(mm) |
Dimensions | 1240*700*760(mm) |
Net weight | 80kg |
Gross weight | 115kg |
power | 4000W |
Motor | 60W Inverter motor |
Voltage | AC 200-240V 50-60HZ |
