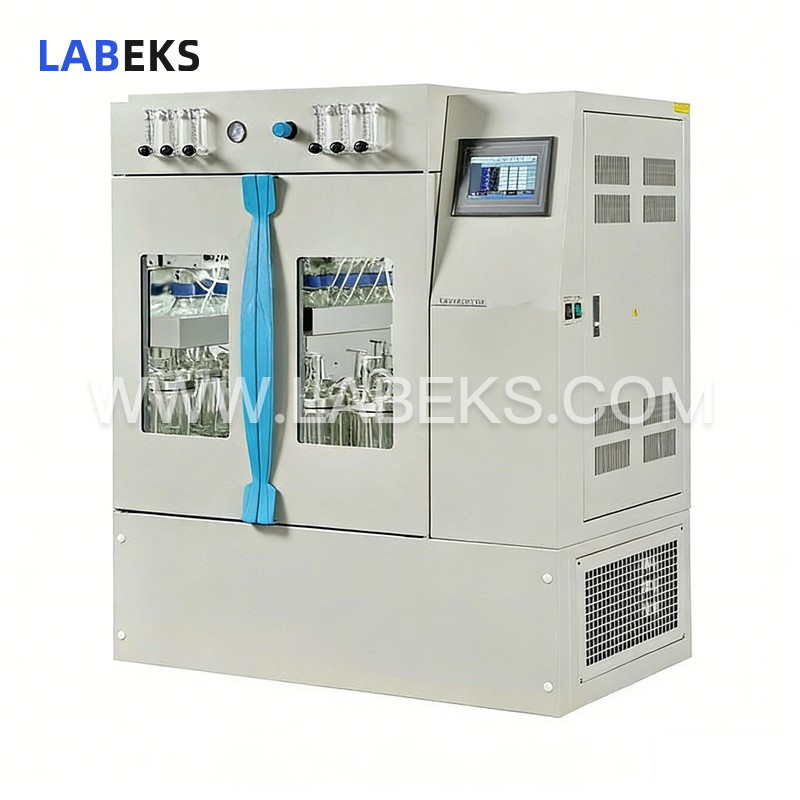

High-throughput Bioreactor Incubator Shaker for Microbial Screening with PH Control

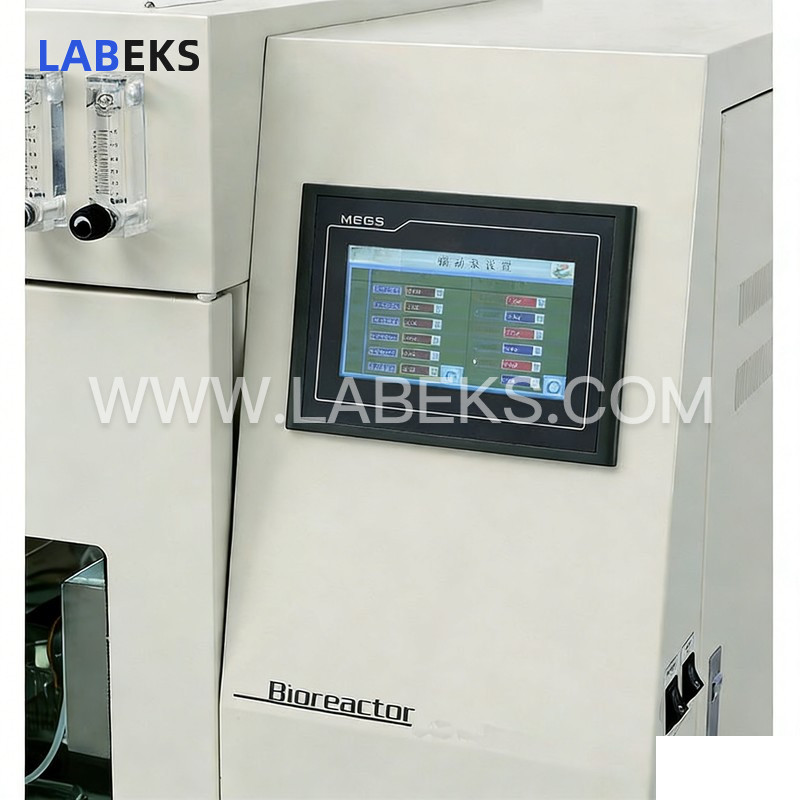

1. 10-inch large color touch screen provides clear display of both set and measured parameters.

2. Intelligent microprocessor controller with sound and light alarm for real-time environmental scanning.

3. Premium inverter motor offers wide speed range, constant torque operation, brushless design and maintenance-free performance.

4. Oscillation rotation speed ranges from 50 to 300 rpm

5. Over-temperature sound and light alarm triggers automatic power cut-off for motor overheating, temperature deviation and abnormal over-temperature conditions.

6. Programmable acceleration control ensures slow startup and smooth acceleration, protecting experimental sample integrity.

7. Built-in parameter memory function eliminates repetitive, tedious setup operations.

8. CFC-free refrigeration system meets international environmental safety standards.

9. Vertical double-door, dual-layer design reduces floor space while maximizing bottle holding capacity and operational efficiency.

10. Exclusive original single-axis drive balancing technology minimizes energy consumption and operational noise.

11. Large-view tempered glass window for clear internal observation.

Detail function

1. Real-Time Temperature & PH Curves: Retrieves cached data to generate real-time curves, with configurable X and Y axis parameters for customized visualization.

2. Historical Curve Review: Enables viewing of historical parameter curves (temperature, speed, PH) with page forward/backward navigation for detailed analysis.

3. PH Configuration: Allows setup of PH control parameters, acid-base pump switching, peristaltic pump flow rate and feed volume parameters.

4. Speed & Temperature Control: Offers correction functions for speed and temperature, with selectable control modes including automatic and tracking.

5. Multi-Stage Temperature Control: Supports programmable multi-stage temperature regulation for complex cultivation processes.

6. Automatic PH Calibration: Allows access to and configuration of DO calibration parameters as needed.

7. Automatic DO Calibration: Default zero point, slope and standard value are pre-set for quick calibration operations.

8. Peristaltic Pump Calibration: Enables flow rate input for all peristaltic pumps; in automatic mode, the system automatically accumulates total feed volume to ensure precise flow rate correction.

9. Batch Management: Supports batch number input and stores corresponding batch data, which can be exported to a USB drive for record-keeping.

10. Pre-Fermentation Batch Monitoring: Tracks real-time PH curves and automatic operation status; also supports viewing of independent PH curves for the unit and adjacent bioreactors.

11. Real-Time Report Configuration: Customizes report generation intervals (1 minute, 10 minutes, 60 minutes) to include real-time data, historical curves and batch information.

12. Alarm Management: Displays real-time alarms at the top and historical alarms at the bottom; allows setting of parameter upper/lower limits and control dead zones to prevent false alarms.
