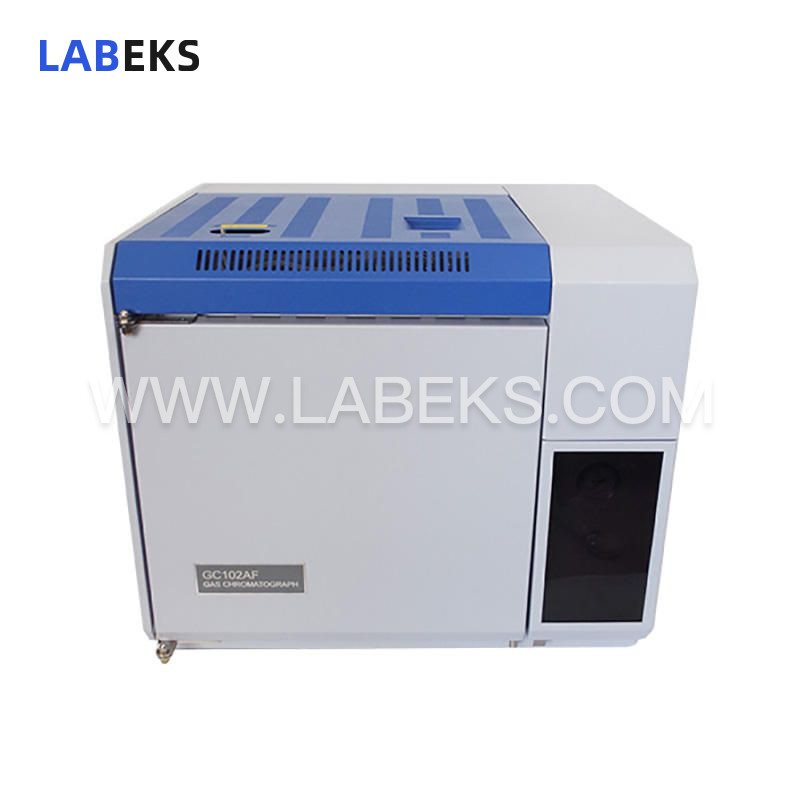

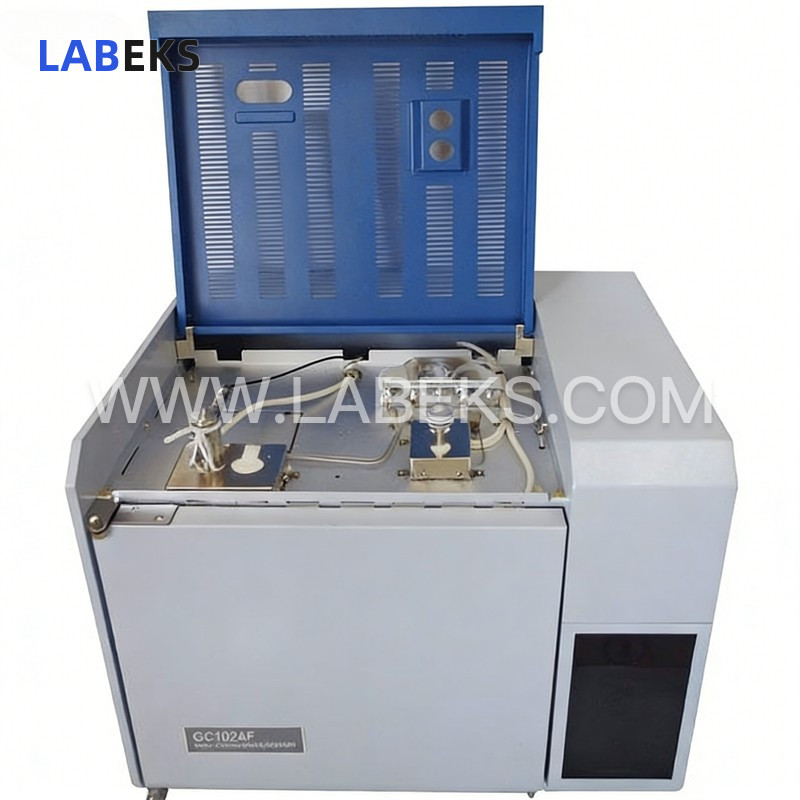

Gas Chromatograph with ±0.1°C Precision for Compound Separation & Analysis

1. Microprocessor-based temperature control delivering exceptional accuracy of better than ±0.1°C.

2. Spacious 330mm × 280mm × 270mm oven, facilitating the installation of packed columns or large-diameter capillary columns.

3. Compatible with packed columns; optional configurations include flash vaporization injection, gas sampling, gas sampling valve, and 0.53mm large-diameter capillary direct injector.

4. Enables parameter configuration via keyboard (including detector operating settings) and integrates intelligent features: self-diagnosis, power-off protection, file storage/recall, temperature limit setting, and FID auto-ignition.

5. High-resolution Chinese LCD screen with an intuitive, information-rich interface, accurately displaying set and actual temperature values, TCD operating current, FID amplifier sensitivity, and more.

6. Open microcomputer system supports integration with an RS-232 interface and F-2000 chromatography workstation for bidirectional communication and data processing control.

Temperature control:

1. Temperature control area: column box, injector, detector.

2. Temperature control range: 15 ° C ~ 399 ° C (increment 1 ° C) at room temperature.

3. Temperature control accuracy: better than ± 0.1 ° C (200 ° C measured).

Flame ionization detector (FID):

1. Detection limit: MFID ≤ 1 × 10-10g / s (sample: C16)

2. Baseline drift: ≤ 2 × 10-12A / h
