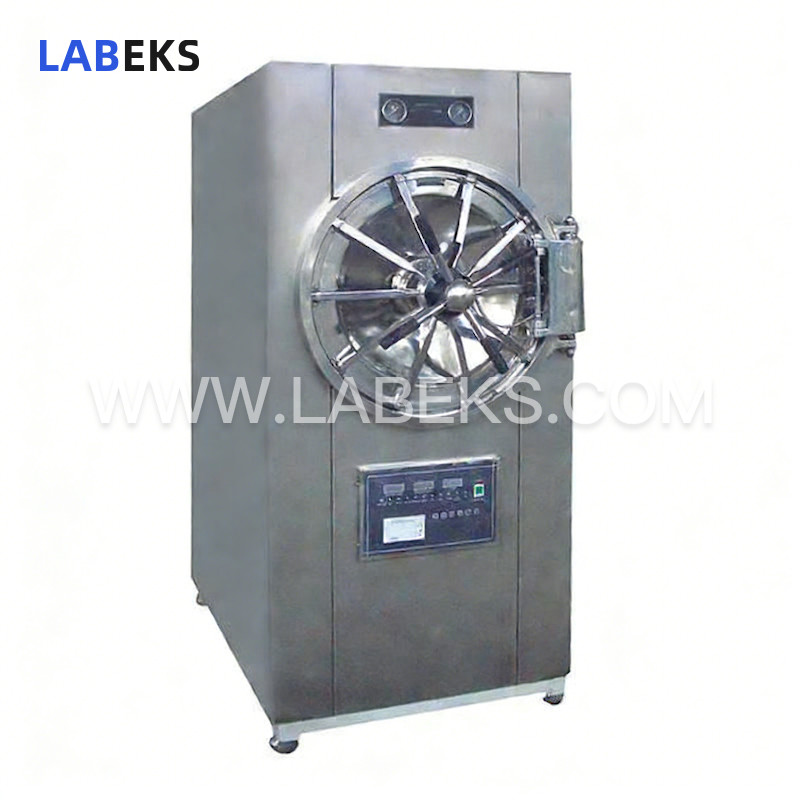

Fully Stainless Steel Microcomputer Steam Sterilizer with Automated Control for Hospitals & Labs
Engineered to deliver dependable high-pressure steam sterilization, this steam sterilizer is critical for decontaminating medical textiles, surgical instruments, and lab utensils in hospitals, pharmaceutical plants, and research institutes.
- modelL-150D/L-200D/L-280D
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
This horizontal pressure sterilizer employs a gravity displacement method to purge cold air from the inner chamber, minimizing residual cold air to ensure highly reliable sterilization outcomes. Throughout the sterilization cycle, the microcomputer control system automatically adjusts steam supply according to the inner chamber’s real-time temperature. It is widely utilized in hospital supply rooms, operating theaters, pharmaceutical manufacturing facilities, and research institute laboratories for the sterilization of medical and laboratory textiles, surgical instruments, and various utensils.
features
1. The entire unit is constructed from fully stainless steel, ensuring excellent durability, corrosion resistance, and simplified maintenance.
2. Equipped with automatic over-temperature and over-pressure protection mechanisms to maintain safe operating parameters.

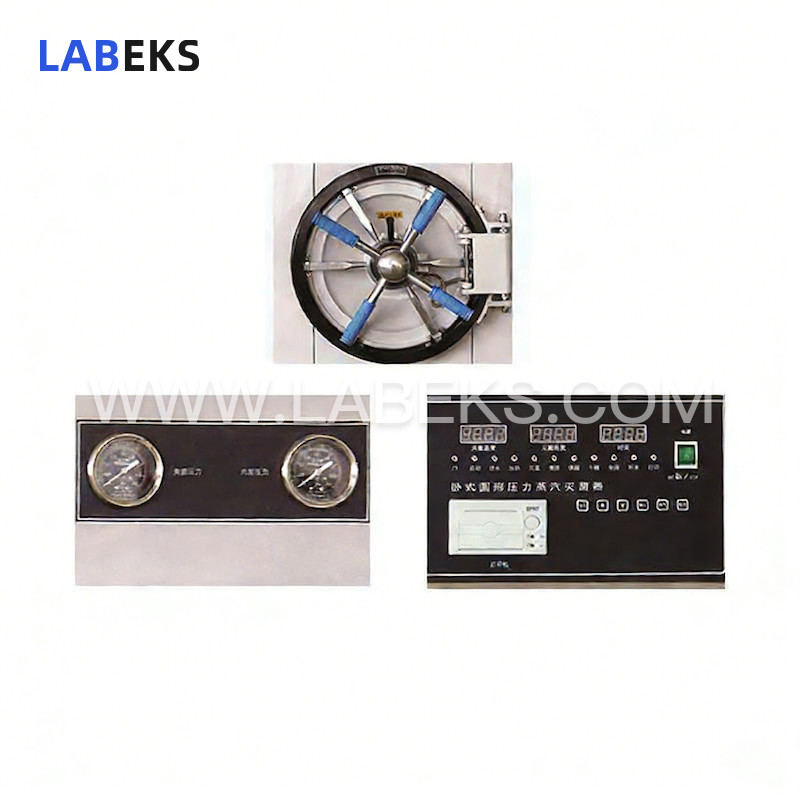

3. Features multi-functional safety interlocking devices: steam is prevented from entering the inner chamber if the door is not securely closed, and overcurrent protection automatically triggers power cutoff in case of current overload.
4. Includes a pressure-activated door interlock with alarm: the door remains locked and cannot be opened, with an audible alert, when the sterilization chamber pressure exceeds 0.027 MPa.
5. Incorporates dual overpressure protection: a safety valve that automatically relieves pressure when exceeding the working limit, plus low water level protection—preventing activation at high water levels and cutting power automatically if water is insufficient.
6. Features fully automated microcomputer-controlled sterilization cycles, eliminating the need for constant manual supervision and ensuring user-friendly operation.
7. Integrated drying function to ensure thorough, consistent drying of all sterilized items post-cycle.
8. Provides dedicated overcurrent protection, which automatically shuts off power in the event of current overload to safeguard electrical components.
9. Comes with an integrated print function to document sterilization cycle details for compliance and record-keeping purposes.
specifications
Model | L-150D | L-200D | L-280D |
|---|---|---|---|
Sterilizing chamber volume | 150L | 200L | 280L |
φ440×1000 | φ515×1000 | φ600×1000 | |
Maximum working pressure | 0.22Mpa | ||
Maximum working temperature | 134℃ | ||
Adjustment of temperature | 40℃-134℃ | ||
Sterilizing time | 0-99min | ||
Drying time | 0-99min | ||
Heat average | ≤±2℃ | ||
Power | 9kw/380V 50Hz | 9kw/380V 50Hz | 12kw/380V 50Hz |
Size(mm) | 1400×650×1600 | 1400×750×1700 | 1520×910×1900 |
Packing size（mm） | 1560×820×1820 | 1560×910×1880 | 1680×1080×2100 |
Gross/ Net weight | 430/340kg | 436/350kg | 570/462Kg |
