Fully Closed Water Bath Nitrogen Evaporator with Programmable Control for 1-60 Samples

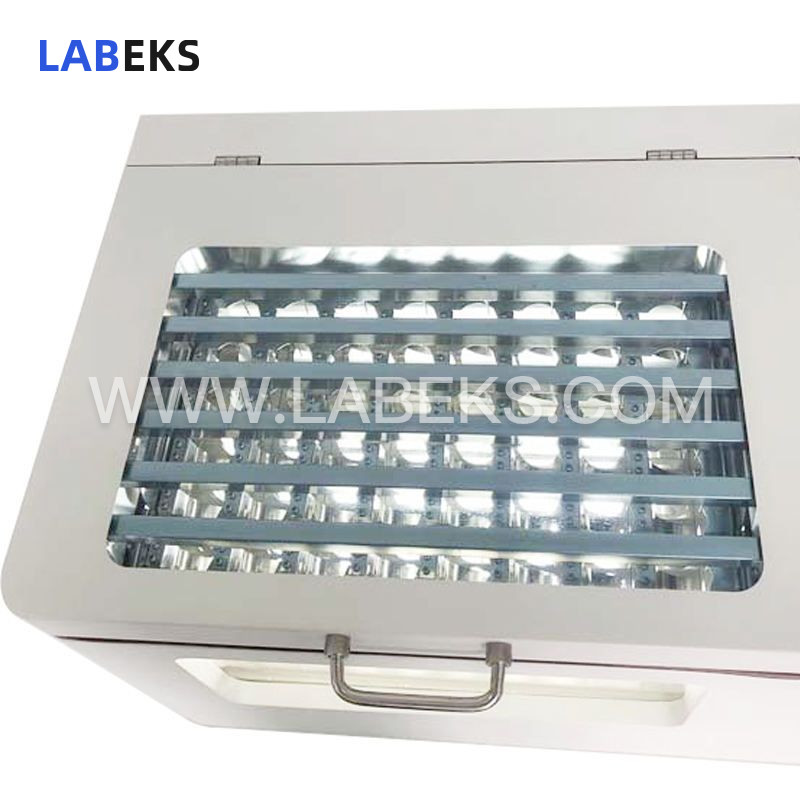

Featuring top and bottom transparent windows for high sample visibility and tight air sealing, this water bath nitrogen evaporator stores multiple data sets, making cumbersome concentration processes flexible, worry-free, efficient, and fully secure.
- modelLSC-12S/LSC-24S/LSC-36S/LSC-48S/LSC-60S
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description

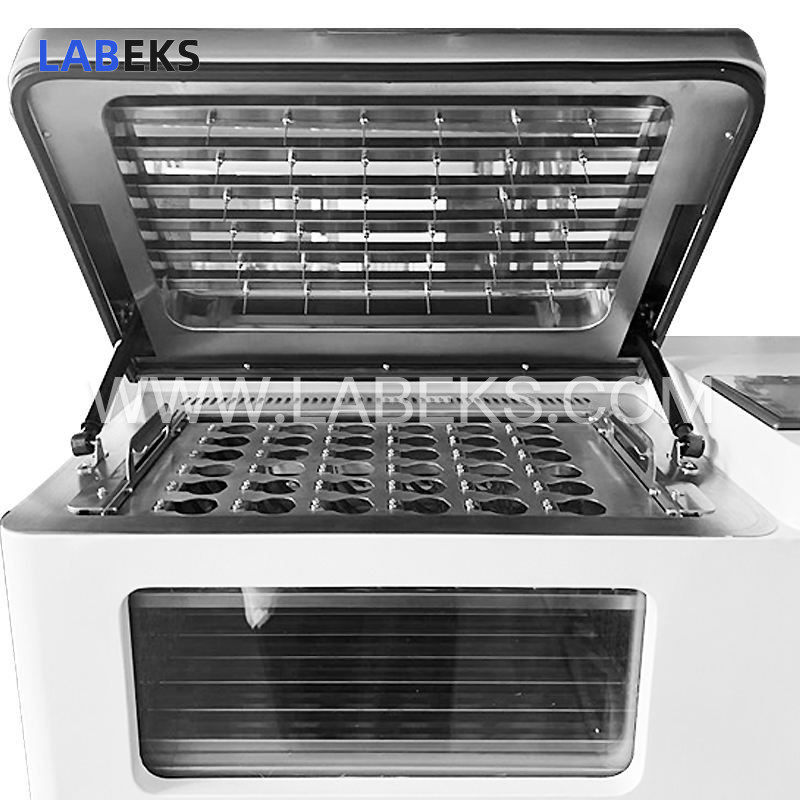

Developed as an advanced concentration solution prioritizing user convenience, safety, speed, and stability, the fully enclosed water bath nitrogen evaporator is equipped with top and bottom transparent windows for optimal sample visibility and superior airtightness. With built-in multi-set data storage and one-handed control, it simplifies the entire concentration workflow, turning traditionally cumbersome procedures into flexible, worry-free, efficient, and secure operations.
features

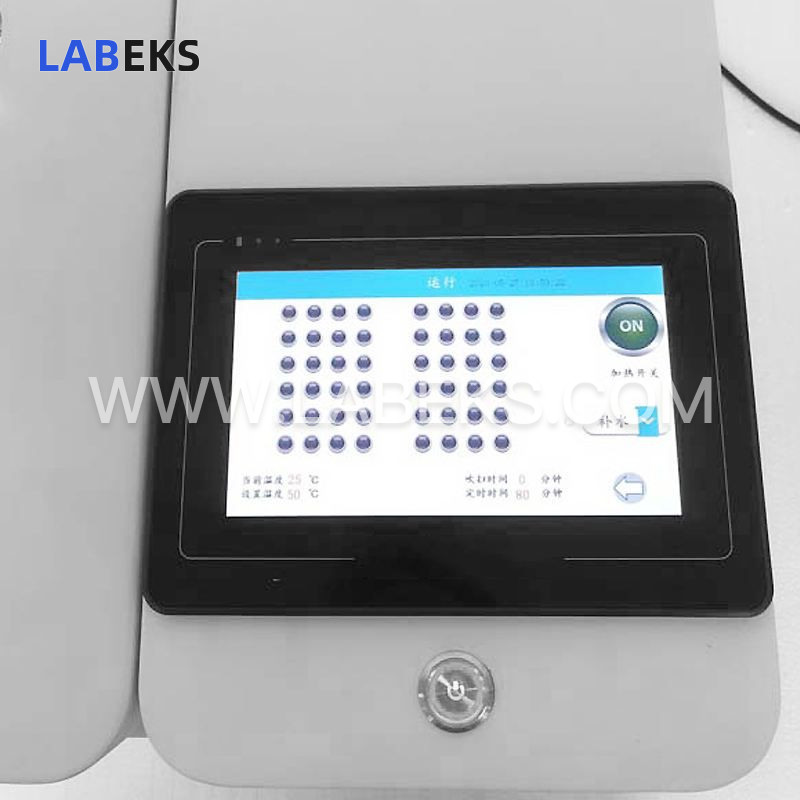

1. 7-inch large LCD touch screen enables intuitive control, supporting simultaneous processing of 1 to 60 samples.

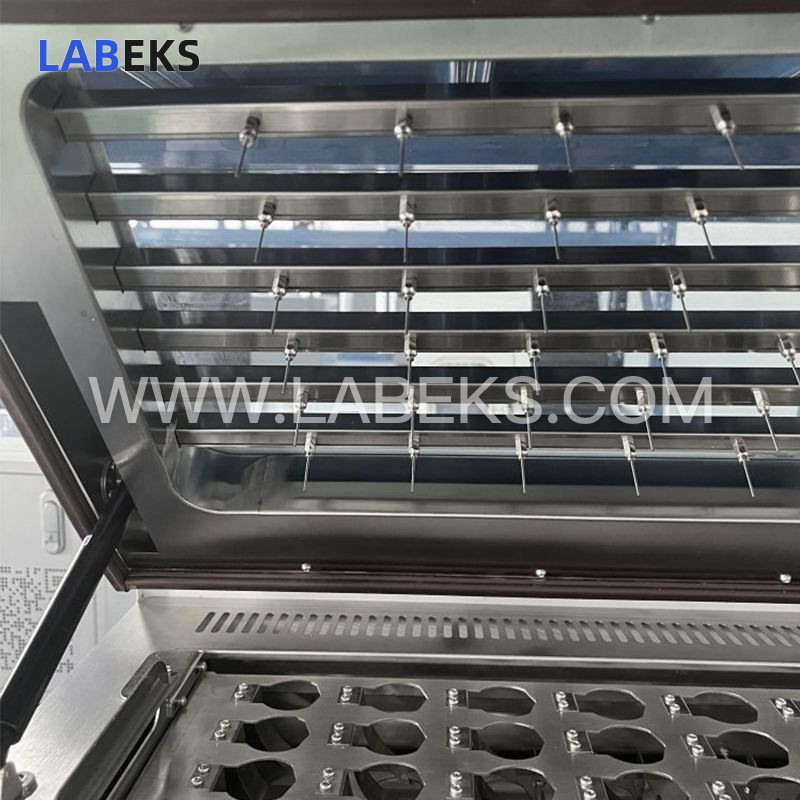

2. Integrated nitrogen preheating function delivers heated gas (temperature: about 45°C), accelerating sample concentration reactions while preventing condensation between volatilized concentrates and blow needles to avoid sample contamination and cross-infection.
3. Dual-sealed door mirror protection system and built-in circulation fan eliminate the need for external ventilation windows, ensuring zero volatile substance leakage.
4. 5 operational modes paired with 50-step programmable temperature control offer high levels of intelligence and customization.
5. Automatic pressure regulating device maintains consistent air pressure across all gas circuits.
6. Built-in multi-group data storage allows real-time access to equipment operational data.
7. Combined nitrogen preheating and independent throttling solenoid valve control ensures gas path airtightness, significantly reducing nitrogen consumption.
8. Full module visualization provides unobstructed views of liquid levels for enhanced convenience.
9. Front and side observation windows on the chassis facilitate easy sample monitoring.
specifications
Model | LSC-12S | LSC-24S | LSC-36S | LSC-48S | LSC-60S |
|---|---|---|---|---|---|
Displaymode | 7-inchlarge LCD touch screen | ||||
Mode | 5 | ||||
Programtemperature control | 50levels | ||||
Numberof samples | 12 | 24 | 36 | 48 | 60 |
Modulediameter | 16mm(optional) | ||||
Visualsurface | 2sides | ||||
Timingfunction | 0-999 min | ||||
Airpressure adjustment | 0-0.8 mpa | ||||
Airpressure operation method | independent control | ||||
Temperaturerange | Room temperature -100°C | ||||
Heatingmethod | Water bath heating | ||||
Temperaturecontrol accuracy | ±1°C | ||||
Over-temperaturealarm | Yes | ||||
Built-inexhaust fan system | Yes | ||||
Doublesealing door system | Yes | ||||
Timingfunction | Yes | ||||
Sample tray | replaceable | ||||
Power supply | 220V 50HZ | ||||
Weight | 18kg | 22kg | 25kg | 28kg | 28kg |
