Fully Automatic Confocal Raman Microscope with 6000:1 SNR for Forensic Analysis
Integrating dual lasers and merging the strengths of microscopes with Raman spectrometers, the Confocal Raman Microscope enables “what you see is what you get” visualization, precise detection of Raman signals across diverse sample surfaces, and simultaneous micro-area morphology display to streamline micro-region analysis.
- modelLATR8500
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
The full LATR8500 series supports automated focusing, automatic scanning, one-touch operation, batch experimentation, and uniformity scanning. Users can acquire highly reliable Raman scanning imaging data without unnecessary waiting periods.
The LATR8500 is fitted with an objective lens purpose-built for Raman systems, which produces a laser spot close to the diffraction limit. Focus information is accurately and intuitively displayed on a computer via a 5-megapixel camera, resolving the common issue of focal plane offset in conventional Raman systems to enhance Raman spectrum quality.
The LATR8500 fully eliminates light path loss in camera imaging, enabling complete separation of camera imaging and Raman signal acquisition to achieve optimal signal intensity.
It utilizes a high-performance spectrometer specifically optimized for Raman microscopy systems, leading the industry in sensitivity, signal-to-noise ratio, and stability—providing robust support for Raman research projects.
Applications:
Nanoparticles & Advanced Materials
Research Institutions
Life Sciences
Forensic Analysis
Materials Science
Clinical Immunology Analysis
Agricultural & Food Safety
Aquatic Contamination Analysis
Gemstone & Inorganic Mineral Identification
Environmental Science

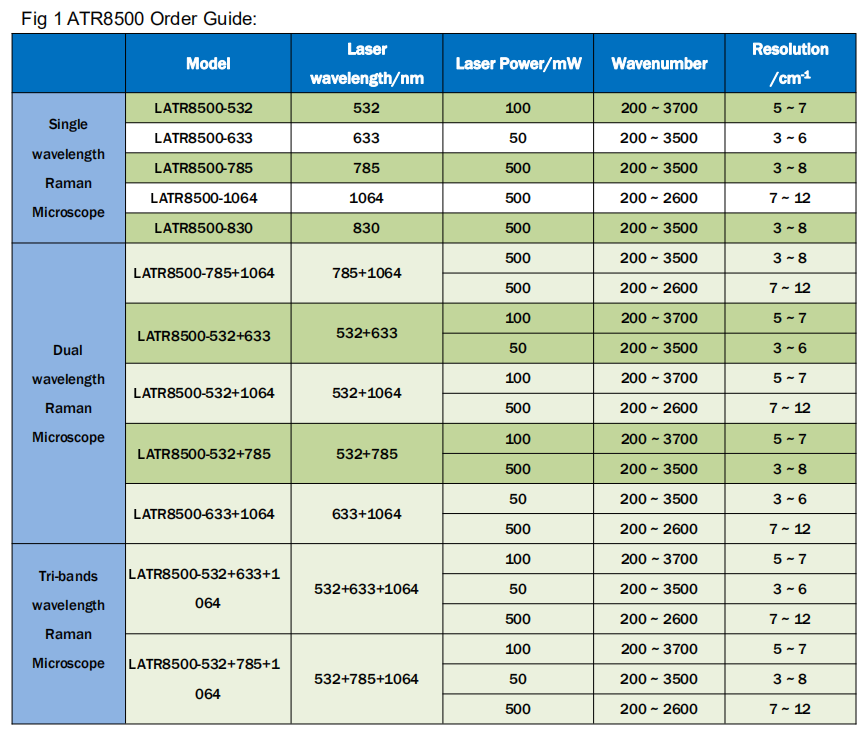

How to Select LATR8500 Series Models and Wavelengths?
Step 1: Choose from Single-Band, Dual-Band, and Triple-Band model configurations.

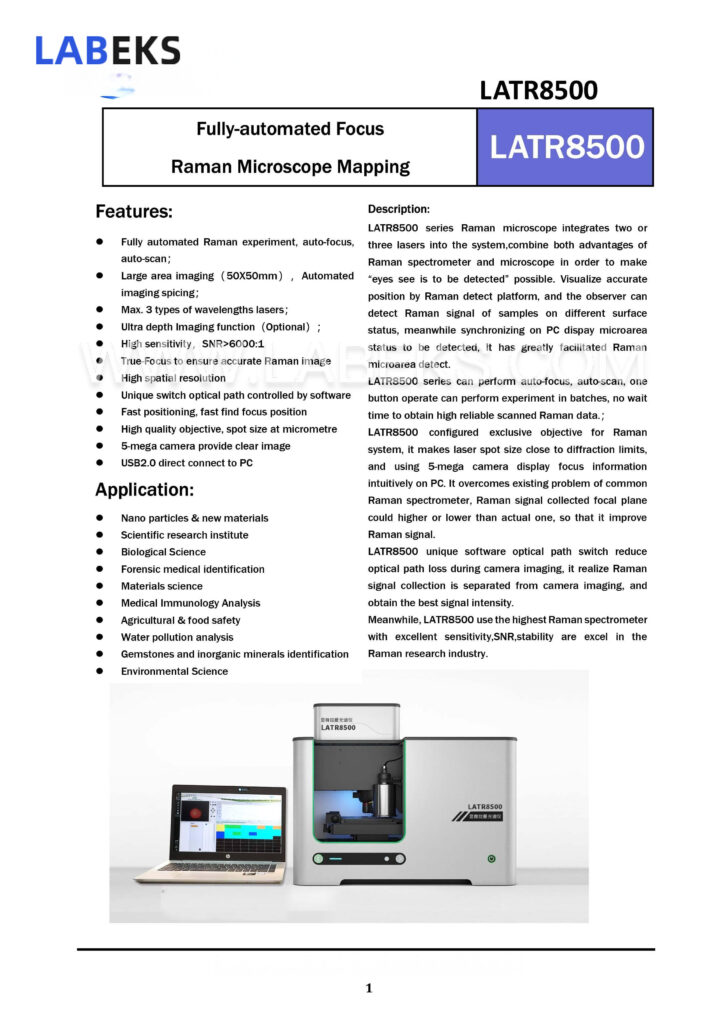

Step 2: Refer to the datasheet model selection guide below to choose the appropriate wavelength and wavenumber range:
features
1. Fully automated Raman experimentation with integrated auto-focus and auto-scanning capabilities
2. Ultra-high sensitivity with a signal-to-noise ratio>6000:1
3. Industry-leading system stability for consistent, reliable test results
4. True focus technology, ensuring more accurate Raman images
5. Ultra-high spatial resolution for detailed micro-region analysis
6. Equipped with a high-performance Raman-optimized spectrometer
7. Imported precision optical components for exceptional product performance
8. High-quality objective lens, delivering micron-level laser spots
9. Rapid positioning functionality to quickly locate the optimal focus position
10. Excitation wavelength: 532, 633, 785, 830, 1064 nm optional
11. Unique software-controlled optical path switching for flexible operation
12. 3 million cameras for clear, accurate visual feedback
13. USB2.0 interface for direct, seamless computer connectivity

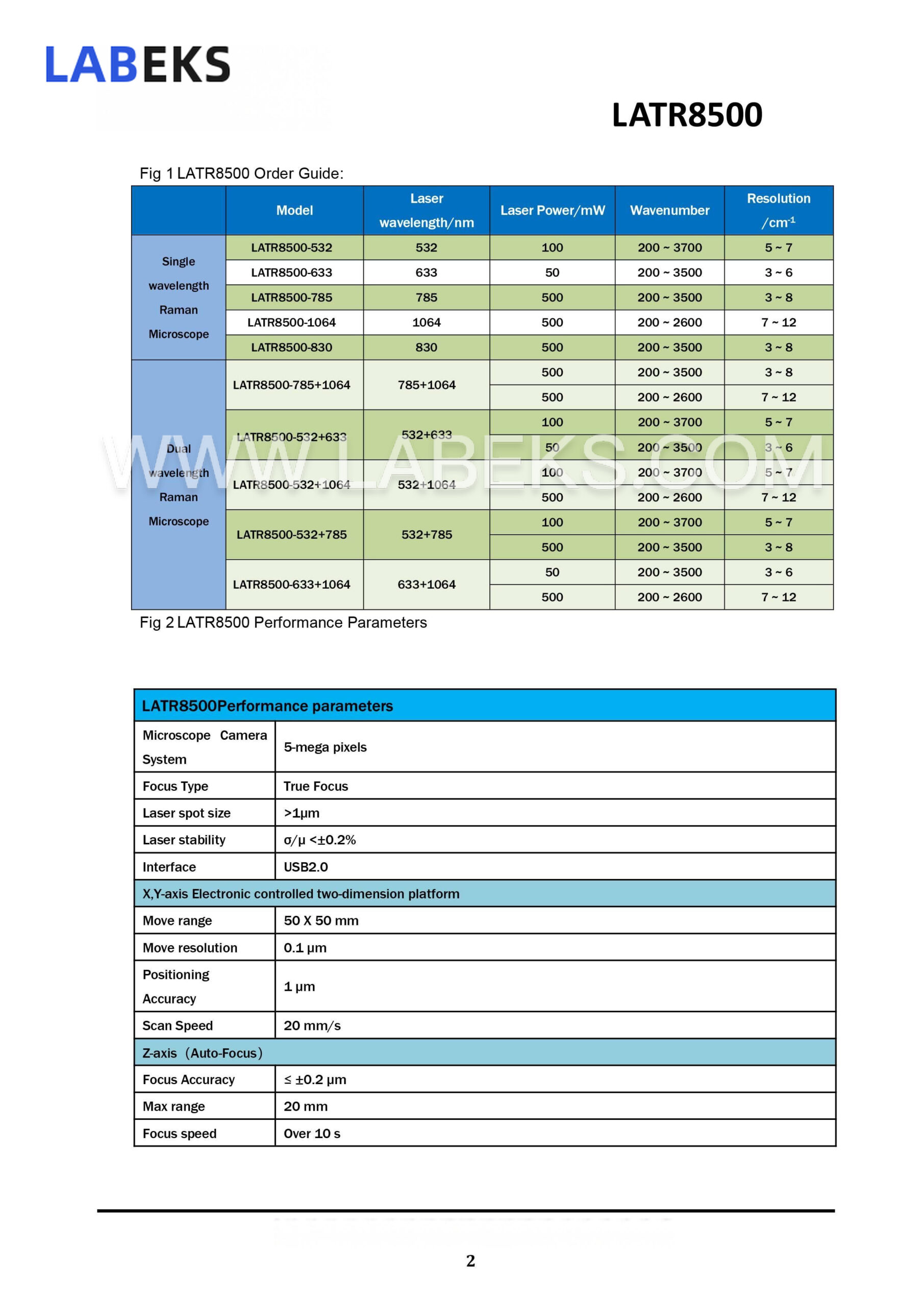

specifications
Model | LATR8500 |
|---|---|
Microscope camera system | 5 million pixel industrial camera |
Focusing method | Conjugate Focus |
Laser spot diameter | >1μm |
Laser stability | σ/μ<±0.2% |
Communication mode | USB2.0 |
X, Y-axis electronically controlledtwo-dimensional platform | |
Moving range | 50 X 50 mm |
Mobile resolution | 0.1 μm |
Positioning accuracy | 1 μm |
Scan speed | 20 mm/s |
Z axis (auto focus) | |
Focus accuracy | ≤ ±0.2 μm |
Maximum stroke | 20 mm |
Focus speed | No more than 10 s |
