Freeze Dryer Lyophilizer with < -35℃ Cold Trap & 30-Stage Programmable Control
Designed for small-scale batch applications in households and online stores, the freeze dryer lyophilizer provides reliable vacuum freeze-drying for fruits, meats, vegetables, Chinese herbal medicines, and health supplements as a compact household-grade unit.
- modelLFD-6
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Lyophilization, or freeze drying, is a dehydration process in which water is removed from a product after freezing and placement under vacuum, allowing ice to transition directly from a solid state to vapor without passing through a liquid phase. This process consists of three distinct, interconnected stages: freezing, primary drying (sublimation), and secondary drying (desorption).
features
In-situ pre-freeze drying capability for efficient, streamlined processing.
Integrated touchscreen interface supports power-on password protection and real-time drying curve display.
30 configurable process segments allow for on-the-fly parameter adjustments, with online recording of vacuum drying curves and operational data.
Adjustable temperature settings enable full control over the freeze-drying production process.
Deformation-resistant square trays ensure easy operation and convenient cleaning.

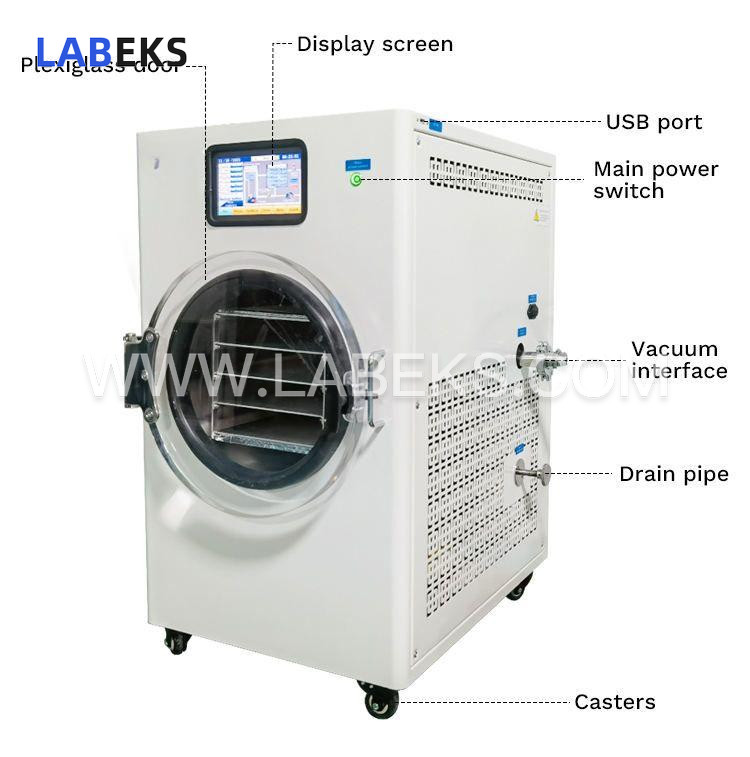

The drying chamber is fitted with a highly transparent, colorless plexiglass door for clear observation of material changes during operation.
An optional inflation valve is available for filling with dry inert gases.
specifications
Model | LFD-6 |
|---|---|
Freeze-dried Area(M2) | 0.6M2 |
Handling Capacity(Kg/Batch) | 6~8Kg/Batch |
Cold Trap Temperature(℃) | ＜-35℃（No-load） |
Maximum Ice Capacity/Water Catch(Kg) | 6.0kg |
Layer Spacing(mm) | 50mm |
Tray Size(mm) | 430*315*30mm 4mmPcs |
Ultimate Vacuum（Pa） | 15pa（No-load） |
Vacuum Pump Type | 2XZ-4 |
Pumping Speed(L/S) | 4L/S |
Noise(dB) | 64dB |
Power(W) | 2000W |
Power Supply | 220V/50HZ or Custom |
Weight(Kg) | 120Kg |
Dimension(mm) | 640*680*1180mm |

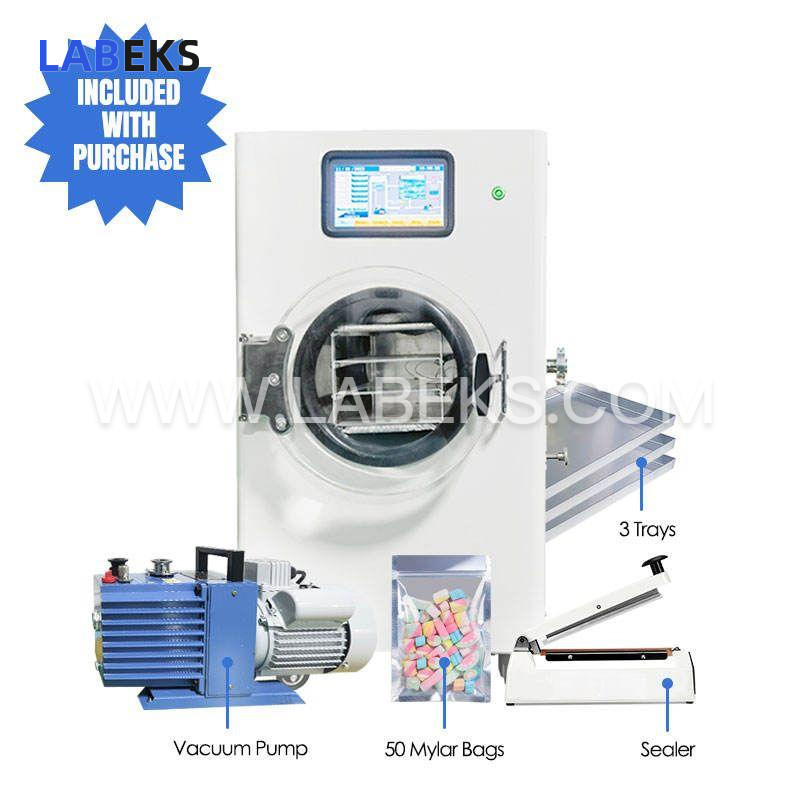

Standard parts list:
Model | LFD-6 |
|---|---|
Host machine | 1set |
Tray | 4pcs |
Vacuum pump | 1set |
Vacuum pump pipe | 1pc |
Vacuum clamp | 2sets |
vacuum grease | 1box |
English manual | 1pc |
Certification | 1pc |
