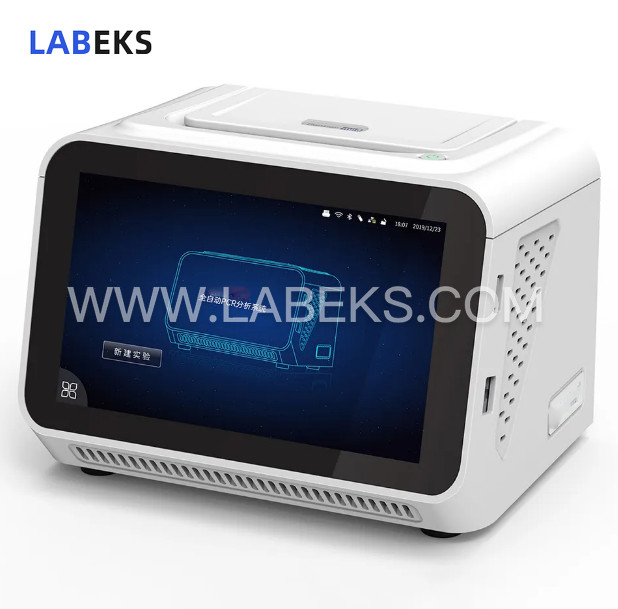

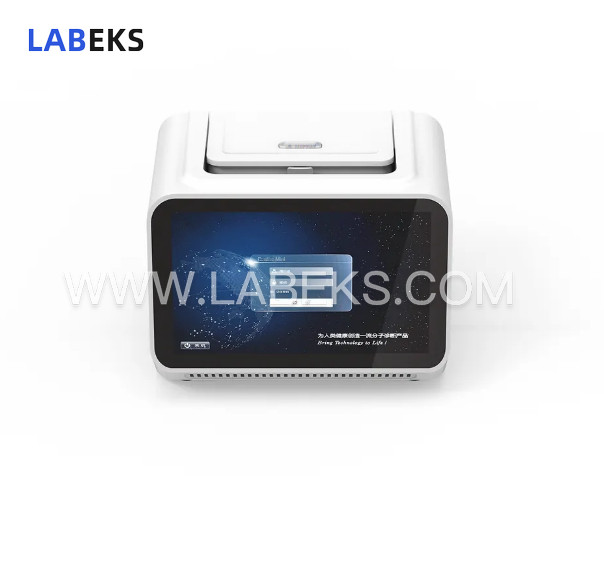

Fluorescent Quantitative PCR Instrument for On-Site Testing with Precise Temperature Control
Engineered for mobile labs, small laboratories, and on-site testing, this fluorescent quantitative PCR instrument offers compact portability, flexible control, high-efficiency fluorescence detection, and precise temperature regulation, extending PCR testing beyond traditional lab settings to streamline your work.
- modelGentier mini
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
As part of the LABEKS fluorescent quantitative PCR instrument lineup, the Gentier mini inherits the brand’s exceptional performance while being purpose-built for mobile laboratories, small lab spaces, and on-site testing. It effectively addresses challenges such as limited testing areas and dispersed samples in small farms or pet hospitals, supports rapid result generation and analysis, and enables accurate, speedy detection of animal diseases.
features
High-efficiency heating and cooling with precise temperature regulation, paired with 1-second dual-color fluorescence scanning of all 16 wells to accelerate result delivery.
Independent temperature control module supports landing PCR and long-fragment PCR; the integrated software delivers robust functionality including qualitative and quantitative analysis, melting curve analysis, and SNP site detection.
Compact, lightweight build at just 3.2KG with a patented design, eliminating the need for fluorescence recalibration after relocation.
Versatile control options: multiple connectivity interfaces including Ethernet port, USB, WiFi, and Bluetooth enable standalone operation via touchscreen, PC software control, or remote management via tablet or mobile device.
User-centric design features: a 7-inch high-definition LCD touchscreen with enhanced sensitivity, plus power failure protection that automatically resumes unfinished experiments after restart, mitigating unexpected disruptions.
Supports a wide range of experimental workflows to fulfill diverse testing requirements across multiple industries.
Robust built-in software analysis capabilities allow for direct data analysis on the standalone instrument, with direct printing support via connected printers.
Applicable fields: food safety, infectious disease prevention and control, scientific research, animal disease diagnostics, environmental monitoring.
specifications
Model | Gentier mini |
|---|---|
Detection throughput | 16 |
Fluorescence channel | 2 |
Applicable consumables | 0.2mL transparent single tube and 8-connected tube |
Applicable probe/dye | Channel 1: FAM, SYBR Green 1, SYTO 9, EvaGreen, LC Green Channel 2: HEX, VIC, TET, JOE |
Heating rate | The average heating rate is 3.3°C/s, the maximum heating rate is 4.5°C/s |
Cooling rate | The average cooling rate is 3.0°C/s, the maximum cooling rate is 4.2°C/s |
Temperature accuracy | ≤0.1℃ |
Light source | High-brightness long-life maintenance-free LED light source |
Detection time | 1s to complete all the fluorescence channel information collection ofall holes |
Temperature control program | Support standard PCR, landing PCR, long fragment PCR, etc. |
Software analysis function | Qualitative analysis, absolute quantitative analysis, relativequantitative analysis, end point fluorescence analysis, melting curveanalysis, SNP analysis, etc. |
Display screen | 7-inch full-color high-definition LCD capacitive screen |
Various control methods | Method 1: Through the touchscreen of the instrument, the unit operation stores at least 1000 data Method 2: Control throughcomputer software Method 3: Remote control viatablet/mobile APP |
Result analysis | The experimental results can be directly analyzed on the instrument,printed directly after connecting to a thermal or Bluetooth printer, oranalyzed through PC software or device APP |
Interconnection method | Network port, USB, WiFi, Bluetooth |
Power failure protection | Instantaneous power-off protection, automatically continue to rununfinished experiments after the instrument is restarted |
Dimensions and weight | 153mm(length) ×205mm(width) x141mm (height), 3.2Kg |
