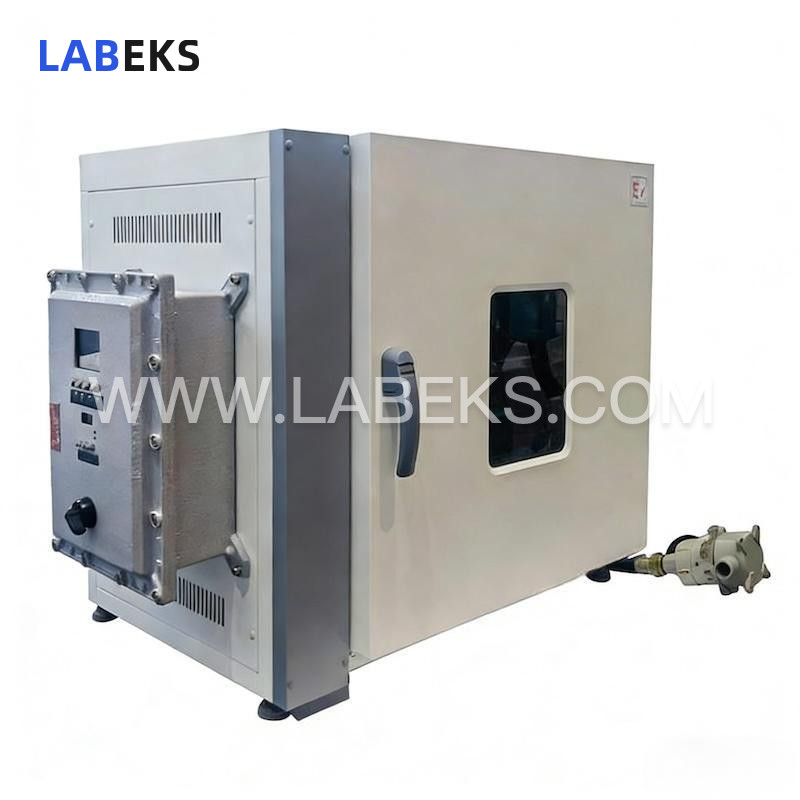

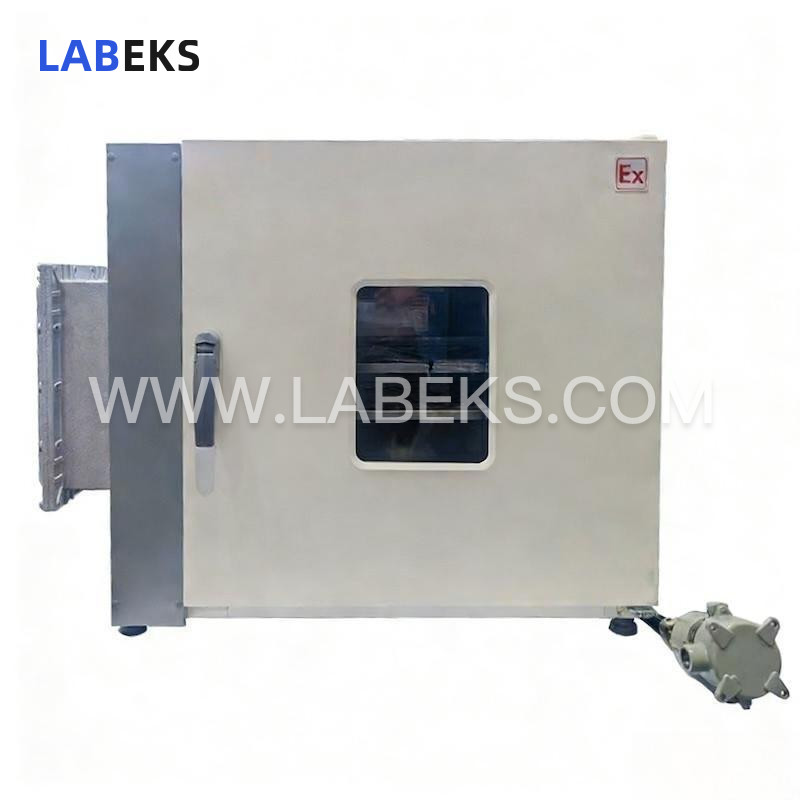

Explosion-Proof Vacuum Drying Oven for Lab & Industrial Heat-Sensitive Sample Processing
Ideal for biochemistry, chemical pharmacy, healthcare, agricultural research, and environmental applications, this vacuum drying oven enables rapid, efficient drying, baking, and sterilization of glass containers—perfect for heat-sensitive, decomposable, oxidizable materials and complex compositions.
- modelLEX-52LU/LEX-91LU
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Specifically engineered for drying heat-sensitive, easily decomposable, and oxidizable substances, this unit also allows for inert gas filling to create a non-reactive processing environment.
features
1. Certified with an explosion-proof rating of Ex d e mb IIB T4 Gb

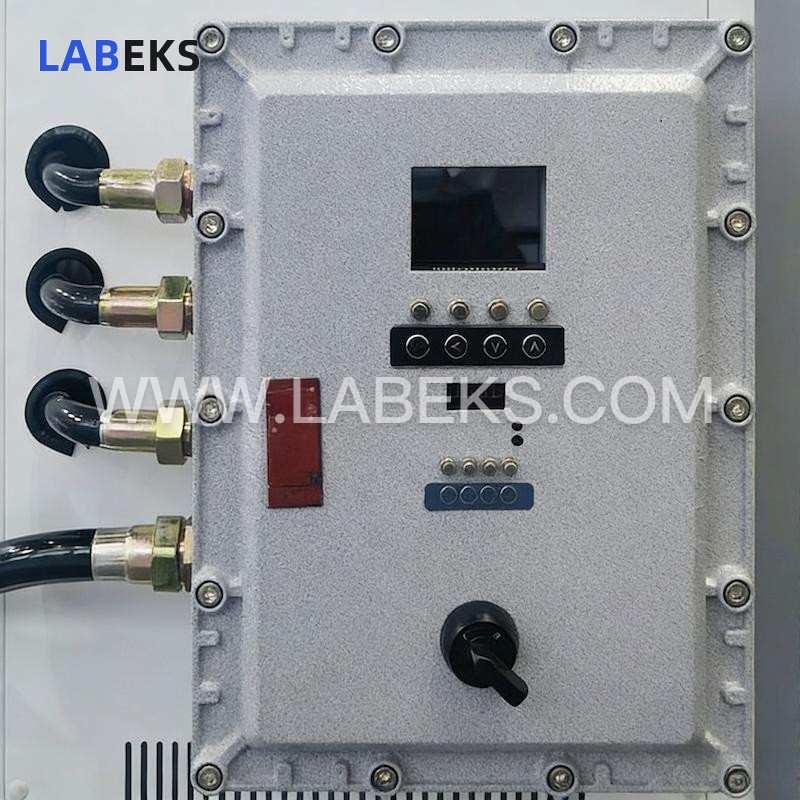

2. Full integrated explosion-proof technology is applied to the cabinet, equipment, and electrical components, with a centralized explosion-proof control box that mitigates risks from high temperatures, static electricity, and spark leakage
3. Comprehensive safety safeguards include overheating alarm, menu lock, and overheat prevention mechanisms
4. The chamber is fitted with explosion-proof 304 stainless steel heating tubes; no live components are present inside the tank for enhanced operational safety

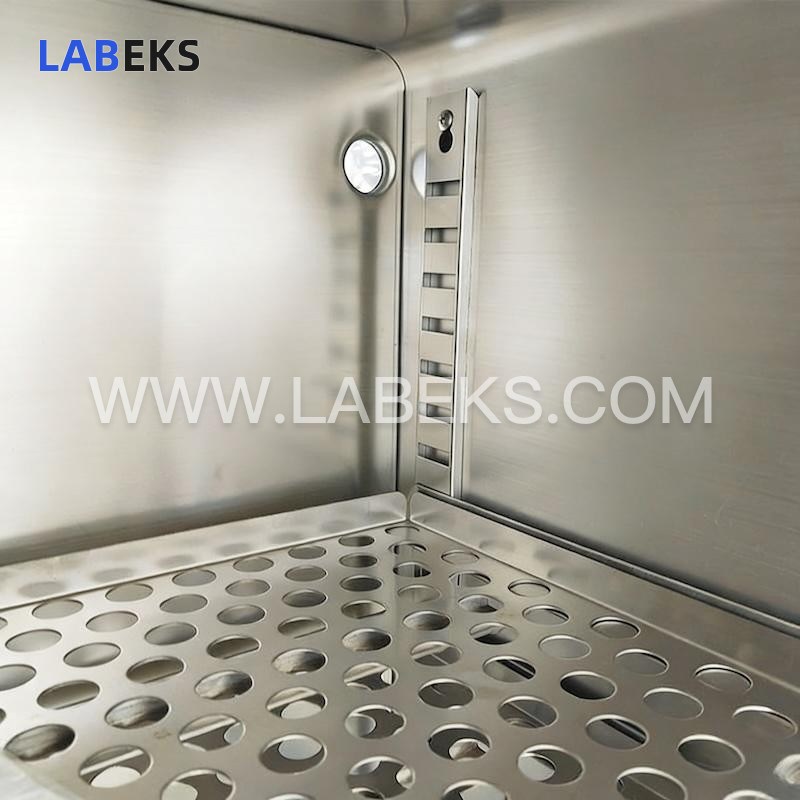

5. The inner liner is constructed from brushed stainless steel for easy cleaning, while the outer shell uses high-quality steel plate for a sleek, durable appearance
6. Full-screen LCD display supports multi-data visualization, with power failure memory and power failure compensation functions to maintain process integrity
7. All exposed wiring is enclosed in explosion-proof flexible conduit sets to isolate static sparks and temperature transfer, reinforcing safety
8. User-friendly operational modes include fixed-value operation, timed operation, automatic shutdown, and scheduled start functions
9. Primary system components include the drying chamber, explosion-proof heating system, and explosion-proof electrical control module
specifications
Model | LEX-52LU | LEX-91LU |
|---|---|---|
Method | Decompression,four-wall heating | |
Operatingtemperature range | RT+10-250℃ | |
Ultimatevacuum | <133PA | |
Temperatureresolution | 0.1℃ | |
Temperaturefluctuation | ±1℃ | |
Heatingtime | 100 minutes/120minutes | |
Interior | stainlesssteel | |
Exterior | cold platespraying | |
Thermalinsulation material | aluminumsilicate fiber | |
Heater | Stainlesssteel heating tube heating on all sides (explosion-proof qualification) | |
Observationwindow | bulletprooftempered glass | |
Vacuumgauge | pointertype | |
Ratedpower | 1.4kw | 2.0kw |
Temperaturecontrol mode | LCDdisplay dual column PID control | |
Temperaturedisplay method | LCD upperdisplay; set temperature display: LCD lower display | |
Timer | 0-9999 minutes(hours), timing function can be selected (no, constant temperature timing,running timing | |
Operationfunction | Fixedvalue operation, timing operation, automatic stop, scheduled start | |
Programmode | Optional | |
Externalconnection line protection | useexplosion-proof flexible connection tube set (explosion-proof qualification) | |
Sensor | Explosion-proofarmored PT100 (explosion-proof qualification) | |
Additionalfunctions | deviationcorrection, menu key lock, power failure memory, overheating preventer | |
Explosion-proofgrade | Ex d e mb IIB T4 Gb | |
Internaldimensions (mm) | 415*370*340 | 450*450*450 |
Externaldimensions (mm) | 600*562*691 | 640*642*796 |
Outerpackaging size (mm) | 734*775*818 | 769*855*923 |
Innervolume | 52L | 91L |
Shelfload-bearing capacity | 15 kg | |
Number ofclapboard layers | 2 layers | |
Spacebetween shelf | 140mm | 185mm |
Suctionport | φ10 mm | |
Exhaustport | φ10 mm | |
Powersupply (50/60Hz) rated current | AC220V/6.3A | |
Netweight/Gross weight | 67/92kg | 82/105kg |
Accessories | Allaluminum shelf: 2 pieces | |
Optional | Explosion-proofgrille, explosion-proof hinge, explosion-proof pressure relief door,explosion-proof seven-inch touch screen instrument (with curve, programfunction), explosion-proof mouse, partition, vacuum pump | |
