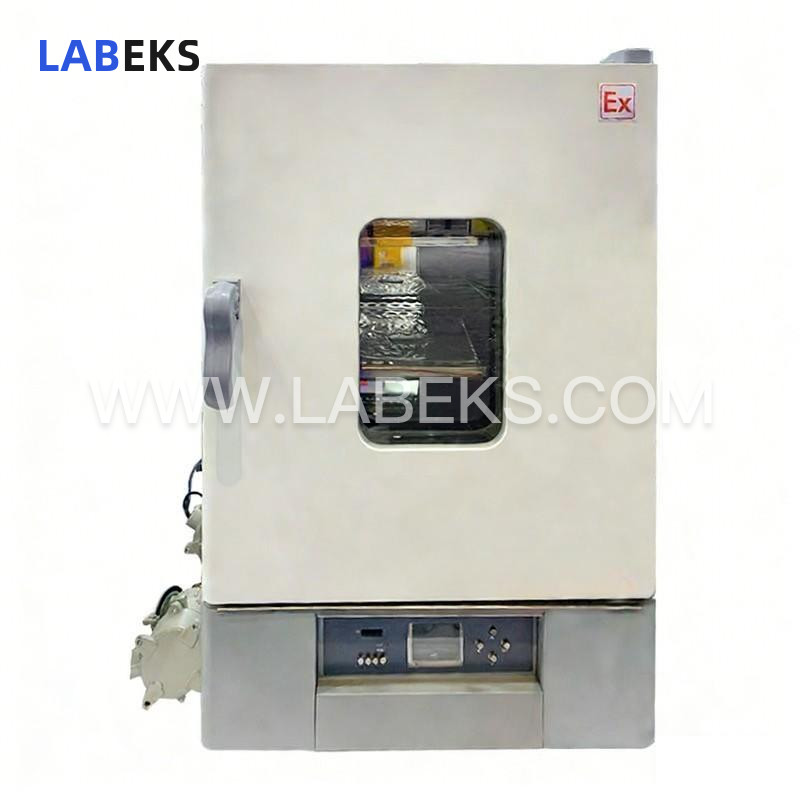

Explosion Proof Drying Oven for Hazardous Material Processing | LCD Full-Screen Control
Engineered to safely dry powdery and light blow-sensitive materials, this explosion proof drying oven reliably serves petroleum, chemical, military, explosive, medical, pharmaceutical, research and laboratory sectors.
- modelLEX-65LD/ LEX-125LD
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
This explosion proof drying oven is purpose-built for use in petroleum, chemical, military, explosive, medical, pharmaceutical, research and laboratory environments.
It is specifically designed for drying powdery and light materials that are susceptible to damage from air blowing.
features
1. Explosion-proof grade: Ex d e mb IIB T4 Gb
2. The unit incorporates a full explosion-proof design, with overall explosion-proof technology applied to both equipment and electrical components. A centralized explosion-proof control box prevents leakage of high temperature, static electricity, sparks and other unsafe hazards.
3. Heating is provided by an explosion-proof 304 stainless steel heating tube for secure, efficient thermal performance.
4. All exposed connecting wires are housed in explosion-proof flexible tube sets, isolating static sparks and blocking temperature leakage to ensure operational safety.
5. The system is mainly composed of a drying chamber, explosion-proof heating system and explosion-proof electrical control components.
6. The chamber’s inner liner is made of mirror-finish stainless steel for easy cleaning, while the outer shell uses high-quality steel plate for an aesthetically pleasing, durable construction.
7. A valley-type convection system ensures uniform temperature distribution across the entire drying chamber.
8. Pull-out tray shelves allow for quick, convenient sample loading and retrieval.
9. An LCD full-screen display supports multi-data operation and includes a power failure memory function to retain settings after interruptions.
10. User-friendly operation modes include fixed-value operation, timed operation, automatic stop and scheduled start for flexible process control.
specifications
Model | LEX-65LD | LEX-125LD |
|---|---|---|
Method | Naturalconvection | |
Operatingtemperature range | RT+10-300℃ | |
Temperatureresolution | 0.1℃ | |
Temperaturefluctuation | ±1℃ | |
Temperaturedistribution accuracy | ±3.5% | |
InteriorMaterial | Mirror stainlesssteel plate | |
Exterior Material | Cold-rolledsteel plate, with chemical-resistant coating on the surface | |
Insulationmaterial | Aluminumsilicate fiber | |
Heater | Stainless steelheating tube (explosion-proof qualification) | |
Rated power | 1.5kw/2.5kw | |
Exhaust vent | Inner diameter 28mm*1,top | |
Temperaturecontrol mode | Liquid crystaldisplay dual column PID control | |
Temperaturesetting mode | Touch theexplosion-proof four-button setting | |
Temperaturerepresentation | Measuredtemperature display: LCD upper display; Set temperature display: LCD lower display | |
Timer | 0-9999 minutes(hours), timing function can be selected (no, constant temperature timing,running timing | |
Running function | Fixed valueoperation, timing operation, automatic stop | |
Program mode | Optional | |
Externalconnection line protection | Explosion-proofarmored PT100 (explosion-proof qualification | |
Sensor | Adoptexplosion-proof flexible connecting pipe set (explosion-proof qualification) | |
Additionalfeatures | Deviationcorrection, menu key lock, power failure memory, overheating preventer | |
Explosion-proofgrade | Ex d e mb IIB T4Gb | |
Innersize (mm) | 400*360*450 | 500*450*550 |
Outerdimensions (mm) | 535*490*820 | 636*580*930 |
Outerpacking size (mm) | 670*620*960 | 760*700*1060 |
Internalvolume | 65L | 125L |
Shelfload | 15kg | 15kg |
Shelflayers | 9floors | 13floors |
Shelfspacing | 35mm | |
Powersupply (50/60Hz) rated current | AC220/6.8A | AC220/11.4A |
Netweight/gross weight kg | 43/49 | 60/66 |
Partition | 2pieces | |
Partitionrack | 4pieces | |
Configurationcan be added | Explosion-proofgrille, explosion-proof hinge, explosion-proof pressure relief door,explosion-proof seven-inch touch screen instrument (with curve and programfunction), explosion-proof mouse | |
