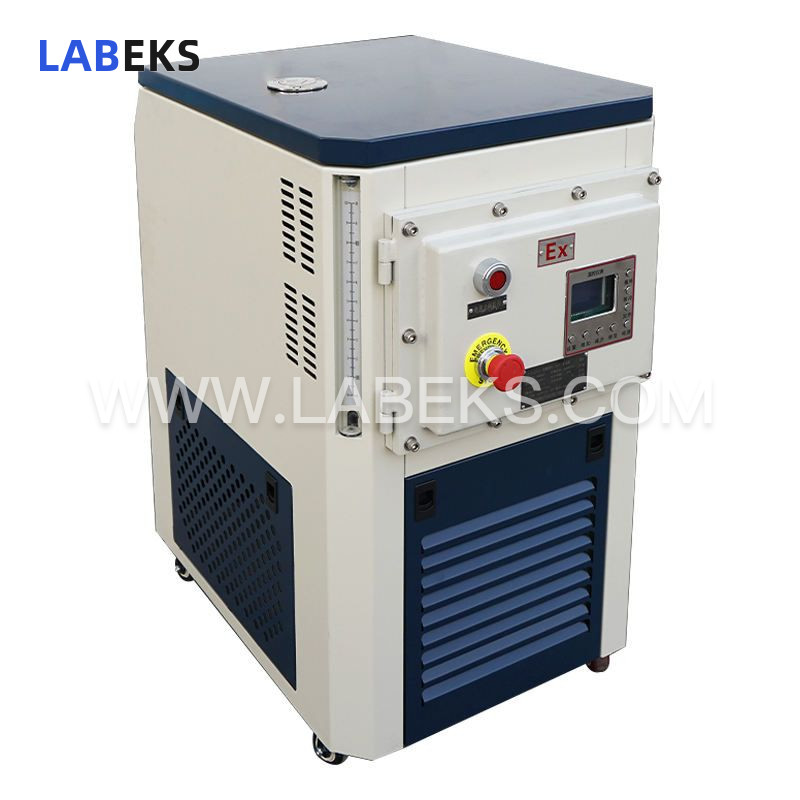

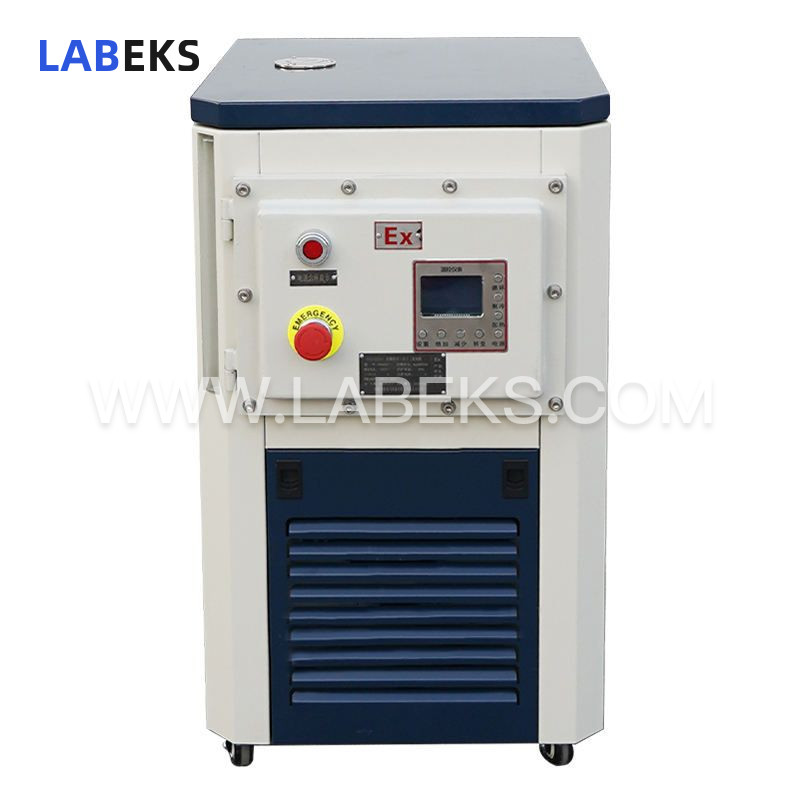

Explosion Proof Closed Heating Circulator for Pharma & Chemical Industries with PID Control
Crafted from corrosion-resistant stainless steel and fitted with an explosion-proof control box, this closed heating circulator (LMGY-10/20EX) provides reliable electric-heated high-temperature fluid circulation, perfect for heating reactors in pharmaceutical, chemical and petrochemical sectors.
- modelLMGY-10/20EX
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
As a thermal heating circulator, the explosion-proof closed high-temperature circulator operates primarily through electric heat conduction. With heating elements directly mounted in the compact plate groove, cold water or oil flows directly over the element surfaces to enable rapid heating, allowing the circulating fluid to reach higher temperatures. This unit serves as a dedicated heat source for various heating devices and is not designed for standalone operation.
features
1. Featuring a stainless steel circulation system and an explosion-proof control box with Ex dⅡBT4 rating, this unit effectively resists corrosion and high-temperature fluid contamination.
2. Equipped with an over-temperature alarm and protection function to ensure safe operation at all times.
3. Adopts advanced PID control technology for high-precision temperature regulation, delivering intuitive and hassle-free operation.
4. Its built-in circulating pump can transfer internal heat transfer fluid to supply heating for external equipment.
5. The closed refrigerant circulation system significantly prolongs the service life of heat transfer oil.
6. Constructed with a stainless steel circulation system that offers superior resistance to corrosion, rust and high-temperature fluid contamination.
7. Electric heating components are produced by professional manufacturers, ensuring long-term reliability and extended service lifespan.
8. Designed for ease of use and capable of performing continuous, uninterrupted operations.
9. Includes an exhaust valve for convenient system filling; important note: this valve must remain closed during operation.
specifications
Model | LMGY-10/20EX | |
|---|---|---|
Heating temperature | 200℃ | |
Voltagefrequency | 220V/50HZ(Canbe customized) | |
Operatingtemperature range | Roomtemperature～200℃ | |
Ambienttemperature | 5℃～40℃ | |
Circulatingpump | Power | 250W |
Maximum flow | 30L/min | |
Maximumpressure | 2.8bar | |
Indenter | 15m | |
Circulationport size | 1/2″ | |
Fillingamount of bath liquid | 10L | |
Heatingpower | 3KW | |
Overall size(L*W*H) | 580× 460×805mm | |
Optimalenvironmental humidity | ≤60% | |
Explosion-proofcontrol box; explosion-proof pump; explosion-proof connecting pipe;explosion-proof grade: dllBT4 | ||
