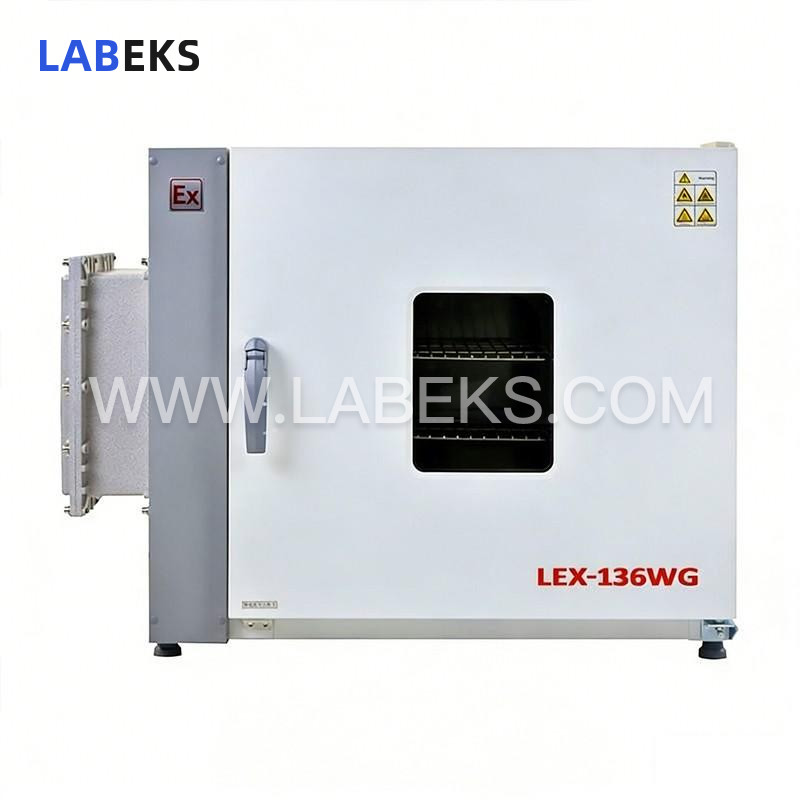

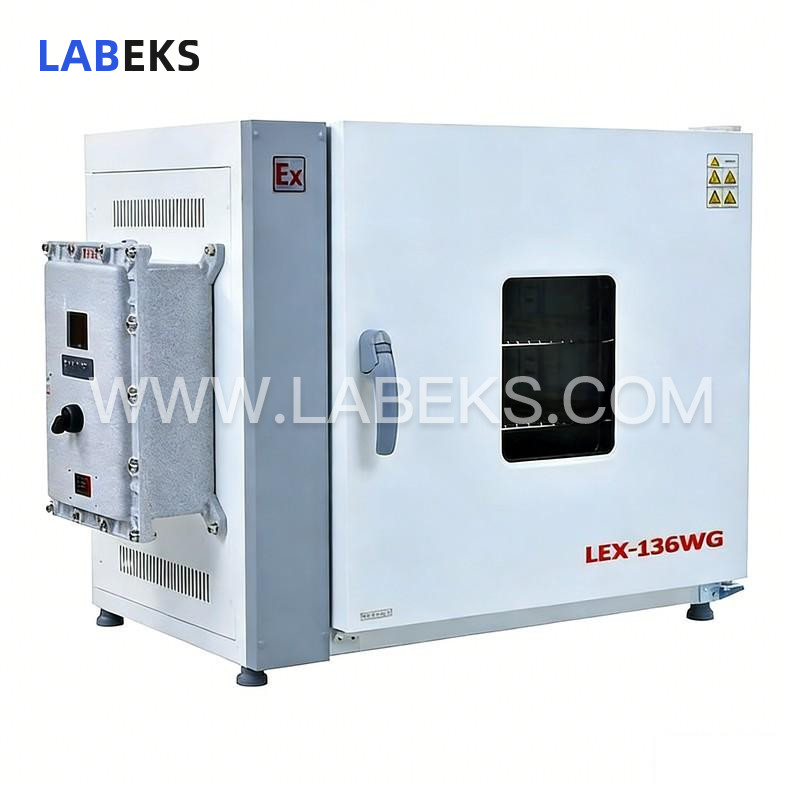

Explosion-proof Blast Drying Oven for T2-T4 Hazardous Areas with Integrated Explosion-proof Design
Engineered to provide safe, consistent drying in flammable, explosive T2-T4 hazardous zones, the explosion-proof blast drying oven serves petroleum, chemical, military, pharmaceutical, research and laboratory applications effectively.
- modelLEX-WG series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description

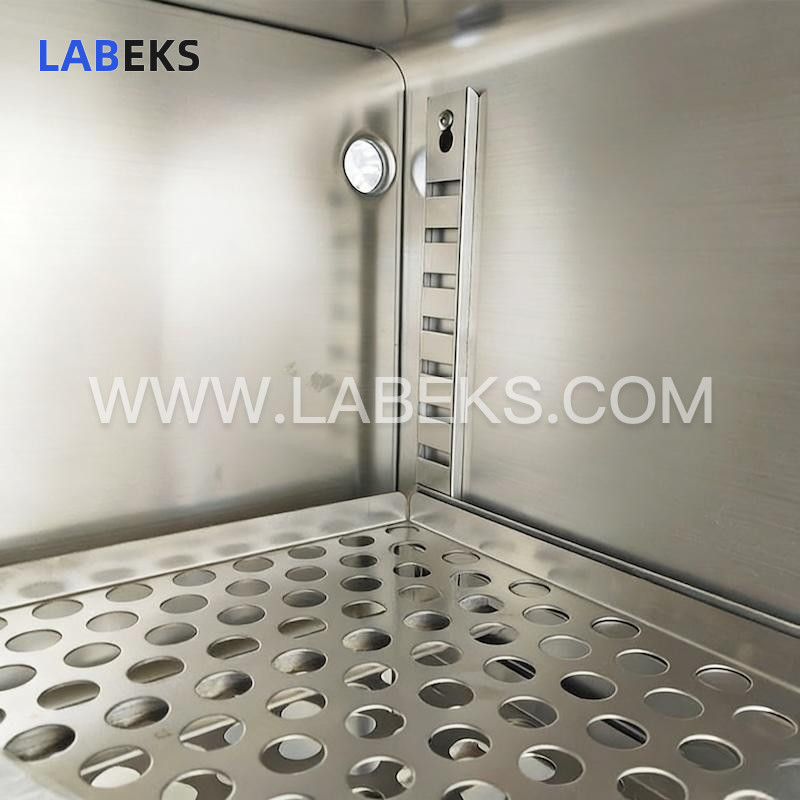

Featuring a cold-rolled steel outer shell and a mirror-finish stainless steel working chamber, this oven utilizes silicon-aluminum fiber as its insulation material. A grid-style stainless steel partition is fitted inside the working chamber to securely hold test samples during drying processes. Equipped with a vertical dual-duct air jacket and turbine centrifugal forced air supply, it ensures uniform temperature distribution, boasts a structurally sound design, and presents a sleek, professional appearance.
features

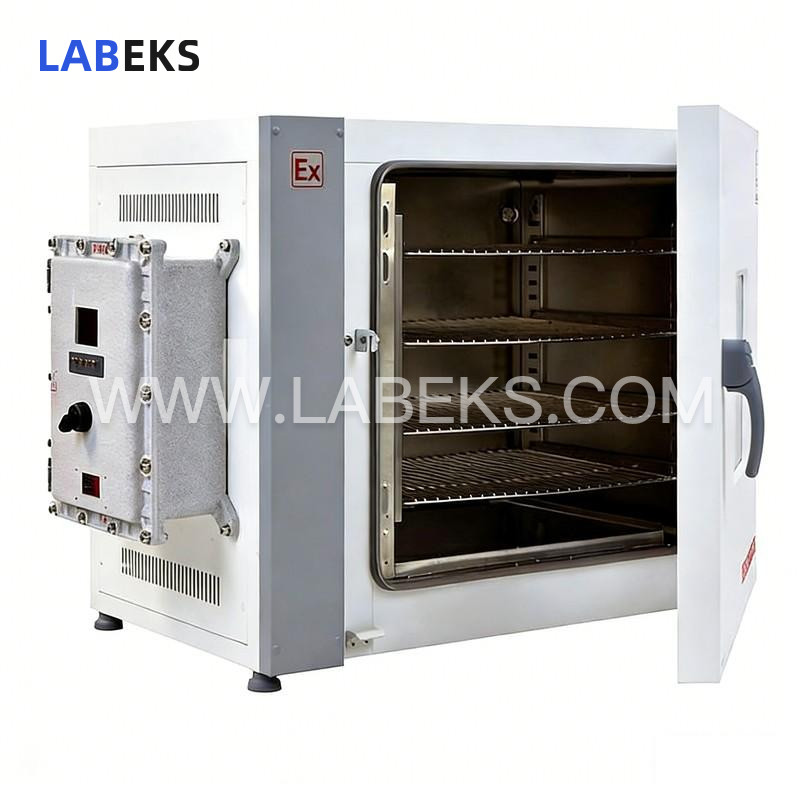

1. Featuring an explosion-proof cabinet and integrated explosion-proof technology for all equipment and electrical components, the oven uses a centralized explosion-proof control box to contain unsafe factors like high temperature, static electricity, and sparks, eliminating potential leaks.
2. Official explosion-proof rating: Ex d e mb IIB T4 Gb
3. The system consists primarily of a drying chamber, explosion-proof heating system, and explosion-proof electrical control components.
4. The oven’s inner chamber is constructed from mirror-finish stainless steel for easy cleaning, while the outer shell uses high-quality steel plate for an elegant, durable appearance.
5. Heating is provided by explosion-proof 304 stainless steel heating tubes, ensuring safe and efficient thermal output.
6. A side air channel air jacket paired with centrifugal forced air delivery ensures consistent, uniform temperature throughout the working chamber.
7. Intuitive operation supports multiple modes: constant value operation, timed operation, automatic shutdown, and scheduled startup.
8. An LCD full-screen display enables multi-data operation, with built-in power failure memory and power failure compensation functions to maintain process continuity.
9. Removable tray partitions facilitate quick and convenient sample loading and retrieval.

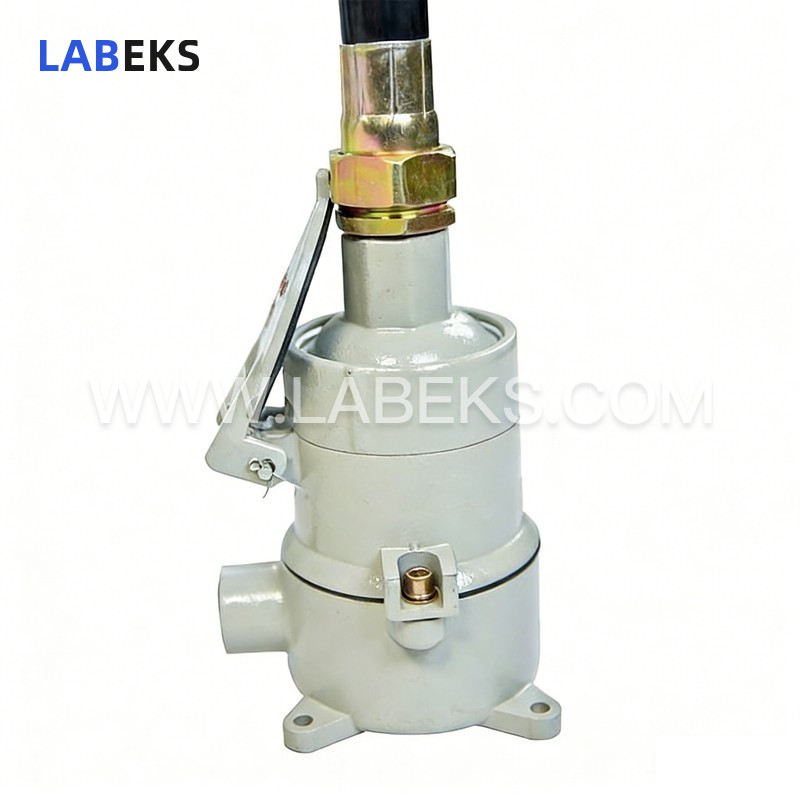

10. All exposed connecting wires are housed in explosion-proof flexible conduit sets, which isolate static sparks and prevent temperature leakage to ensure operational safety.
specifications
Model | LEX-43WG | LEX-71WG | LEX-136WG | LEX-225WG |
|---|---|---|---|---|
Mode | Side air channelforced circulation. | |||
Operating temprange | RT+10-250℃ | |||
Temp resolution | 0.1°C | |||
Temp fluctuation | ±1℃ | |||
Temperaturedistribution accuracy | ±2.5% | |||
Interior | Stainless steelplate | |||
Exterior | Cold-rolledsteel plate with chemical-resistant coating on the surface | |||
Insulationmaterial | Aluminumsilicate fiber | |||
Heater | Stainless steelheating tube (explosion-proof qualification) | |||
Power rating | 1.2kw | 1.6kw | 2.0kw | 4.0kw |
Exhaust hole | Inner diameter28mm*1,Top test hole. | |||
Temp controlmethod | LCD display dualcolumn PID control | |||
Tem settingmethod | Touch the explosion-prooffour-button setting | |||
Temprepresentation | Measuredtemperature display: LCD upper display; set temperature display; LCD lowerdisplay | |||
Timer | 0-9999 minutes(hours), timing function can be selected (no, constant temperature timing,running timing | |||
Operationfunction | Fixed valueoperation, timing operation, automatic stop, scheduled start. | |||
Externalconnection line protection | Explosion-proofarmored PT100 (explosion-proof qualification) | |||
Sensor | Explosion-proofflexible connecting pipe set (explosion-proof qualification) | |||
Additionalfeatures | Deviationcorrection, menu key lock, power failure memory, overheating preventer | |||
Explosion-proofgrade | Ex de mb IIB T4Gb | |||
Inner size(mm) | 350*350*350 | 450*350*450 | 550*450*550 | 600*500*750 |
Outer dimensions(mm) | 785*530*555 | 855*530*655 | 985*625*755 | 1015*685*995 |
Packing size(mm) | 950*642*711 | 1040*642*811 | 1180*745*901 | 1220*802*1156 |
Internal volume | 43L | 71L | 136L | 225L |
Shelf load | 15kg | |||
Shelf number | 9 floors | 13 floors | 17 floors | 9 floors |
Shelf space | 25mm | |||
Power supply(50/60Hz) rated current | AC220/5.5A | AC220/7.3A | AC220/9.1A | AC220/18.2A |
Net weight/grossweight kg | 34/53 | 46/70 | 66/92 | 81/110 |
Partition | 2 pieces | |||
Partition rack | 4 pieces | |||
Optional | Explosion-proofgrille, explosion-proof hinge, explosion-proof pressure relief door,explosion-proof seven-inch touch screen instrument (with curve and programfunction), explosion-proof mouse | |||
