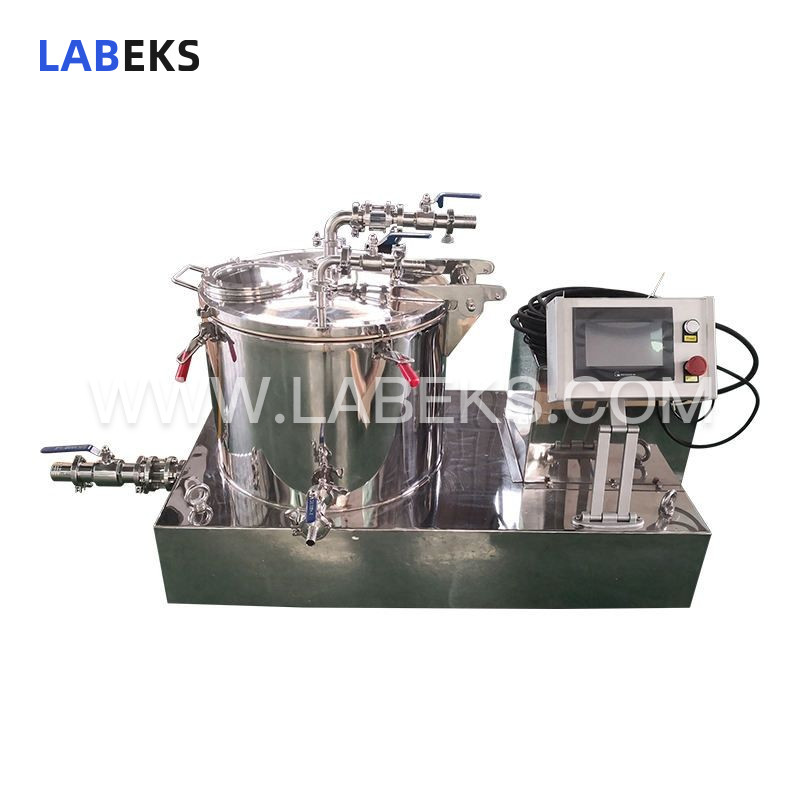

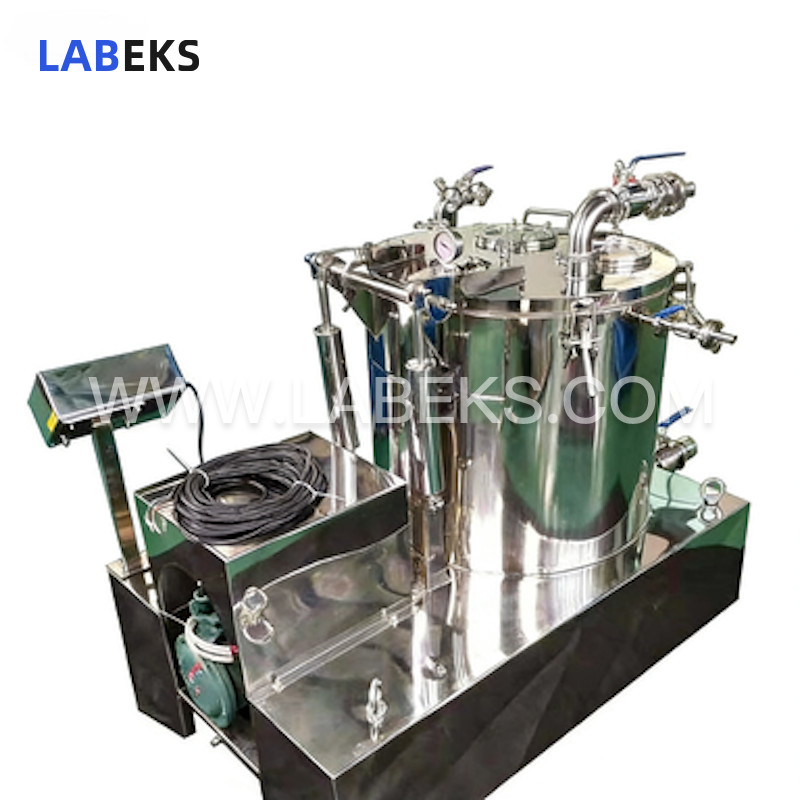

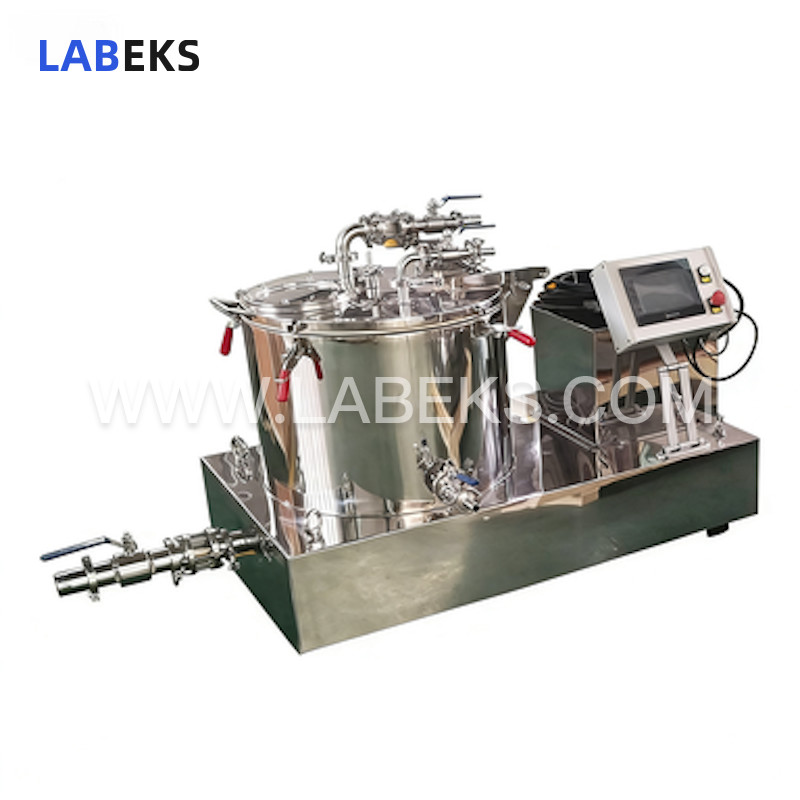

Ethanol Centrifuge Extractor with 98% Extraction Rate & Programmable PLC Control

– Achieves a 98% plant extraction rate

– Delivers 97% alcohol removal efficiency

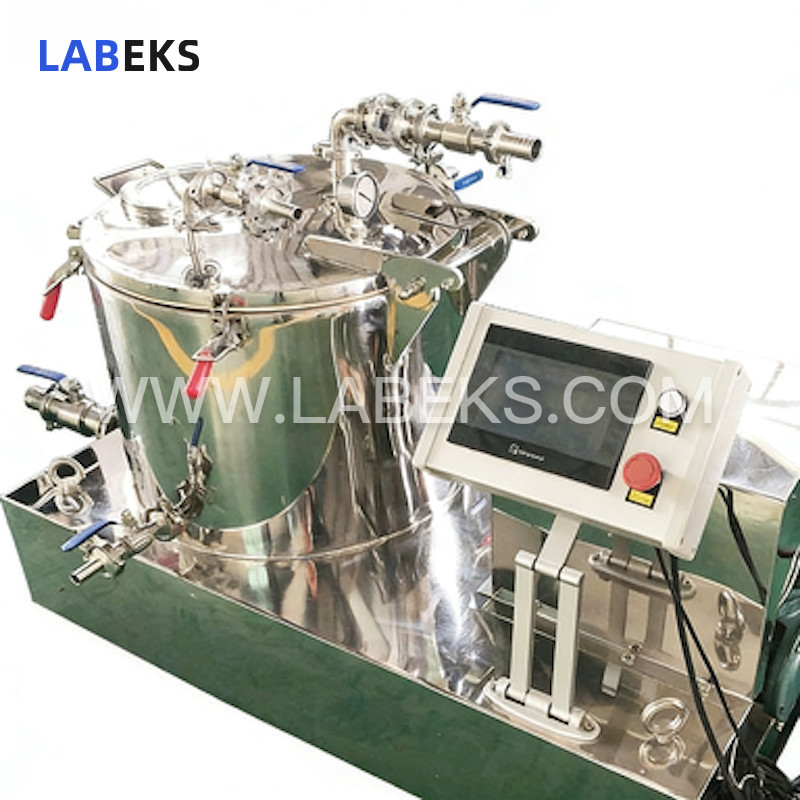

– Equipped with an explosion-proof 220V 3-phase motor (220V single-phase optional), paired with PLC, LCD touchscreen, and variable frequency control cabinet for precise operation

– Material contact components constructed from SUS304 or SUS316L, finished with sanitary-grade, dead-angle-free surfaces for simplified cleaning

– Sealing components utilize PTFE or fluorine rubber; the main shaft incorporates a double-layer fluorine seal (water/oil seal) for enhanced leak protection

– Jacket-style cylinder enables connection to a recirculating chiller for precise low-temperature control during extraction

– Inlet and outlet ports feature hygienic quick-clamp fittings with integrated valves for secure, rapid connections

– Configured with dual inlet tubes, a valved vacuum port, a drain port, and dedicated ports for recirculating chiller integration

– Base fitted with four lifting rings to facilitate safe, straightforward installation and handling

– Includes 10m power and control cables, enabling immediate operation upon electrical connection

Extraction Cycle:

The LCE Series centrifuge extractor provides three configurable program cycles: spray wash, agitated wash, and spin dry. All cycles can operate in either automatic or manual mode. Operators load pulverized plant material into a filter bag and place it into the centrifuge; the system rotates at variable speeds while delivering ethanol at a controlled flow rate. The centrifuge also supports bidirectional agitation with submersion to fully extract plant constituents. Post-washing, high-speed spin-drying removes 97% of residual alcohol from the plant material, yielding an active ingredient extraction rate of up to 98%. The used ethanol wash can be recycled 2-3 times or sent directly for downstream processing.

1) System Loading

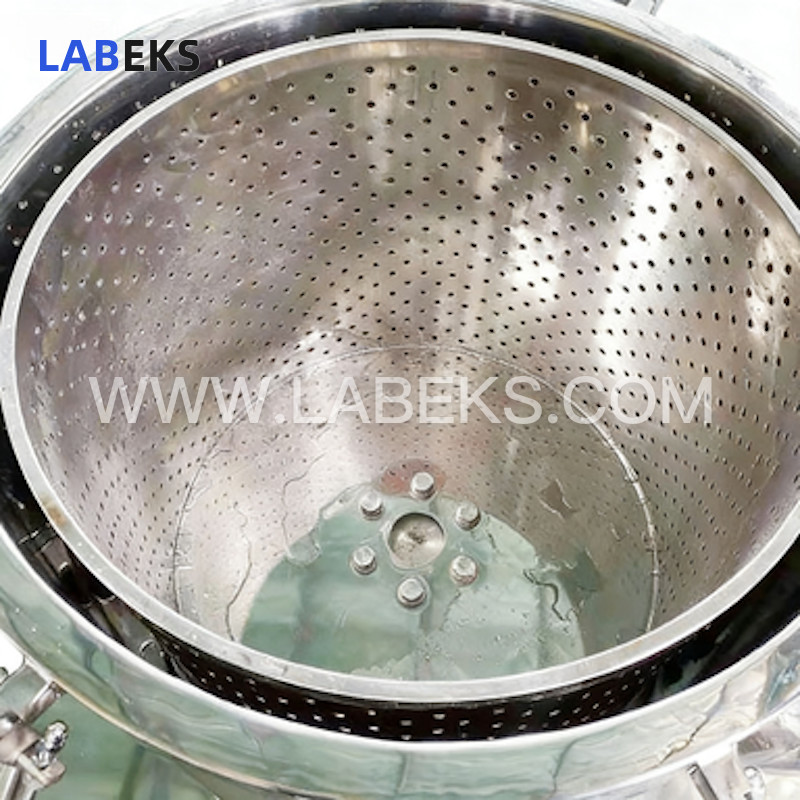

Insert the filter bag containing processed plant material into the drum and secure the system seal.

2) Cleaning Cycle

From the program menu, set the forward/reverse rotation speed and duration to initiate the spray wash operation.

3) Ethanol Filling

Low-temperature ethanol is transferred into the system via the inlet pipe using a pneumatic pump.

4) Extraction Initiation

The centrifuge agitates and washes the plant material; set a predefined number of two-stage agitation cycles to achieve 98% extraction of plant active ingredients.

5) System Drainage

Upon completion of the cleaning cycle, open the outlet valve to vent the system, then pneumatically transfer the ethanol wash to a designated reservoir for downstream processing.

6) High-Speed Dehydration

Select the “Dehydration” program from the menu to launch the high-speed dehydration cycle, thoroughly removing residual ethanol from the wet plant material surface.
