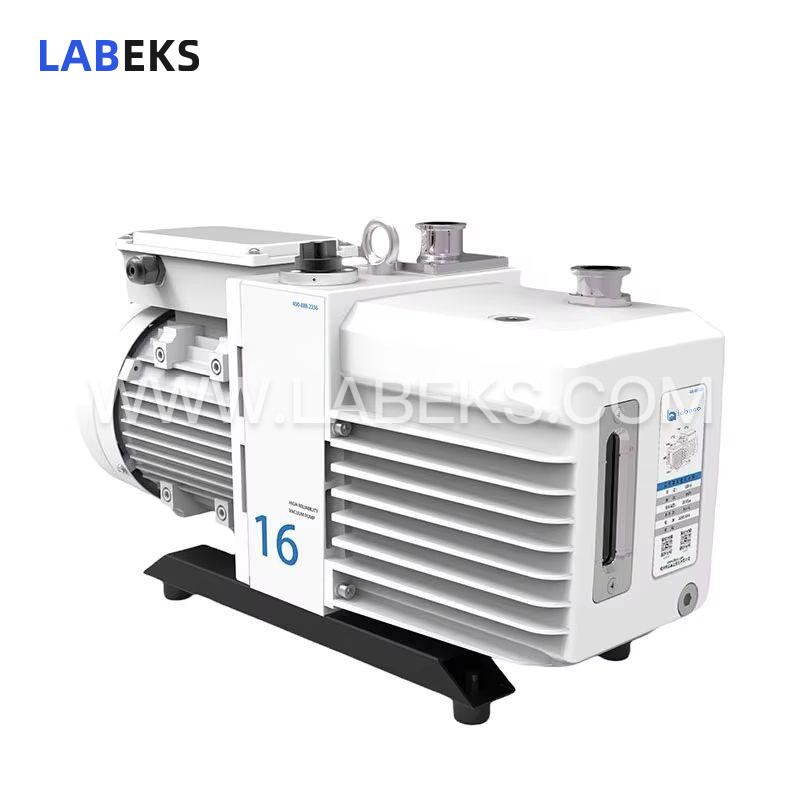

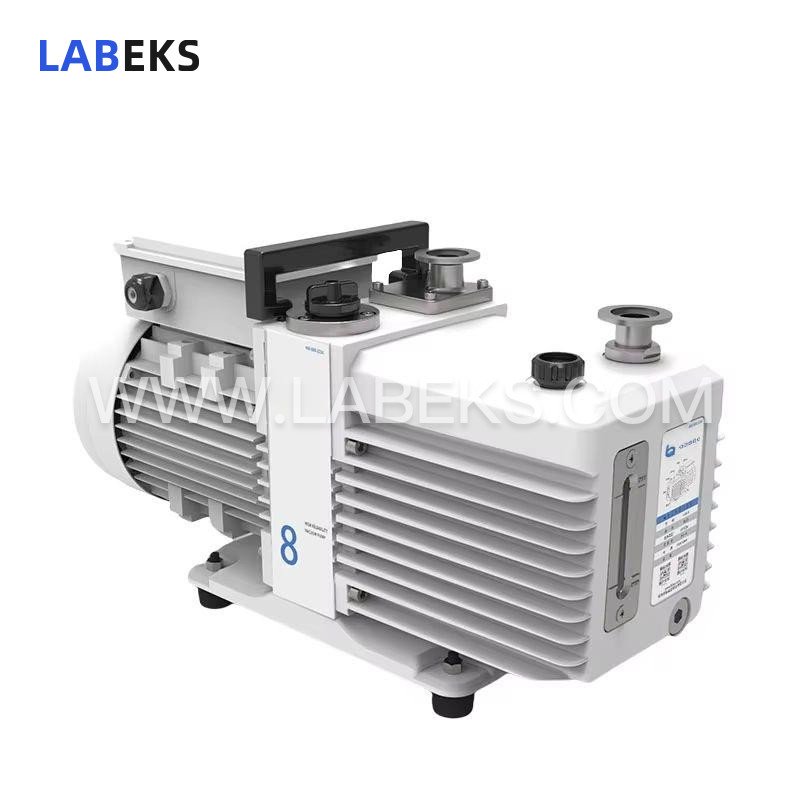

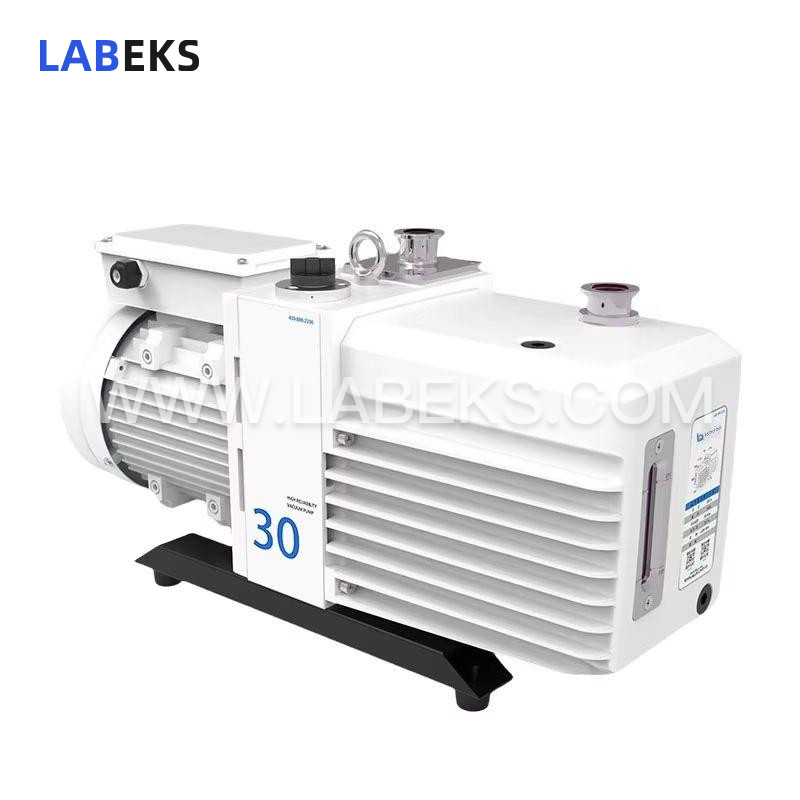

Double Stage Rotary Vane Vacuum Pump: High-Vacuum Solution for Lab & Industrial Use
Designed to evacuate sealed enclosures and achieve high vacuum levels, the double-stage rotary vane vacuum pump functions as a standalone unit or pre-pump for booster, diffusion, or molecular pumps, ideal for environmental monitoring, lab research, medical diagnostics, material processing, and optical/electron microscopy.
- modelLDV Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Equipped with two working chambers, the two-stage rotary vane vacuum pump creates periodically varying volumes within its pump chamber via high-speed rotating vanes, enabling gas suction, compression, and discharge. Gas is first drawn into the front chamber, undergoes initial compression, then is transferred to the rear chamber for deep compression until the desired vacuum level is achieved. This pump is compatible with a wide range of gas media, offering exceptional versatility and adaptability.
Application Areas
Analytical Instruments (spectrometers, mass spectrometry systems, electron microscopes, etc.)
Coating Processes (surface protection, decorative coatings, displays, screens, etc.)
Medical & Pharmaceutical Technologies (plasma sterilization, freeze-drying)
Vacuum Metallurgy (vacuum brazing, vacuum sintering, vacuum alloying, furnace fabrication)
Leak Detection Systems (vacuum equipment, automotive fuel tanks, airbag housings, packaging)
Research Facilities (elementary particle physics, fusion research, laser applications)
Lighting Manufacturing (lamp production)
Preliminary Pump Applications (as Roots pump pre-pump, molecular pump pre-pump, vacuum system maintenance)
features
1. Exceptional Vacuum Level: Capable of reaching high vacuum degrees, making it ideal for applications with stringent vacuum demands.
2. Rapid Pumping Speed: Delivers fast gas evacuation to quickly remove air from enclosed containers.
3. Smooth, Low-Vibration Operation: Utilizes a dual-stage rotary vane configuration for quiet, stable performance with minimal vibration.
4. Dual Anti-Oil Return Structure & Automatic Valve: Delivers reliable protection against oil contamination in your vacuum system following shutdown.
5. Integral Cylinder Construction: Combines high-precision machining with proven rotary vane technology for consistent, stable operation.
6. Adjustable Multi-Speed Gas Ballast: Tailored to meet specific vacuum demands and enhance water vapor handling capabilities.
7. Gear Pump Forced Lubrication: Features an integrated gear pump and constant-pressure oil supply system to ensure stable, reliable performance even under high suction pressure.
8. Low-Maintenance Design: Boasts a simplified structure for easy upkeep and an extended service lifespan.
9. Versatile Application Range: Compatible with diverse vacuum equipment including vacuum coaters, dryers, and distillation systems.
specifications
Model | LDV-4 | LDV-8 | LDV-16 | LDV-24 | LDV-30 | LDV-48 | LDV-65 | LDV-90 | |
|---|---|---|---|---|---|---|---|---|---|
Pull speed | 50Hz | 4m³/h | 8m³/h | 16m³/h | 24m³/h | 30m³/h | 48m³/h | 65m³/h | 90m³/h |
60Hz | 4.8m³/h | 9.6m³/h | 19.2m³/h | 28.8m³/h | 36m³/h | 57.6m³/h | 78m³/h | 108m³/h | |
Guanqi Town Extreme Limit Pressure | 5×10-2Pa | 5×10-2Pa | 4×10-2Pa | 4×10-2Pa | 4×10²Pa | 4×10-2Pa | 4×10-2Pa | 4×10-2Pa | |
Guanqi Town Extreme – Limit Full Pressure | 5×10-1Pa | 5×10-1Pa | 4×10-1Pa | 4×10-1Pa | 4×10-1Pa | 4×10-1Pa | 4×10-1Pa | 4×10-1Pa | |
Open the gas to limit the full pressure | 10Pa | 10Pa | 8Pa | 8Pa | 8Pa | 10Pa | 10Pa | 10Pa | |
Motor speed | 50Hz | 1440r/min | |||||||
60Hz | 1720 r/min | ||||||||
Motor power single-phase/three-phase | 0.4/0.37kW | 0.4/0.37kW | 1.1 kW | 1.1kW | 1.1kW | 1.5kW | 2.2kW | 3kW | |
Protection level | IP44 | IP44 | IP44 | IP44 | IP44 | IP44 | IP44 | IP44 | |
Air intake and exhaust interface | KF16/25 | KF16/25 | KF25 | KF25/40 | KF25/40 | KF40 | KF40 | KF40 | |
Oil quantity | 0.6-1.0L | 0.6-1.0L | 0.9-1.5L | 1.3-2.0L | 1.3-2.0L | 3.3-4.5L | 3.3-4.5L | 3.3-4.5L | |
Working environment temperature | 10-40℃ | 10-40℃ | 10-40℃ | 10-40℃ | 10-40℃ | 10-40℃ | 10-40℃ | 10-40℃ | |
Noise | ≤52dB | ≤52dB | ≤58dB | ≤58dB | ≤58dB | ≤62dB | ≤62dB | ≤65dB | |
Weight | 19kg | 21kg | 30kg | 35kg | 43kg | 62kg | 65kg | 65kg | |
Size (L * W * H) | 440x144x217 mm | 440x144x217 mm | 530x188x272 mm | 567x188x272 mm | 567x188x272 mm | 730x234x358 mm | 730x234x358 mm | 730x234x358 mm | |
