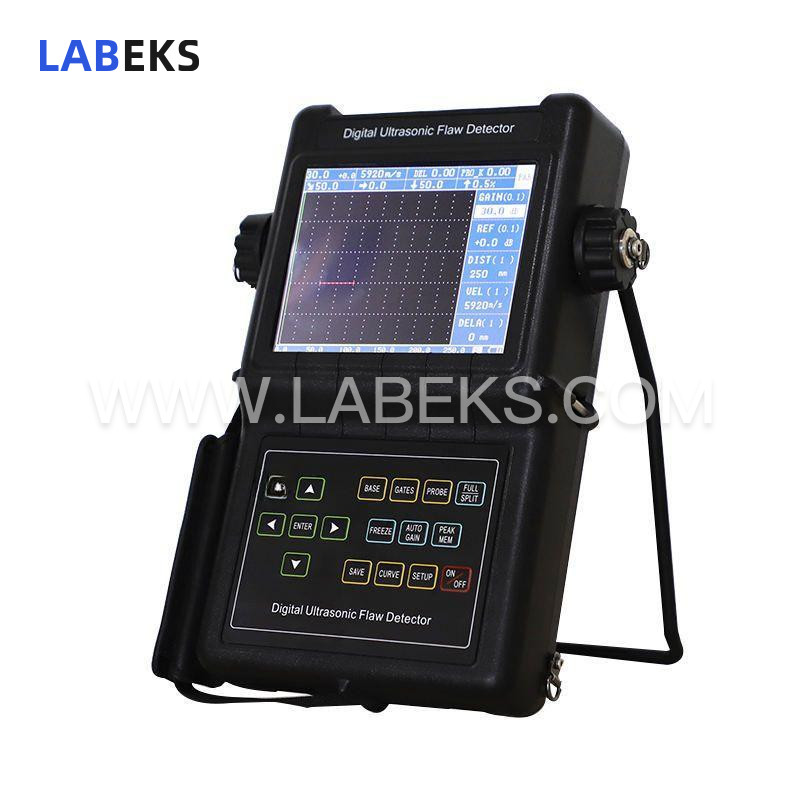

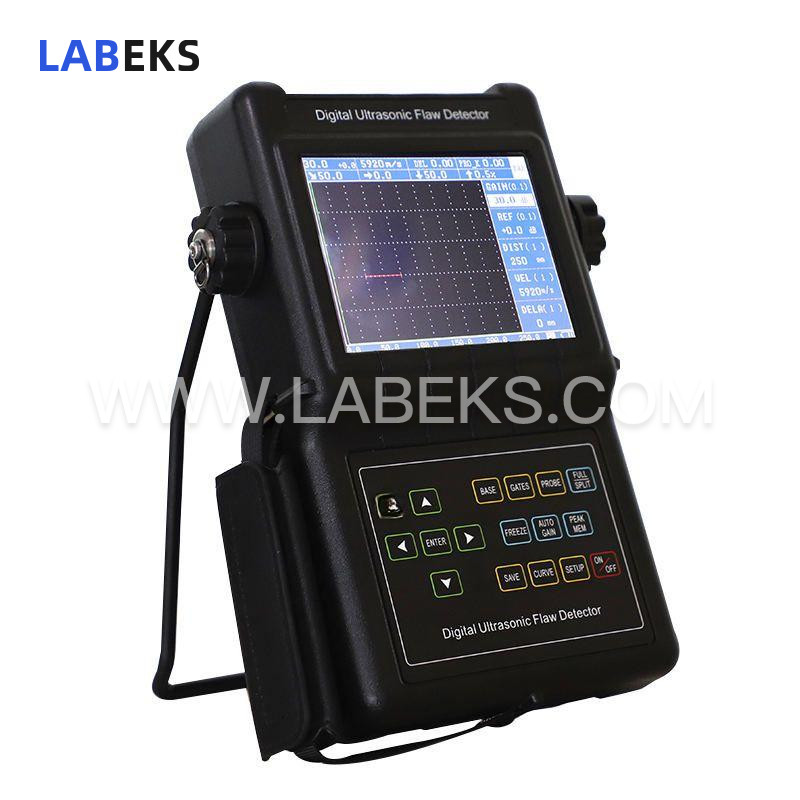

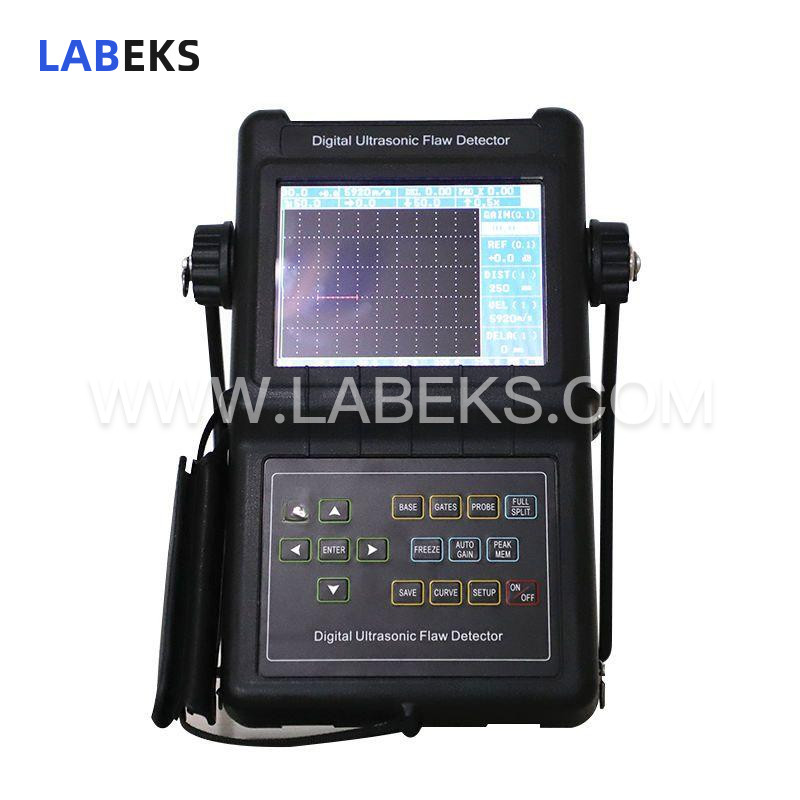

Digital Ultrasonic Flaw Detectors: 1000-Data Storage for Weld Inspection
Ideal for electrical power, petrochemical, boilers & pressure vessels, steel frameworks, defense, aerospace, rail transit, automotive and mechanical industries, this ultrasonic flaw detector is a portable non-destructive testing instrument that effortlessly, quickly identifies, locates, assesses and diagnoses workpiece defects including cracks, looseness, pores and inclusions without damage.
- modelLUT2600/LUT2620
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Ultrasonic flaw detection is applicable to all standard engineering materials to uncover hidden cracks, voids, porosity, inclusions and analogous discontinuities. While predominantly used for steel and other structural metals, these detectors are also compatible with plastics, composites, fiberglass and ceramics. Key applications are as follows:
Weld inspection – the largest and most critical application segment for ultrasonic flaw detection
Primary metals – inspection of beams, billets, bars, ingots, forgings and tubular stock
Infrastructure – assessment of bridge beams, bridge pins, railway rails and metal structures
Petrochemical sector – testing pipelines, storage tanks and support structures
In-service testing – examination of railway wheels & axles, aircraft landing gears & engine mounts, crane booms, drive shafts, tanks and pressure vessels, bolt testing
Manufacturing – evaluation of spot welds, braze joints, castings and bond testing
Composites – inspection of aerospace parts, wind turbines, automotive composites and marine fiberglass
features
1. Defect Location: Real-time display of sound path (S), horizontal position (X), depth (Y) and wave height (H)
2. Defect Quantification: Real-time display of dB difference and SL quantification values
3. Mass Data Storage: Capable of storing up to 1000 datasets, including waveforms, curves, parameters and more (equivalent to 1000 traditional channels)
4. Echo-Echo Thickness Measurement: Eliminates zero calibration, enabling direct measurement of substrate net thickness through coatings

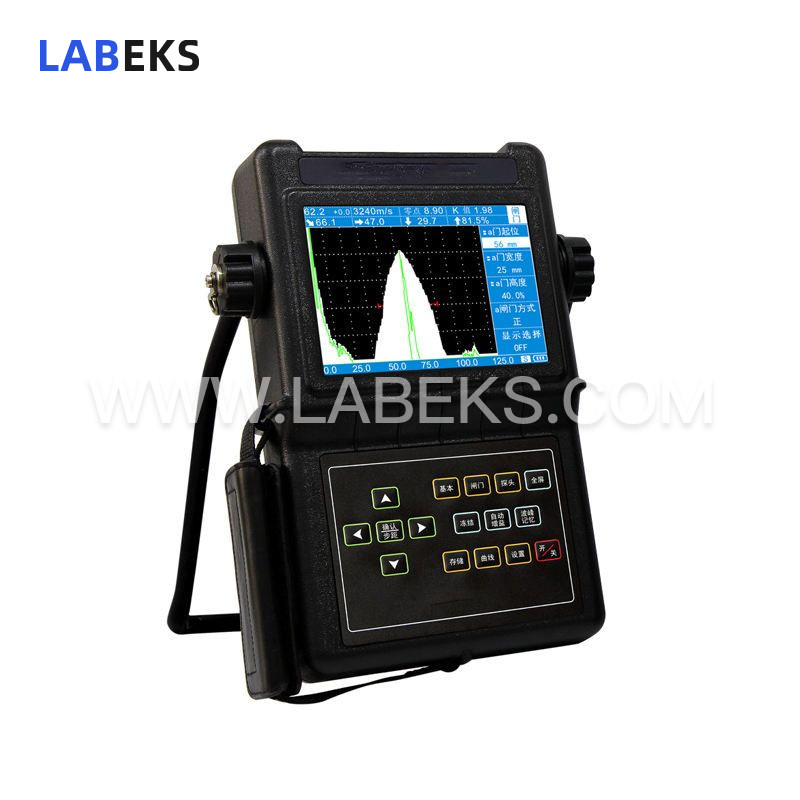

5. Peak Memory Function: Real-time envelope displays the highest defect wave and records the maximum defect value, facilitating accurate defect location, rapid scanning and defect identification via envelope waveforms
6. DAC & AVG Curve Function: Curves adjust automatically with changes in gain, sound path and displacement
7. Distance Compensation: Real-time compensation of flaw detection echoes via time-varying gain method to prevent missed small defects
8. Center Value Calculation: Automatically converts defect echo height into equivalent defect size
9. Full-Screen Display Function: The echo display area covers the entire screen, delivering maximum visual clarity for operations

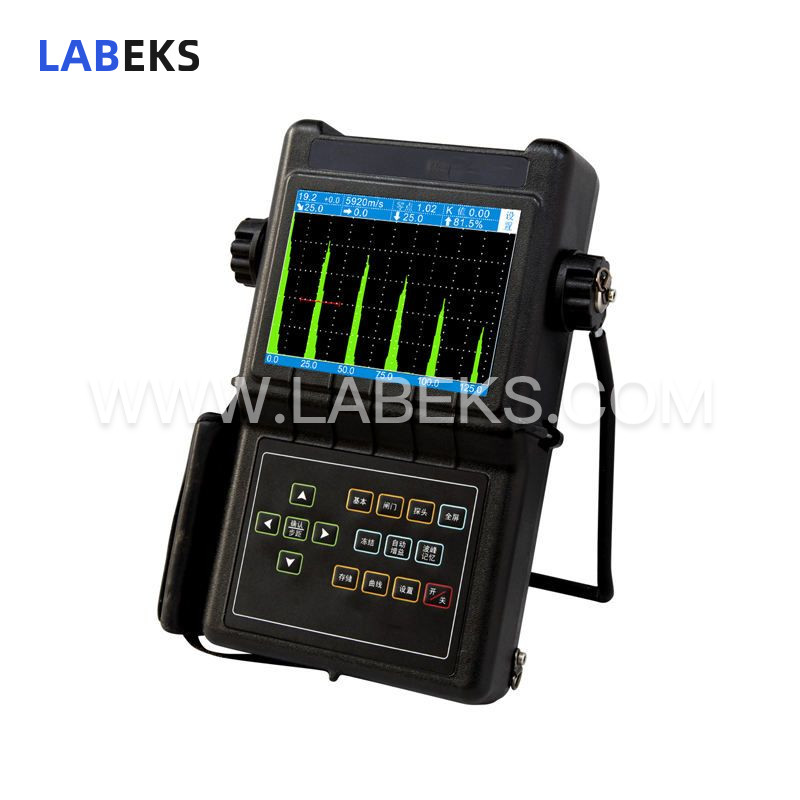

10. Solid Waveform Display: Enhances waveform visual contrast to ensure no defects are missed during rapid scanning
11. Display Freeze: Captures waveform and sound range data at any time; allows gate adjustment to measure echo parameters after freezing
12. Automatic Gain: Automatically adjusts gain to reach the set amplitude height
13. Digital Suppression: 0-80% adjustable in 1% increments, with no impact on linearity or gain performance
14. A & B Gates: Two independent measurement gates for monitoring echoes, amplitude and sound distance
15. Measurement Points: Supports peak or leading edge of echo within gates
16. Alarm Function: Provides echo presence/loss alarm notifications
17. Real-Time Clock: Automatically records the date and time of stored waveforms
18. Operating Languages: Supports both Chinese and English user interfaces

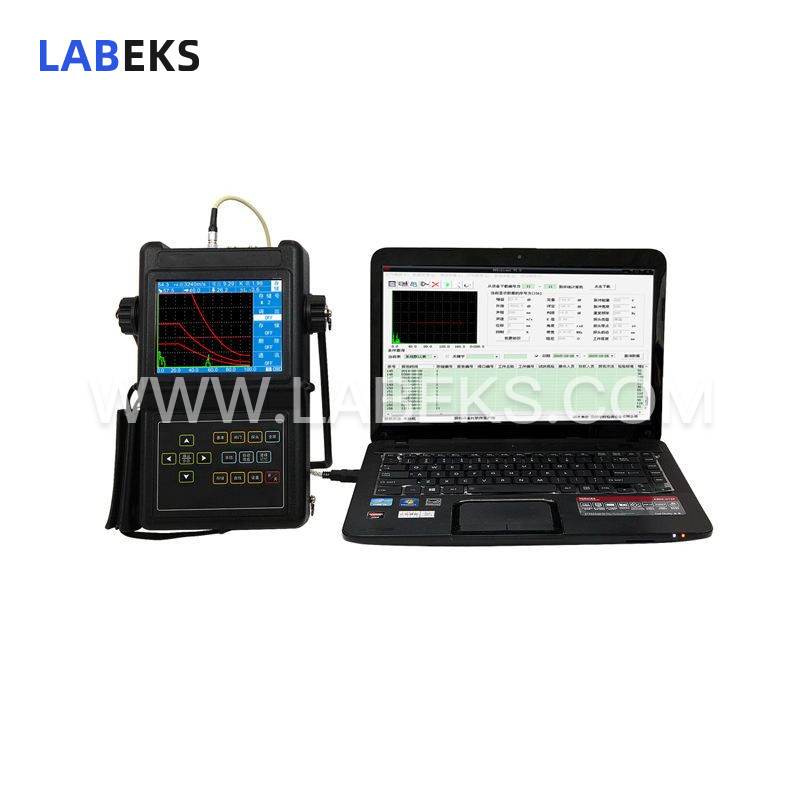

19. Data Communication: Connects to computers via RS232 interface to transmit waveforms and data, enabling centralized defect result management, flaw detection report generation and printout on the computer
specifications
Model | LUT2600 | LUT2620 |
|---|---|---|
Highlight true color screen | YES | |
DAC curve | YES | |
AVG curve | NO | YES |
Variable square wave technology | NO | |
Data storage | YES | |
UtView software | YES | |
Working frequency | （0.5-15）MHz | |
Sound velocity of material | (1000-9999) m/s | |
Operation Mode | Pulse echo, double crystal | |
Pulse shift | （0-1000）mm | |
Probe zero | (0-199.99) us | |
Gain control | (0-110)dB，（0.1,1-2,6）dB stepping | |
Vertical linearity error | ≤3% | |
Horizontal linearity error | ≤0.3% | |
Sensitivity margin | ≥60dB（deep200mm, φ2flat-bottom hole） | |
Definition | ≥32dB | |
Dynamic range | ≥30dB | |
Average noise level | ≤10% | |
Battery working time | 9 hours | |
Power supply | 12V DC,220V AC | |
Dimensions | 270*190*60mm | |
Weight | 2kg (including batteries) | |
