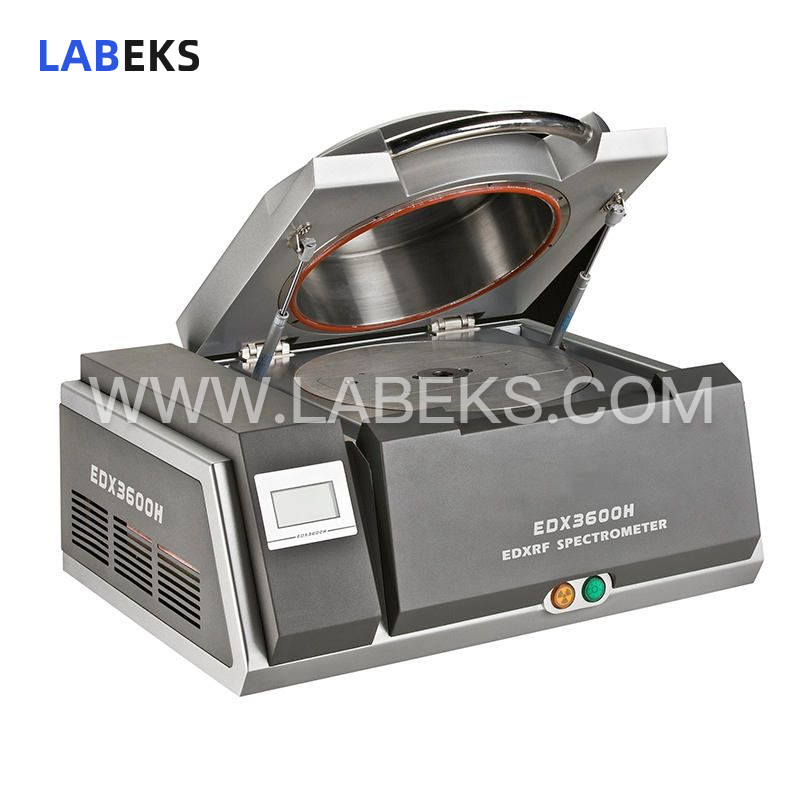

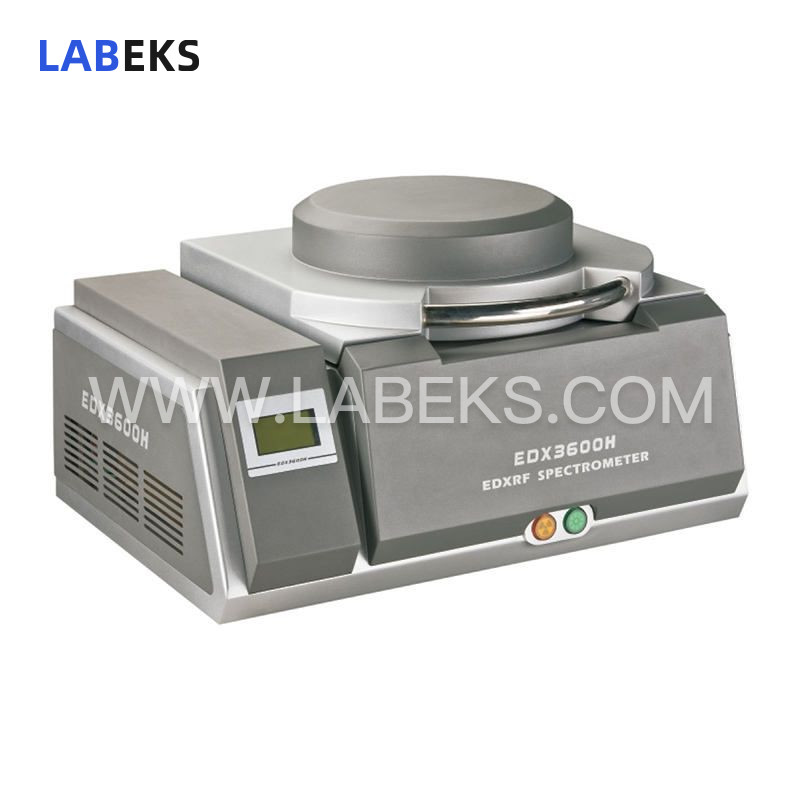

Desktop XRF Spectrometer with Intelligent Vacuum System for Mineral Analysis
Equipped with an intelligent vacuum system and low-energy X-ray tube, the EDX3600H desktop XRF spectrometer integrates advanced alloy analysis technology, effectively reducing test interference, enhancing light element resolution, and vastly improving trace detection performance for light elements like Al, Si and P in alloys.
- modelEDX3600H
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Designed exclusively for the geology and mining sectors, the EDX3600H mining analyzer offers exceptional precision, rapid testing speeds, and intuitive operation.
As a high-performance desktop XRF geology and mining analyzer, the EDX3600H integrates cutting-edge global analysis technology, intelligent vacuum systems, and sophisticated electronic technology. When paired with its low-energy X-ray tube, vacuum system, and LABEKS’ patented low-background technology, it effectively minimizes testing interference and enhances the energy resolution of light elements such as Mg, Al, Si, and P in geological and mineral samples.
In addition to mineral analysis, the EDX3600H supports alloy testing, alloy grade identification, hazardous element analysis, soil analysis, and precious metal analysis.
Acceptable sample types cover all alloys from Na to U, metal workpieces, minerals, slag, and rocks, available in solid, liquid, or powder forms.
features
1. High-efficiency ultra-thin window X-ray tube, specifically developed for mineral testing and attaining international advanced levels
2. Silicon Drift Detector (SDD) delivers superior energy linearity, resolution, spectral characteristics, and a higher peak-to-background ratio
3. Signal-to-Noise Enhancer (SNE) boosts signal processing capabilities by 25 times or more
4. Supports multiple testing modes, including alloy analysis, soil analysis, precious metal analysis, and RoHS analysis
5. Automatic collimator and filter switching based on sample type eliminates cumbersome manual operations
6. Compatible with diverse samples including minerals, slag, rocks, and all alloys from Na to U; samples can be in solid, liquid, or powder form
7. Triple X-ray protection design ensures comprehensive safety:
(1) Mechanical protection: isolates X-ray radiation
(2) Electronic protection: automatically shuts off X-ray emission when the cover is opened during testing
(3) Software protection: triggers automatic program shutdown if the cover is opened during testing
8. LCD screen directly displays critical operational parameters including tube voltage, tube current, and vacuum level
9. Built-in CMOS high-definition camera
10. Integrated 2L vacuum pump
specifications
Model | EDX3600H |
|---|---|
Measurable range | Na to U |
Analytical range | ppm—99.99% (different materials, with differentanalytical range) |
Simultaneous analysis | Testing tens of elements simultaneously |
Precision | 0.05% (content 96%1) |
Testing time | 60s-200s |
Resolution | (14±15) eV |
Tube voltage | 5KV-50KV |
Tube current | 50μA -1000μA |
Power | 200w |
Voltage input | AC 220v (Optional: 110V) |
Ambient temperature | 15℃-30℃ |

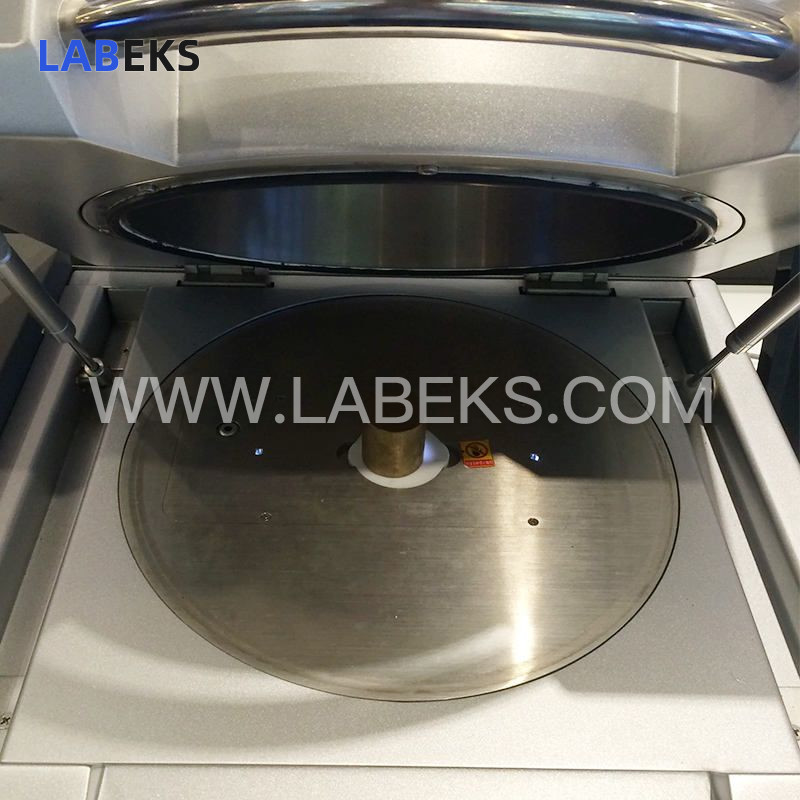

Sample chamber size | 320×100mm |
Dimension | 660×510×350mm |
Ambient humidity | 35%-70% |
Weight | 65Kg |
