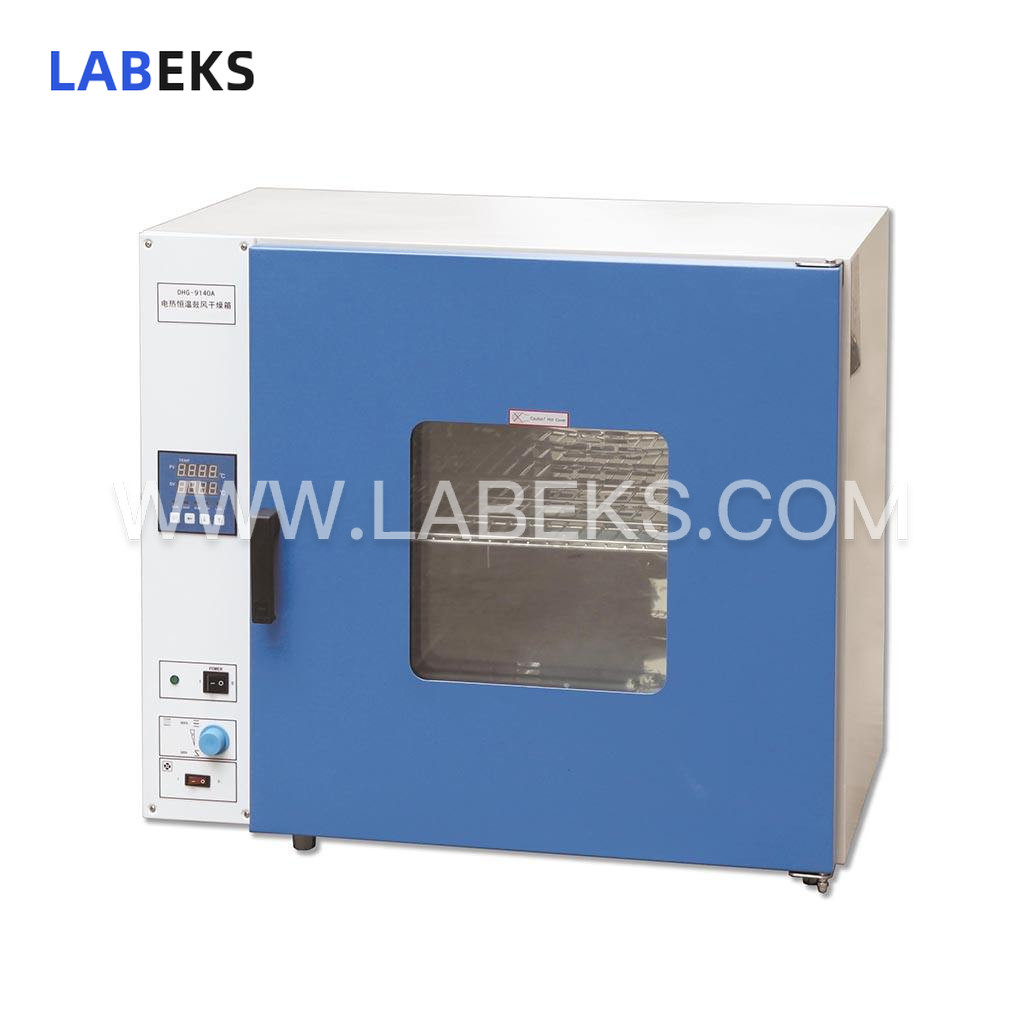

Desktop Electric Heating Constant Temperature Air Drying Oven: Precision Temp Control for Laboratories & Industrial Sites
Engineered to support drying, baking, melting and sterilization operations in industrial facilities, laboratories and research units, the constant temperature air drying oven uses electric heating to deliver precise, uniform thermal performance for critical material processing tasks.
- modelLDHG Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Suited for drying, baking, melting and sterilization applications across industrial facilities, laboratories and research institutions.
features
1. Equipped with a hot air circulation system featuring a high-temperature continuous-operation fan and optimized air ducts, the oven maintains uniform working temperatures throughout the chamber.
2. Its microcomputer-based temperature controller with LED digital display integrates temperature control and timing functions, ensuring accurate and reliable temperature regulation.
3. Utilizing imported fans and thyristors, the unit boasts an extended service life, minimizing the need for frequent component replacements.
4. The oven’s inner chamber is constructed from mirror-finish stainless steel or drawn materials via argon arc welding, while the exterior uses high-quality steel plates for a sleek, modern appearance.
5. An optional independent over-temperature alarm system automatically cuts power when temperatures exceed set limits, safeguarding laboratory operations against potential hazards.
6. The “D” series models are fitted with an intelligent 10-segment programmable LCD controller for enhanced operational flexibility.
7. Optional printer or 485 interface connectivity allows for real-time recording and tracking of temperature parameter changes for compliance and documentation purposes.
specifications
Model | LDHG-9000series | |||
|---|---|---|---|---|
9030A 9030AD (101-0A) | 9070A 9070AD (101-1A) | 9140A 9140AD (101-2A) | 9240A 9240AD (101-3A) | |
Voltage | 220V50HZ | |||
Temperaturecontrol range | Rt+10℃-250℃ | |||
Temperatureresolution | 0.1℃ | |||
Constanttemperature fluctuation | ±1℃ | |||
Inputpower | 870W | 1570W | 2070W | 2470W |
Workingtemperature | 5℃-40℃ | |||
Linersize (mm) | 340*325*325 | 450*400*450 | 550*450*550 | 600*550*750 |
Dimensions(mm) | 625*510*490 | 740*580*630 | 830*650*730 | 880*770*930 |
Carrierbracket (standard) | Two | |||
Timingrange | 1-9999minutes | |||
Model | LDHG-9003series | |||
|---|---|---|---|---|
9023A 9023AD | 9053A 9053AD | 9123A 9123AD | 9203A 9203AD | |
Voltage | 220V50HZ | |||
Temperaturecontrol range | Rt+10℃-250℃ | |||
Temperatureresolution | 0.1℃ | |||
Constanttemperature fluctuation | ±1℃ | |||
Inputpower | 870W | 1120W | 2070W | 2470W |
Workingtemperature | 5℃-40℃ | |||
Linersize (mm) | 340*325*300 | 420*400*345 | 550*450*550 | 600*600*650 |
Dimensions(mm) | 625*540*490 | 720*580*530 | 830*650*730 | 880*770*825 |
Carrierbracket (standard) | Two | |||
Timingrange | 1-9999minutes | |||
Model | LDHG-9005series | ||||
|---|---|---|---|---|---|
9035A 9035AD | 9055A 9055AD | 9075A 9075AD | 9145A 9145AD | 9245A 9245AD | |
Voltage | 220V50HZ | ||||
Temperaturecontrol range | Rt+10℃-300℃ | ||||
Temperatureresolution | 0.1℃ | ||||
Constanttemperature fluctuation | ±1℃ | ||||
Inputpower | 970W | 1220W | 1670W | 2170W | 2870W |
Workingtemperature | 5℃-40℃ | ||||
Linersize (mm) | 340*325*325 | 420*400*345 | 450*400*450 | 550*450*550 | 600*550*750 |
Dimensions(mm) | 625*510*490 | 720*580*530 | 740*580*630 | 830*650*730 | 800*770*930 |
Carrierbracket (standard) | Two | ||||
Timingrange | 1-9999minutes | ||||
