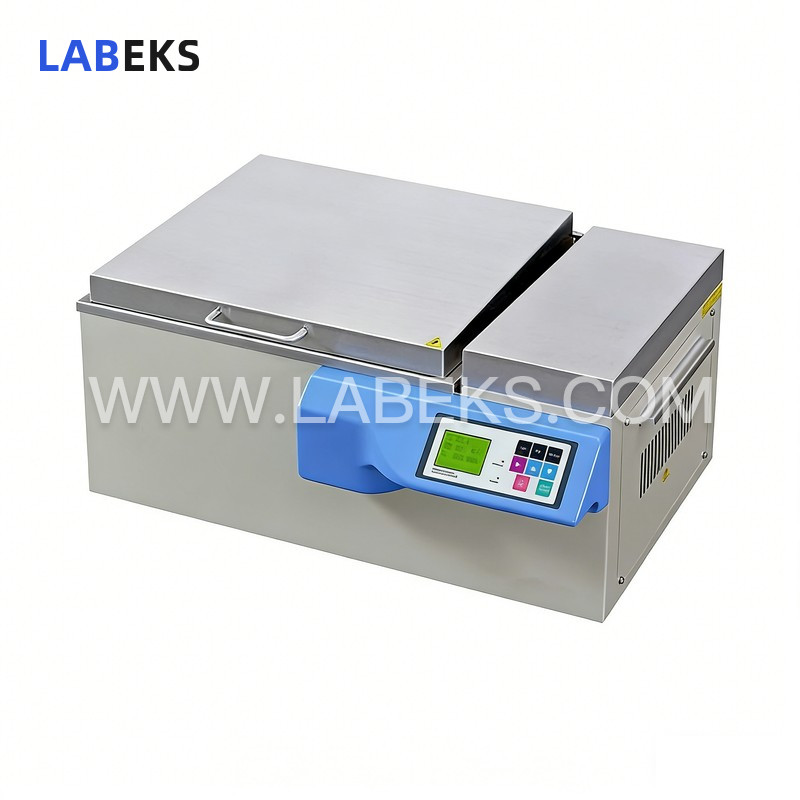

Desktop Constant Temperature Water Bath Shaker: ±0.1°C Uniformity for Lab Cultivation
Featuring precise temperature regulation and reliable oscillation, the constant temperature water bath shaker enables stable cultivation of biological, cellular, and bacterial samples across universities, medical facilities, petrochemical labs, health agencies, and environmental monitoring centers.
- modelLH-110*12
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Integrating a temperature-controlled constant temperature water bath and oscillator, this biochemical instrument is optimized for the oscillatory culture of various liquid and solid specimens including biological materials, biochemical samples, cells, and bacteria. It serves a wide range of scientific research sectors such as universities, healthcare institutions, petrochemical enterprises, health and epidemic prevention agencies, and environmental monitoring departments.
features
1. Intelligent microprocessor controller with environmental scanning functionality, paired with audible and visual alarm systems.
2. Superior temperature control linearity with minimal fluctuations, achieving a temperature uniformity of 0.1 °C.
3. Dual-display LCD screen that simultaneously shows all set parameters and measured values.
4. Built-in run parameter memory function eliminates repetitive, cumbersome operational steps.
5. 500 hours timing setting with remaining time displayed on the LCD; the device automatically stops and triggers an audible-visual alarm upon timing completion.
6. Power-off recovery function allows the instrument to resume operation automatically per pre-configured settings after a sudden power outage and restoration.
7. Equipped with anti-dry heating protection to enhance operational safety.
8. When the measured temperature deviates from the set temperature by 3 °C, the host automatically stops heating and activates an audible alarm.
9. Dual over-temperature protection design: the host cuts off heating power automatically if the heater component has low water level or test samples exceed the set temperature.
10. Adopts the latest floating buffer anti-shake system, delivering low-noise operation and vibration-free performance for the entire machine.
11. A drain valve on the left side of the shaker enables convenient drainage, cleaning, and disinfection of the interior.
12. Stainless-steel cover effectively prevents heat loss and moisture evaporation.
13. Constructed with 316L stainless steel inner liner, electropolished stainless steel rocking plate, springs, and flask clamps.
Security
1. Leakage current and overcurrent protection systems ensure operator safety.
2. Audible and visual alarm emergency control system for over-temperature and over-speed conditions safeguards sample safety.
specifications
Model | LH-110*12 |
|---|---|
Control method | P.I.D microcomputer environment scanningmicro-processing chip control |
Display method | LCD liquid crystal display |
Oscillation mode | Reciprocating oscillation |
Drive mode | Track balanced drive |
Security function | Upper and lower limit over-temperature soundand light alarm; upper and lower limit overspeed alarm; independentover-temperature protector; open door stop protection; leakage orover-current protection device; |
Accessory function | Speed storage, call recovery, parametermemory, temperature speed correction, clock display |
Programming function | Repeat, pacing, eight-segment curveprogramming |
Reciprocating frequency | 20-200rpm |
Frequency accuracy | ±1rpm |
Stroke range | φ25mm |
Maximum capacity | 12*250ml/500ml*8/1000ml*6 |
Rocker size | 430*320(mm) |
Spring rocker size | 430*320*60(mm) |
Timing range | 0-999.59 hours |
Temperature control range | Ambienttemperature-100℃ |
Temperature control accuracy | ±0.1(Constant temperature state) |
Temperature uniformity | ±0.2℃ |
Number of rocking plates | One |
Inner cavity size | 510*380*240(mm) |
Dimensions | 760*420*370(mm) |
Net weight | 45kg |
Gross weight | 65kg |
Power | 2000W |
Motor | 60W Inverter motor |
Voltage | AC 200-240V 50-60HZ |
