Deionized Water Purification System with Real-Time Monitoring for Lab & HPLC Use

Designed to deliver reliable ultrapure water, this water purification system supports water supply for automated biochemistry instruments, general chemistry, biological histology, microbial analysis, sample dilution, reagent preparation, water quality analysis, HPLC, photographic film processing and fine chemical production.

  • model
    PRO-S Series
  • brandLABEKS
  • min. order1 pcs
  • packageplywood case package

description

This deionized water purification system is engineered to support a comprehensive range of applications, including water supply for automated biochemistry instruments, general chemistry experiments, biological histology studies, microbial analysis, sample dilution, reagent formulation, water quality analysis, high-performance liquid chromatography (HPLC), photographic film processing, and fine chemical manufacturing.

features

1. Dual water outlets provide both reverse osmosis (RO) water and ultra-pure water for versatile lab and commercial use.

2. Three-way water quality monitoring simultaneously displays RO conductivity, UP resistivity, temperature, raw water TDS value, pressure, and real-time equipment operating status.

3. Real-time online water quality resistivity monitoring, multi-working state detection, and display of real-time operational data ensure full process visibility.

4. Full-automatic microcomputer control system monitors power supply, water shortage, water production, tank full status, flush, and strong flush operations in real time.

5. Automatic RO membrane anti-fouling flushing and regular cleaning programs effectively extend the service life of RO membranes.

6. Key components are sourced from renowned international brands to guarantee superior water quality, with multiple configurations available to meet diverse experimental requirements.

7. Floor-standing design with both movable and fixed feet at the base enables easy installation and relocation.

8. An independent water intake terminal is located on the front of the unit for quick and convenient access to purified water.

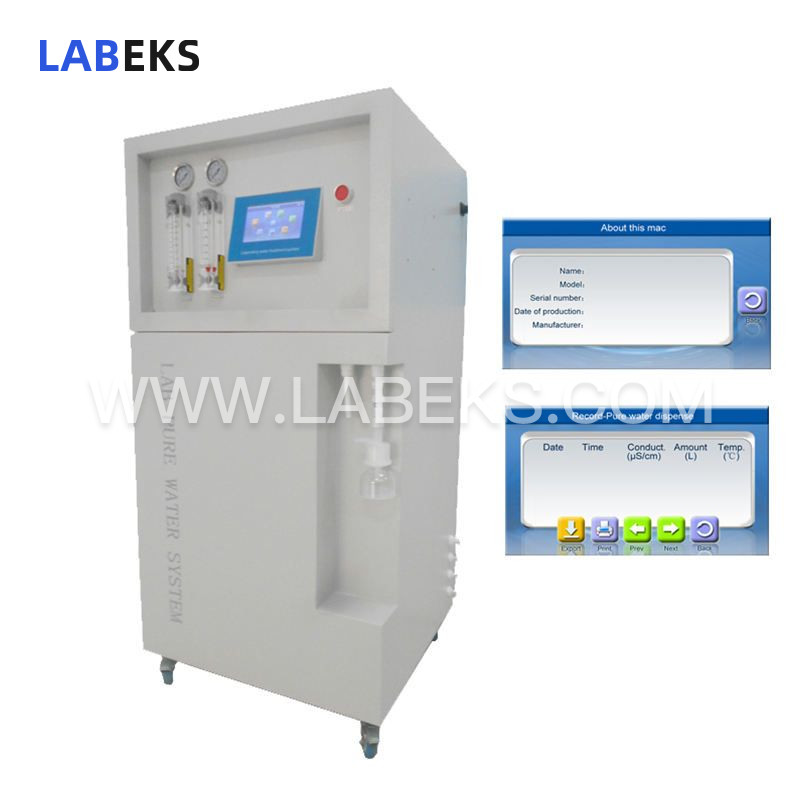

9. Equipped with a USB Host interface, the system supports data export for historical alarm records and water dispensing logs.

10. Dual password protection is included: user-specific password protection and a factory-mode initial password for secure operation.

11. An automatic standby timer function stops all outputs and enters shutdown mode once the preset off-time is reached.

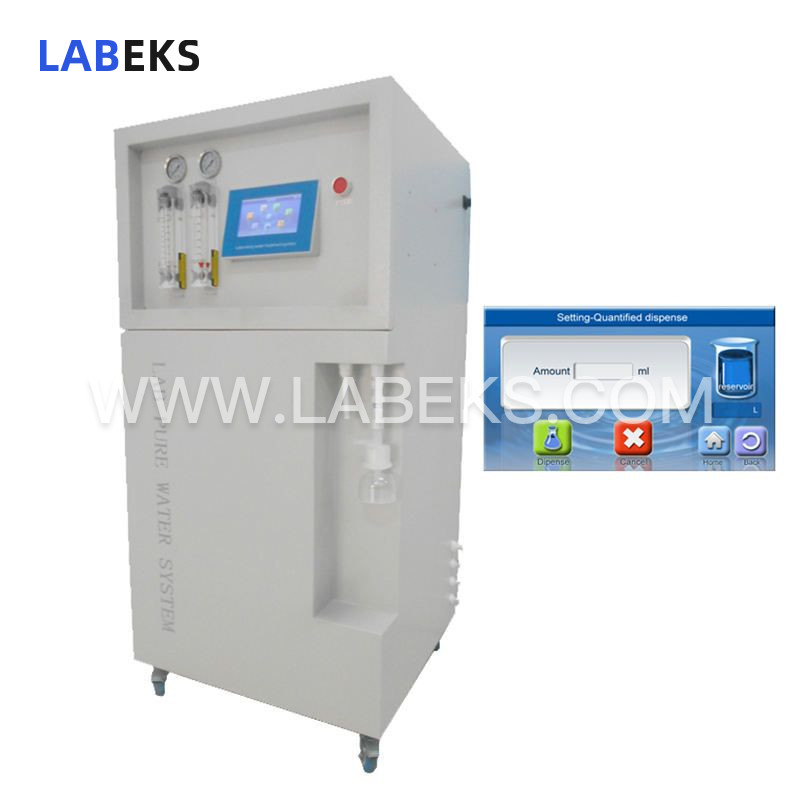

12. Large-screen color touch LCD display offers an intuitive, intelligent man-machine operating interface for effortless control.

13. Real-time online monitoring of water flow, water pressure, and water production ensures stable system performance.

14. Configured with an extra-large capacity purification tank to meet continuous water supply demands.

15. A complimentary portable TDS water quality testing pen is included with the system.

specifications

Model

Standard;Eliminating endotoxin; Low TOC; Synthesizing

PRO-S-UP-40

PRO-S-UP-F40

PRO-S-UP-V40

PRO-S-UP-VF40

PRO-S-UP-60

PRO-S-UP-F60

PRO-S-UP-V60

PRO-S-UP-VF60

PRO-S-UP-80

PRO-S-UP-F80

PRO-S-UP-V80

PRO-S-UP-VF80

PRO-S-UP-100

PRO-S-UP-F100

PRO-S-UP-V100

PRO-S-UP-VF100

PRO-S-UP-120

PRO-S-UP-F120

PRO-S-UP-V120

PRO-S-UP-VF120

Process

PP+ AC+ AC+ RO+UP+ TF

PP+ AC+ AC+ RO+UP+ UF+ TF

PP+AC+AC+RO+UP+UV+TF

PP+AC+AC+RO+UP+UV+UF+TF

Output(25℃）

40L/H, 60L/H,80L/H, 100L/H, 120L/H

Flow rate

Up to 2liters/minute(with pressure tank)

Pure wateroutlet

2: reverseosmosls water, ultra-pure water

Ultra pure waterquality

Resistivity(25℃）

18.2MΩ.cm

TOC

<10ppb

<10ppb

<3ppb

<3ppb

Bacteria

<0.1cfu/ml

Particle(>0.22μm）

<1/ml

Endotoxin

N/A

<0.001Eu/ml

N/A

<0.001Eu/ml

RO water quality

Ion rejectionrate

95%-99%(new RO membrane)

Particles andbacteria rejection rate

>99%

Feed waterrequirements

Tap water,temperature: 5-45℃, pressure:1.0-4.0Kgf/cm²

Dimension andweight

L*W*H:55*52*108cm/Weight: about 80-100KG

Electricalrequirements

AC110-240V,50/60Hz

Power

72-240W

Standardconfiguration

Machine(including1 set of purification colum)+40/60 liters pressure tank( 40L for below 80L,60L for above 80L)+terminal filter+ accessory package
