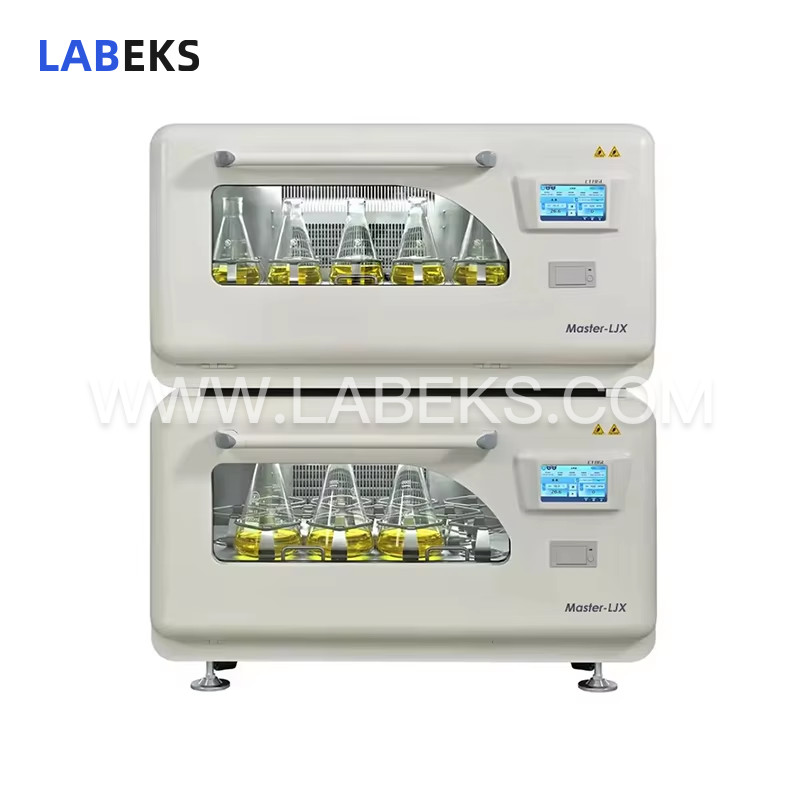

CO2 Horizontal Superimposed Constant Temperature Culture Oscillator with 7-Inch Touch Screen for Cell & Tissue Culture
Engineered for reliable in vitro cell and tissue cultivation, the CO2 culture oscillator features a 7-inch touchscreen, ±0.1% CO2 control precision, active humidification, built-in micro-printer, independent over-temperature protection, and a 304 imported stainless steel mirror inner cavity.
- modelMaster-LJX
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
The CO2 horizontal superimposed constant temperature culture oscillator is a specialized device that replicates the in-vivo growth conditions necessary for cells and tissues, including a stable 37°C temperature, 5% CO2 level, consistent pH, and high relative humidity saturation, enabling efficient in vitro cell and tissue cultivation. This equipment is widely utilized in immunology, oncology, genetics, and bioengineering applications.
features
1. Equipped with a German-imported infrared (IR) CO2 sensor, providing high measurement accuracy and an extended service life.
2. Powered by a servo motor drive, which delivers higher and more precise speed control accuracy compared to traditional AC or DC motors.
3. Adopts a single-axis five-dimensional dynamic balance drive structure, characterized by low energy consumption, long service life, and minimal operational noise.
4. Fitted with imported double-row bearings, offering high load capacity, stable operation, and an extended service lifespan.
5. The core mechanical components are crafted from mold-formed ductile iron, ensuring excellent stability and long-term durability.
6. Incorporates a 7-inch true-color touchscreen with Chinese-English switchable interface, streamlining operational workflows for enhanced convenience.
7. Constructed with a 304 mirror finish all-stainless steel inner cavity for superior corrosion resistance and cleanliness.
8. The inner cavity bottom can be directly rinsed with water, with an integrated drainage pipeline for effortless cleaning and maintenance.
9. Includes three-level permission management, operation log query and export functions, and fully complies with GMP standards.
10. The main unit can store up to 1 million data entries and over 5 years of historical data, with a standard USB interface for convenient data storage and export.
11. Comes with reservation operation, timing, memory recall, and screen lock functions to prevent human-induced operational errors.
12. Standardly equipped with fluorescent and ultraviolet lamps for versatile cultivation needs.
13. Supports three-layer stacking operation, with expandable functions including active humidification, light cultivation, high-speed oscillation, shading cultivation, adhesive shaking plates, remote communication monitoring, gas introduction, 3Q verification, and embedded micro-printer integration.
specifications
Model | Master-LJX 2021R | Master-LJX 2023R |
|---|---|---|
No load speed | 0-300 rpm | 0-300 rpm |
Shake plateamplitude | 25mm (50mm or0-50mm amplitude adjustable) | 25mm (50mm or0-50mm amplitude adjustable) |
Oscillation mode | Rotary orreciprocating | Rotary orreciprocating |
Shake board size | 780*500mm | 940*530mm |
Distance fromthe shaking plate to the top | 353mm | 379mm |
Volume size | 208L | 282L |
Externaldimensions | 1200*797*640mm | 1410*830*660mm |
MaximumStackable layers | 3 layers | 3 layers |
Temperaturerange | 4-60℃(RT-18C.Minimum 4℃) | 4-60℃(RT-18℃.Minimum 4℃) |
Temp Accuracy | ±0.1℃ | ±0.1℃ |
Temperatureuniformity | ≤±0.5℃(@At 37℃) | ≤±0.5℃(@At 37℃) |
Convection mode | Forcedconvection | Forcedconvection |
CO2 sensor | Imported IRSensor | Imported IRSensor |
CO2 controlrange | 0-20% | 0-20% |
CO2 controlaccuracy | ±0.1% | ±0.1% |
CO2 homogeneity | ±0.5% (@At 5%) | ±0.5% (@At 5%) |
Timer | 0-9999hour and0-9999mins | 0-9999hour and0-9999mins |
UV Lamp | YES | YES |
Supply voltage | 220V+10%，50/60Hz | 220V±10%，50/60Hz |
Weight(approximately) | 322KG | 370KG |
Maximum loadingcapacity | 2000ml*12 or 1000ml*15or 500ml*28 or 250ml *40 | 5000ml*7 or 2000ml*15or 1000ml *28 or 500ml *40 or 500ml *40 |
