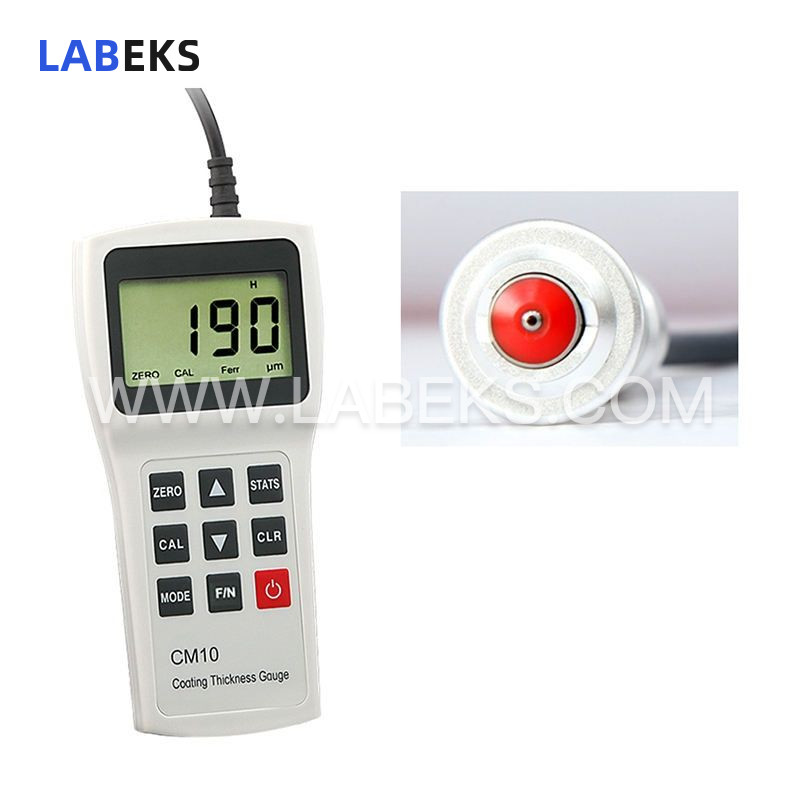

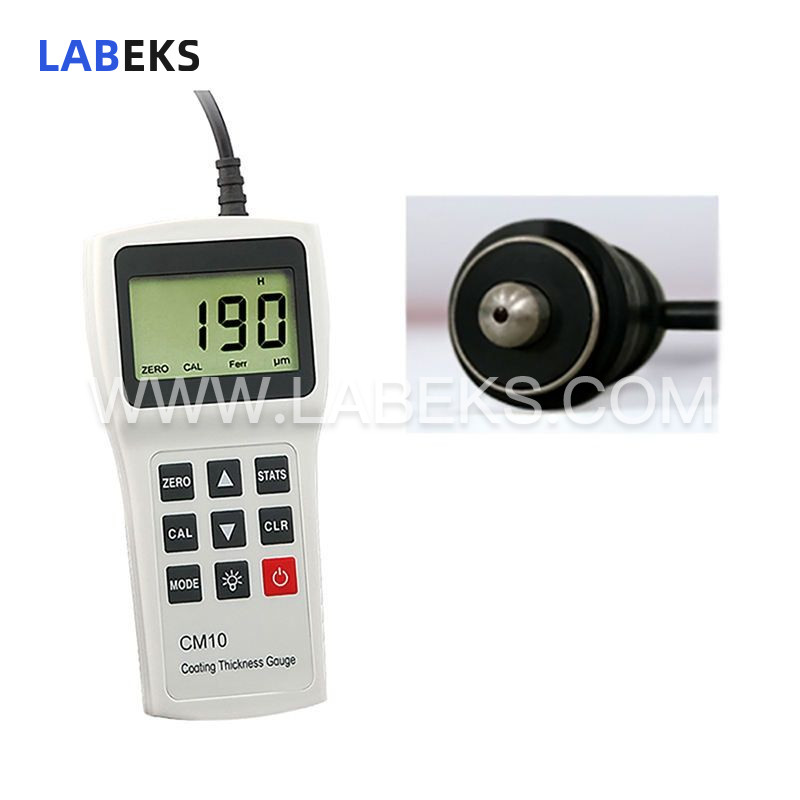

CM10 Series Coating Thickness Gauge: High-Precision Tool for Industrial Quality Control
Delivering highly accurate measurements of coating and material thickness, this coating thickness gauge is an essential asset for industrial manufacturing, construction engineering, materials science, and quality control workflows.
- modelCM10 Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
As a precision instrument dedicated to accurately measuring the thickness of materials and coatings, it leverages technologies including ultrasound, laser, eddy current, X-ray, or mechanical contact to enable both non-destructive and contact-based measurements spanning from nanometers to centimeters. This gauge is primarily applied for quality control and process monitoring across automotive manufacturing, metal processing, aerospace, construction engineering, and industrial corrosion prevention sectors.
features
1. High-precision measurement: Delivers micron-level or higher measurement accuracy, ensuring the reliability of coating thickness data.
2. Real-time display and alarm: Presents measurement results instantly, with customizable threshold settings to trigger alerts for out-of-range values.
3. Non-destructive testing technology: Utilizes non-destructive measurement techniques, preserving the structural integrity of both coatings and underlying substrates.
4. Multi-substrate compatibility: Supports coating thickness measurements on a variety of substrate surfaces, including metal, plastic, and wood.
5. Intelligent calibration function: Allows for automatic or manual calibration to adapt to different measurement conditions and standards.
6. Multiple probe options: Comes equipped with probes based on distinct principles (e.g., magnetic induction, eddy current, ultrasonic) to handle complex surface structures.
7. Portable and easy-to-operate design: Lightweight handheld device with an intuitive interface, ideal for rapid on-site testing.
8. Data storage and transmission: Features built-in storage space, supporting data export via USB, Bluetooth, or wireless connection.
9. Strong environmental adaptability: Select models offer dustproof, oil-proof, and electromagnetic interference-resistant properties, suitable for harsh industrial environments.
specifications
Model | CM10F | CM10FH | CM10N | CM10FN | |
|---|---|---|---|---|---|
MeasuringPrinciple | MagneticMethod | MagneticMethod | Eddy CurrentMethod | Magnetic andeddy current integration | |
MeasuringRange(μm) | 0-3000 | 0-10000 | 0-2000 | 0-1500 | |
Low RangeSensitivity(μm) | 0.1 | 0.1 | 0.1 | 0.1 | |
Tolerance(μm) | ±（2%H+2) | ±（2%H+10) | ±（2%H+2) | ±（2%H+2) | |
TestingCondition(mm)) | Min.CurvatureRadius | 5 | 10 | 5 | 5 |
Min.AreaDiameter | Φ20 | Φ40 | Φ20 | Φ20 | |
Min.SubstrateThickness | 0.5 | 2 | 0.5 | 0.5 | |
Display | HighContrast Segment Liquid CstalDisplay(LED Backlight) | ||||
Statistics | N,MAX,MIN,MEANandSTD.DEV | ||||
Calibration | One-PointCalibrationandTwo-Point Calibration | ||||
WorkingTemperature | -10° Cto +50 °C-20°Cin special requirement | ||||
AutoPower- | Auto offafter 3 minutes ofinactivity | ||||
Power | Two 1.5V AAbatteries,low-voltage indication function | ||||
Weight | 200gincluding batteries | ||||
Size | 149mm*73mm*32mm(H*W*D) | ||||

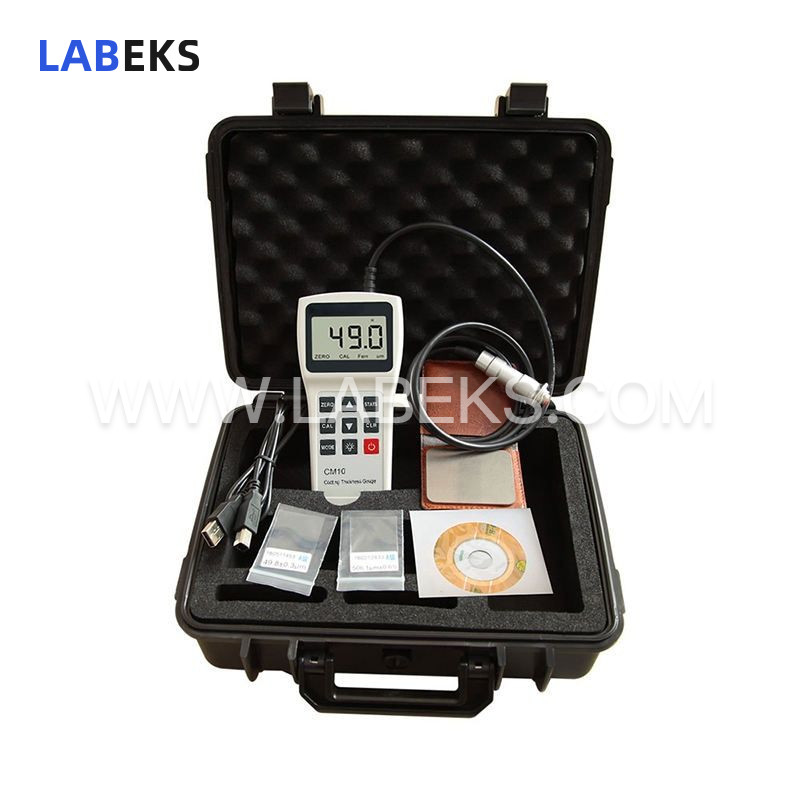

StandardConfigurations | |||||
CM10 CoatingThickness Gauge | Probe(integrated with instrument) | ||||
Zero Plate | CalibrationFoils | ||||
CarryingCase | OperatingManual | ||||
Certificationof Quality,Packaging List | USBCommunication Cable | ||||
CommunicationCD | |||||
OptionalConfigurations | |||||
CalibrationFoils | Fe ZeroPlate | ||||
AI ZeroPlate | |||||
