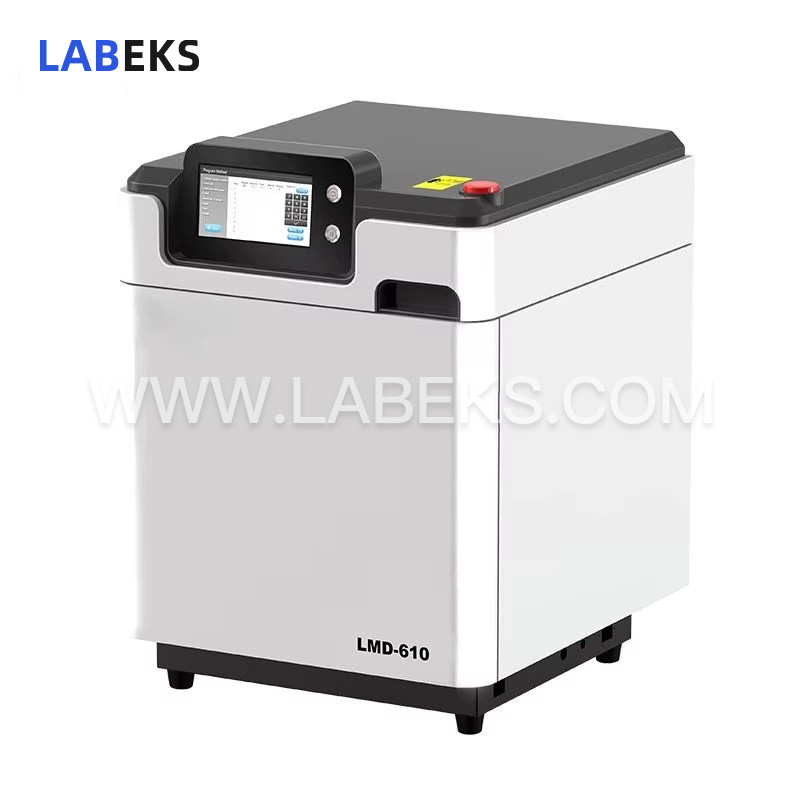

Closed Microwave Digester with Real-Time Vessel Monitoring & Up to 12 Vessel Capacity
The LMD-610 series microwave digester is a newly engineered, fully upgraded system boasting enhanced performance and fortified safety protections, with intelligent design that has earned global recognition among users.
- modelLMD-610
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
The LMD-610 series is a newly engineered closed microwave digestion system, featuring comprehensive upgrades that boost operational performance and strengthen safety protection mechanisms.
Its intelligent design and reliable high-level performance have gained widespread acclaim from users across the globe.
features
Real-time monitoring of temperature and pressure for every individual vessel.
Contactless sensor-based monitoring eliminates the need for burst disks, reducing both consumable and maintenance expenses.
Imported materials for both sample and protection vessels provide exceptional safety assurance.
Optional vessel quantities, with configurations up to 12 vessels available to accommodate diverse digestion needs.
Vertical chamber design enables uniform microwave distribution throughout the system.
7-inch color touchscreen with an intuitive interface for streamlined operational control.
Pre-loaded general standard digestion methods, with support for users to create, save, edit or delete custom methods as needed.
316L industrial-grade stainless steel tank with a multi-layer Teflon coating resists acid corrosion while enhancing cooling efficiency.
specifications
Model | LMD-610-T6 | LMD-610-T8 | LMD-610-T10 | LMD-610-T12 |
|---|---|---|---|---|
VesselQuantity | 6 | 8 | 10 | 12 |
Temperature Monitoring System | ContactlessIR Sensor Temperature Monitoring Each VesselTemperature Controlled TemperatureControlling Range: 50~400℃ TemperatureAccuracy: ±0.1℃ DisplayAccuracy: ±0.1℃ | |||
Pressure Monitoring System | ContactlessSensor Pressure monitoring Each VesselsPressure Controlled PressureControlling Range: 0~15MPa PressureAccuracy: ±0.01MPa DisplayAccuracy: ±0.01Mpa | |||
VesselVolume | 100mL | |||
SampleVessel Material | Imported TFM | |||
ProtectionVessel Material | Peek+GlassFiber | |||
Display | 7 inch TouchScreen | |||
Rotation | OneDirection 360° continuous rotating | |||
MicrowaveTank | 316L stainlesssteel tank with corrosion-proof coating | |||
MicrowavePower | 0-1000W(Adjustable) | |||
MicrowaveLeakage | <5mw/cm2 | |||
Air Exhaust | High powercorrosion-proof air blower | |||
Power | AC 220V±10%,10A, 50/60Hz | |||
Dimension | 490×560×630mm（L×W×H） | |||
Weight | 47KG | |||
