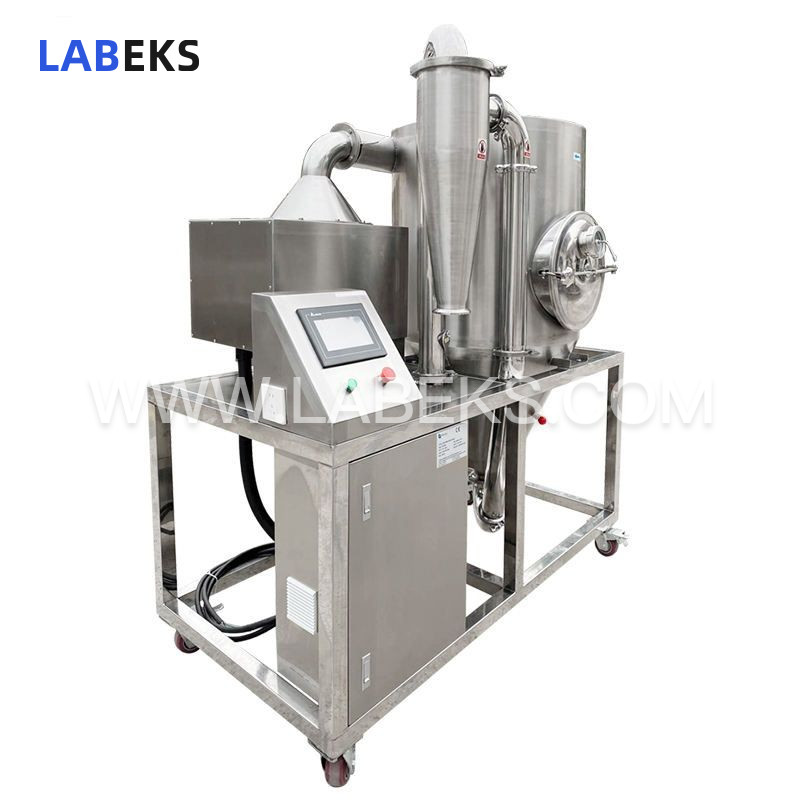

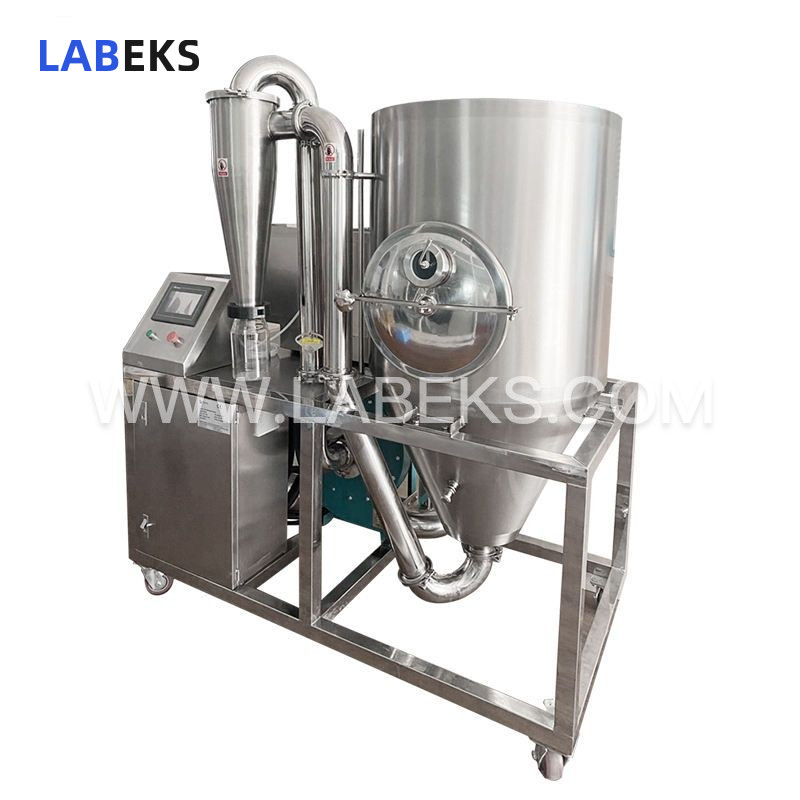

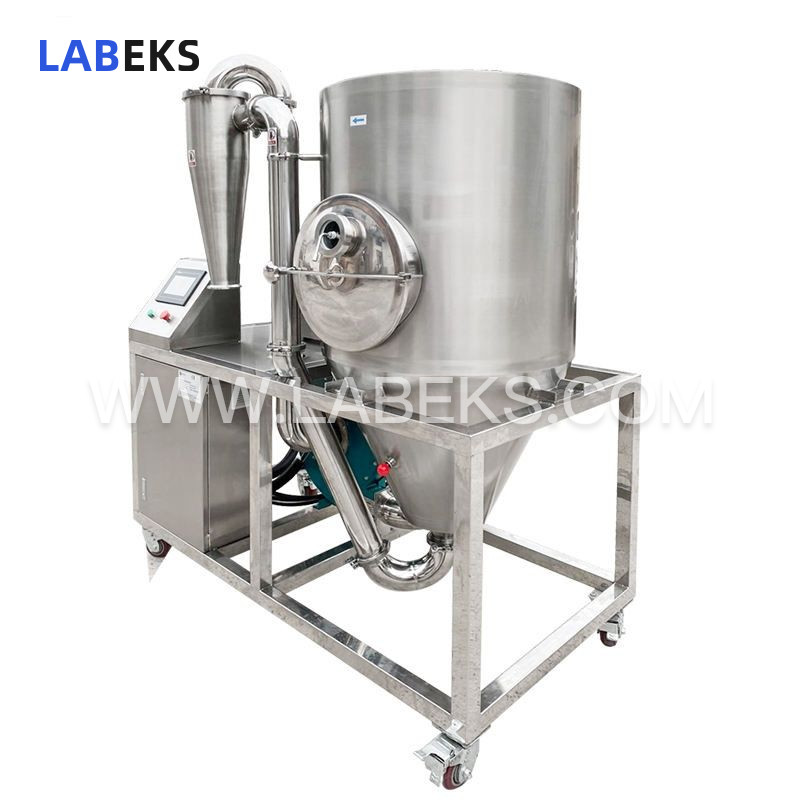

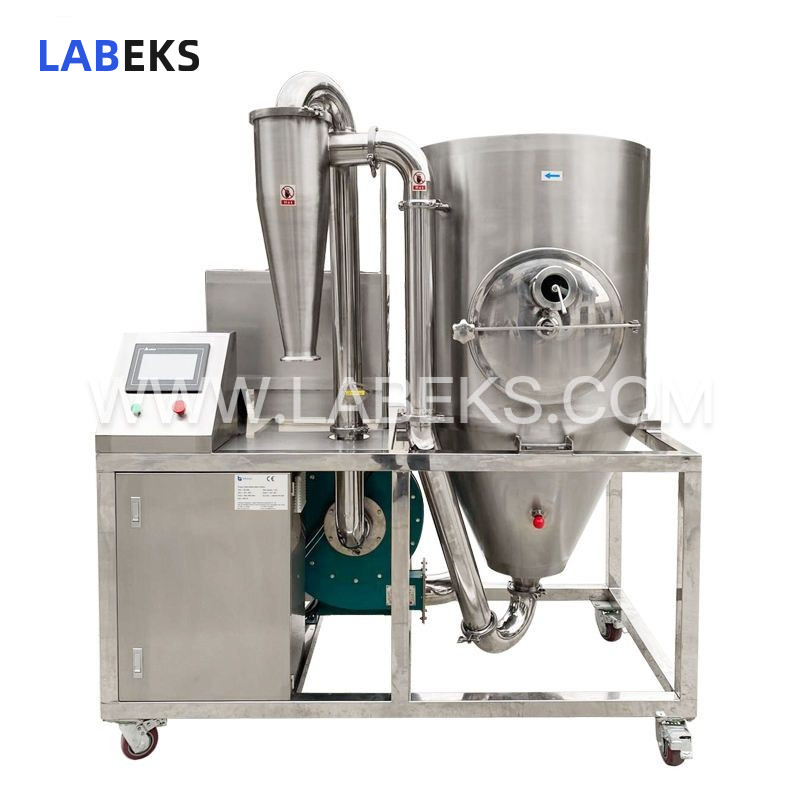

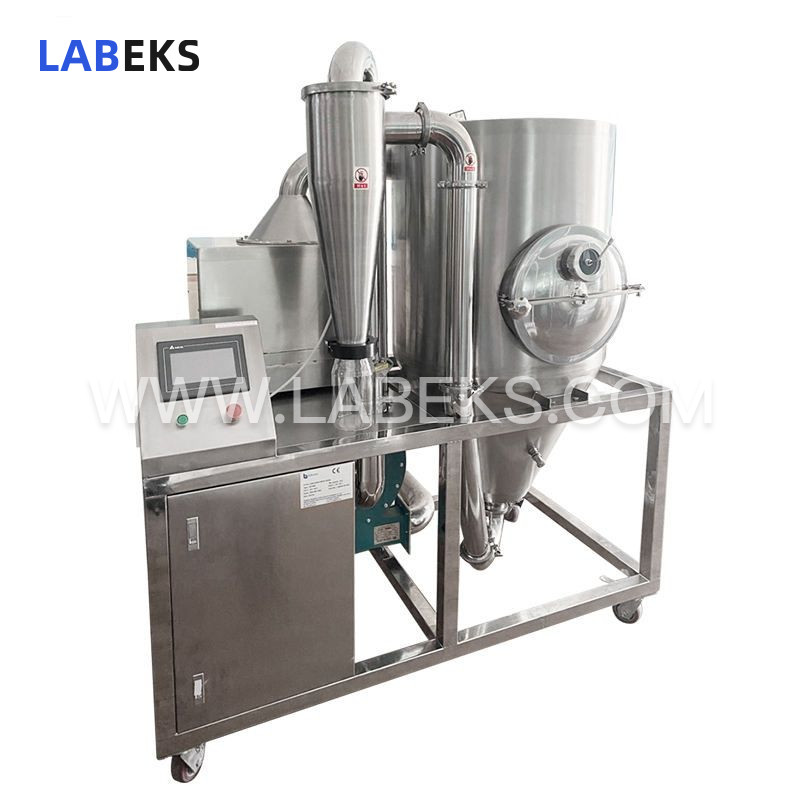

Centrifugal Spray Dryer Machine with 5kg/h Capacity for Thermally-Sensitive Materials
Ideal for converting liquids or slurries into dry powder via rapid hot air drying, the centrifugal spray dryer is the preferred solution for thermally-sensitive materials (foods, pharmaceuticals) and industrial products (catalysts requiring uniform particle size), with air as the heated drying medium.
- modelLSP-5000
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
The LSP-5000 centrifugal spray dryer is a specialized drying system optimized for low-temperature, high-viscosity liquid materials, developed through multiple iterations based on leading domestic and international spray dryer designs. Its operating principle is as follows: Filtered cold air enters the heater to reach a specified temperature, then flows into the air distributor atop the spray tower, where it travels in a spiral path toward the tower base. Simultaneously, liquid is pumped to the centrifugal atomizer at the tower’s top, which breaks it into ultra-fine mist droplets. These droplets make parallel contact with hot air for complete heat exchange, causing rapid moisture vaporization and quick formation of finished dry powder. The final product is separated via a cyclone and discharged, while exhaust steam is removed by an induced draft fan.
features
1. Patented inlet spiral air distributor (company-exclusive design) ensures fully uniform circumferential air flow throughout the tower, significantly reducing material wall adhesion.
2. Upgraded U-tube heater eliminates weld cracking caused by thermal expansion and contraction of heating tubes. Encased U-tubes prevent air leakage between tubes and the shell; aluminum alloy fins boost heat transfer coefficient and overall thermal efficiency.
3. The equipment boasts an ultra-short drying time of just 5 seconds, ensuring no damage to active ingredients.
4. Controllable inlet temperature fully meets the drying process requirements of various materials.
5. Adjustable spray tower diameter accommodates a wide range of materials, with flexible inlet and outlet temperature settings supporting diverse operational needs.
6. Comprehensive equipment configuration maximally satisfies all production process requirements.
7. Simple operation and wide applicability, requiring no specialized operators.
8. Advanced, user-friendly cleaning door enables easy worker operation while ensuring absolute sealing to minimize material wall adhesion; a tower-mounted clean door supports full-range internal cleaning.
9. The tower features absolute mirror polishing with no dead corners, reducing material adhesion and simplifying cleaning procedures.
10. All pipes and cyclones are equipped with quick-access openings for easy maintenance.
specifications
Model | LSP-5000 |
|---|---|
Water evaporator capacity | 5kg/h |
Heating power | 18KW |
Inlet temperature range | 160°C~200°C |
Outlet temperature range | 80°C~ 90°C |
Heating temperature accuracy | ±1°C |
Screen | LCD colorful screen |
Weight | 300kg |
Size | 1800 x 1500 x 2500mm (L x W x H) |
