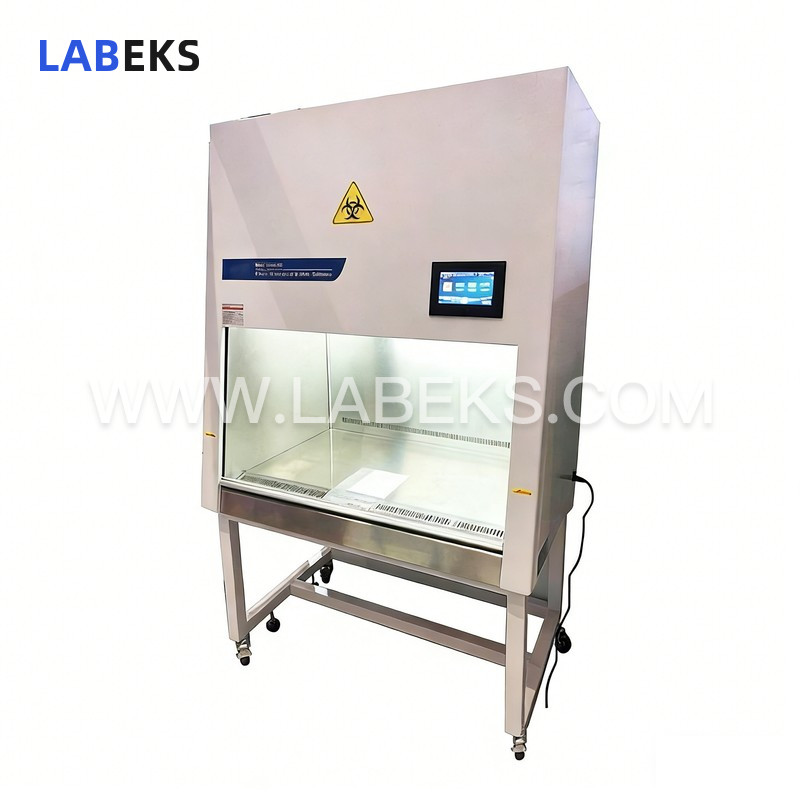

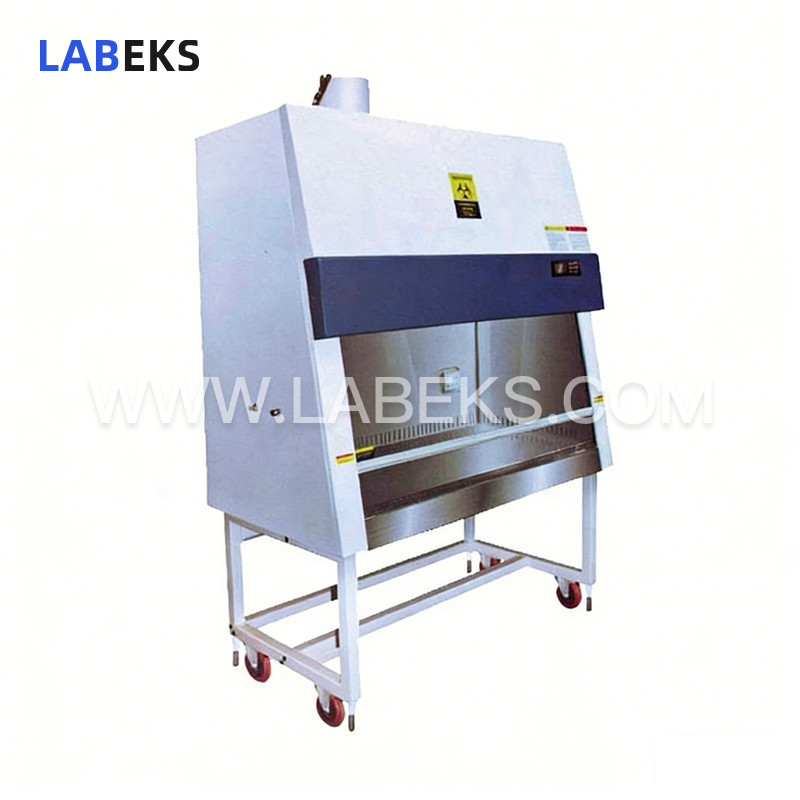

Biological Safety Cabinet with HEPA Filtration for Pathogen Handling
For secure handling of pathogens requiring specified biosafety levels, this enclosed, ventilated biosafety cabinet provides a controlled laboratory workspace that protects users and the environment from hazardous contaminants.
- modelBSC-1000B2/BSC-1300B2/BSC-1600B2
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Engineered to shield laboratory personnel and the surrounding environment from pathogenic hazards, this biosafety cabinet incorporates full HEPA filtration for all exhaust air, effectively eliminating harmful bacteria and viruses before air is released.
features
Equipped with a separator-free high-efficiency HEPA filter, delivering a filtration efficiency of 99.999%.
Negative-pressure air curtain isolation design effectively prevents cross-contamination between the cabinet’s interior and external environment.
Integrates scheduled sterilization and timing functionality, paired with a UV protection mechanism that automatically shuts off the UV lamp when the operation door is opened by 2 cm.
The operational zone features 304 premium stainless steel construction; its back and side panels are three-side integrally formed with no welds, eliminating leakage risks.
Features an LCD control panel with alerts for fan faults, plus real-time prompts for boot-up time, continuous operation duration, and filter life status.
Height-adjustable glass door with a height limit alarm to guide proper operator usage.
Ergonomic tilting cabinet design enhances user operational comfort during extended use.
specifications
Model | BSC-1000B2 | BSC-1300B2 | BSC-1600B2 |
|---|---|---|---|
Overall size (W*D*H) | 1200*850*2350mm | 1500*855*2350mm | 1800*800*2350mm |
Purification area size(W*D*H) | 1000*570*635mm | 1300*570*635mm | 1600*570*635mm |
Purification efficiency | ISO5 (Class 100)/ ISO4(Class 10) | ||
HEPA filter | HEPA/ULPA @ 0.3~0.12um99.999%~99.9995% | ||
Airflow system | 100% air exhaust | ||
Downdraft velocity | 0.31±0.025m/s | ||
Inflow velocity | 0.48±0.025m/s | ||
Power | ≤1.5KW | ||
Average colony account | ≤0.5A/dish/hour | ||
Noise | ≤65dB(A) | ||
Vibration half peak | ≤3μm (X.Y.Z) | ||
Power supply | 220V 50Hz | ||
Filter size (L*W*H) | 980*520*50mm | 1280*520*50mm | 1580*520*50mm |
Fluorescent Lamp | 21W*2 | 28W*2 | 28W*2 |
UV lamp | 21W*1 | 21W*1 | 14W*2 |
Wind direction | Top∅200mm | ||
Illumination | ≥700LX | ||
Weight | 160kg | 220kg | 280kg |
