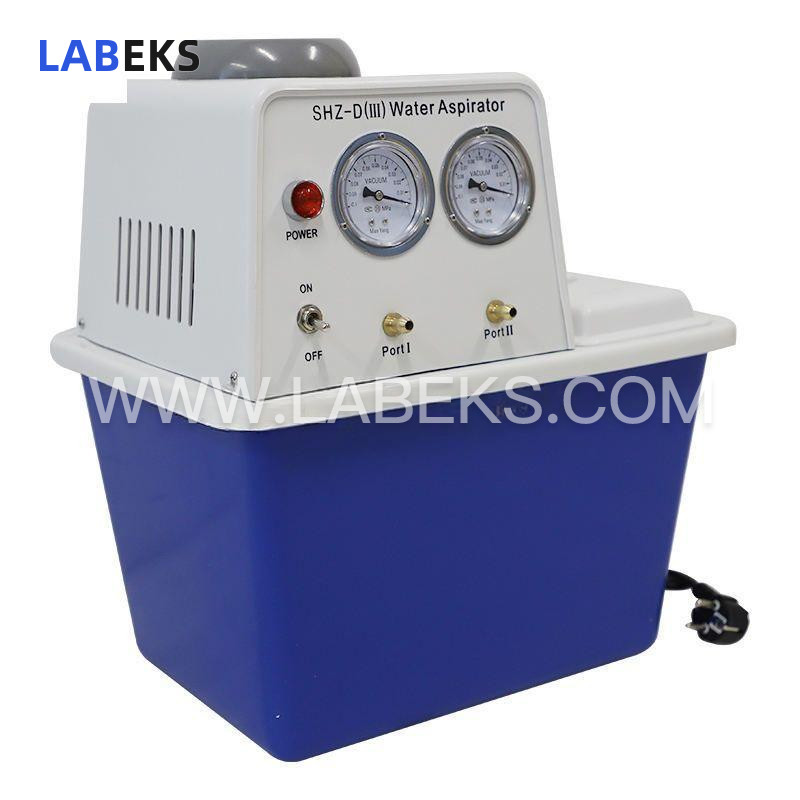

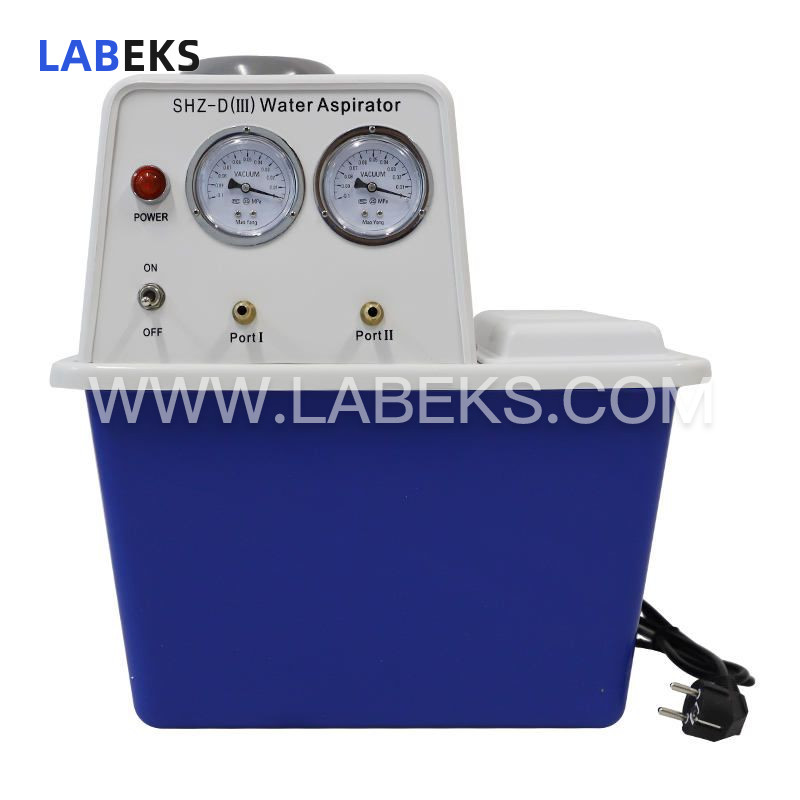

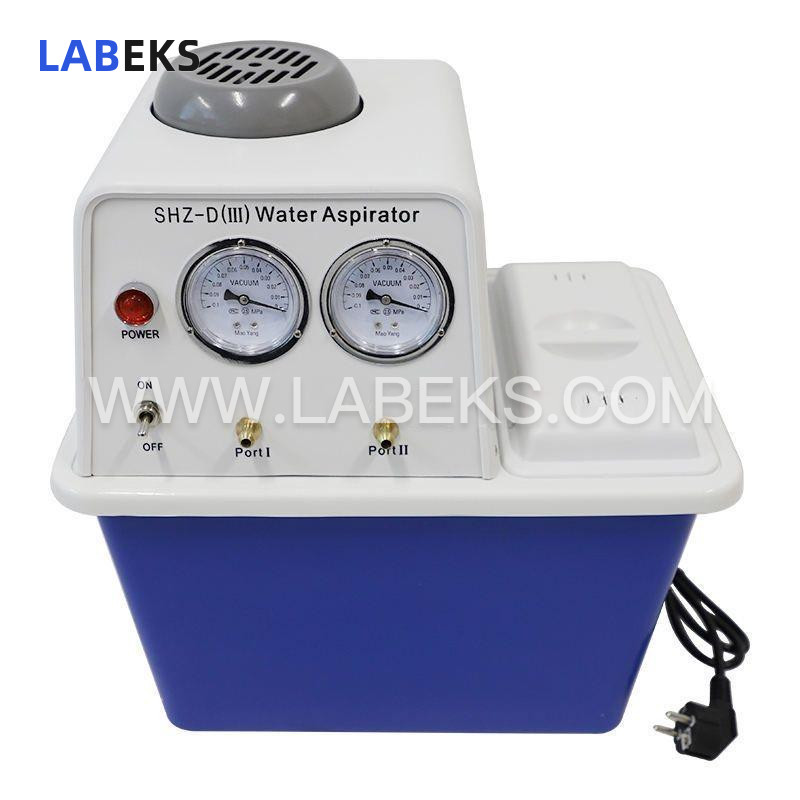

Benchtop Water Circulating Vacuum Pump: 35% Energy-Saving for Glass Reactors & Rotary Evaporators
To generate a stable vacuum condition for paired glass reactors and rotary evaporators, the water circulating vacuum pump acts as a reliable auxiliary device supporting critical lab and small-scale industrial testing operations efficiently.
- modelSHZ-D
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
The SHZ-D series multi-purpose circulating water vacuum pump utilizes circulating water as its working medium, leveraging negative pressure generated by fluid jetting to achieve vacuum extraction.
It provides vacuum conditions for processes including evaporation, distillation, crystallization, drying, sublimation, filtration, decompression, and degassing. This pump is especially ideal for laboratories and small-scale trials in sectors such as universities, scientific research institutes, chemical processing, pharmaceuticals, biochemistry, food and pesticide production, agricultural engineering, and bioengineering.
features

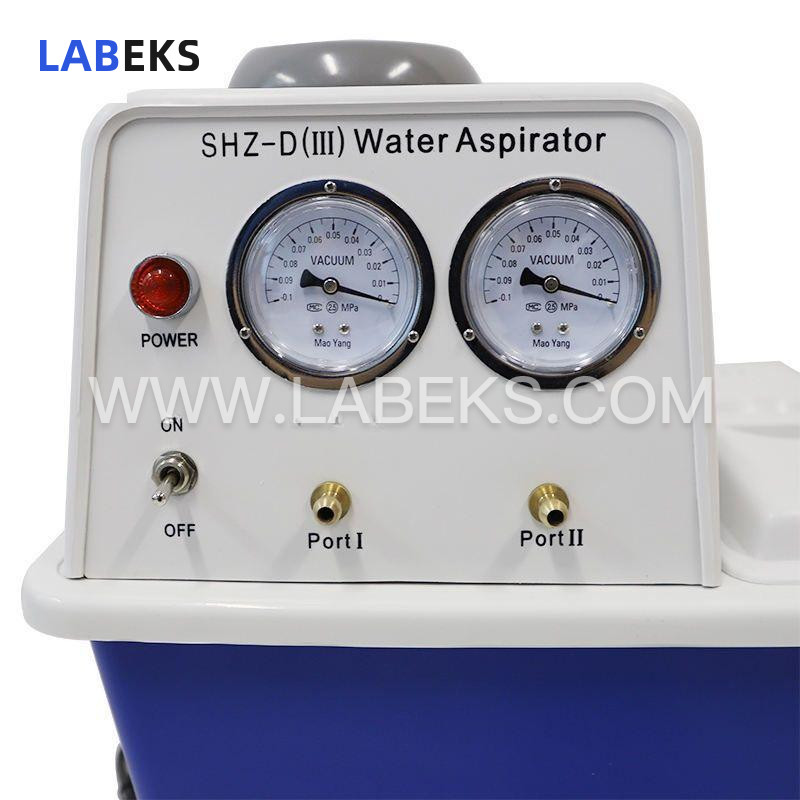

Equipped with dual taps and dual displays, the pump can be operated independently or in parallel to meet diverse vacuum requirements.
Boasts over 35% energy savings compared to conventional vacuum pumps, reducing operational costs significantly.
Enables cyclic water usage, effectively conserving valuable water resources during prolonged operation.
Offers excellent resistance to corrosion from acids, alkalis, and various solvents, ensuring durability in harsh lab environments.
Built with an ODM motor from a renowned manufacturer and fluororubber seals, the pump’s internal components are protected against corrosive gas intrusion.
Custom-designed fluid muffler removes dissolved gas from water to enhance vacuum level stability, while also minimizing gas-fluid friction and operational noise.
Regular water replacement in the tank is required to maintain water purity, stable vacuum levels, and prevent the formation of contaminants.
When used to extract corrosive gases, the water replacement interval must be shortened to maintain optimal performance.
specifications
Model | SHZ-D |
|---|---|
Power(w) | 180 |
Voltage(v) | 220/50 |
Flow(L/min) | 80 |
Lift(m) | 10 |
Max vacuum degree(Mpa) | 0.098 |
Single tap air sucking amount | 10 |
Number of taps | 2 |
Safety functions | Check valve |
Capacity of water storage tank(L) | 15 |
Materials of water tank | PP |
Dimension(mm) | 385*280*420 |
Weight(kg) | 11 |
