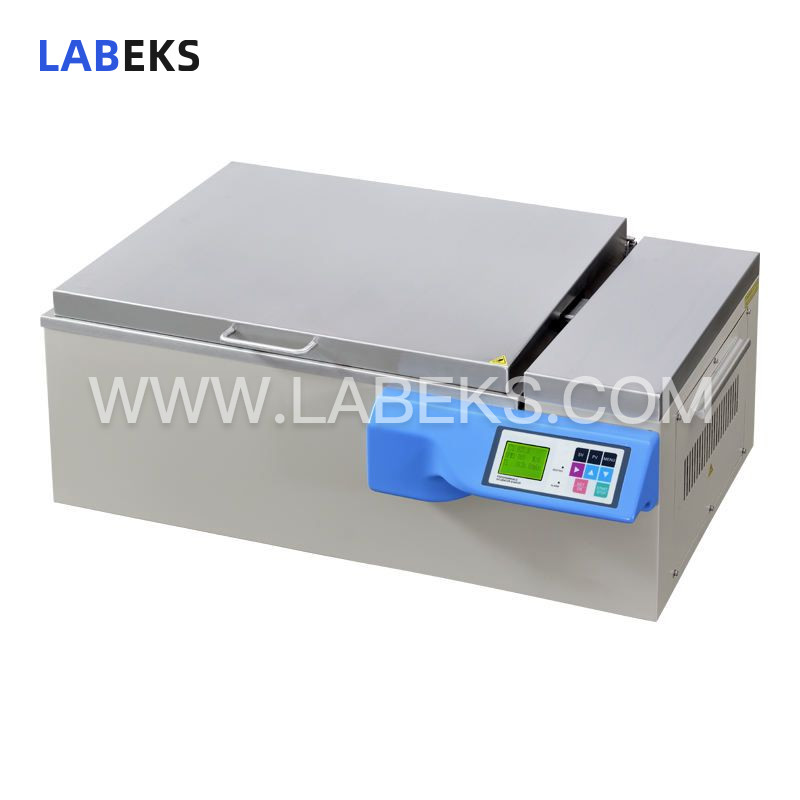

Benchtop Constant Temperature Shaking Water Bath for Microbial & Cell Culture with 0.1°C Uniformity
Integrating a temperature-regulated bath and precision oscillation system, the shaking water bath is a specialized biochemical instrument ideal for oscillatory culture of liquid and solid samples including biological materials, biochemical compounds, cells, and bacteria across universities, hospitals, petrochemical facilities, health authorities, and environmental monitoring labs.
- modelLH-110*24
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
This benchtop constant temperature shaking water bath is an integrated biochemical instrument combining a temperature-controlled constant-temperature water bath and oscillator. It is specifically engineered for the oscillatory cultivation of various liquid and solid substrates—such as biological specimens, biochemical samples, cells, and bacteria—within research-focused settings including universities, healthcare institutions, petrochemical enterprises, disease control and prevention agencies, and environmental monitoring organizations.
features
Exceptional temperature control linearity with minimal fluctuation, achieving a temperature uniformity of 0.1 °C.
Intelligent microprocessor controller with environment scanning functionality and audible-visual alarm capabilities.
LCD screen displays both set parameters and real-time measured parameters simultaneously.
500-hour timer setting with remaining time shown on the LCD; the unit automatically stops and triggers an audible-visual alarm once timing completes.
Parameter memory function eliminates repetitive setup operations.
Power-off recovery function allows the device to automatically resume operation per original settings after power is restored.
When measured temperature deviates 3 °C from the set value, the system automatically stops heating and activates an audible alarm.
Dual over-temperature protection design: the host automatically cuts off heating power if the heater runs low on water or samples exceed the set temperature.
Equipped with anti-dry heating protection.
Leakage current and overcurrent protection systems ensure operator safety.
Over-temperature and over-speed audible-visual alarm emergency control system safeguards sample integrity.
Latest floating buffer anti-shake design enables low-noise operation with no overall machine vibration.

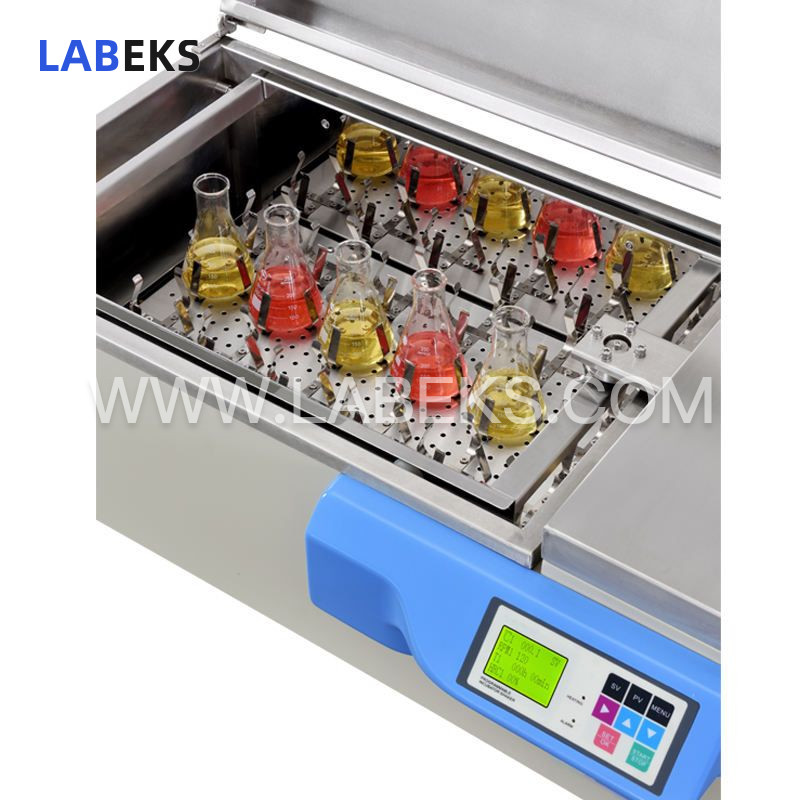

316L stainless steel liner, electropolished stainless steel rocking plate, springs, and flask clamps ensure durability and corrosion resistance.
Stainless-steel cover minimizes heat loss and prevents moisture evaporation.
Left-side drain valve facilitates easy drainage, cleaning, and disinfection of the interior.
specifications
Model | LH-110*24 |
|---|---|
Control method | P.I.Dmicrocomputer environment scanning micro-processing chip control |
Display method | LCD liquid crystal display |
Oscillation mode | Reciprocating oscillation |
Drive mode | Track balanced drive |
Security function | Upper and lower limit over-temperature soundand light alarm; upper and lower limit overspeed alarm; independentover-temperature protector; open door stop protection; leakage orover-current protection device; |
Accessory function | Speed storage, call recovery, parametermemory, temperature speed correction, clock display |
Programming function | Repeat, pacing, eight-segment curveprogramming |
Reciprocating frequency | 20-200rpm |
Frequency accuracy | ±1rpm |
Stroke range | φ25mm |
Maximum capacity | 24*250ml/500ml*15/1000ml*8 |
Rocker size | 590*390(mm) |
Spring rocker size | 590*390*80(mm) |
Timing range | 0-999.59 hours |
Temperature control range | Ambient temperature-100℃ |
Temperature control accuracy | ±0.1(Constant temperature state) |
Temperature uniformity | ±0.2℃ |
Number of rocking plates | One |
Inner cavity size | 700*455*260(mm) |
Dimensions | 945*495*408(mm) |
Net weight | 55kg |
Gross weight | 120kg |
power | 2000W |
Motor | 60W Inverter motor |
Voltage | AC 200-240V 50-60HZ |
