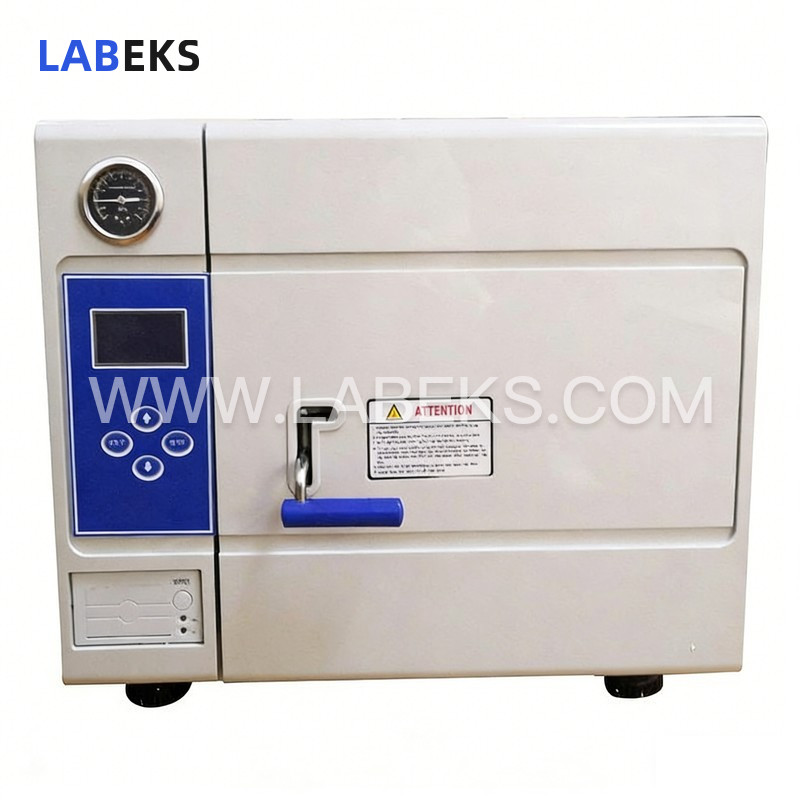

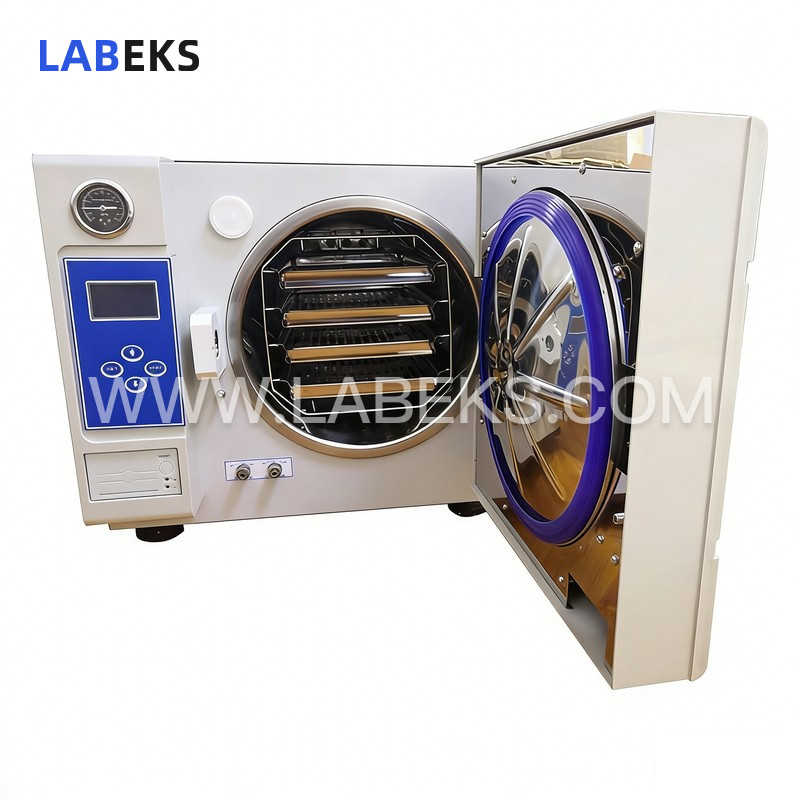

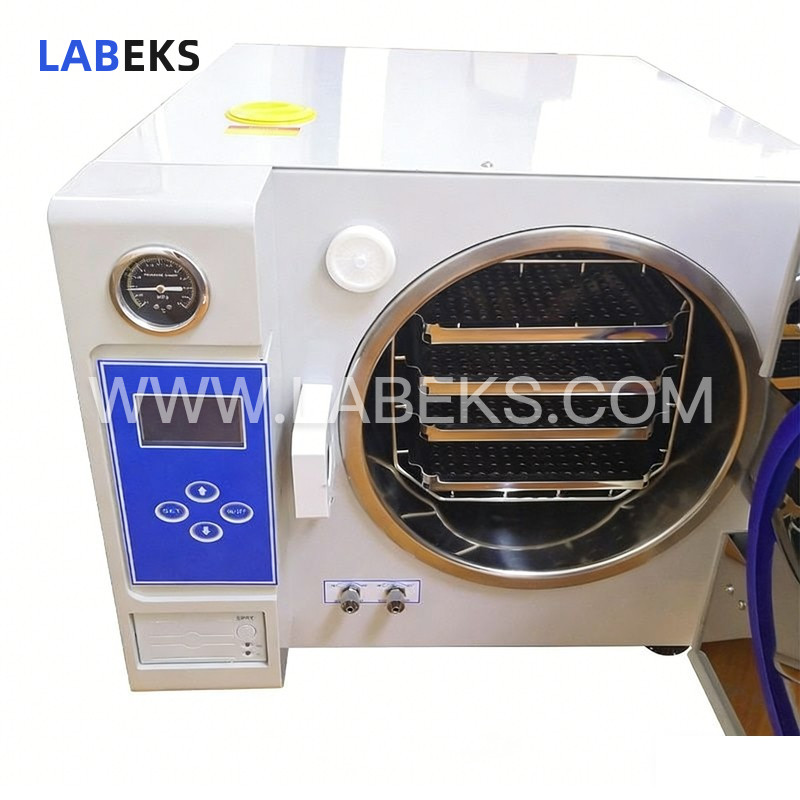

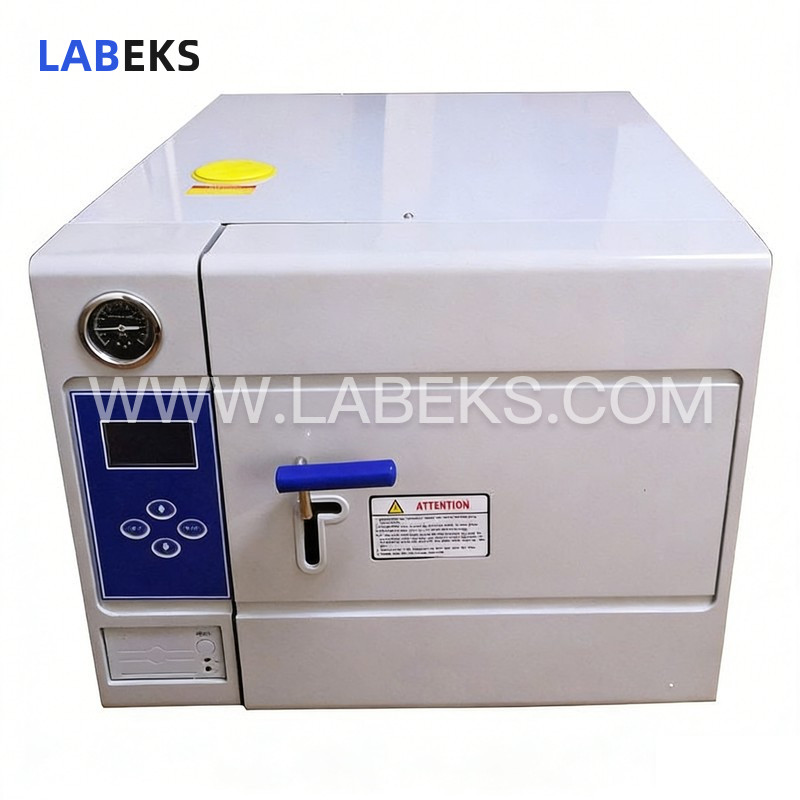

Benchtop Class B Pulse Vacuum Steam Sterilizer with -0.8bar Vacuum & Post-Vacuum Drying

Designed to deliver reliable, automated sterilization with high-pressure steam, the vacuum steam sterilizer is an ideal solution for disinfecting surgical instruments, dressings, utensils and culture media in medical and research facilities.

  • model
    L-35DV/L-50DV/L-90DV
  • brandLABEKS
  • min. order1 pcs
  • packageplywood case package

description

This safe, reliable, fully automated sterilization device comprises a heating system, microcomputer control system, and overheat/overpressure protection system. Boasting consistent disinfection efficacy, user-friendly operation, enhanced safety, energy efficiency, long-term durability, and cost-effectiveness, it serves as an ideal tool for medical and scientific research units to sterilize surgical instruments, dressings, utensils, and culture media.

features

1. Multiple safety mechanisms include a safety valve, manual safety door lock, pressure locking system, fault self-detection, and automatic over-temperature/over-pressure protection.

2. Complies with European Class B standards, featuring three-pulse pre-vacuum and post-vacuum drying functionality that keeps residual humidity below 0.2%.

3. Achieves a maximum vacuum level of -0.8bar, making it suitable for sterilizing packaged, unpackaged, solid, Class A hollow, porous, and internally pipelined instruments.

4. Efficiently expels air from hollow instruments (e.g., high-speed dental drills) to ensure high-temperature steam penetrates every internal area.

5. Supports BOWIE&DICK testing to verify steam penetration performance.

6. Includes built-in vacuum testing functionality to confirm vacuum performance on demand.

7. Integrated with a fast, standalone steam generator for rapid sterilization cycle initiation.

8. Features full microcomputer control and a modular, user-friendly operation interface for streamlined use.

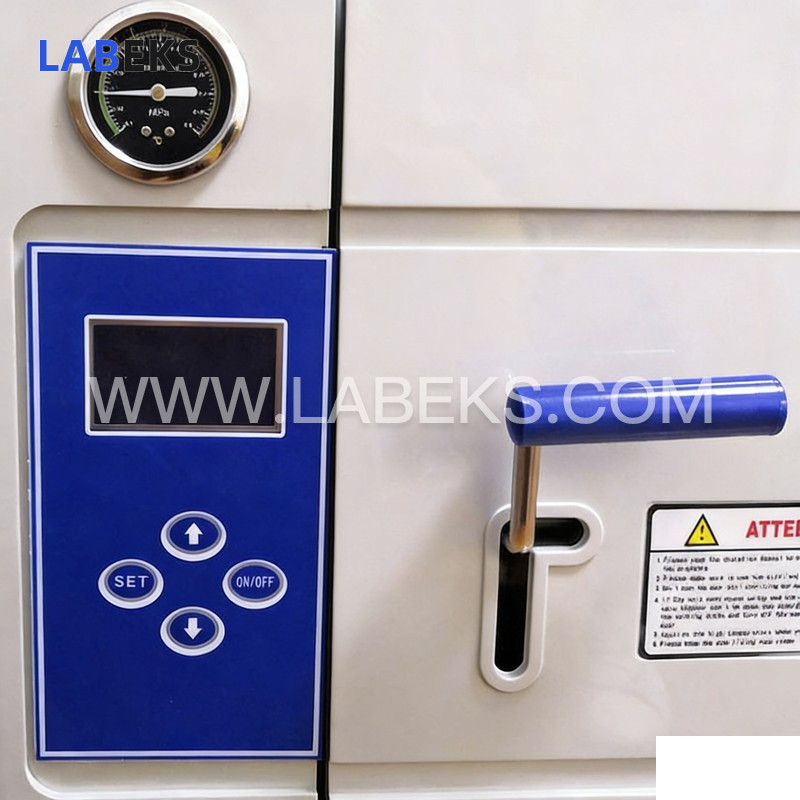

9. Equipped with an LCD screen for real-time working status monitoring and intuitive touch-button operation.

10. Comes with an integrated micro-printer to generate detailed records of all sterilization cycles.

11. Effectively inactivates HIV, hepatitis B virus (HBV), mad cow disease agent, and Bacillus species.

specifications

Model

L-35DV

L-50DV

L-90DV

Sterilizingchamber volume

35L

φ300×500mm

50L

φ340×550mm

90L

φ400×720mm

Maximumworking pressure

0.22Mpa

Maximumworking temperature

134℃

Adjustmentof temperature

105-134℃

Timer

0-99min

Heataverage

≤±1℃

Power

AC220V50Hz/2.7KW

AC220V50Hz/4KW

Size

730×550×510

770×600×540

1000×690×610

Packingsize(mm)

810×680×650

880×730×700

1070×740×700

Gross/Net weight

115/93Kg

130/106Kg

200/180Kg
