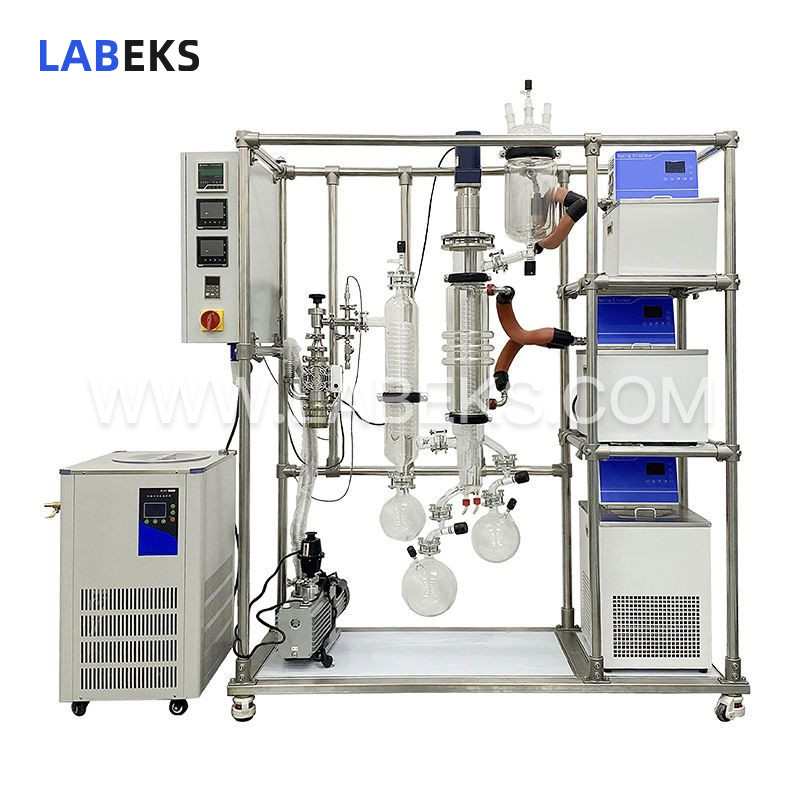

B Series Short Path Wiped Film Molecular Distillation: Low Residence Time for CBD Oil Processing
The short path wiped film molecular distillation, the gentlest thermal separation method for heat-sensitive materials, minimizes product thermal degradation. It is widely used in plant oils, garlic oil, cod liver oil, chemical and pharmaceutical sectors, with advantages including short residence time, low separation temperature, and unattended continuous operation.
- modelLGMD-B Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Molecular distillation is a specialized liquid-liquid separation device. Unlike conventional distillation, which relies on boiling point differentials for separation, this technology utilizes variances in the mean free path of distinct substances. As a liquid mixture flows along the inner wall of the main evaporator and is heated, light and heavy molecules escape the liquid surface and enter the gas phase. Due to differing free paths, light and heavy molecules travel varying distances after vaporizing. Light molecules reach the main evaporator’s built-in condensation coil and are collected, while heavy molecules fail to reach the coil and are discharged alongside the residual mixture, achieving targeted material separation.
Working Principle
Materials are fed from the supply tank into the jacketed main evaporator, which maintains a consistent heating temperature. An integrated scraper uniformly spreads the material into a thin, flowing liquid film for immediate evaporation. Light component substances vaporize and adhere to the built-in condensation coil, then flow into the light-fraction collection flask along the coil’s outer wall. Simultaneously, heavy component substances flow down the main evaporator’s inner wall into the heavy-fraction collection flask.
Application
Extraction of Deep-Sea Fish Oil |
CBD Oil Extraction |
Pharmaceuticals |
|---|---|---|
Plant Essential Oil Concentration |
Vitamin & Nutritional Essential Oil Separation |
Chemical Research |
features
1. Short residence time prevents heat-sensitive materials from deteriorating and carbonizing
2. High evaporation efficiency with short processing duration
3. Can achieve a vacuum level of 0.1Pa when paired with a diffusion pump for high-efficiency distillation
4. All glass components are made of borosilicate GG17
5. Borosilicate glass construction enables clear observation of the distillation process
6. Spherical grinding technology is utilized to sustain a high vacuum level
7. All system interfaces feature a spherical design to guarantee vacuum integrity
8. Connection ports adopt a ball-mill port design to maintain consistent high vacuum throughout operation
9. Turnkey solutions are available for processes ranging from biomass to CBD oil and crude to CBD oil
10. Imported controller cabinet with user-friendly operation, featuring digital displays for speed and temperature
11. Scrapers are constructed from polyphenylene, offering wear resistance six times higher than standard PTFE
12. The main evaporator incorporates a jacketed design, delivering high heating efficiency and excellent thermal insulation performance
13. Supports continuous material feeding and discharging
Precautions for Use
1. Pre-charge the cold trap with liquid nitrogen for pre-freezing prior to equipment operation
2. The equipment uses oil heating at high temperatures; do not touch with bare hands to avoid scalding
3. Operating temperature ranges from -80℃ to 250℃ (300℃ requires customization)
4. Ensure the cooling water valve is fully open and functioning properly before initiating operation
specifications
Model | LGMD-60B | LGMD-80B | LGMD-100B | LGMD-150B | LGMD-200B | LGMD-230B |
|---|---|---|---|---|---|---|
Main evaporator diameter(mm) | 60 | 80 | 100 | 150 | 200 | 230 |
Effective evaporation area(㎡) | 0.06 | 0.1 | 0.15 | 0.25 | 0.35 | 0.5 |
Feed rate(Kg/h) | 0.5-3.0 | 1.0-5.0 | 2.0-8.0 | 3.0-15.0 | 5.0-20.0 | 8.0-30.0 |
Feed tank volume(L) | 1 | 1 | 2 | 2 | 5 | 5 |
Speed(r/min) | 450 | 450 | 450 | 450 | 300 | 300 |
Volume of light component collect flask | 1L | 1L | 2L | 3L | 5L | 5L |
Volume of heavy component collect flask | 1L | 1L | 2L | 3L | 5L | 5L |
Motor power(W) | 90 | 120 | 120 | 120 | 200 | 200 |
Work temperature | -90℃～220℃ | |||||
Voltage | 220V/50Hz can be customized | |||||
