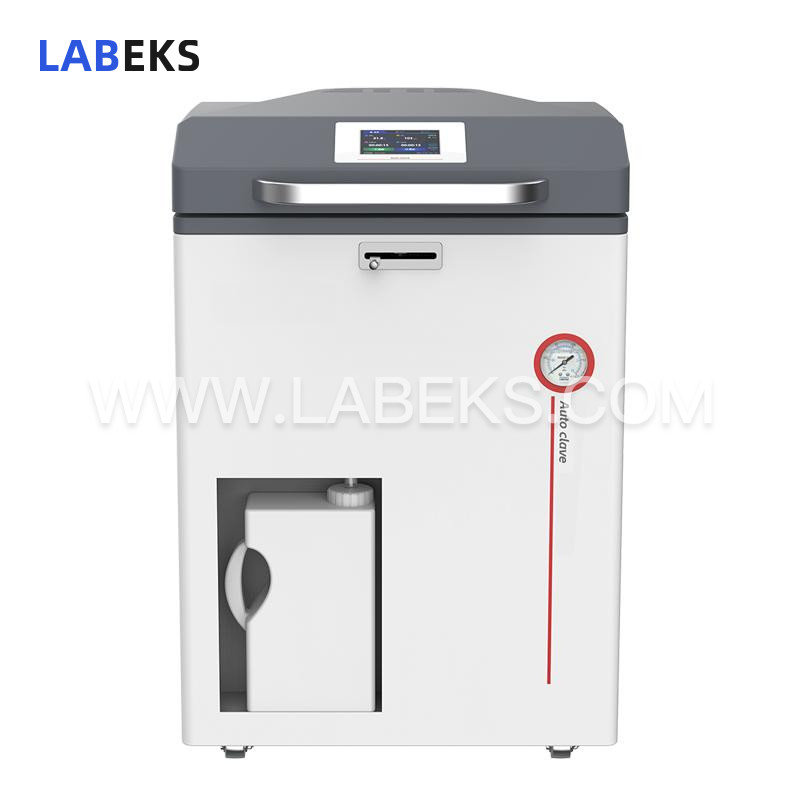

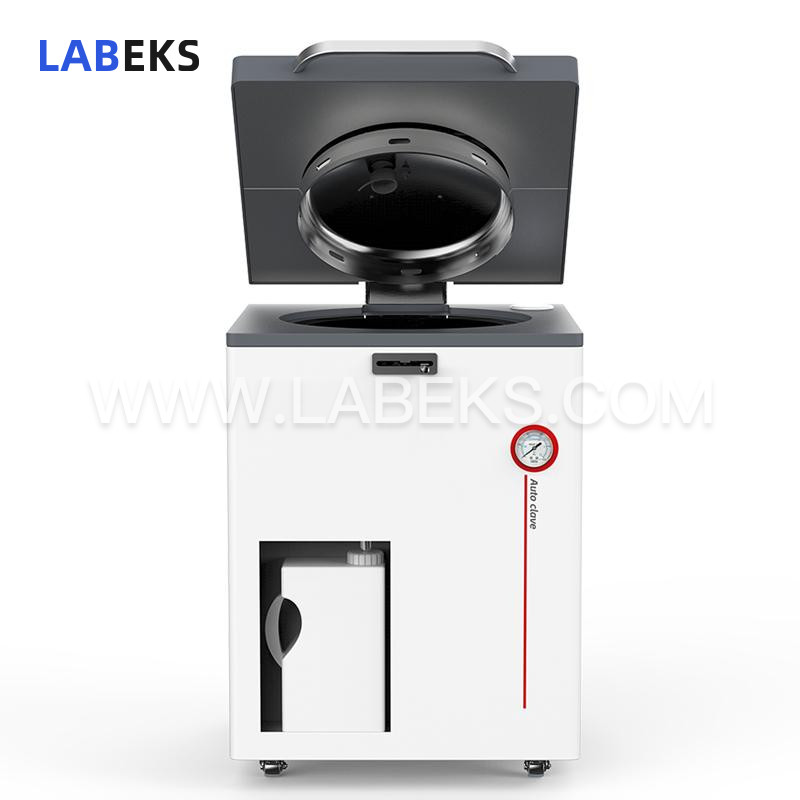

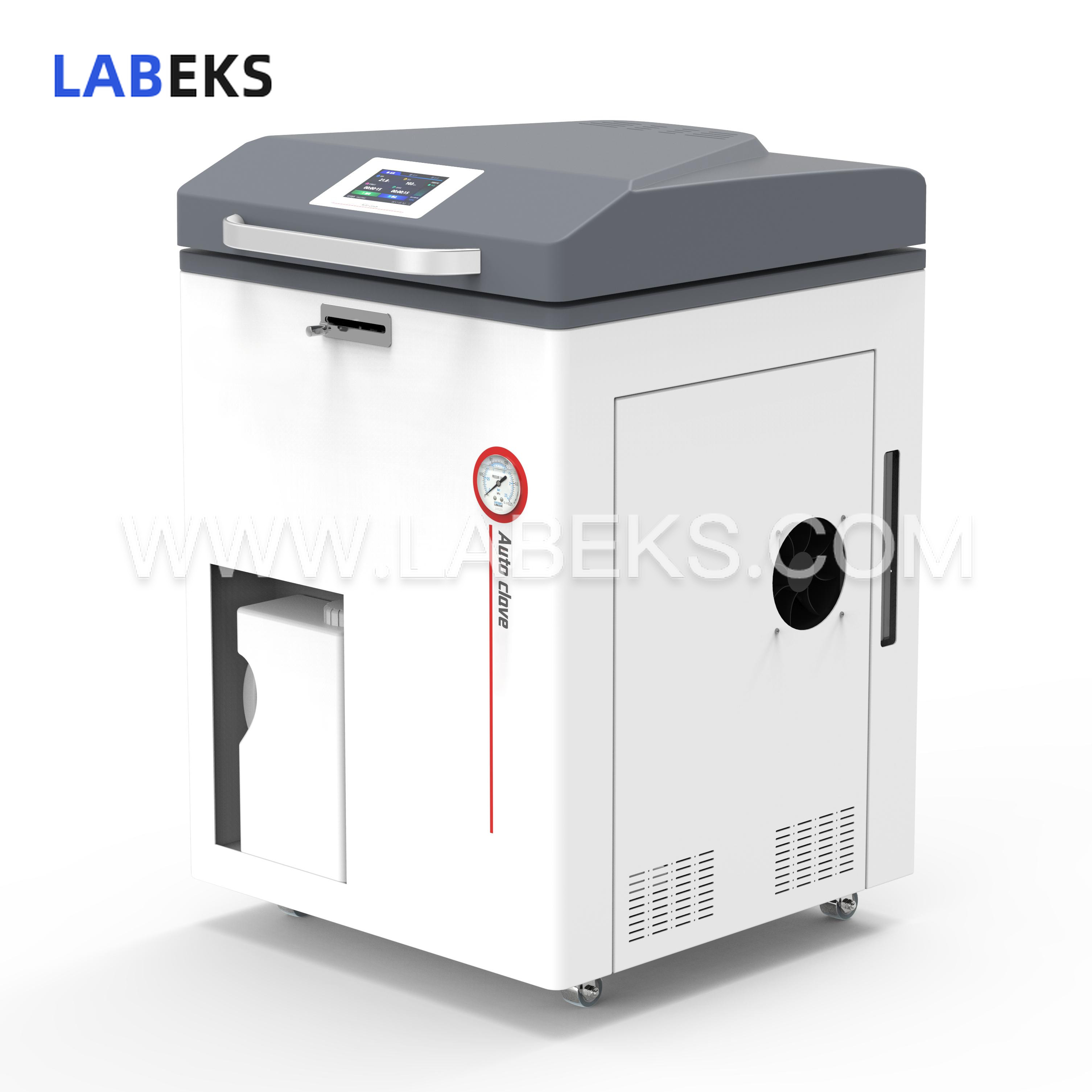

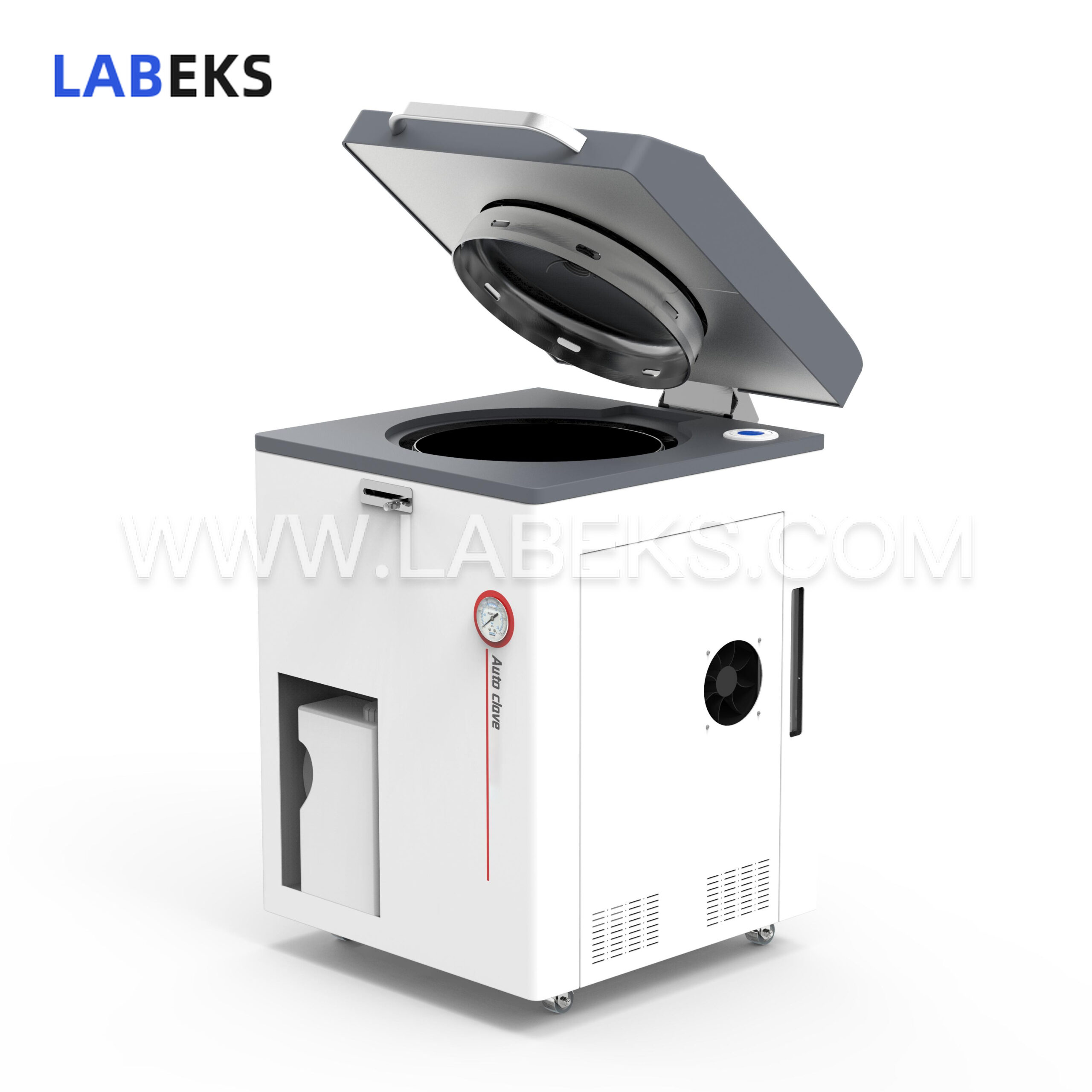

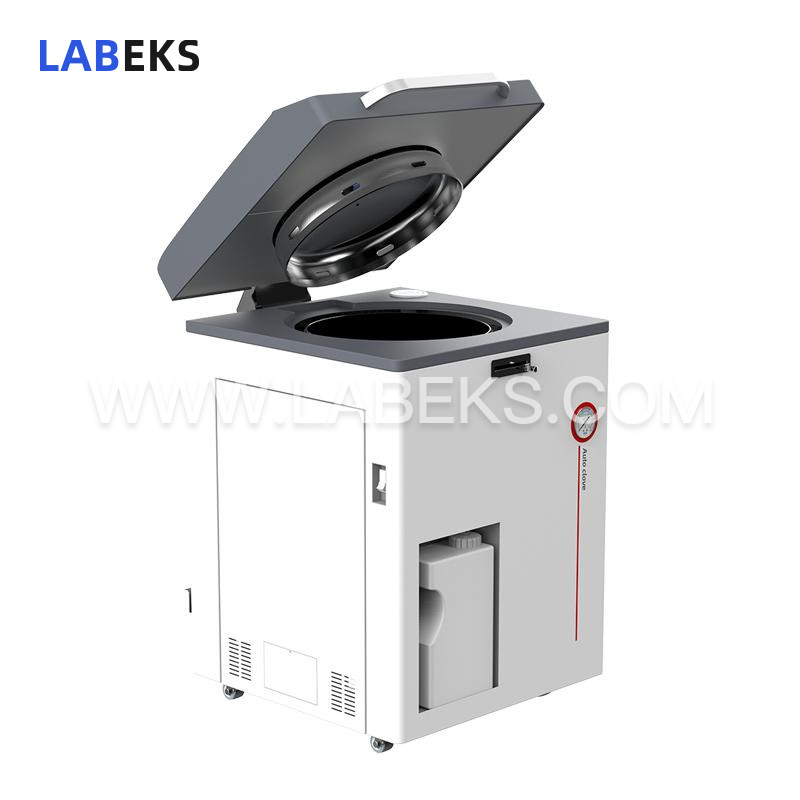

Automatic Water-filling Dry Steam Sterilizer: Precision Sterilization for Medical, Lab & Industrial Use

Employing high-temperature, high-pressure steam for thorough sterilization, this dry steam sterilizer eliminates bacteria, viruses, fungi and spores, meeting critical sterilization needs in medical, laboratory and industrial environments.

  • model
    LS Series
  • brandLABEKS
  • min. order1 pcs
  • packageplywood case package

description

Utilizing high-temperature and high-pressure steam for sterilization, this automatic water-filling dry steam sterilizer effectively eradicates microorganisms such as bacteria, viruses, fungi and spores, and is widely utilized in medical, laboratory and industrial sectors. Within the medical industry, it sterilizes surgical instruments, dressings and related items; in laboratory settings, it ensures sterility for culture media, glassware and other lab equipment; and in industrial operations, it supports sterilization processes in food and pharmaceutical production.

features

1. More Precise: Flexible exhaust methods and verifiable performance

2. Safer and More Effective Sterilization

3. Higher Quality: Superior Material Quality and Excellent Sealing Performance

4. Greater Simplicity and Operational Efficiency

specifications

Model

LS-65A/LS-65B/LS-65C

LS-90A/LS-90B/LS-90C

LS-115A/LS-115B/LS-115C

Capacity

65L

90L

115L

Dimensions(L×W×H)

664×660×994.5mm

664×660×994.5mm

664×660×1200mm

SterilizationChamberDimensions

φ400×530mm

φ400×730mm

φ400×920mm

Rated Power(W)

2800W

3400W

4500W

StainlessSteelBaskets

φ370×200×2

φ370×200&φ370×400

φ370×400×2

WorkingVoltage

AC220±10%50Hz

TemperatureDisplay Accuracy

0.1℃

OperatingEnvironment

5℃~40℃、relative humidity10%~85%

Sterilization ChamberMaterial

SUS304stainless steel

SterilizationWorking Temperature

105℃~143℃

SterilizationTime Pre-setRange

1min~9999mins

MeltingTemperature Pre-setRange

60℃~100℃

Melting Time Pre-set Range

1min~9999mins

Insulation Temperature Pre-set Range

45℃~60℃

InsulationTimePre-setRange

1min~9999mins

DoorOpening Temperature Pre-set Range

The solid,agar,and waste modes are from40℃to99℃,while the liquid mode is from40℃to80℃

Clock Function Timer Pre-set Range

The operating time can be set(year,month,day,hour,minute),and it allows querying of the current time,totalsterilization cycles,as well as fault occurrence times and error codes.

PressureGauge DisplayRange

0~0.6Mpa

Pressure

The chamber design pressure is0.35 MPa.Each unit comes with a corresponding product quality certificate andan original certificate issued by the special equipment manufacturingsupervision and inspection department.

PressureSafetyProtection

Two independent pipelines formeasurement and control,with dual mechanical and electronic pressureprotection.

Exhaust Controland WaterTank

Fully automatic internalexhaust(exhaust temperature settings are detailed in the manual),with abuilt-in large-capacity steam condensate collection bottle and water tank.

CoverOpening MethodandInterlockingDevice

Unique eight-column interlockingdevice,flip-style switch cover,touch-type handle.

ControllerandMemoryStorageFunction

Uses a microcomputer intelligent control system.It has6default operating modes,82customizablemodes,and88memorystorageprograms.

SafetyDevices

Door lock interlock device;coverclosure check;dry burn protection;water level sensor monitoring;electronicover pressure protection;mechanical safetyvalve;over temperature and heatingprotection;over current,short circuitprotection;leakage protection;cooling lock;burn injury safetyprotection;automatic fault detectionsystem.

Accessories

Condensatecollection bottle,waterseparation plate,drainagehose,stainlesssteelbasket.

OptionalAccessories

Printer,cooling fan,item temperature sensor,USB output.

Series Description

Aseries(standard type )/ B series(auto water replenishment type) / Cseries(auto drying type)
