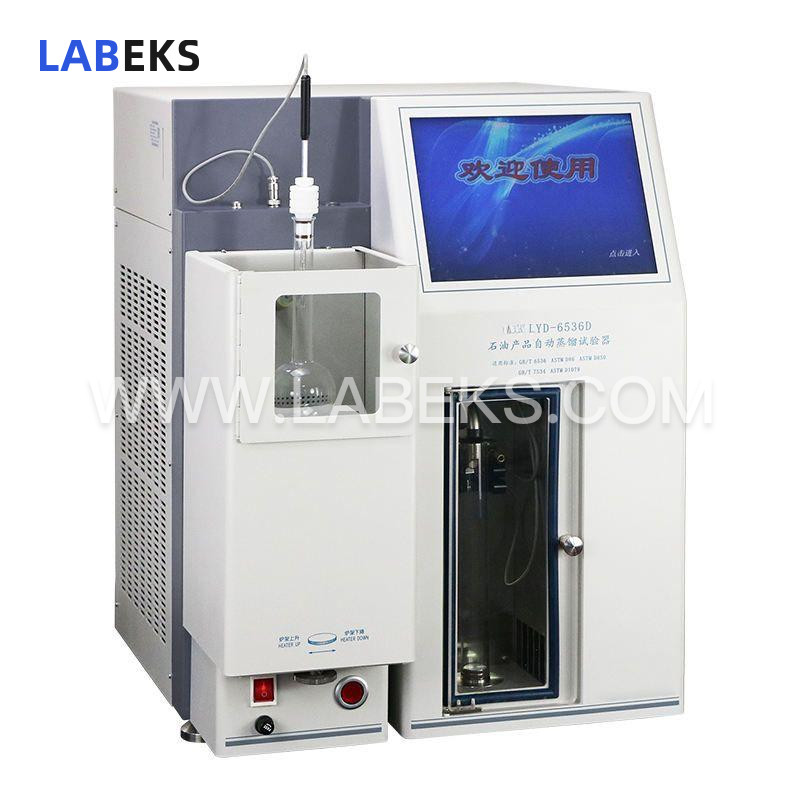

Automatic Distillation Tester for Petroleum Products with Fully Automated Operation

Intelligent SCM control automates all key testing processes, including heating, cooling, distillate liquid level tracking, distillation rate regulation, recovered solution management, temperature logging, and result printing.

Equipped with imported compressors and temperature sensors, along with an automatic liquid level tracking system, the instrument delivers highly reliable and repeatable test results.

Integrated microcomputer with advanced IPC technology, featuring a 12.1-inch touchscreen LCD, supports intuitive human-machine interaction for simplified operation.

Real-time display of vapor temperature, heater temperature, and distillation rate curves allows operators to instantly verify if test readings comply with standard requirements.

Customizable testing standards and distillation procedures can be added to accommodate specific customer requirements and different oil sample types.

Integrated automatic barometric pressure detection and correction functionality ensures test results remain unaffected by variations in atmospheric pressure.

Post-test vapor temperature calculation is supported by inputting the residual sample amount after testing.

The cold bath incorporates anti-freezing solution, an internal circulation stirrer, a liquid level sensor, and an overflow pipe to maintain stable, normal bath water levels.

An integrated automatic fire-extinguishing device enhances testing safety by mitigating potential fire hazards.
