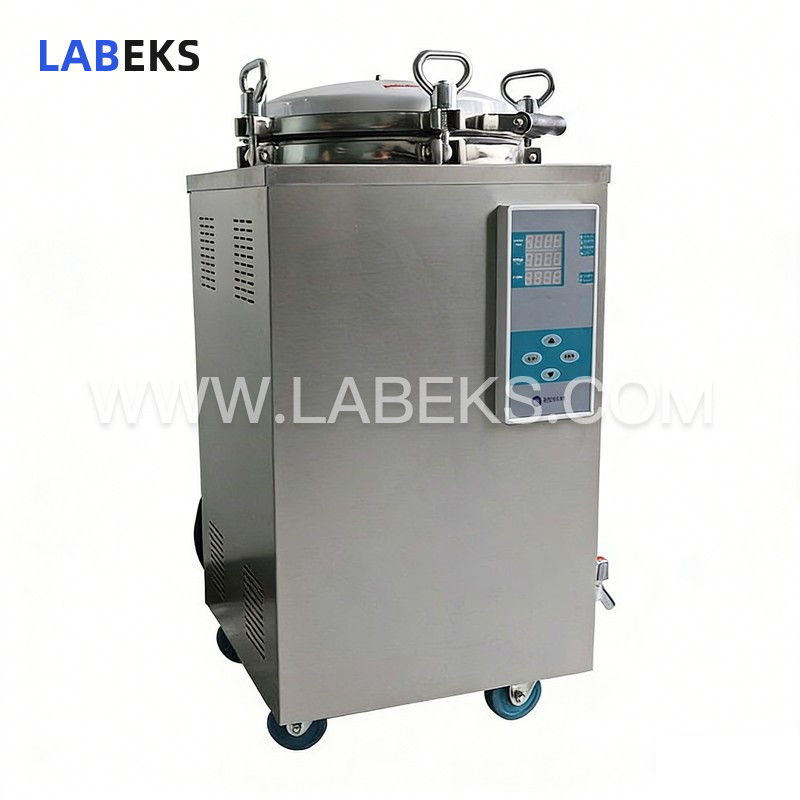

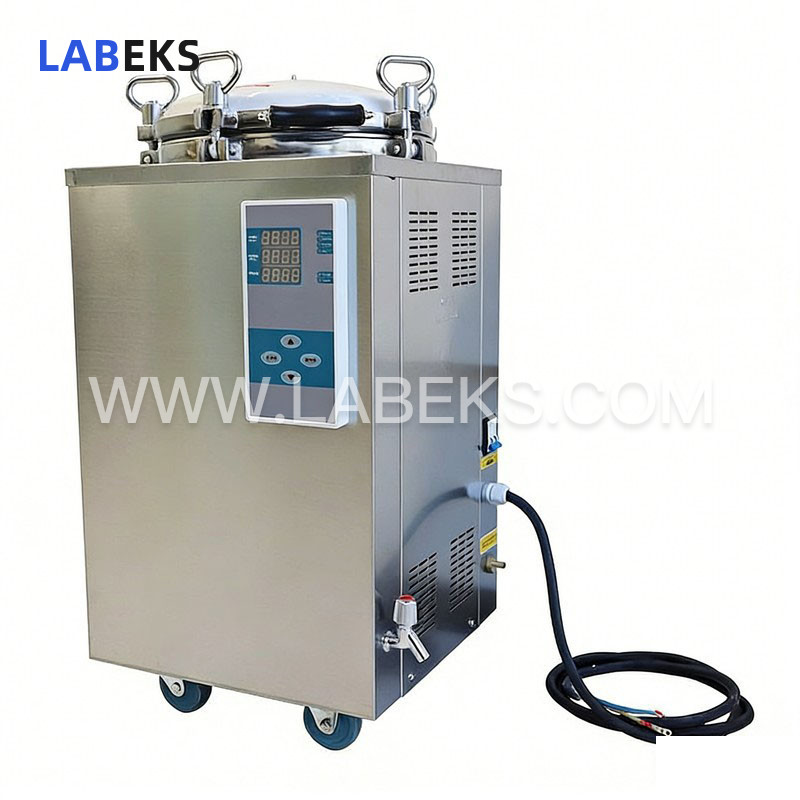

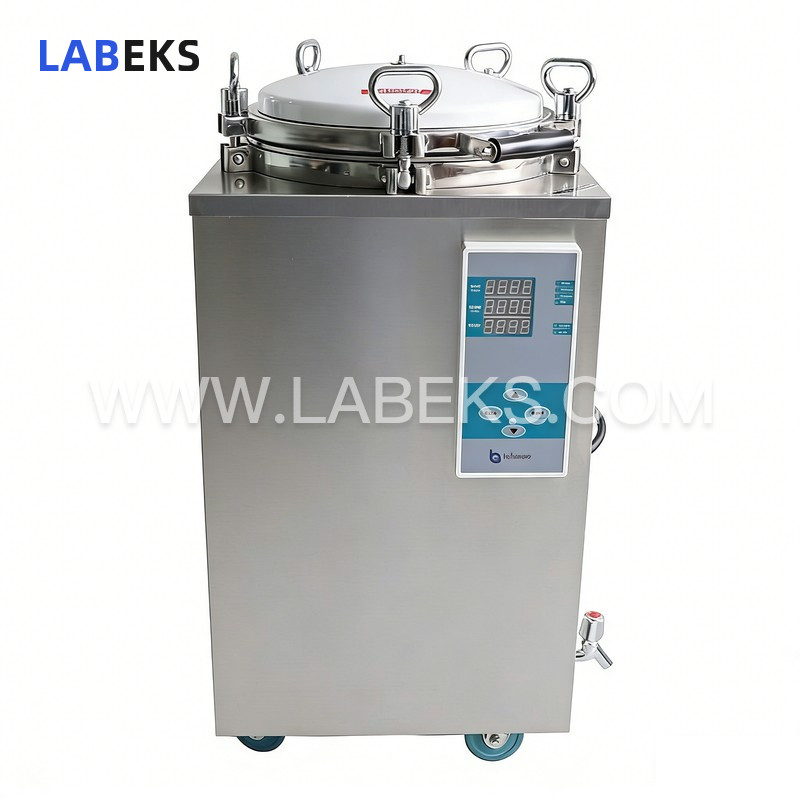

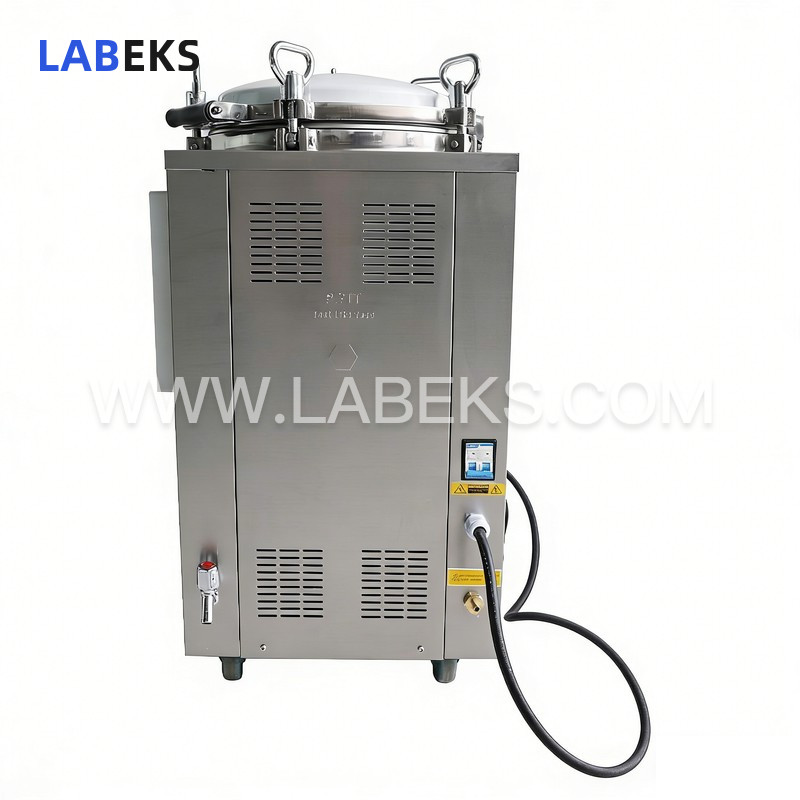

Automatic Control Digital Display Sterilizer with Stainless Steel Build for Medical & Research Labs
Engineered to deliver dependable sterilization via high-pressure steam, this high pressure steam sterilizer is an essential solution for medical and scientific research institutions to sanitize surgical instruments, dressings, utensils, and culture media.
- modelL-LD Series
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Our vertical sterilizer is a safe, reliable, and automatically controlled sterilization system integrating a heating system, microcomputer control system, and overheat/overpressure protection system. Boasting consistent sterilization performance, intuitive operation, enhanced safety, energy efficiency, long-term durability, and cost-effectiveness, it serves as the ideal equipment for medical and scientific research units to disinfect surgical instruments, dressings, utensils, and culture media.
features
1. Integrated accident protection system
2. Inoperable when the top cover is open
3. Top cover lock during operation
4. Automatic heating element shutoff when water level is low
5. Heater protection sensor for overheat prevention
6. Precision pressure and water level control

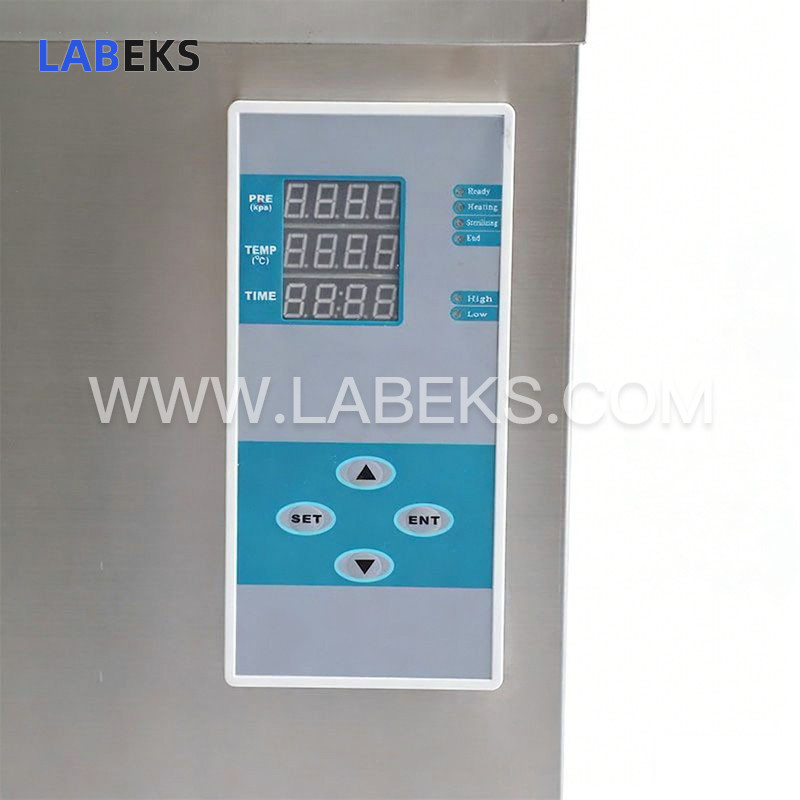

7. Digital display of operating status with touch controls
8. Supports manual or semi-automatic operation modes
9. Automatic cold air venting and post-sterilization steam exhaust
10. Automatic shutdown with audible beep notification upon sterilization completion
11. Crafted with a fully stainless high-alloy steel construction
12. Comes with three stainless steel sterilization baskets
13. User-friendly operation with enhanced safety and reliability
14. Optional drying system available upon customer request
specifications
Model | L-35LD | L-50LD | L-75LD | L-100LD | L-120LD | L-150LD |
|---|---|---|---|---|---|---|
Chamber volume | 35L(φ318×450)mm | 50L(φ340×550)mm | 75L(φ400×600)mm | 100L(φ440×650)mm | 120L(φ480×650)mm | 150L(φ510×740)mm |
Working pressure | 0.1-0.22MPa | |||||
Working temperature | 120-134℃ | |||||
Max working pressure | 0.23 Mpa | |||||
Heat average | ≤±1℃ | |||||
Timer | 0～99min or 0～99hour59min | |||||
Adjustment of temperature | 105～134℃ | |||||
Power | 2.5Kw/AC220v.50Hz | 3Kw /AC220V.50Hz | 4.5KW AC220V.50Hz | 6KW AC220V.50Hz | ||
Overall dimension | 480×460×850(mm) | 520×520×980(mm) | 560×560×980(mm) | 590×590×1080(mm) | 630×610×1130 (mm) | 660×640×1130 (mm) |
Transport dimension | 570×550×970(mm) | 590×590×1110(mm) | 650×630×1150(mm) | 680×650×1220(mm) | 690×690×1240 (mm) | 730×730×1230 (mm) |
G.W/N.W | 56Kg/ 42Kg | 68Kg/50Kg | 90Kg/70Kg | 105Kg/85Kg | 126Kg/101Kg | 136Kg/111Kg |
