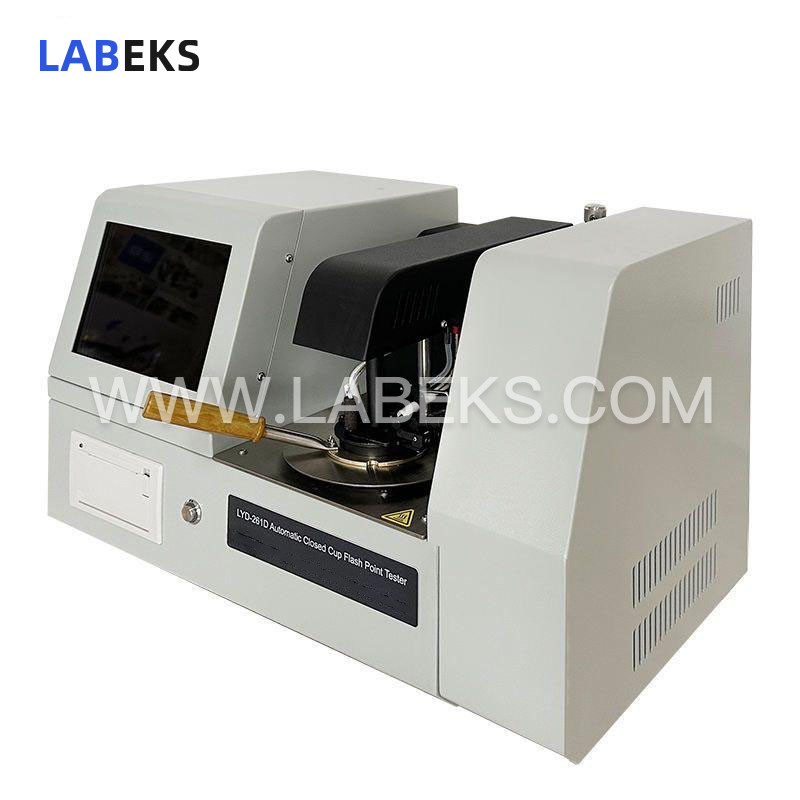

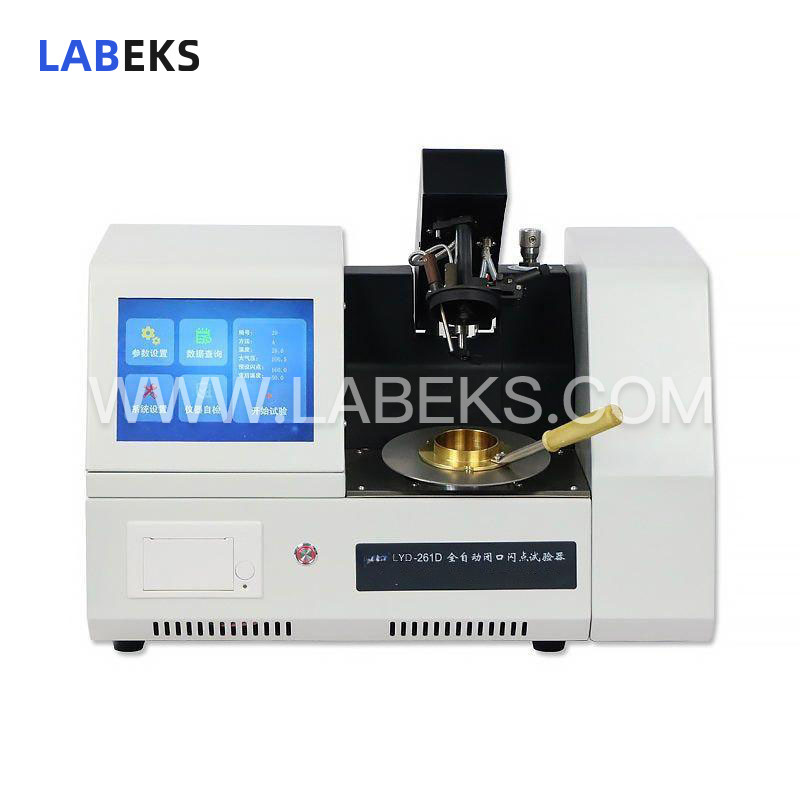

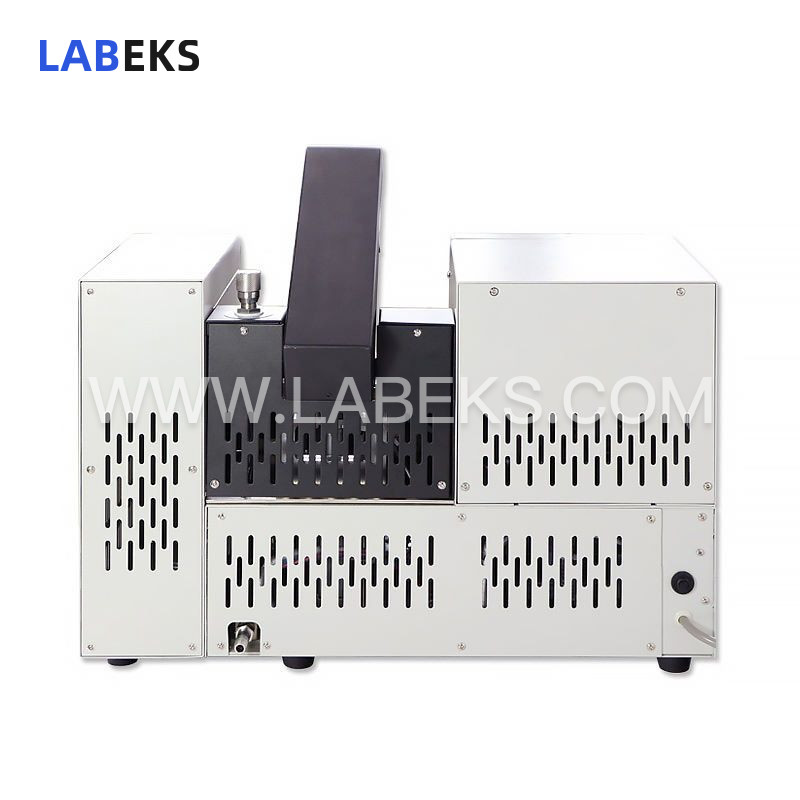

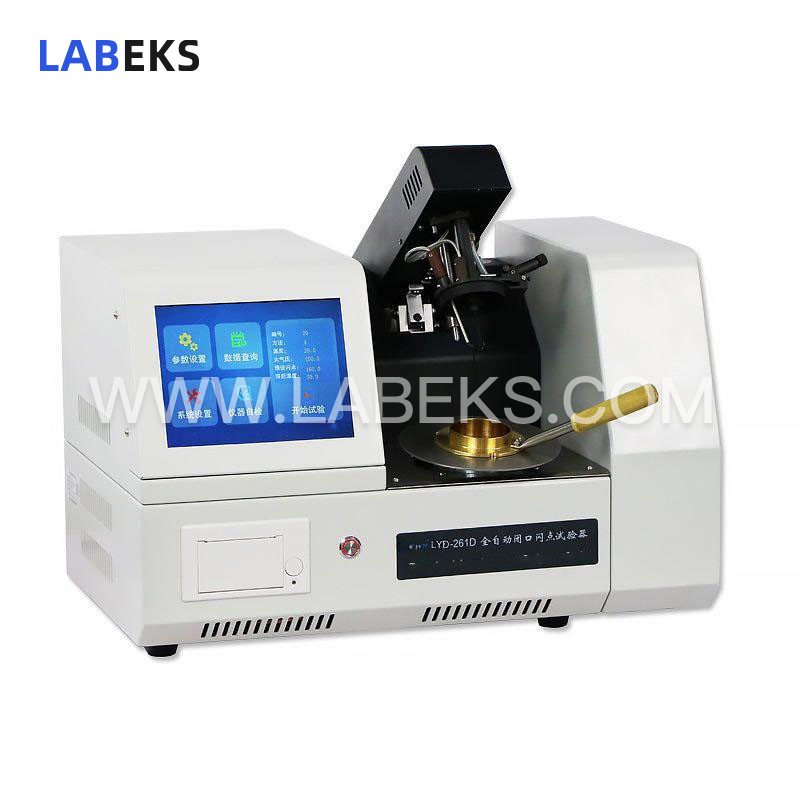

Automatic Closed Cup Flash Point Tester with Real-Time Data Recording & Bluetooth Connectivity
Designed to meet shipping and safety regulatory requirements, the closed cup flash point tester is a critical tool for evaluating flammable and combustible substances across petroleum asphalt, heavy oil, and lubricating oil industries.
- modelLYD-261D
- brandLABEKS
- min. order1 pcs
- packageplywood case package
description
Manufactured in strict compliance with GB/T 261-2008 (Determination of Flash Point – Pensky-Martens closed cup method) and ASTM D93 Standard Test Method for Flash Point by Pensky-Martens Closed Cup Tester, this instrument is purpose-built to accurately determine the closed cup flash point of petroleum products.
features
1. Fully automated test workflows, including temperature ramping, cover opening, ignition, flash detection, data printing, and automatic lifting/lowering of the test arm.
2. Automatically measures atmospheric pressure and conducts real-time correction of flash point values to guarantee testing precision.
3. Utilizes a 32-bit ARM processor and high-precision AD chip for real-time recording and curve-based display of test data and parameters.
4. Incorporates an 8-inch IPS high-definition capacitive screen for intuitive operation and clear data visualization.
5. Equipped with a Bluetooth interface that allows users to access and query test data at any time.
6. Supports remote automatic firmware upgrades, predictive monitoring, abnormal operation alerts, as well as comprehensive evaluation and maintenance of instrument operating status.
7. Provides electronic ignition and gas flame options, with automatic air cooling functionality at the conclusion of each test.
specifications
Model | LYD-261D | ||
|---|---|---|---|
Power supply | AC( 220±10% )V, 50Hz | ||
Total power consumption | ≤600W | ||
Flash point temp. | Range | Ambient to 400℃ | |
Accuracy | 0.1℃ | ||
Stirring rate | Procedure A and C: (90～120)RPM, Procedure B:(250±10)RPM Automatic control andmanually adjustable. | ||
Heating rate | Procedure A: (5～6)℃/min, Procedure B: (1～1.5)℃/min Procedure C: (3.0±0.5)℃/min | ||
Igniting mode | (1)Electric ignition. (2)Diameter of igniter：0.7mm～0.8mm | ||
Data transmission mode | Bluetooth | ||
Suitable environment | Ambient temperature | （15～35）℃ | |
Relative humidity | ≤85% | ||
Dimension | 510mm×320mm×330mm | ||
Net weight | 20kg | ||
