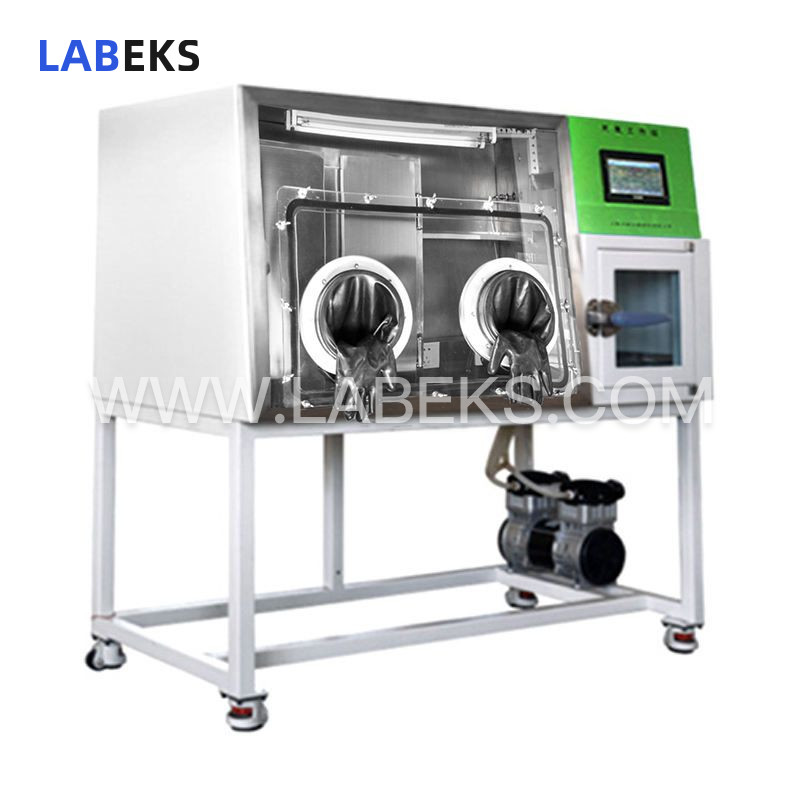

Anaerobic Incubator with 7-Inch Touch Screen for Anaerobic Biology Research

1. Equipped with a 7-inch large-format true-color touchscreen and microcomputer control system, this incubator enables accurate, intuitive control of temperature and other critical parameters. Featuring a PLC as its core controller, supplemented by high-precision temperature sensors, oxygen sensors, temperature control modules, and analog modules, the system delivers high control accuracy, exceptional stability, and enhanced safety. Its user-friendly human-machine interface allows operators to monitor process data in real time.

2. An imported oxygen sensor is utilized, with the oxygen content in the operation room displayed directly on the touchscreen for convenient verification of anaerobic status.

3. The operation room employs fully automatic gas replacement technology, with integrated positive and negative pressure protection.

4. A deoxidizing catalytic device is installed in the operation room, utilizing a high-efficiency palladium catalyst that does not require frequent activation.

5. The sampling (passage) room is equipped with automatic vacuuming and automatic pressure maintenance functions.

6. Sample transfer is a manual operation: gas exchange is performed first when transferring samples in or out, followed by entry into the incubator. It can transfer up to 40 pieces of 90mm plates at once, serving as both an access channel for operations and a platform for plate transfer.

7. The front perspective window of the operation room is made of a thick, transparent, impact-resistant special glass plate, allowing clear, direct observation of indoor operations. The latex gloves are comfortable, reliable, and easy to use.

8. The front cover of the perspective window can be fully removed, facilitating placement of larger instruments or thorough cleaning.

9. A USB interface is provided, with storage capacity to retain 6 months of operational data.

10. An ultraviolet germicidal lamp is installed in the operation room to effectively prevent bacterial contamination.

11. Standard lighting and power sockets are included.

12. A unique oil-bottle type pressure relief gate design protects internal positive pressure, prevents air leakage, and avoids glove damage caused by excessive positive pressure.

13. An oil-free vacuum pump is adopted.

14. Equipped with a leakage protector for enhanced safety.
