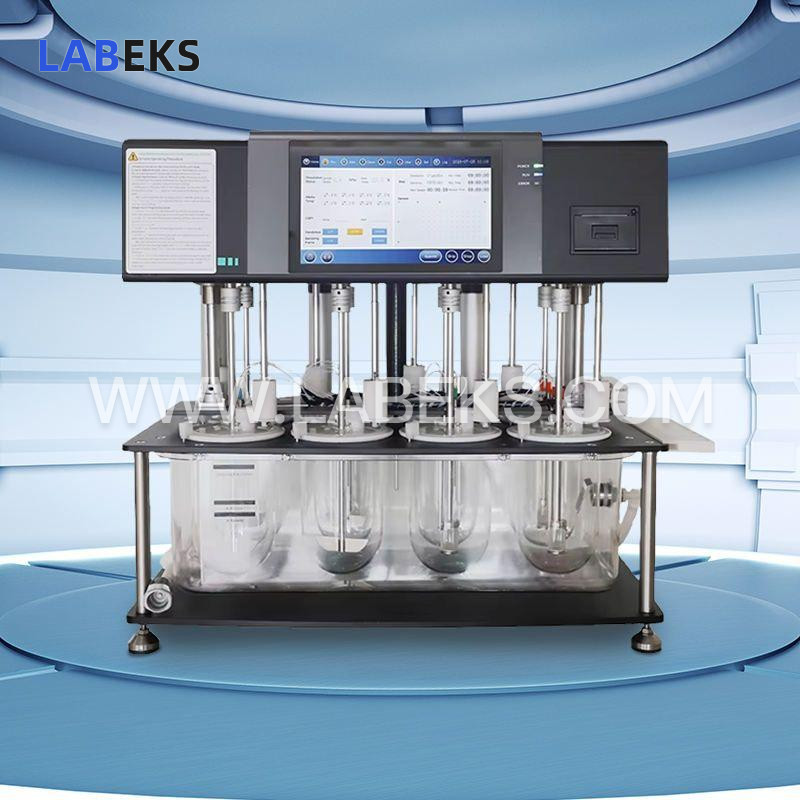

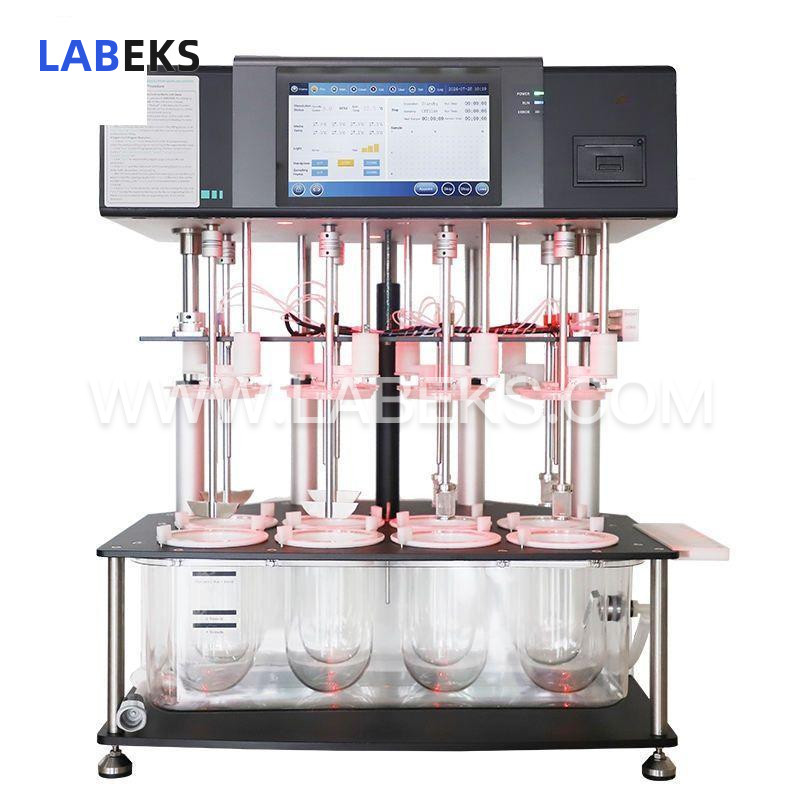

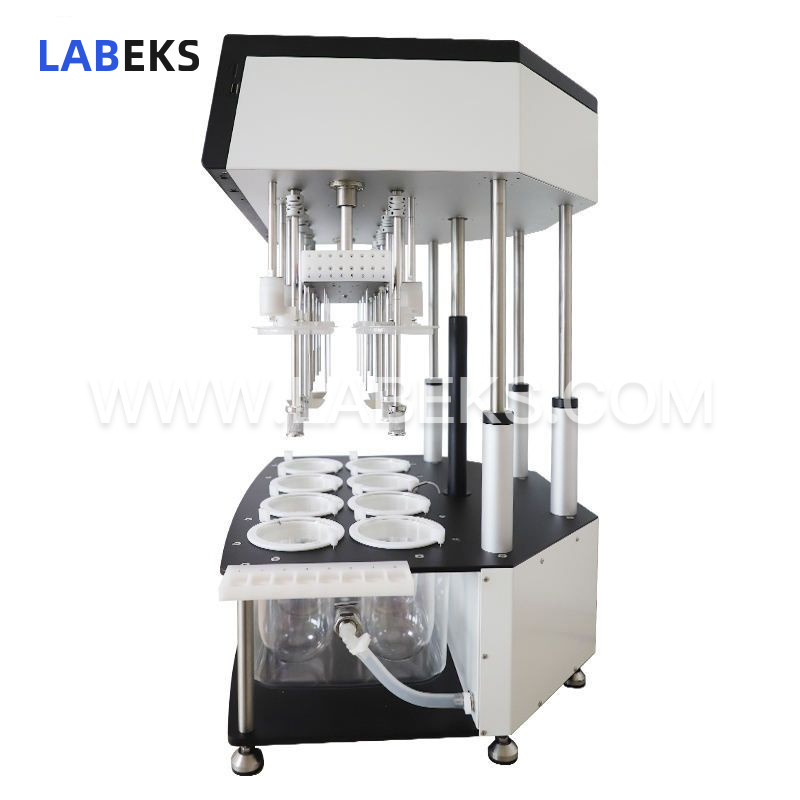

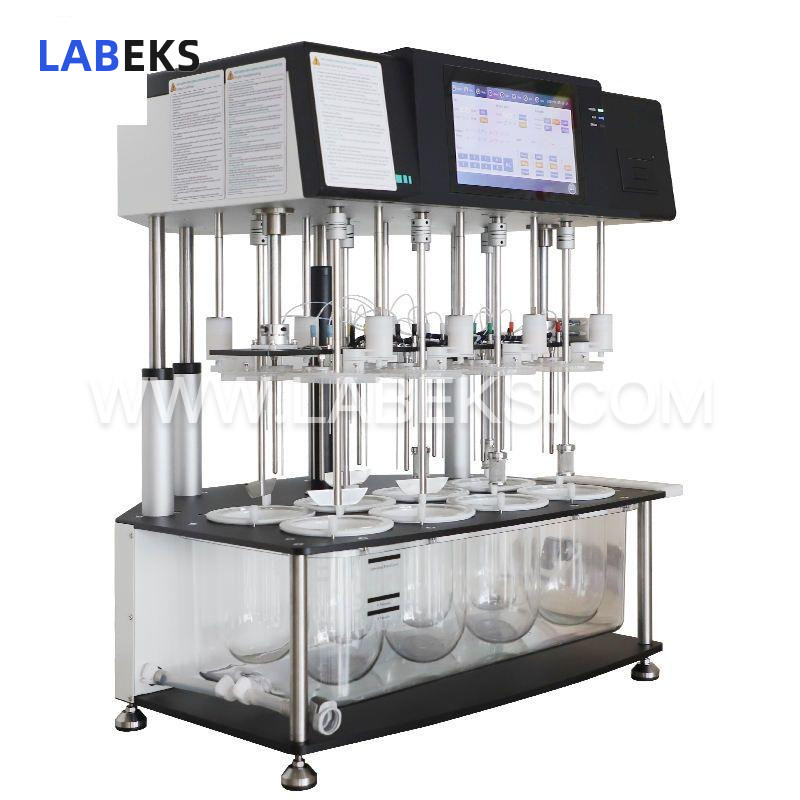

8-Cup Drug Dissolution Apparatus with Sampling System for Pharma, Chemical & Food Testing

1. Offers three levels of administrative access privileges compliant with audit trail requirements, regulating user access and preventing unauthorized modifications to instrument configurations or test methods.

2. Equipped with 8 individual cup temperature probes, it enables independent monitoring and real-time display of solvent temperature in each vessel. The probes can be raised during testing; with PID + fuzzy control technology, temperature control accuracy reaches ±0.2℃, and temperature resolution is 0.1℃.

3. Boasts a 10-inch color touchscreen for straightforward setup, storage, and operation of up to 100 test methods. Its user-friendly interface includes a screen lock security feature, with Chinese and English language support available.

4. Incorporates an independently controlled heating circulation system that minimizes vibration while optimizing bench space utilization. The unattended reservation function allows for automatic constant-temperature water bath operation, reducing experimental turnaround time.

5. Provides storage space for 100 experimental methods, with USB connectivity enabling one-click import and export operations to eliminate the complexity of method transfer between different instruments.

6. Comes with an integrated printer for real-time printing of log records, with experimental process data logs available for auditing, querying, and export (exported documents require the company’s dedicated software for access).

7. Built-in photosensitive illumination, paired with brown dissolution vessels, ensures optimal performance for light-sensitive experiments.

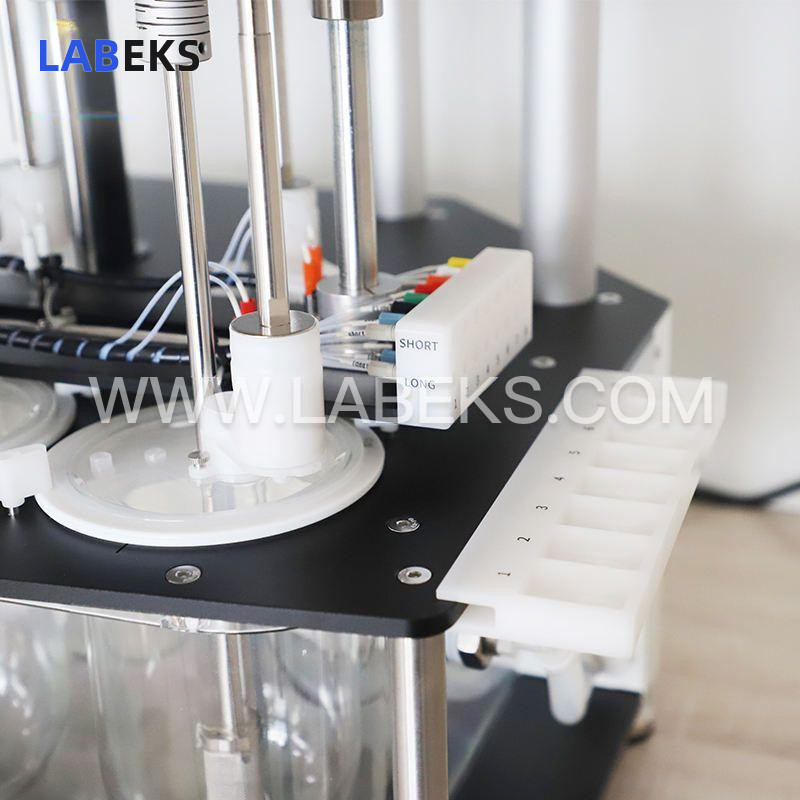

Sampler Parts

1. Utilizes German-imported syringes to automate rinsing, filling, waste dripping, sampling, replenishment, and emptying processes, ensuring high sampling accuracy and minimizing residual material in pipelines.

2. Adopts imported PTFE micro-transparent pipelines with excellent corrosion resistance and anti-absorption properties. It supports continuous sampling, dual-sample sampling, and automatic sample dilution, with pre-rinsing of pipelines and sampling pumps before testing to maintain sampling accuracy.

3. Features automatic positioning detection for test tube racks, which automatically calculates sampling height to ensure precise sampling at positions compliant with pharmacopoeial standards based on solvent volume.

4. Equipped with a secondary filter interface to ensure thorough filtration of solvents during sampling.

5. Includes an automatic door opening mechanism for one-key access to the sampling chamber.

6. Offers one-key automatic cleaning of the liquid tank and pipelines post-experiment to prevent cross-contamination.
